SoundTube CM1001D‑T 10-Inch In‑Ceiling Subwoofer Kit

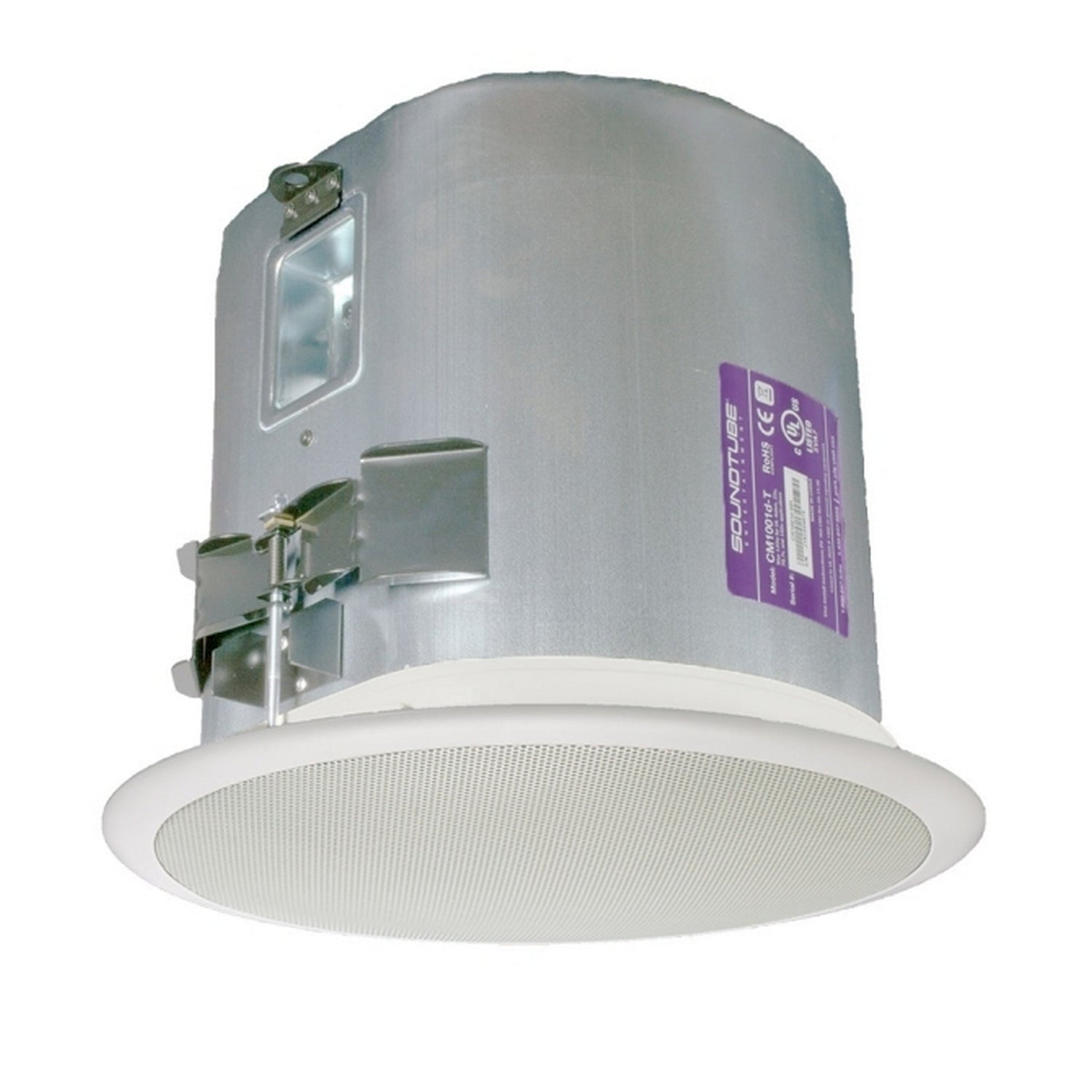

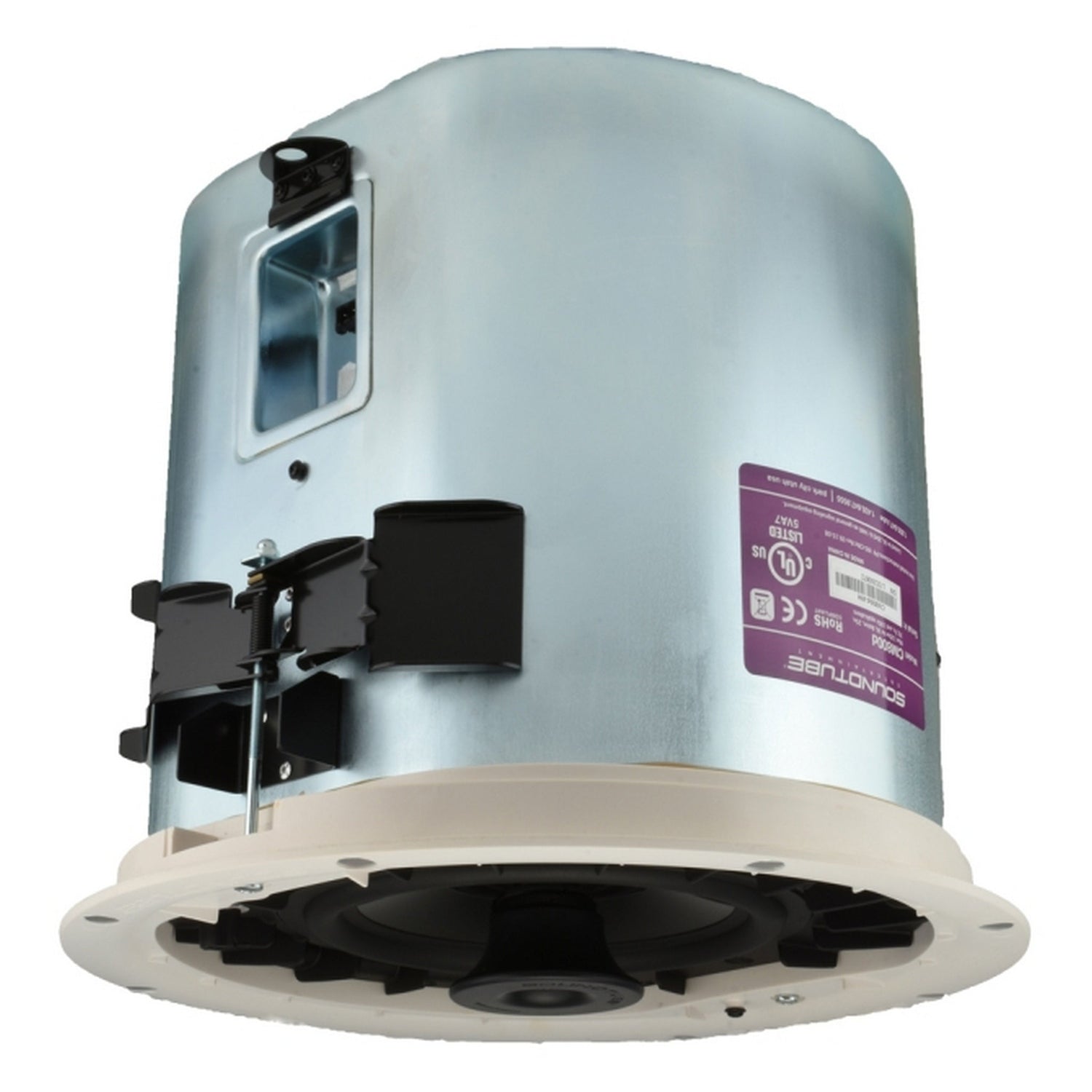

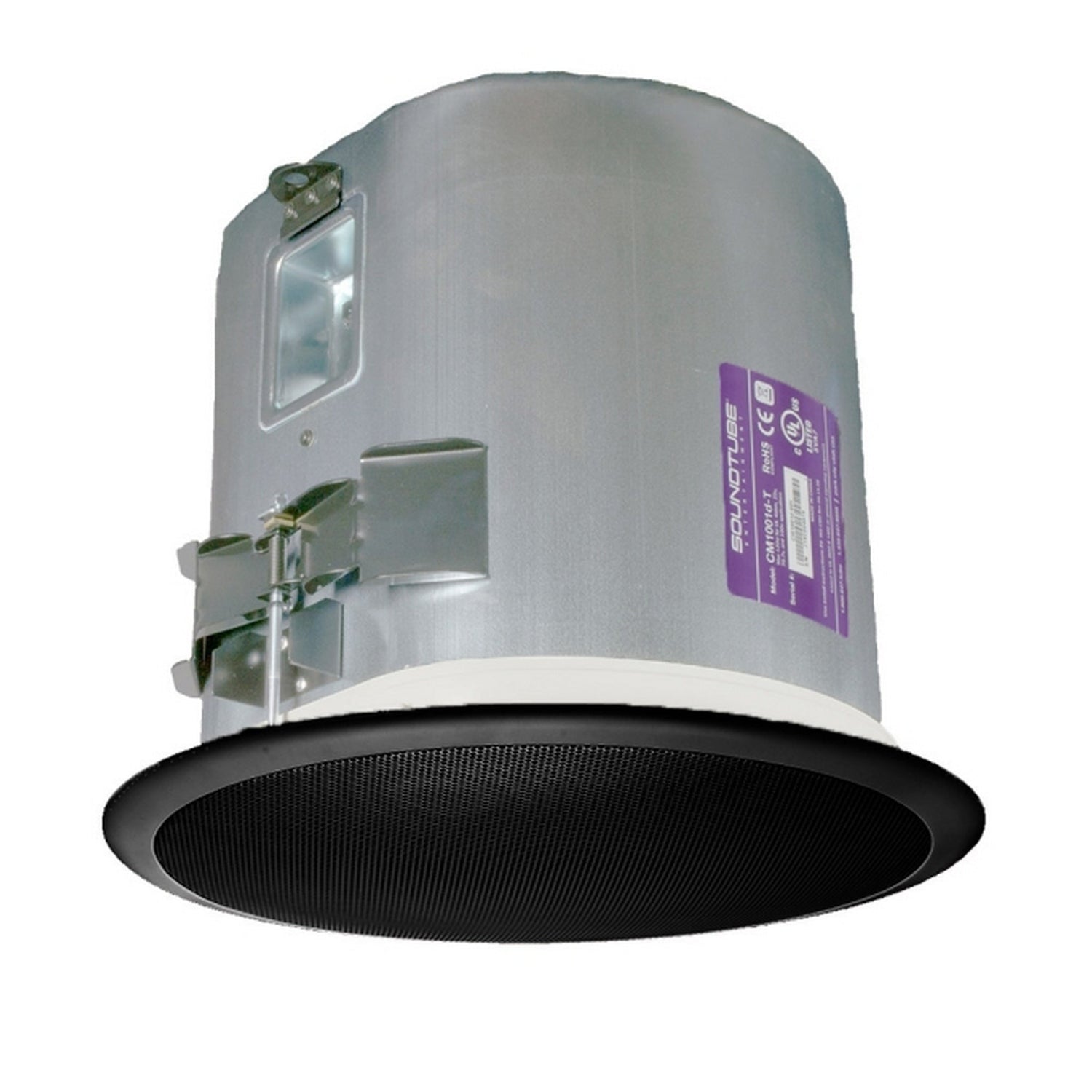

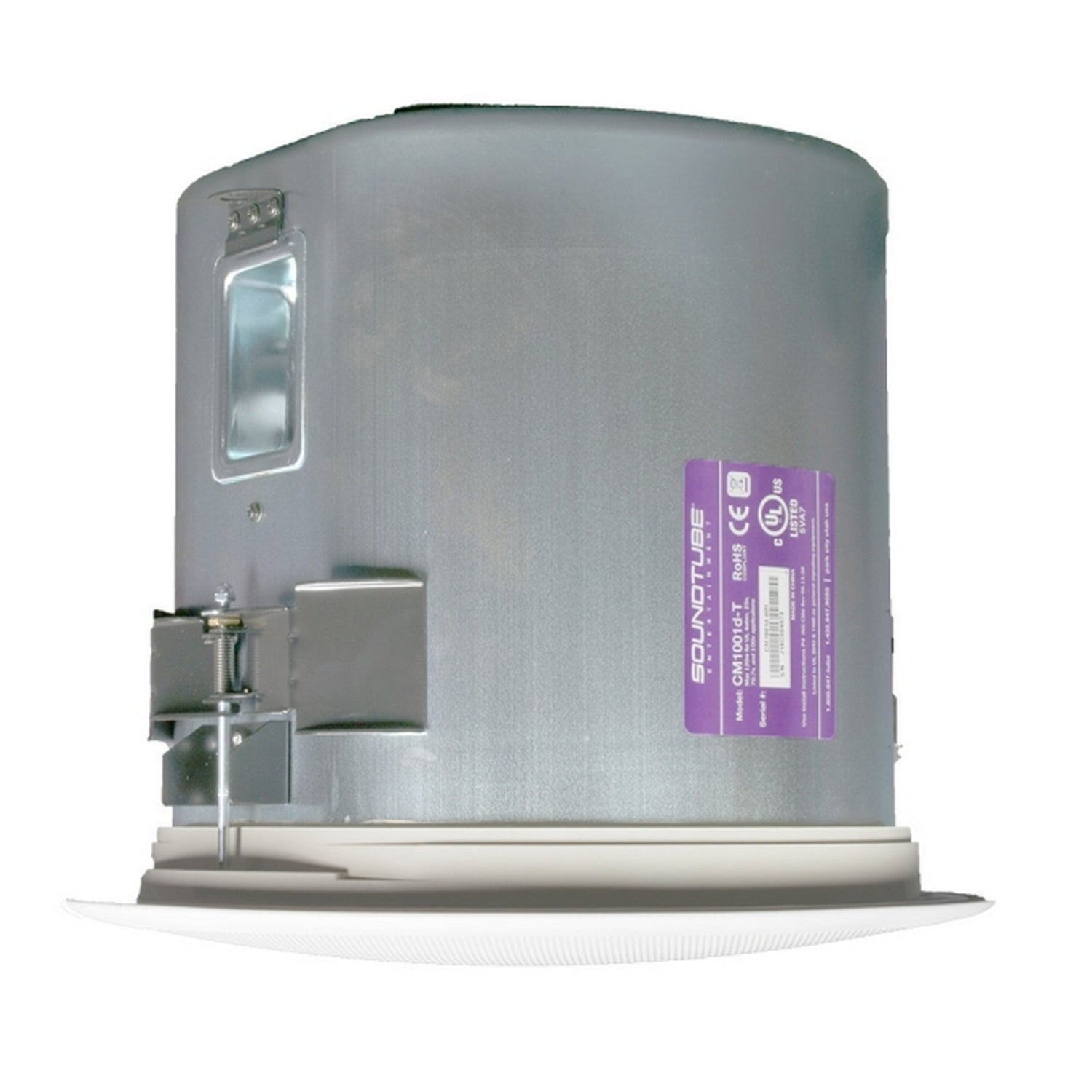

The SoundTube CM1001D‑T is a high-output commercial‑grade in‑ceiling subwoofer featuring a 10″ polypropylene cone with butyl rubber surround, mounted on a reinforced ABS baffle within a 12.9 L steel “DeepCan” enclosure. It delivers an accentuated low‑frequency peak around 70 Hz and is ideal for background music and paging applications.
Installation is fast and tool‑free, with a blind‑mount fixed‑wing mechanism that works with ceiling thicknesses from 0.25″ to 1.91″. Connection is through a four‑position Euroblock and a five‑way tap switch allows 25 V, 70.7 V, 100 V taps or transformer bypass. A durable steel powder‑coated magnetic grille and paint shield complete each kit.
This model is available in two finishes—Black (CM1001D‑T‑BK) or White (CM1001D‑T‑WH)—with identical specifications and contents, letting installers match ceiling aesthetics precisely.
Key Features
- Woofer: 10″ polypropylene cone with butyl rubber surround
- Enclosure: 12.9 liter steel DeepCan with flared and tuned port
- Mounting: Rapid blind-mount fixed-wing installation for ceilings 6.4 mm–48.5 mm thick

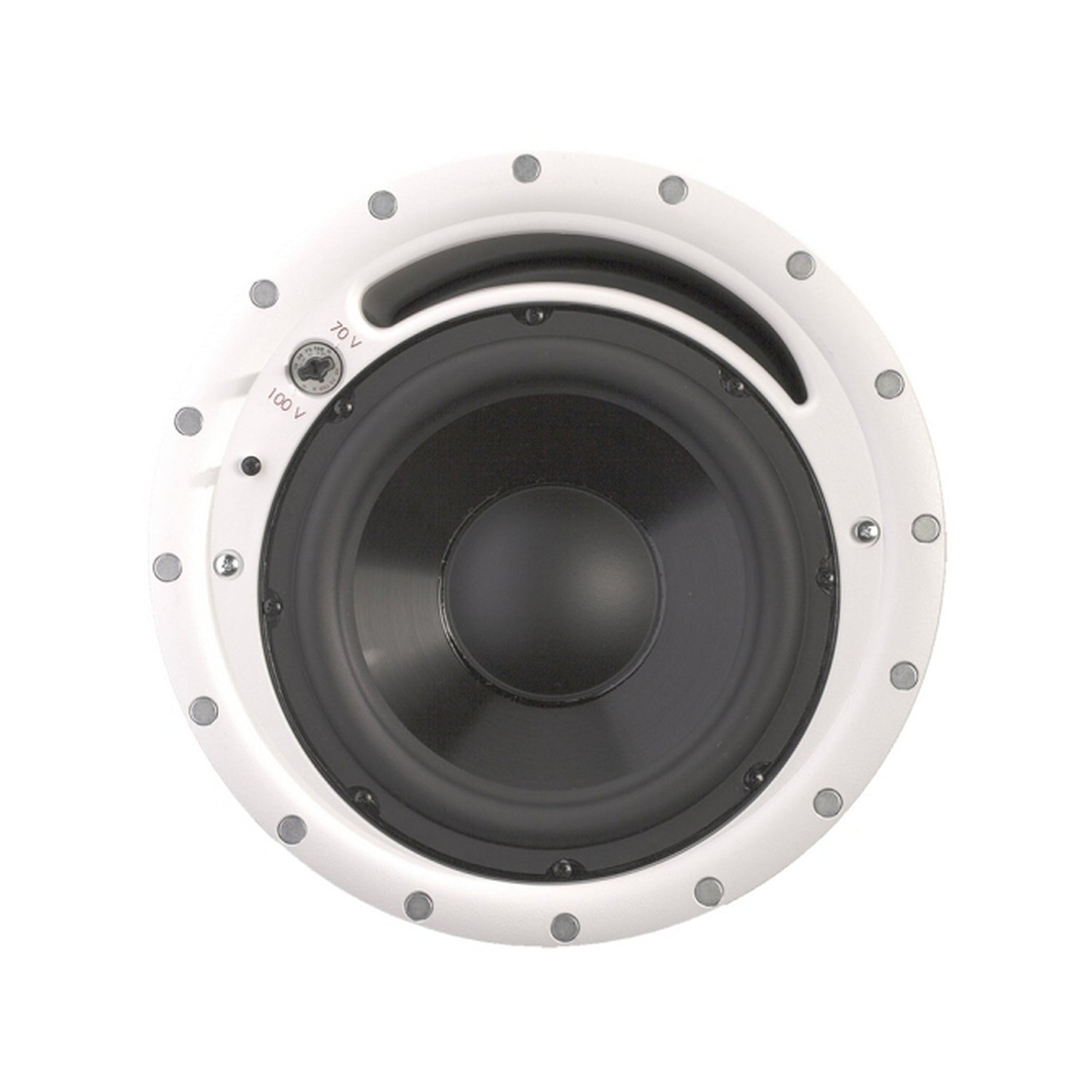

- Tap Switch Options: 25 V, 70.7 V, 100 V taps or transformer bypass (4 Ω)

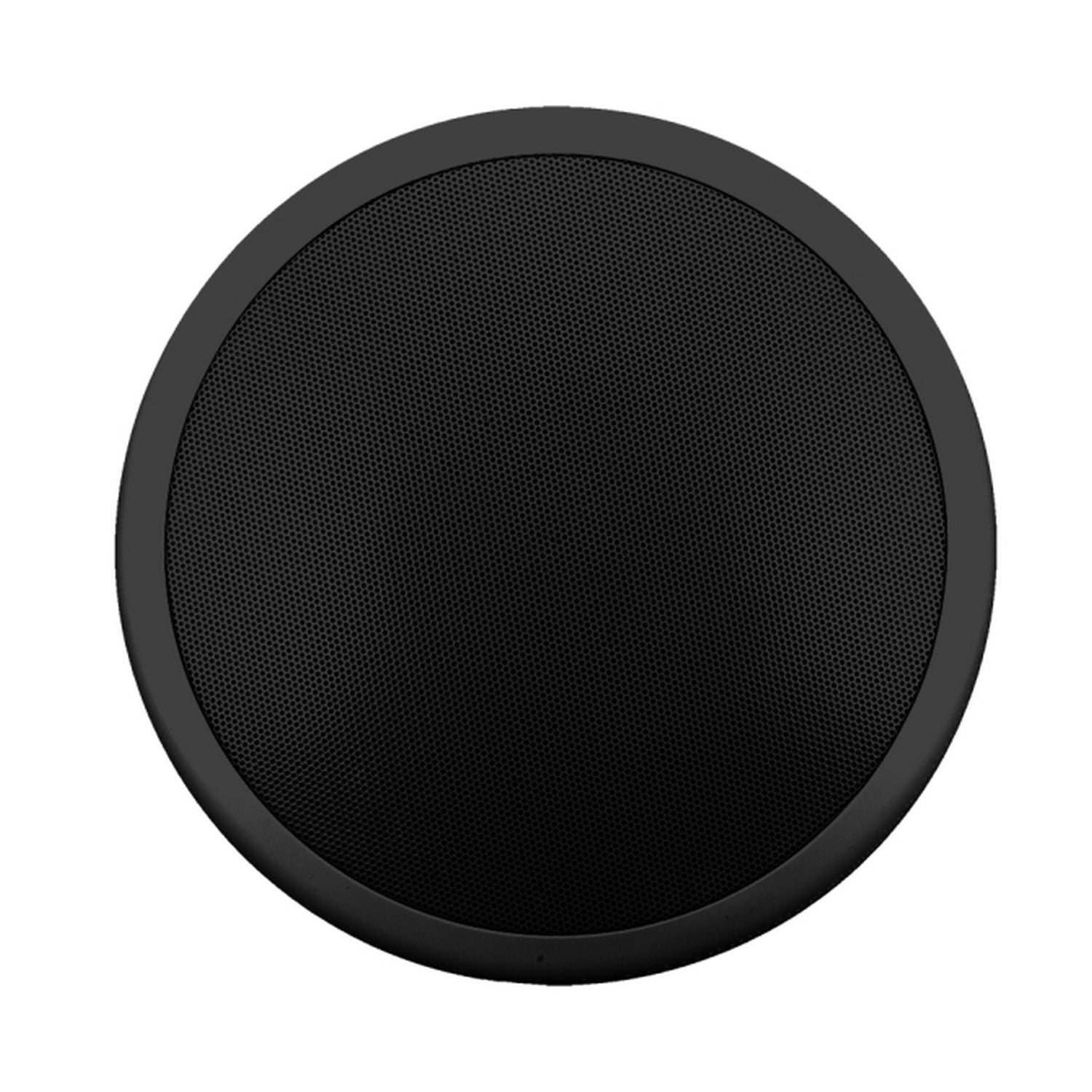

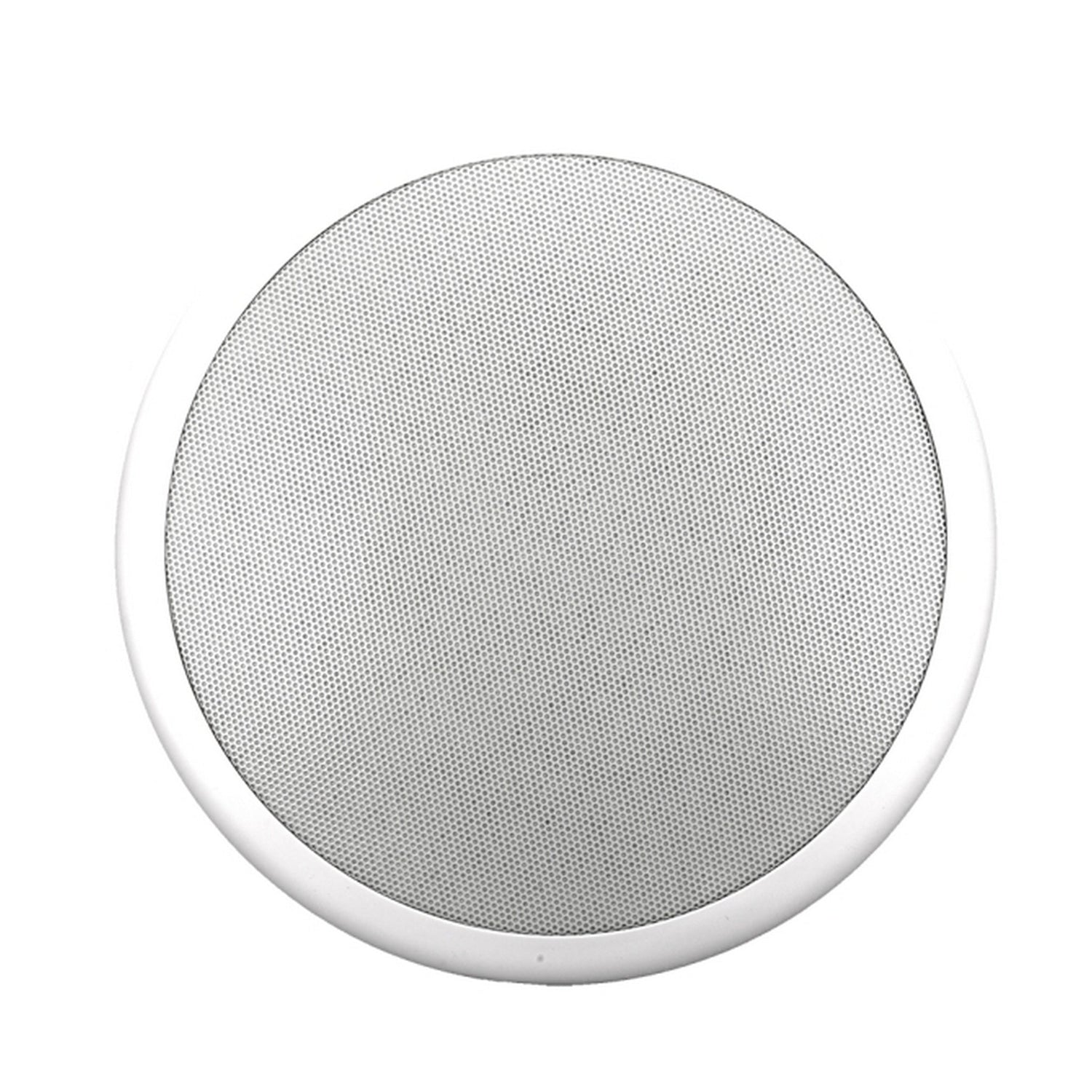

- Grille: Powder-coated steel magnetic grille (Black or White finish)
- Certifications: UL 1480 UEAY & UL 2043, CE / RoHS compliant
Technical Specifications
- Frequency Response: approximately 55–118 Hz
- Maximum SPL: around 111 dB @ 1 m (program power)
- Power Handling: transformer taps to 150 W program power; bypass mode supports 300 W continuous program power
- Woofer Size: 10″
- Enclosure Volume: 12.9 L
- Mounting Range: 0.25″ to 1.91″ ceiling thickness
- Weight: ~27 lbs (≈ 12.25 kg)
- Dimensions: ~14.75″ diameter × 14.125″ height × 12.25″ depth (≈37.5 cm × 35.9 cm × 31.1 cm)
- Finish Options: Black (‑BK) or White (‑WH)
- Included Accessories: Euroblock connector, grille with safety cable, paint shield, cover plate, tile bridge or pre‑construction bracket as applicable, restraint cable
What’s Included
- One CM1001D‑T subwoofer (Black or White finish)
- Magnetic steel grille with safety cable
- UL‑rated cover plate and paint shield
- Four‑pin Euroblock connector for wiring and daisy‑chain
- Color‑coded tile bridge or pre‑construction bracket
- Restraint cable (snap hook or strap)
