SoundTube CM52‑BGM‑II‑WH 5.25-Inch In‑Ceiling Speaker with White Grille

SoundTube | SKU: SOUNT-CM52BGMIIWH
1 4
$26700

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

SoundTube CM52‑BGM‑II‑WH 5.25-Inch In‑Ceiling Speaker with White Grille

The SoundTube CM52‑BGM‑II‑WH is a high-performance commercial in‑ceiling speaker featuring a white paintable magnetic grille. Designed for background music and paging applications, it provides excellent off-axis performance using SoundTube's patented BroadBeam Ring™ technology and is ideal for retail, education, healthcare, and office environments.

The 5.25″ polypropylene woofer with butyl rubber surround pairs with a 0.75″ silk dome tweeter for full-range audio, while tuned porting enhances low-frequency response. The speaker supports 25 V, 70.7 V, and 100 V systems, or direct 16 Ω bypass, and complies with UL, CE, and RoHS standards. It includes a tile bridge, conduit clamp, and paint shield for convenient installation.

Key Features

  • Driver Configuration: 5.25″ polypropylene woofer + 0.75″ silk dome tweeter with BroadBeam Ring™
  • Transformer Settings: 25 V / 70.7 V / 100 V taps + 16 Ω bypass
  • Sensitivity: 83.5 dB @ 1 W/1 m; 80.4 dB @ 2.83 V/1 m
  • Frequency Response: 67 Hz – 20 kHz (±3 dB); 56 Hz – 22 kHz (±10 dB)
  • Power Handling: 40 W RMS, 80 W program
  • Mounting System: Blind-mount SpeedWing™ for 0.035″–1.6″ thick ceilings
  • Grille: White painted magnetic steel, paintable
  • Certifications: UL 1480, UL 2043, CE, RoHS, ETL (US & Canada), BAA/TAA compliant
  • Color: White (WH suffix indicates white grille)
  • Enclosure: Steel backcan with ported design for enhanced bass

Technical Specifications

  • Frequency Response (±3 dB): 67 Hz – 20 kHz
  • Frequency Response (±10 dB): 56 Hz – 22 kHz
  • Sensitivity: 83.5 dB @ 1 W/1 m; 80.4 dB @ 2.83 V/1 m
  • Crossover Frequency: 5.0 kHz
  • Max SPL: 101.5 dB
  • Nominal Impedance: 16 Ω
  • Driver Voice Coil: 1″ (25.4 mm)
  • Directivity Index (DI): 5.1 dB average, 3.3 dB @ 2 kHz
  • Coverage Angle (±6 dB @ 2 kHz): ~190°
  • Visible Dimensions: 11.8″ × 0.34″ (29.85 cm × 0.86 cm)
  • Backcan Dimensions: 9.67″ × 5.75″ (24.56 cm × 14.61 cm)
  • Cutout Diameter: 10.5″ (26.67 cm)
  • Mounting Thickness: 0.035″ – 1.6″ (0.9 mm – 40.6 mm)
  • Shipping Dimensions: 13.25″ × 13″ × 8″ (33.66 cm × 33.02 cm × 20.32 cm)
  • Shipping Weight: 10.8 lbs (4.90 kg)
  • UPC: 644216236497

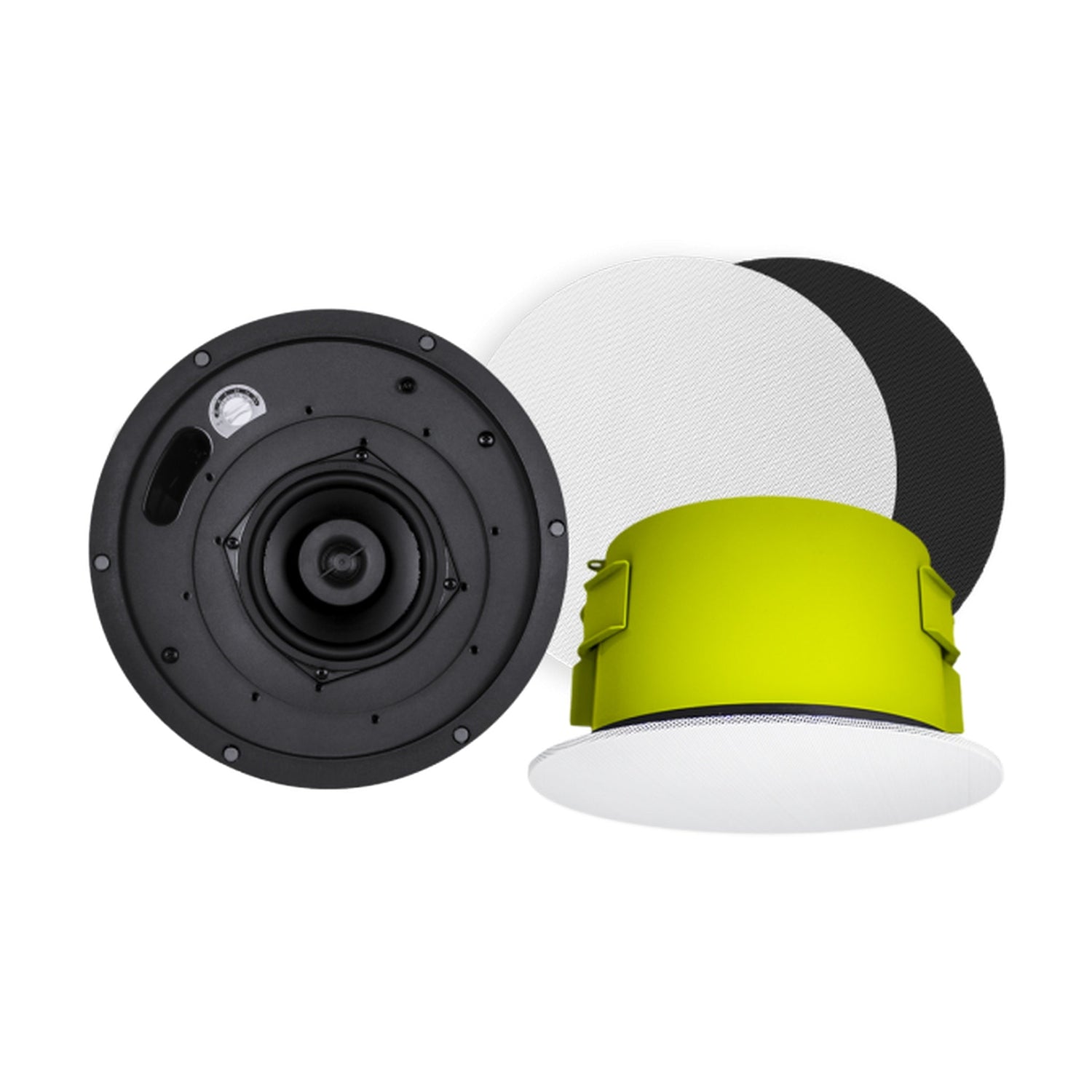

What's Included

  • White painted magnetic grille
  • UL-listed conduit clamp
  • Color-coded tile bridge
  • Paint shield
