SoundTube CM800i 8-Inch In‑Ceiling Speaker with BroadBeam Tweeter - Black

SoundTube | SKU: SOUNT-CM800IBK
1 10
$59000

Free Shipping
Color: Black

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

SoundTube CM800i 8-Inch In‑Ceiling Speaker with BroadBeam Tweeter

The CM800i is a two‑way, blind‑mount in‑ceiling speaker available in black or white, designed for professional installations. Equipped with an 8″ polypropylene woofer and a 1″ titanium tweeter using patented BroadBeam® waveguide technology, it offers uniform dispersion and high intelligibility across large areas. Ideal for background or foreground audio in commercial venues, fitness centers, airports, and houses of worship.

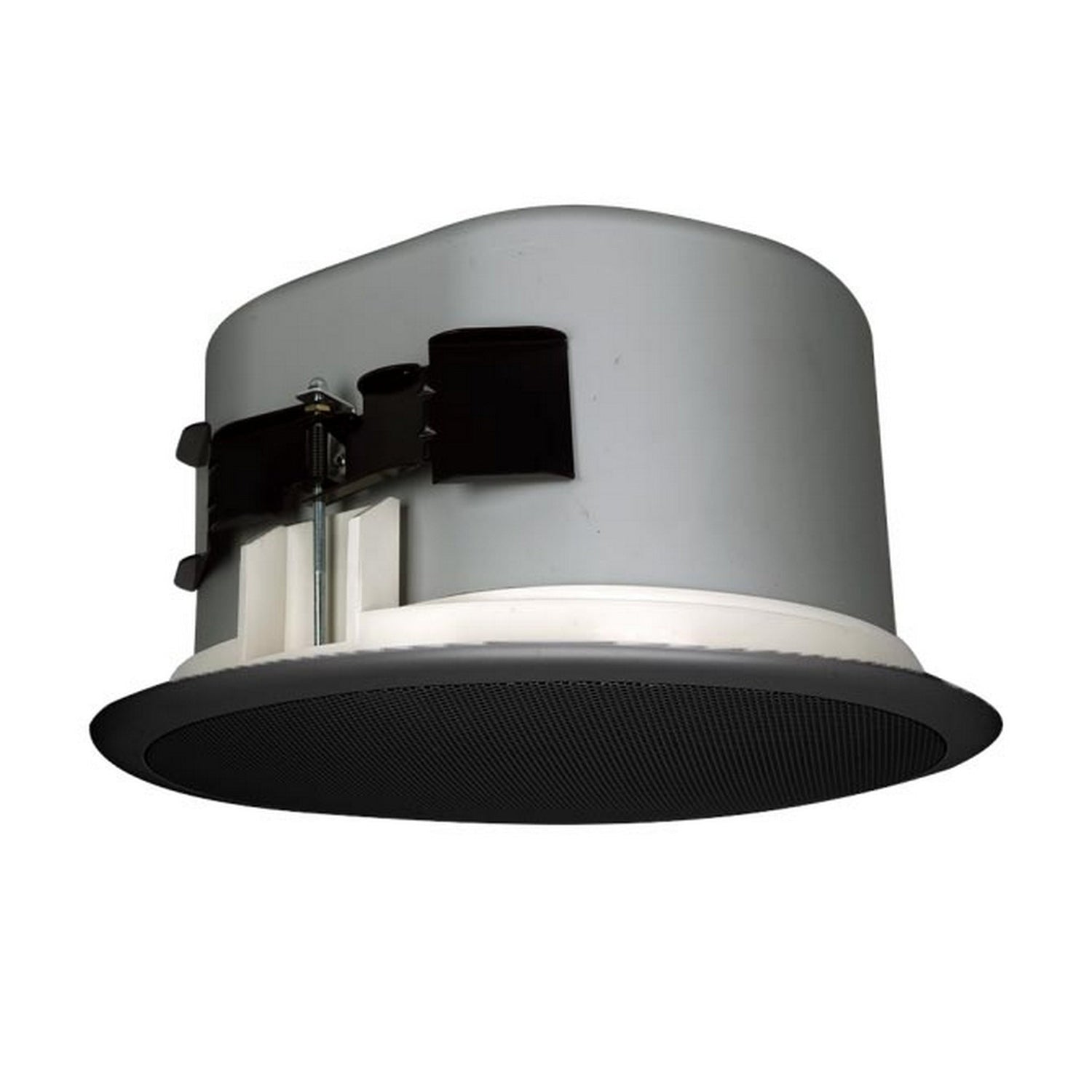

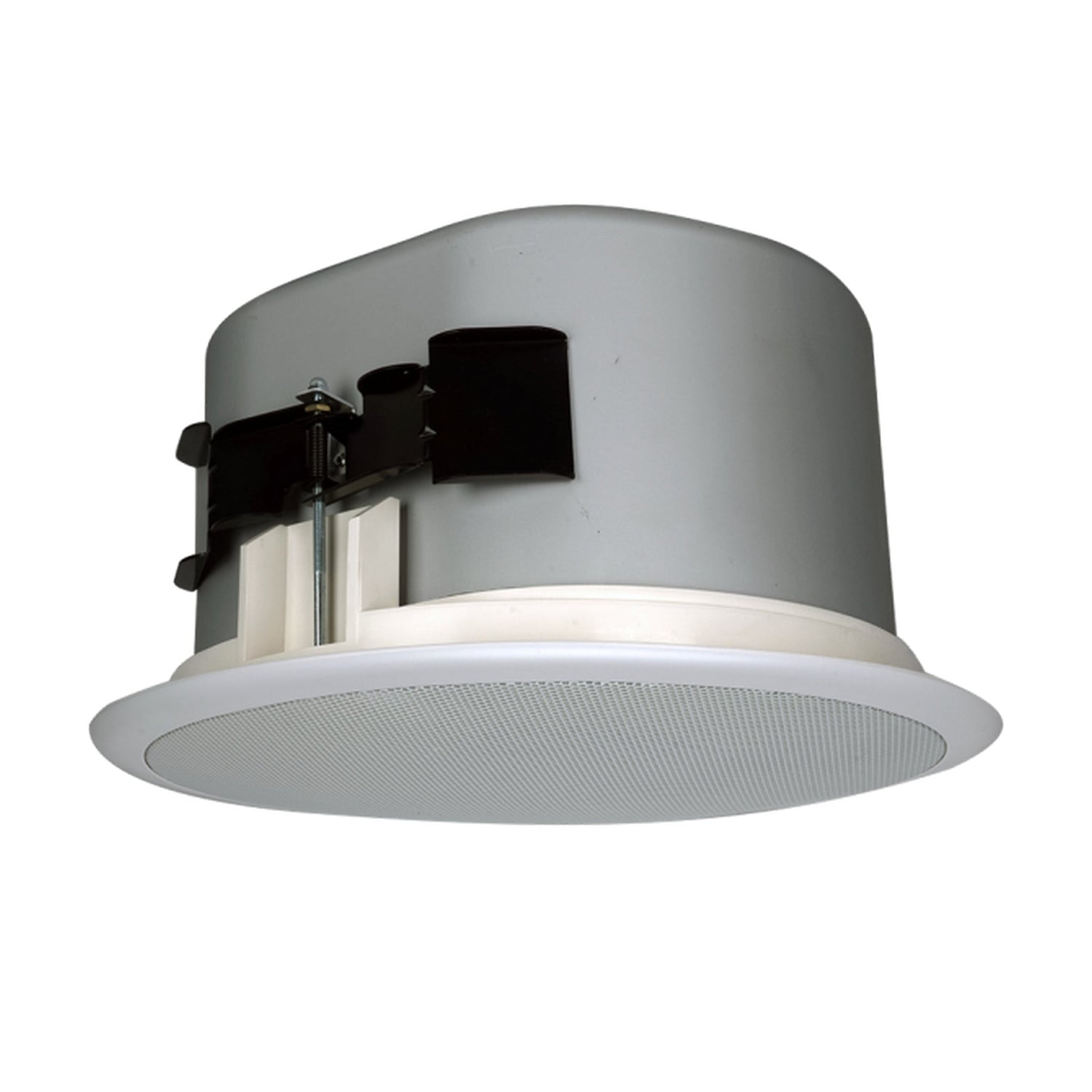

Installation is fast and secure with a fixed‑wing constant‑tension mounting system accommodating ceiling thicknesses from 0.25″ to 1.91″. The six‑position tap switch supports 25 V, 70.7 V, 100 V transformer options or 8 Ω direct connection. The tool‑free magnetic grille with safety cable enables easy field painting for décor matching.

Key Features

  • BroadBeam® Waveguide: Patented dispersion ensures consistent coverage between 2–10 kHz
  • Drivers: 8″ polypropylene woofer with butyl rubber surround; 1″ convex titanium tweeter with FerroFluid cooling
  • Power Options: 125 W RMS continuous; 250 W program power
  • Sensitivity: 90 dB @ 1 W/1 m and @ 2.83 V/1 m
  • Crossover: 3.0 kHz, 12 dB/octave, second‑order low and high pass
  • Tap Switch: Six‑position rotary for 25/70.7/100 V or transformer bypass/8 Ω
  • Mounting: Blind‑mount with constant‑tension fixed wings for 0.25″–1.91″ ceiling thickness
  • Grille: Steel, powder‑coated (black or white), magnetic, paintable, safety‑cable
  • Certifications: UL 1480 (UEAY), UL 2043, CE, RoHS compliant

Technical Specifications

  • Enclosure Material: Drawn aluminium backcan with ABS‑glass‑fiber reinforced injection‑molded baffle, ported design
  • Enclosure Volume: 513.8 cu in (8419.7 cc)
  • Directivity Factor (Q): 3.8 averaged (100 Hz–10 kHz), 4 at 2 kHz; Directivity Index: 6 dB averaged, 4 dB at 2 kHz
  • Coverage Angle: 140° @2 kHz; 110° @10 kHz; 120° averaged (2–10 kHz)
  • Frequency Response: 71 Hz – 22 kHz (–10 dB); 97 Hz – 22 kHz (±3 dB)
  • Voice Coil: Woofer 1.2″ (30.4 mm) diameter
  • Inputs: 4‑pin 5.08 mm Euroblock connector for daisy‑chain wiring or single‑run installation
  • Color Options: Black (CM800i‑BK) or White (CM800i‑WH) with paintable grille

What's Included

  • CM800i speaker unit (black or white)
  • Tile bridge for ceiling support
  • Conduit plate
  • Euroblock connector
  • Paint mask (for grille painting)
