SoundTube CM82‑EZ‑II 8-Inch In‑Ceiling Coaxial Speaker - Black

SoundTube | SKU: SOUNT-CM82EZIIBK
1 10
$24300

Free Shipping
Color: Black

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

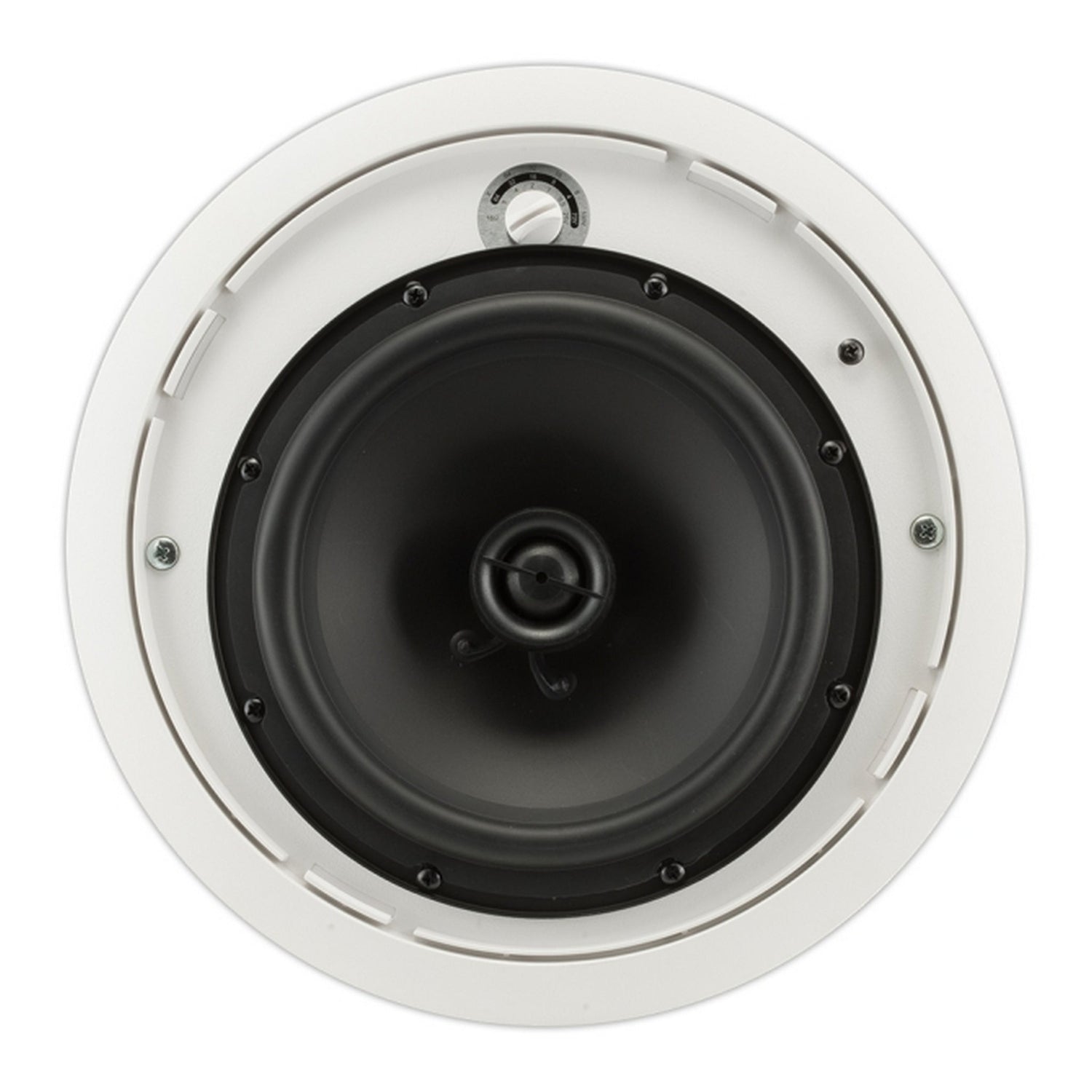

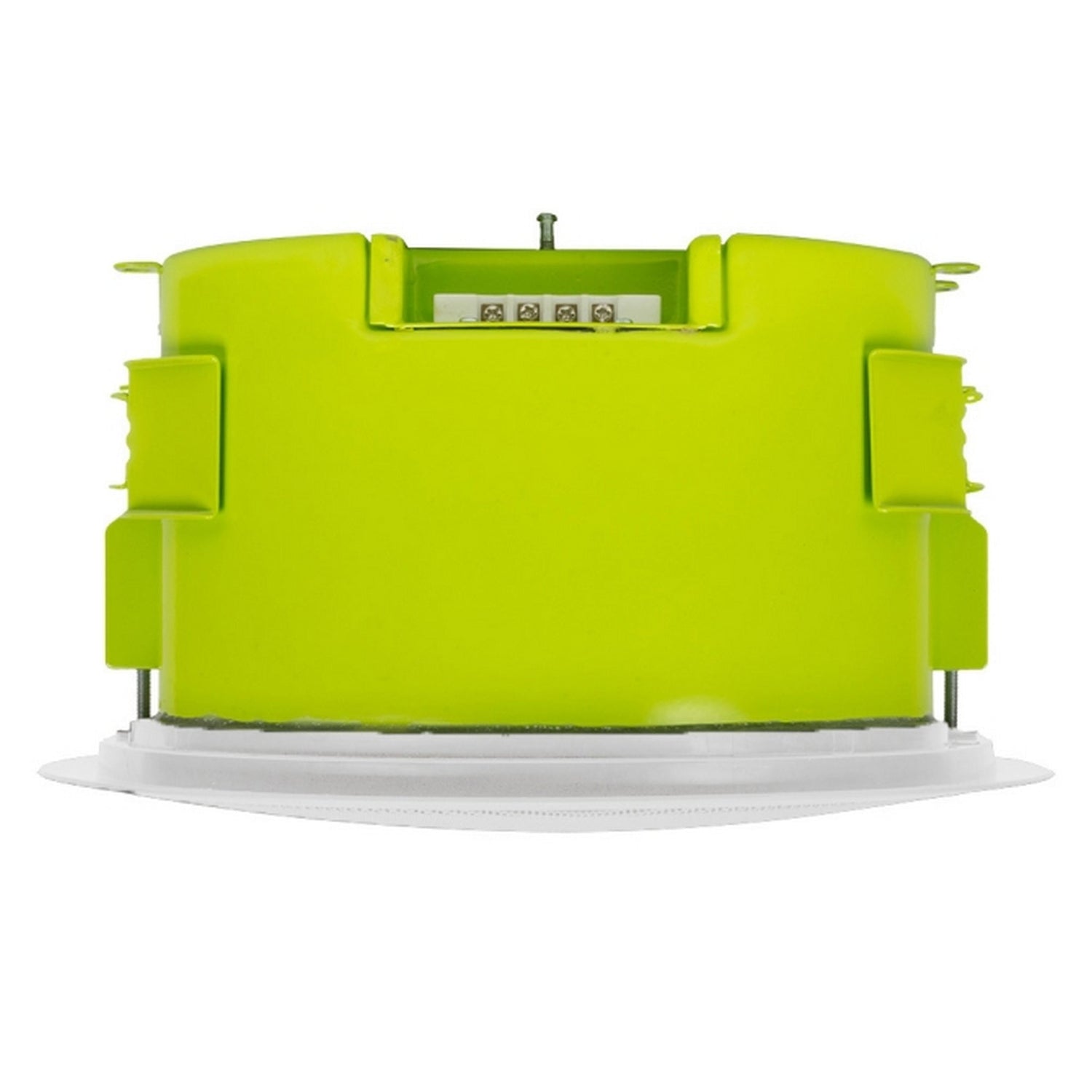

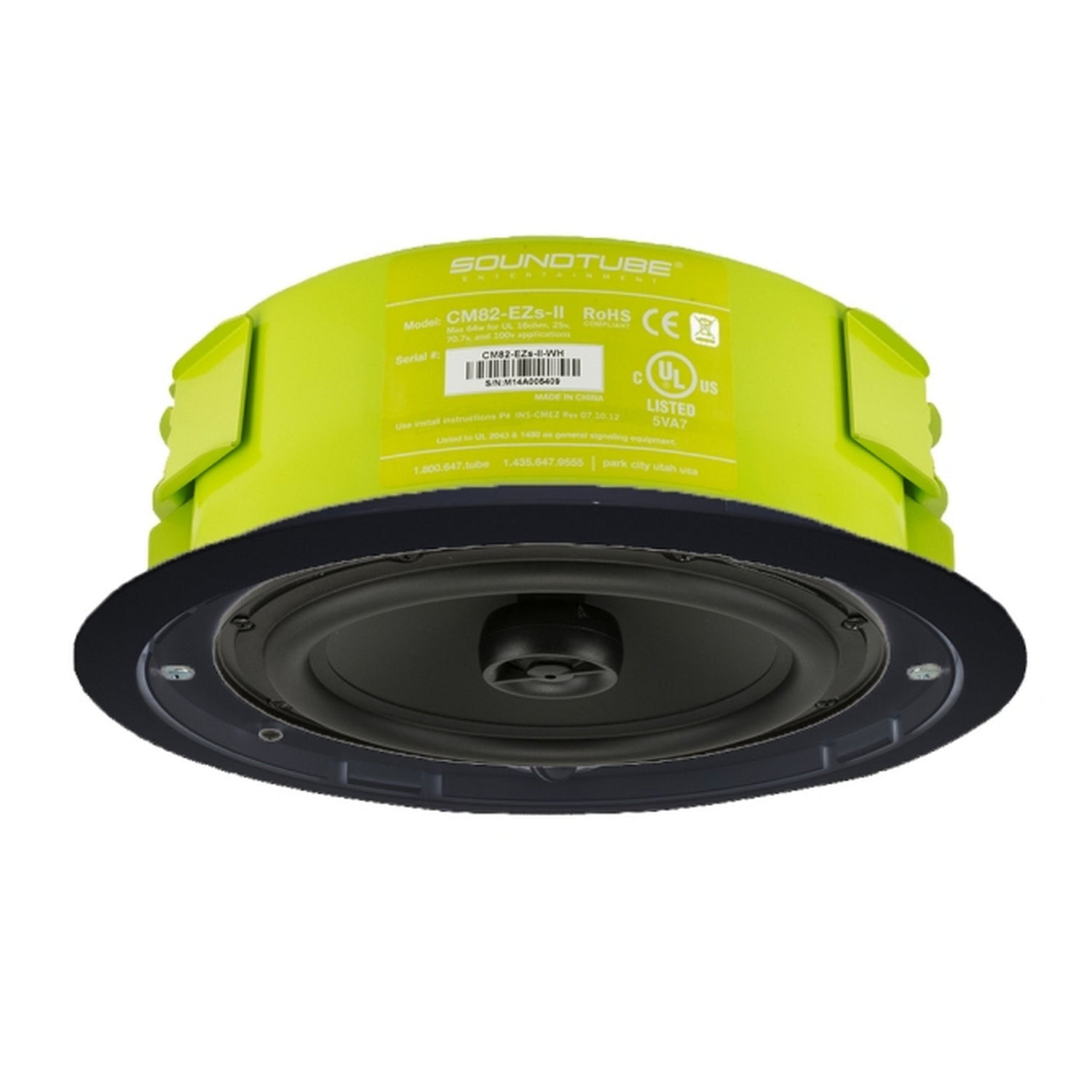

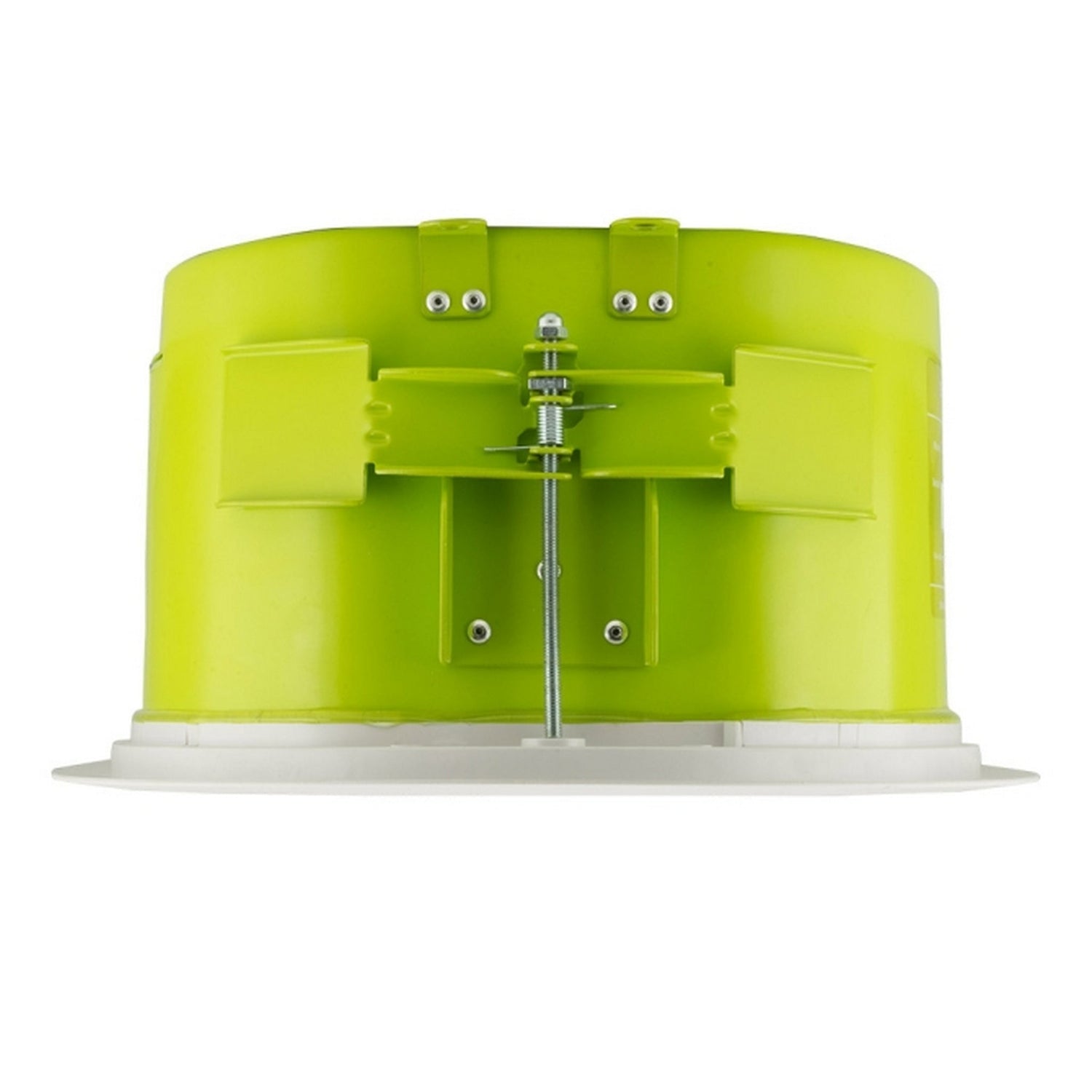

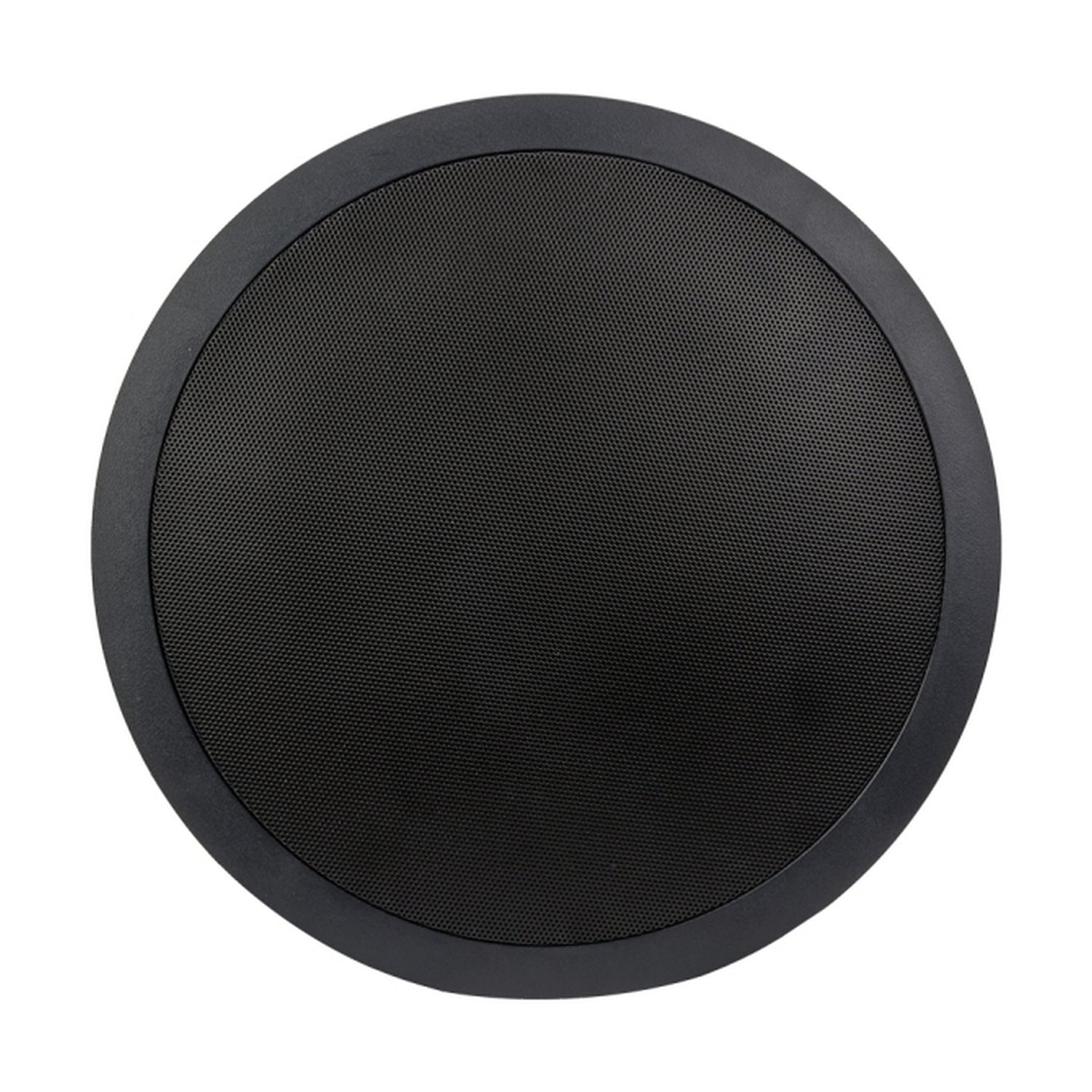

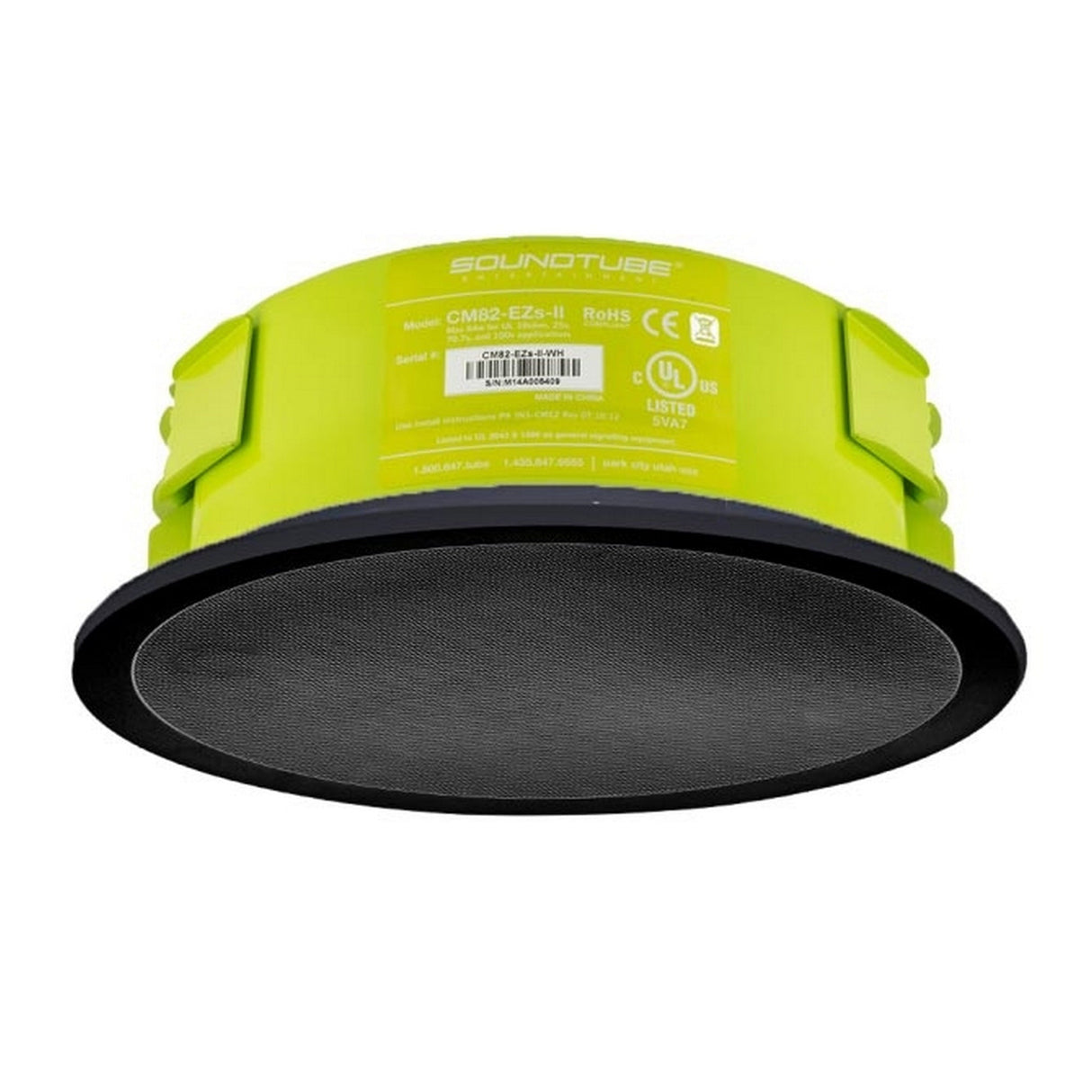

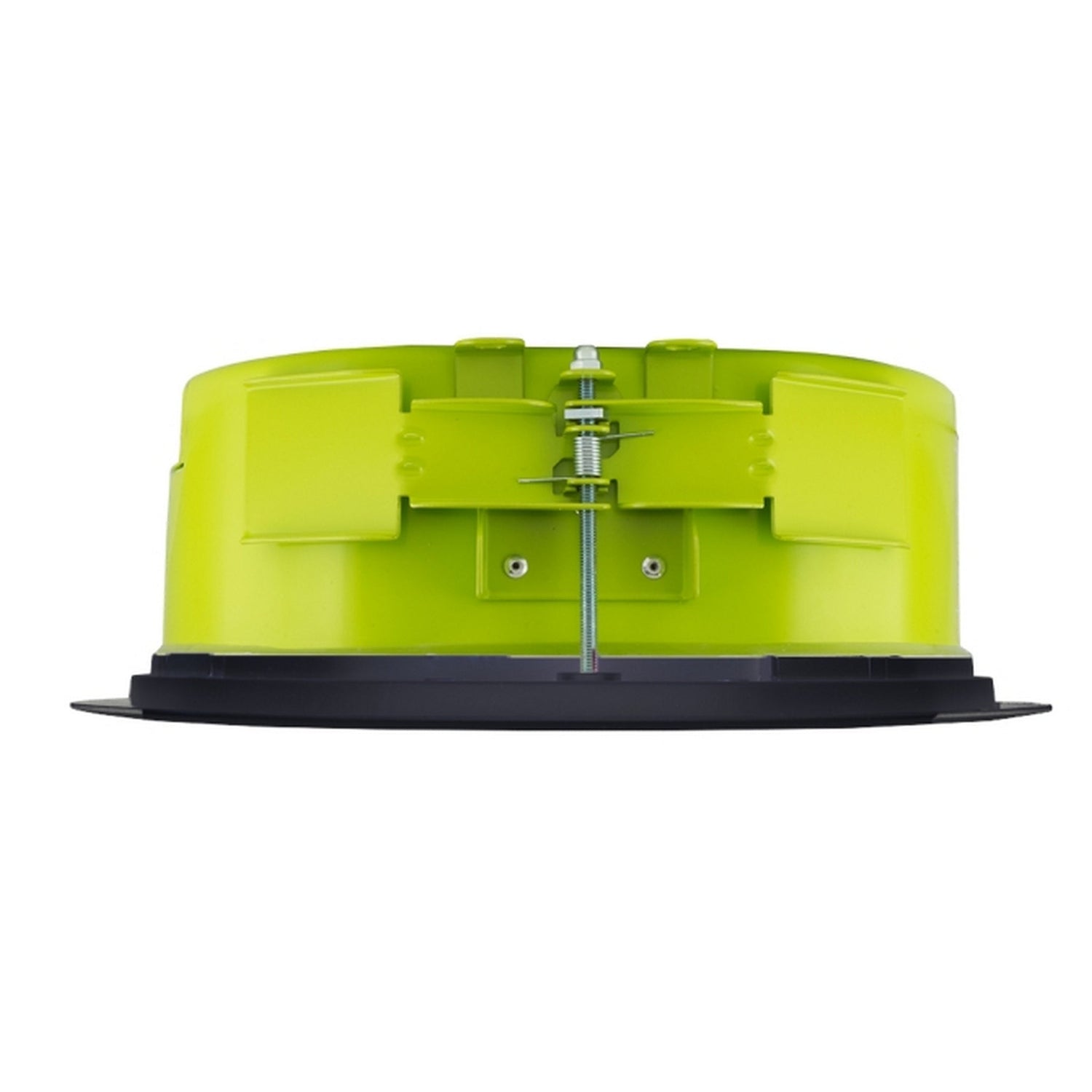

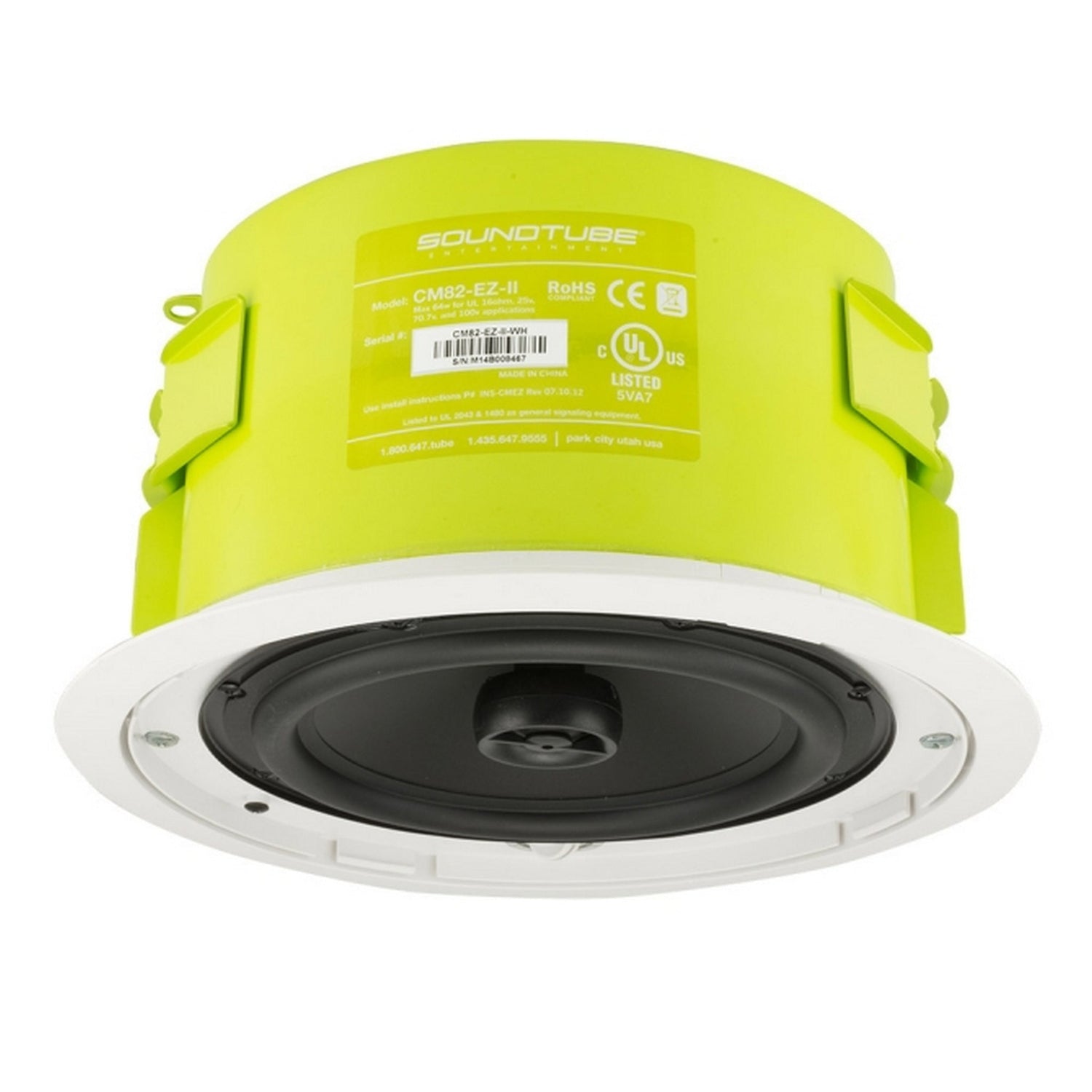

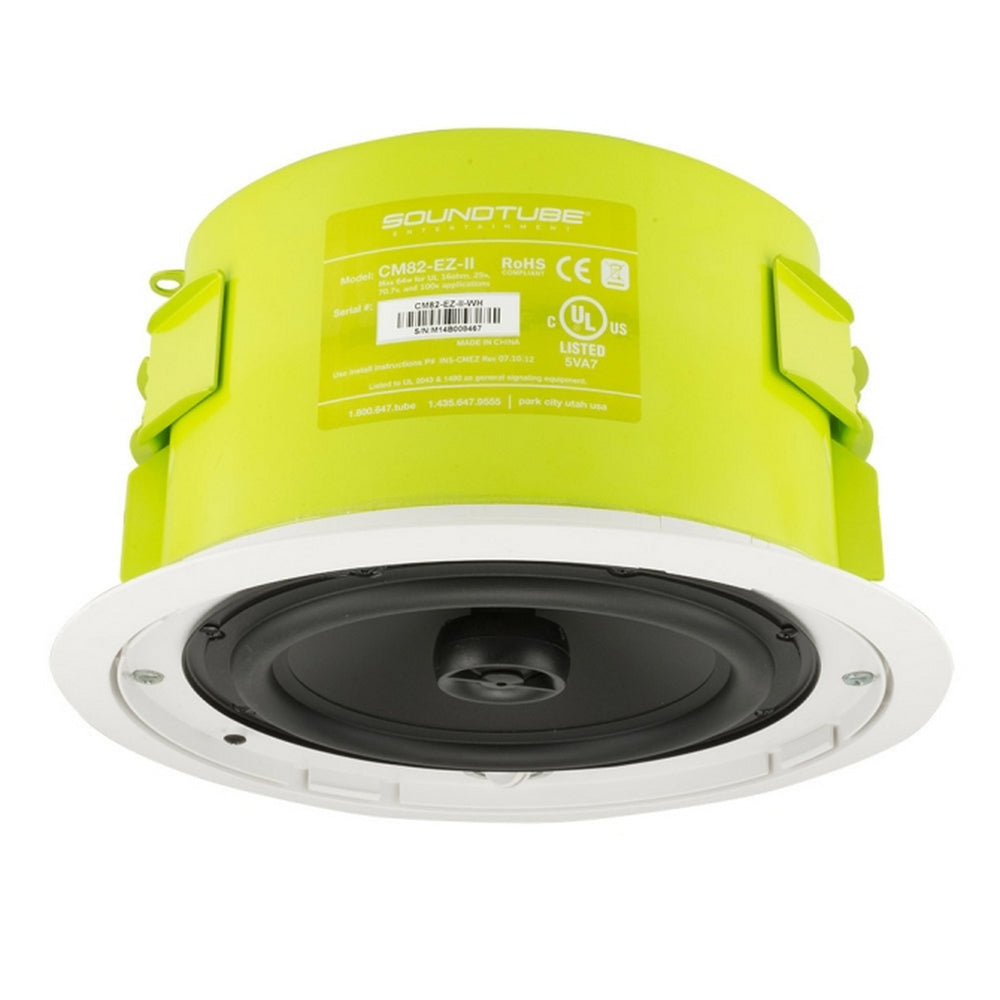

SoundTube CM82‑EZ‑II 8-Inch In‑Ceiling Coaxial Speaker

The CM82‑EZ‑II and the shallow‑backcan CM82‑EZS‑II are 8″ coaxial in‑ceiling speakers engineered for economical, high‑efficiency commercial audio installations. Offered in black or white paintable steel finishes, they deliver clear background music and paging coverage with minimal depth requirements.

Both models feature an 8″ polypropylene woofer with butyl-rubber surround and a 1″ silk dome tweeter. They include a six‑position rotary transformer tap switch supporting 25 V, 70.7 V, 100 V or 16 Ω direct connection. The EZ‑II has ~89 dB sensitivity; the EZS‑II offers slightly lower sensitivity (~88 dB) with a compact 3.75″ backcan depth for tight plenum spaces.

Ideal for hotels, retail, restaurants, hospitals, or offices, both products come with installation accessories including a tile bridge (or pre-construction bracket), paint shield, conduit clamp and wire nuts. UL 1480/2043, cUL and CE certified.

Key Features

  • Color Options: Black or White paintable steel grille
  • Drivers: 8″ polypropylene woofer w/ butyl surround; 1″ silk dome tweeter
  • Transformer: Six‑position rotary tap for 25 V, 70.7 V, 100 V or 16 Ω direct
  • Sensitivity: ~89 dB (EZ‑II); ~88 dB (EZS‑II)
  • Power Handling: 64 W RMS; 128 W program
  • Frequency Response: 92 Hz–18 kHz (±3 dB); 65–22 kHz (±10 dB)
  • Coverage Angle: ~105° (2–10 kHz average)
  • Mounting Depth: ~5.75″ (146 mm) for EZ‑II; ~3.75″ (95 mm) for EZS‑II
  • Cutout Diameter: 10.5″ (267 mm)
  • Visible Diameter: 11.75″ (298 mm), grille depth ~0.34″ (8.6 mm)
  • Certifications: UL 1480, UL 2043, cUL, CE, RoHS
  • Installation Accessories: Tile bridge or PCB, conduit clamp, paint shield, wire nuts

Technical Specifications

  • Woofer: 8″ (203 mm) polypropylene cone, butyl rubber surround
  • Tweeter: 1″ (25 mm) silk dome
  • Crossover Frequency: 3.0 kHz (6 dB/octave first order)
  • Nominal Impedance: 16 Ω
  • Minimum Impedance: ~17.2 Ω
  • Ceramic Input:** 4‑pin terminal strip (up to 10 AWG input on EZS variant)
  • Directivity Factor (Q): ~5.4 (avg 100 Hz–10 kHz), ~7.2 @2 kHz
  • Directivity Index (DI): ~5.5 dB (avg), ~8.6 dB @2 kHz
  • Power Handling: 64 W RMS; 128 W program
  • Sensitivity @1 W/1 m: 89 dB (EZ‑II); 88 dB (EZS‑II)
  • Frequency Response: 92 Hz–18 kHz ±3 dB; 65 Hz–22 kHz ±10 dB

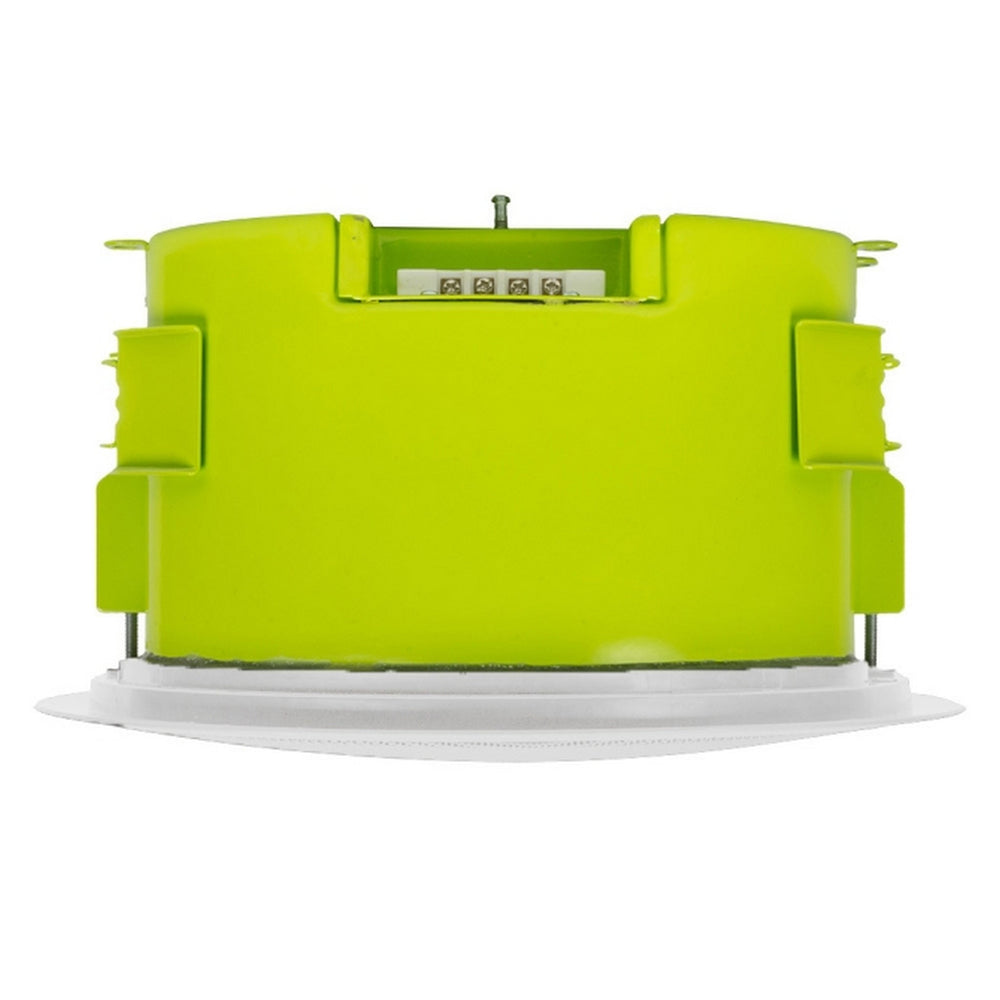

  • Backcan Dimensions: 9.67″ diameter × ~5.75″ (146 mm) depth (EZ‑II); ~3.75″ (95 mm) depth (EZS‑II)
  • Visible Dimensions: 11.75″ diameter × 0.34″ grille
  • Cutout Diameter: 10.5″
  • Max Ceiling Thickness: 0.04″–1.60″ (0.9–40.6 mm)

What's Included

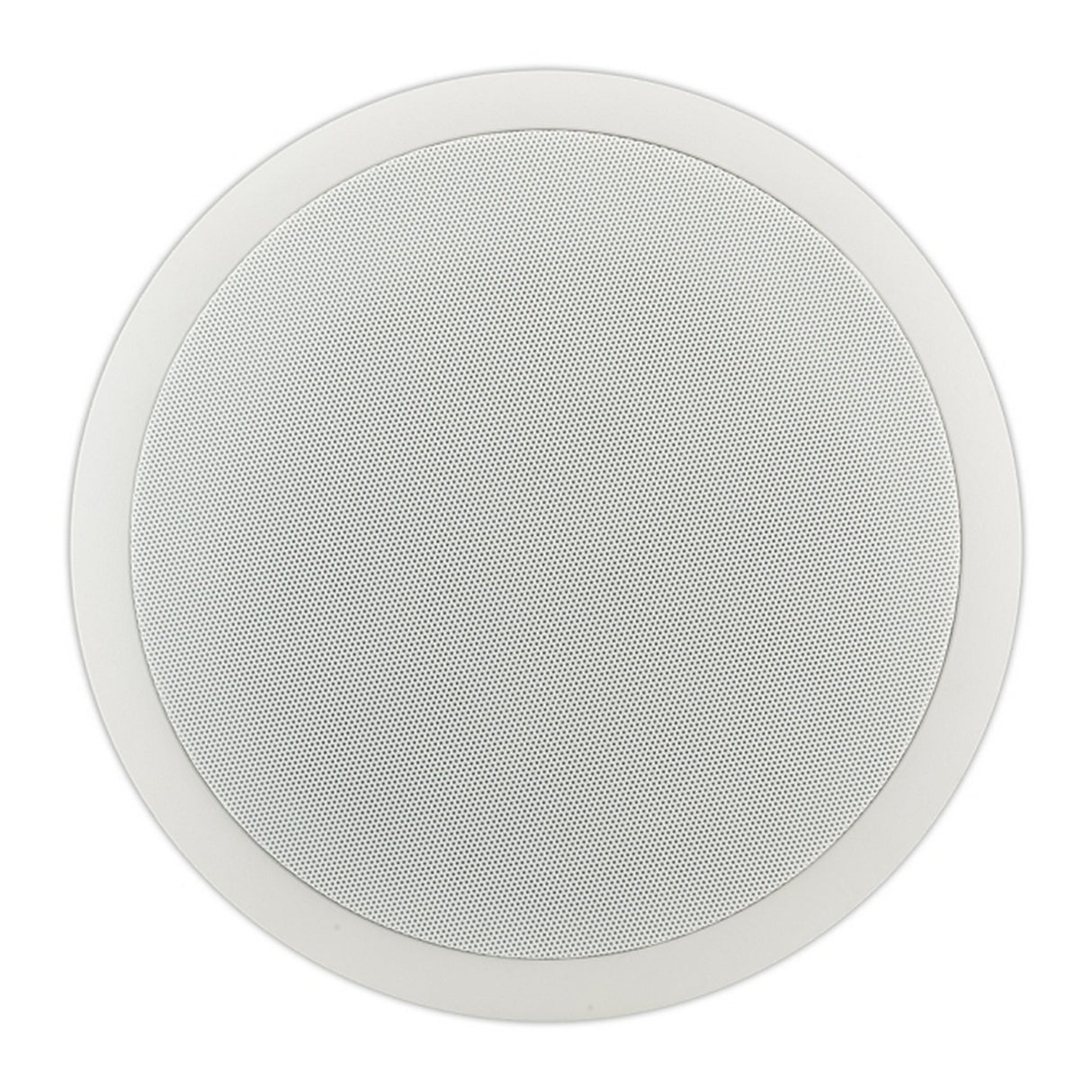

  • Painted steel grille (black or white)
  • Tile bridge (or pre‑construction bracket option)
  • UL‑listed 0.5″ conduit clamp
  • Paint shield
  • Wire nuts (2 pcs)
