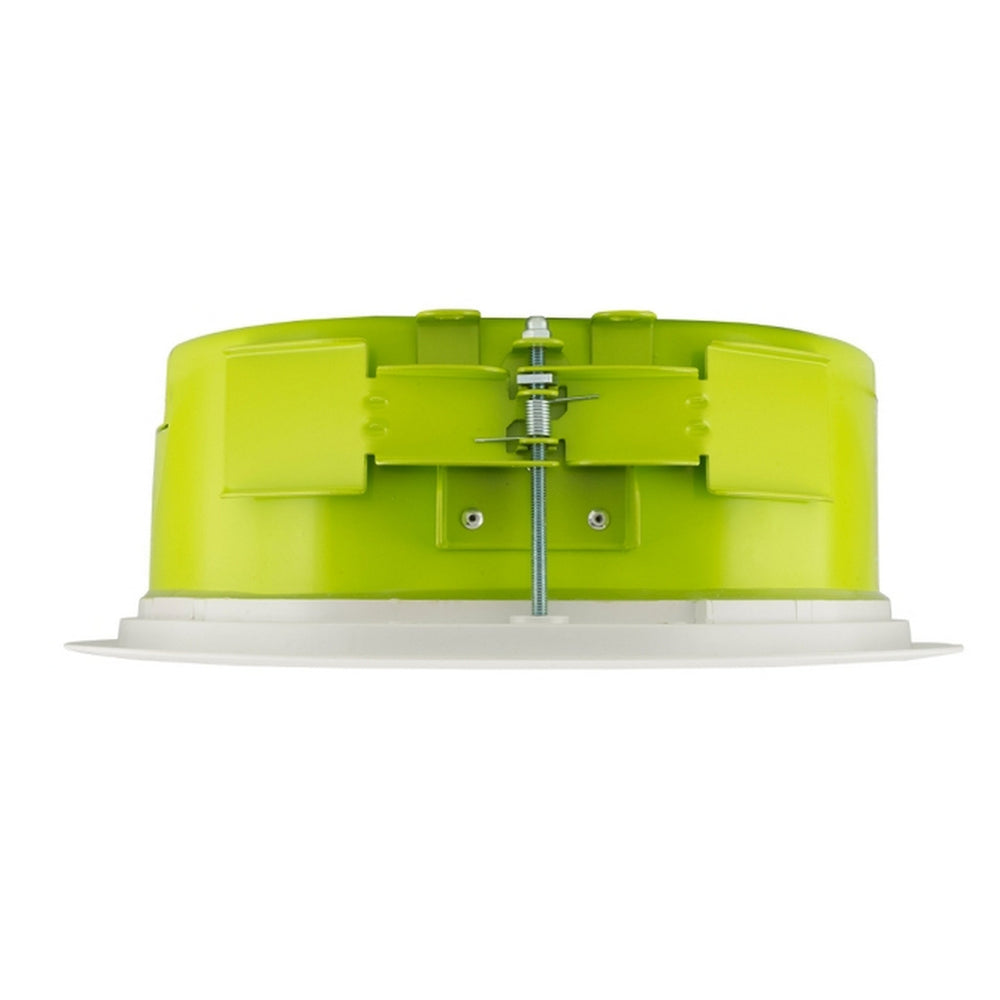

SoundTube CM82‑EZS‑II 8-Inch Shallow In‑Ceiling Coaxial Speaker with Short Can

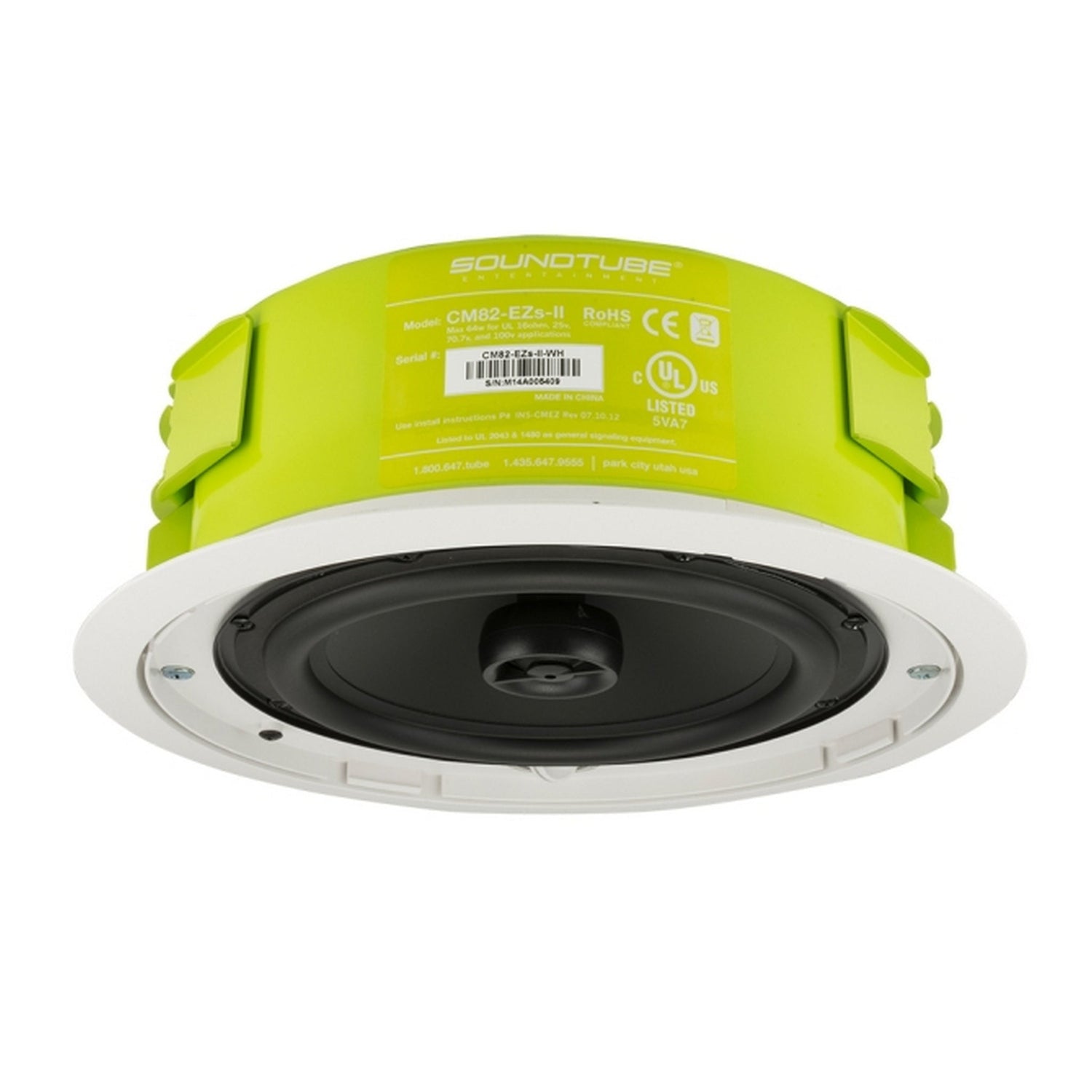

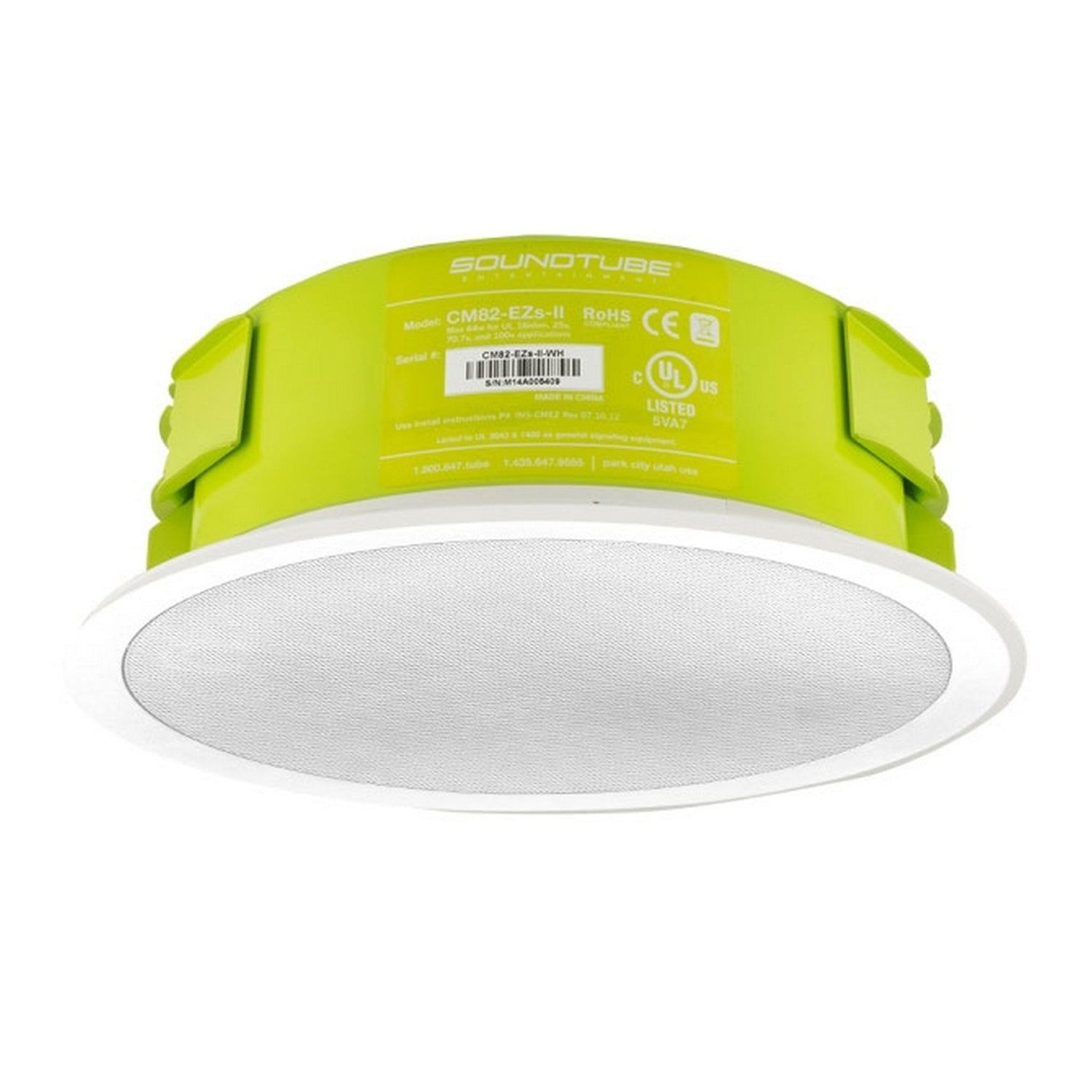

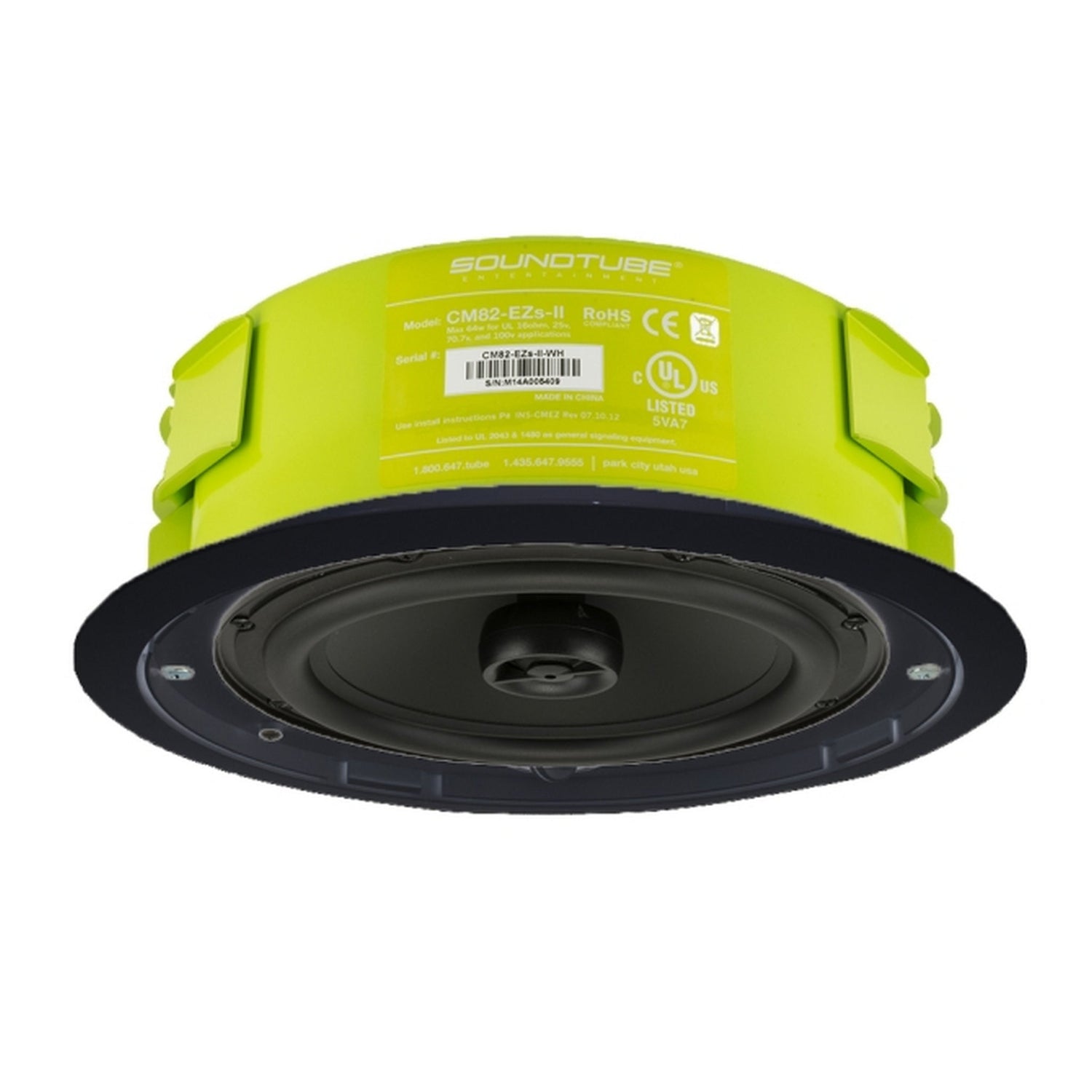

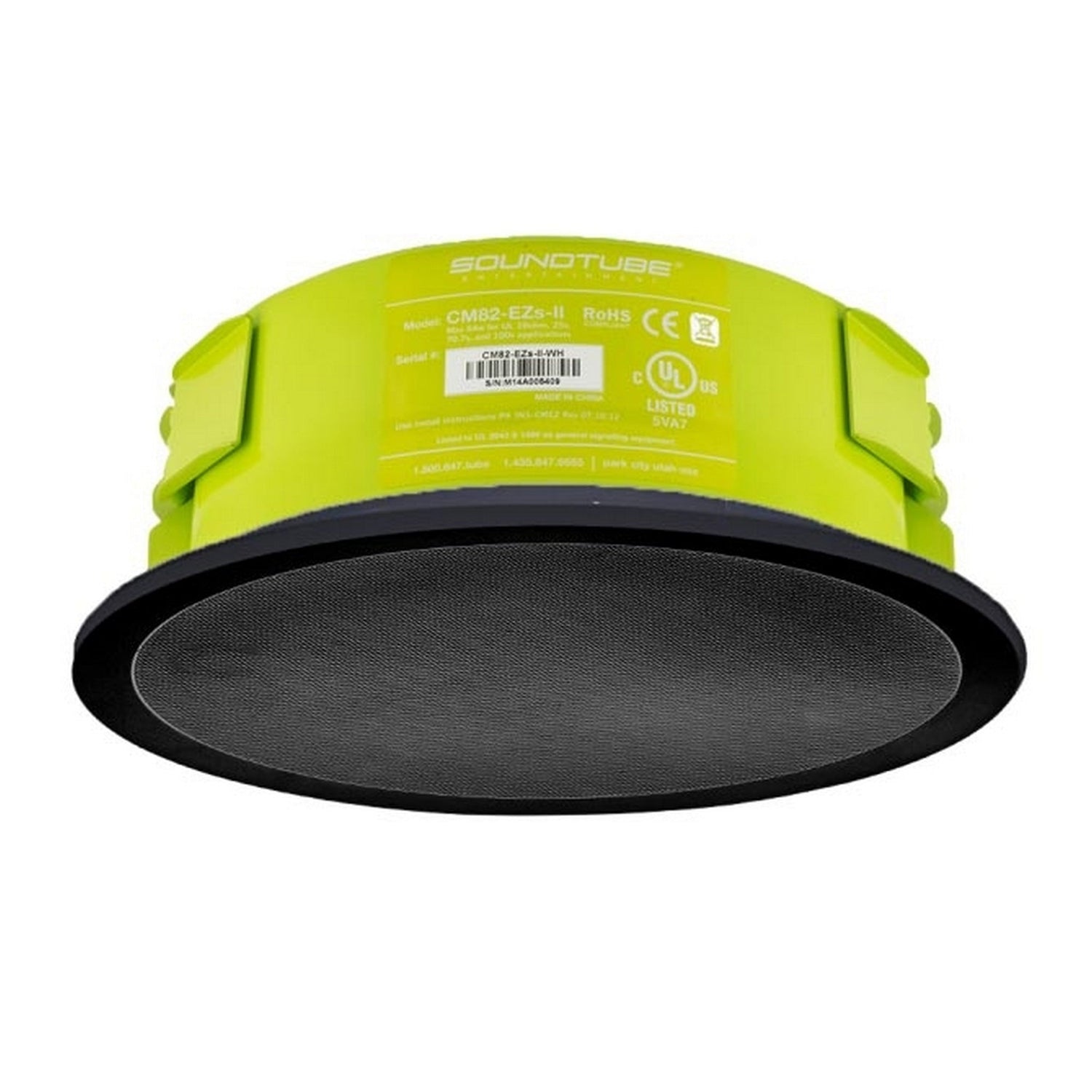

The CM82‑EZS‑II is a compact, shallow‑depth 8″ coaxial in‑ceiling speaker designed for commercial audio installations where ceiling plenum space is limited. Available in black or white with a paintable micro‑flange grille, it offers full‑range sound for background music and paging applications.
It features a polypropylene woofer with butyl rubber surround and a 1″ silk dome tweeter, delivering wide 105° coverage using SoundTube’s BroadBeam Ring™ technology. A six‑position rotary tap switch allows for 25 V, 70.7 V, 100 V or 16 Ω direct mode operation. The reduced 3.75″ backcan depth enables installation in tight ceilings without sacrificing audio performance.
Key Features
- Color Options: Available in Black or White

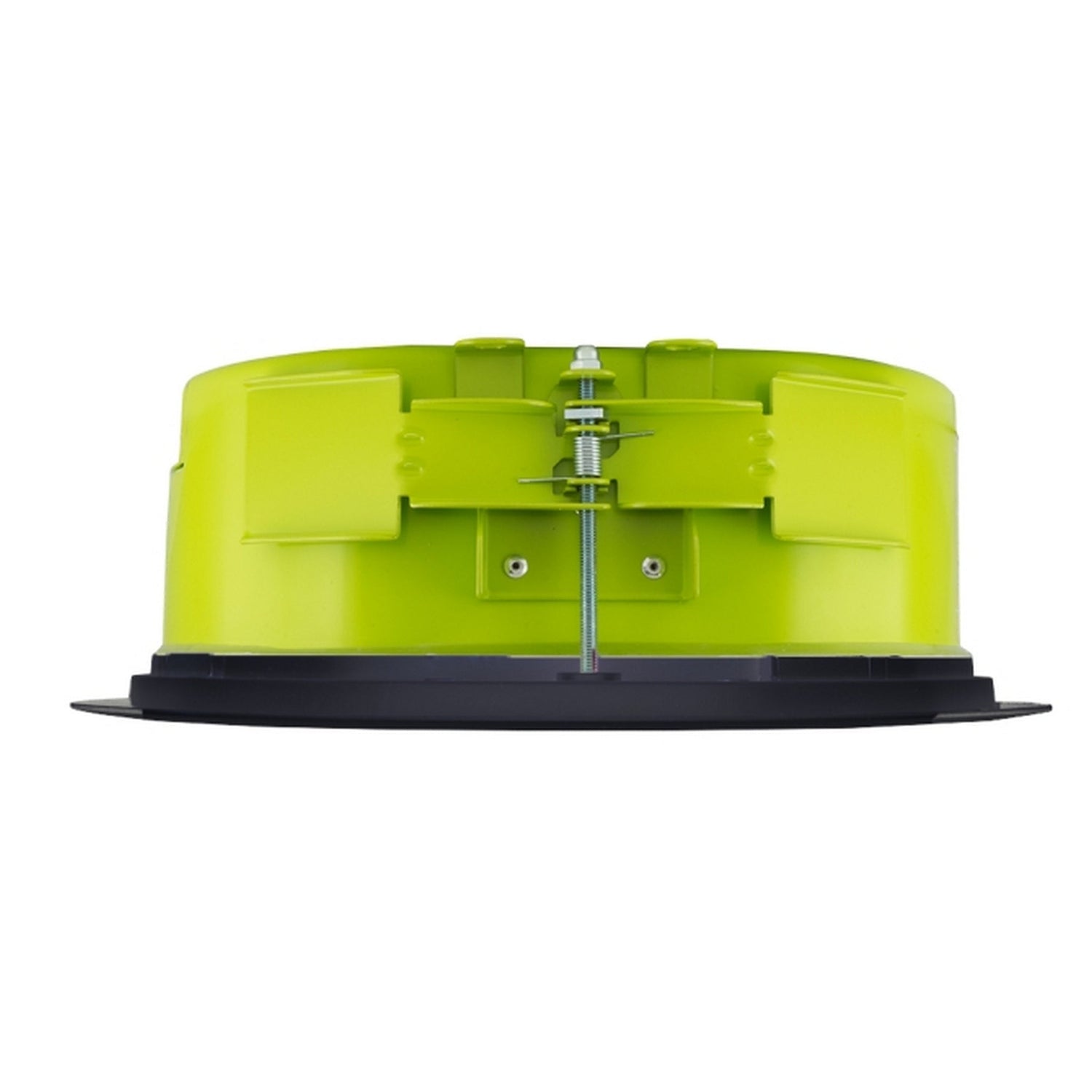

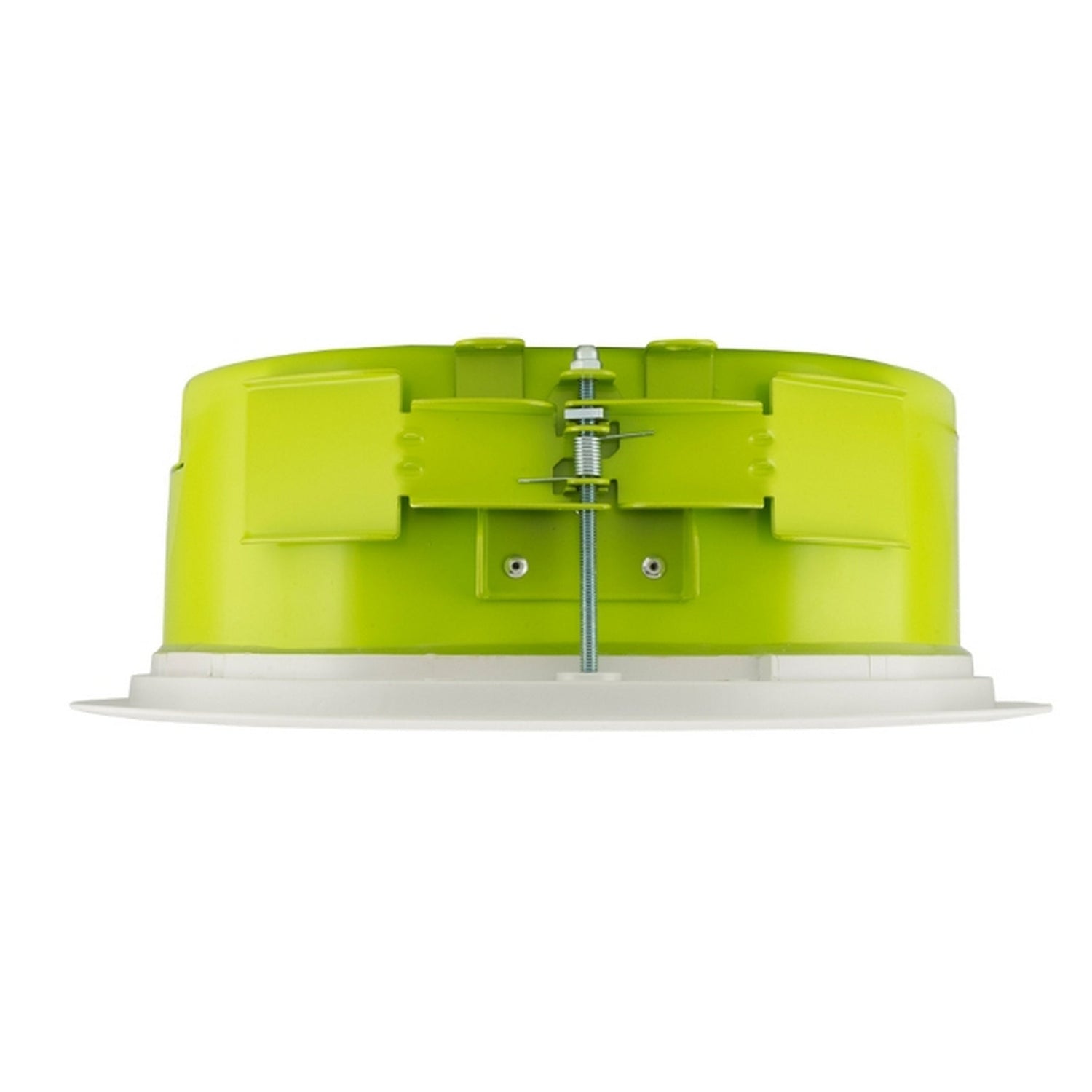

- Shallow Design: Only 3.75″ backcan depth for tight ceiling spaces
- Drivers: 8″ polypropylene woofer and 1″ silk dome tweeter
- Transformer Tap: 25 V, 70.7 V, 100 V or 16 Ω direct
- Power Handling: 64 W RMS / 128 W program
- Coverage Angle: 105° (2–10 kHz average)
- Frequency Response: 92 Hz – 18 kHz (±3 dB)
- Sensitivity: 88 dB @ 1 W/1 m

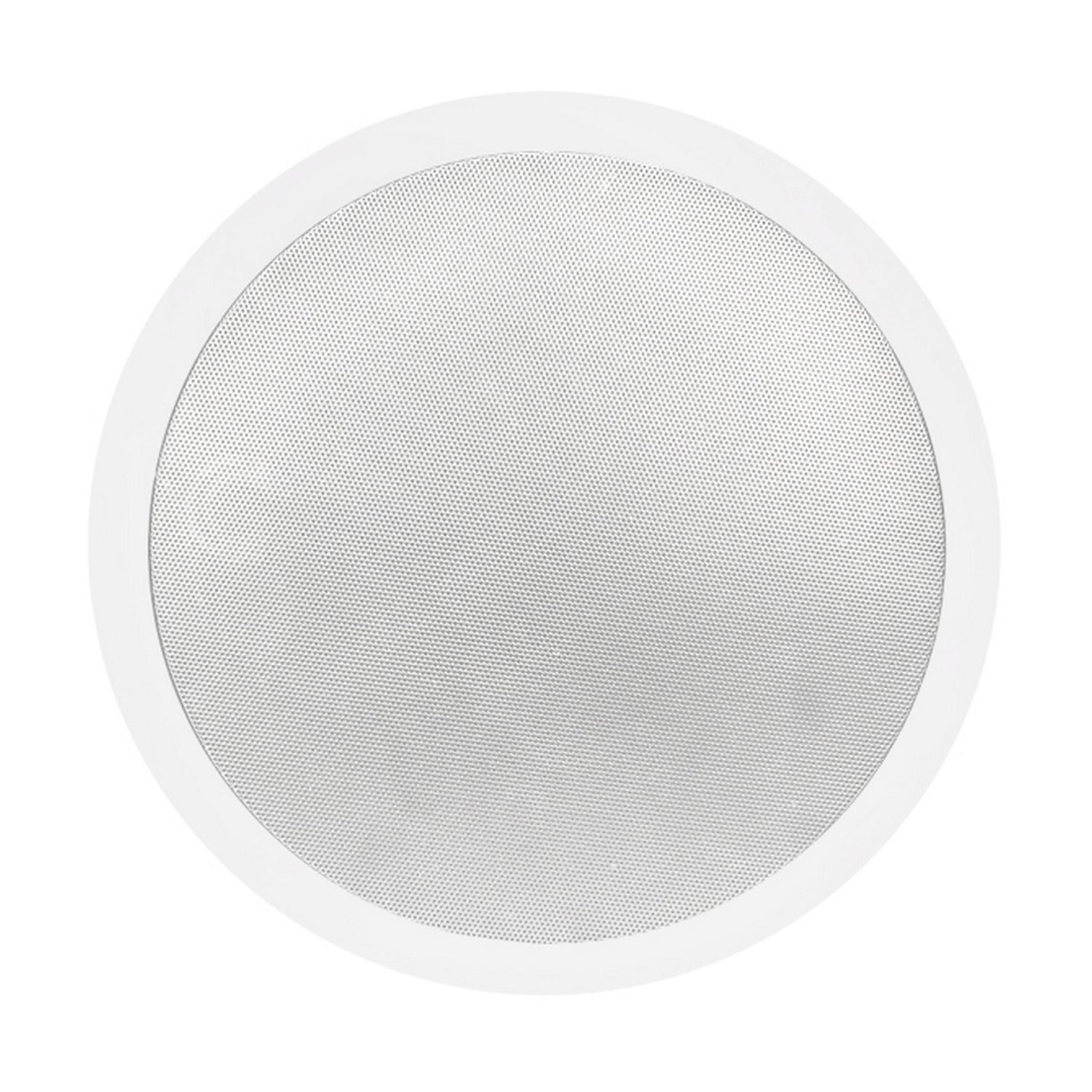

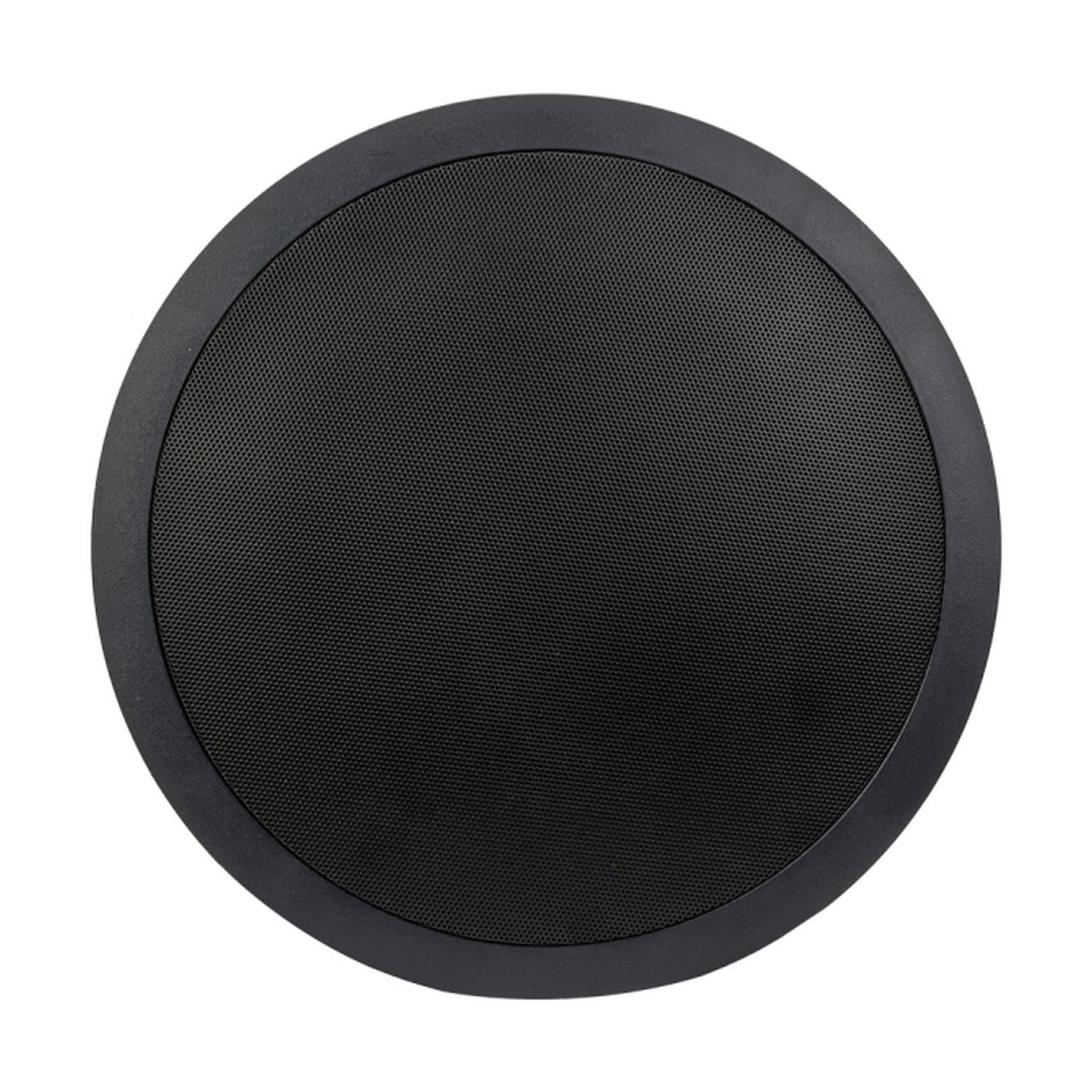

- Grille: Magnetic micro-flange, paintable steel
- Certifications: UL 1480, UL 2043, CE, RoHS compliant
- Included Accessories: Tile bridge, paint shield, 0.5″ conduit clamp, wire nuts
Technical Specifications
- Woofer: 8″ polypropylene with butyl rubber surround
- Tweeter: 1″ silk dome
- Crossover Frequency: 3.0 kHz (6 dB/octave)
- Nominal Impedance: 16 Ω
- Minimum Impedance: 17.2 Ω
- Directivity Index: 5.5 dB (avg), 8.6 dB at 2 kHz
- Directivity Factor: 5.4 (avg 100 Hz – 10 kHz)
- Backcan Depth: 3.75″ (95.3 mm)
- Visible Diameter: 11.75″ (298.5 mm)
- Cutout Diameter: 10.5″ (266.7 mm)
- Ceiling Thickness Range: 0.035″ – 1.60″ (0.9 mm – 40.6 mm)
What's Included
- Paintable magnetic grille (black or white)
- Tile bridge (color coded)
- Paint shield
- UL‑listed 0.5″ conduit clamp
- Wire nuts (2 pcs)
