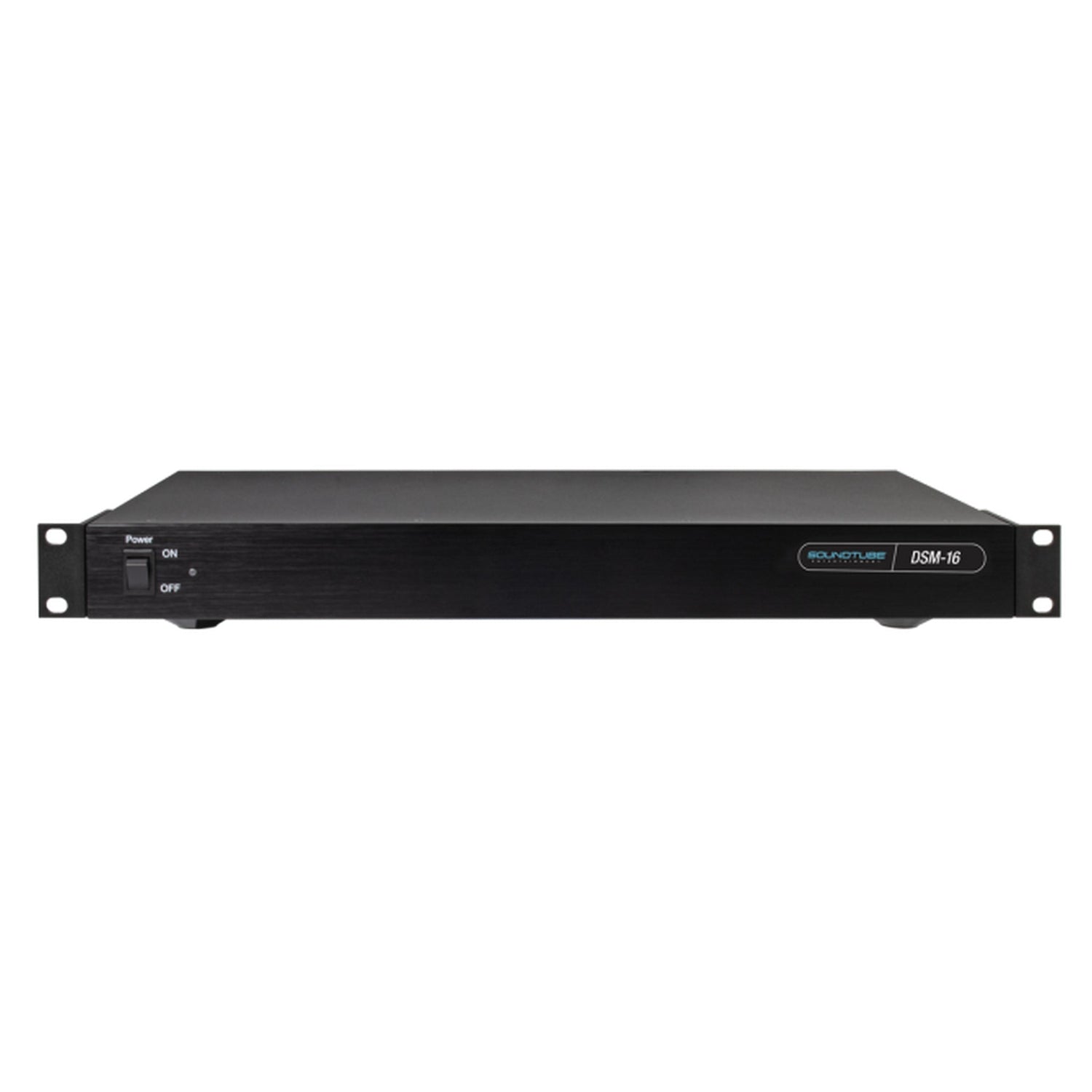

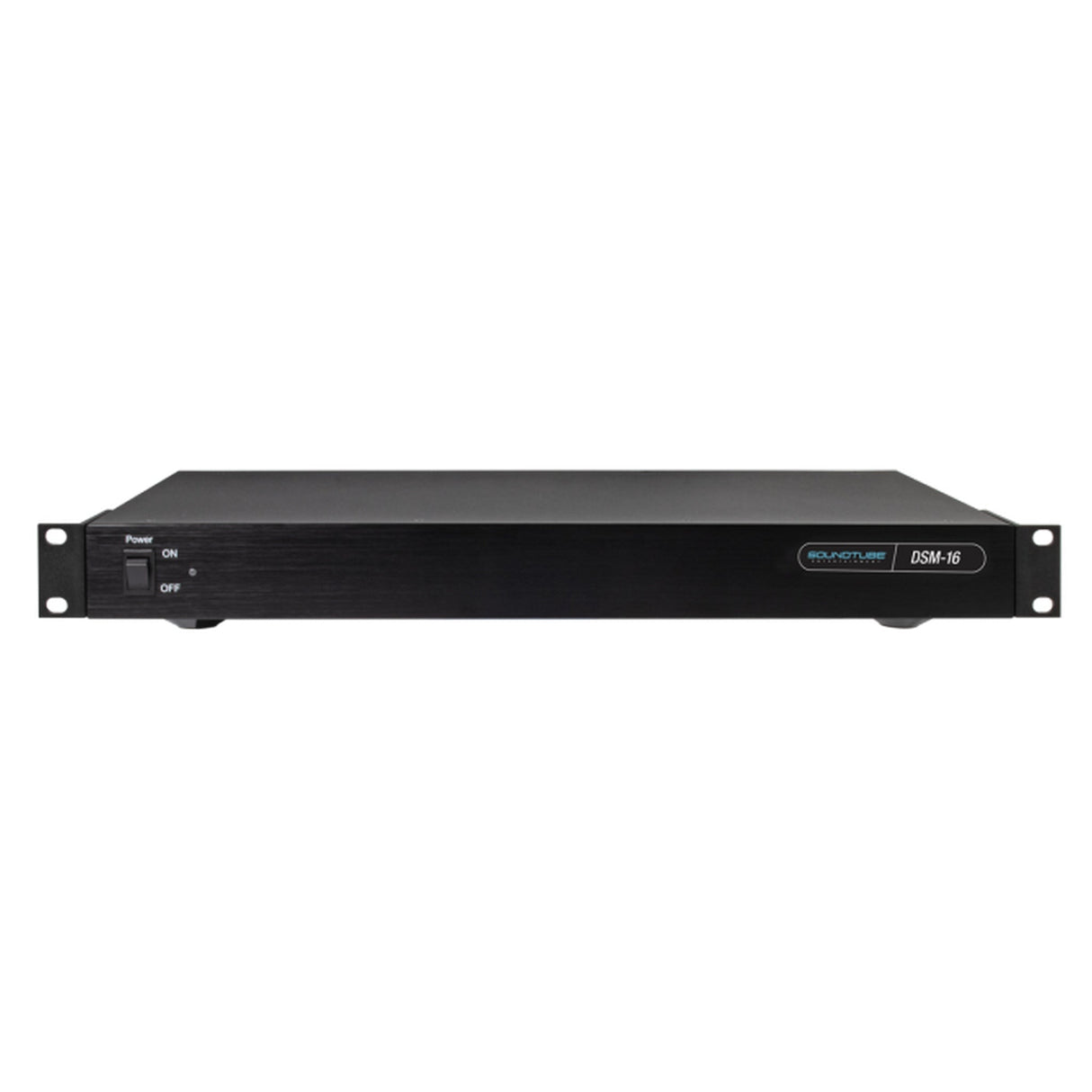

SoundTube DSM‑16 16×16 Dante DSP Matrix and System Manager
The DSM‑16 is a Dante-enabled 16×16 DSP system manager designed for distributed audio networks. It bridges legacy 70 V systems with modern IP-based Dante environments, offering flexible mixing, zoning, and signal routing-all controlled via an embedded web interface.
With three user privilege levels (installer, zone user, admin), web-based setup, and compatibility with major automation platforms, the DSM‑16 is ideal for enterprise, commercial, and premium residential installations.
Key Features
- Dante I/O: 16 Dante outputs, up to 8 Dante inputs, plus analog/coax/optical I/O
- DSP Capabilities: Zone and preset management, EQ, delay, level control
- Control Levels: Installer UI, zone user interface, admin interface
- Power Options: PoE+ (40 W) or 24 V DC power supply
- Control Integration: GPIO ports, 12 V triggers, third-party API access
- Connectivity: Ethernet port dedicated to control/configuration
- Enclosure: Rack-mountable 1U steel chassis
Technical Specifications
- Width: 17.25″ (438.2 mm)
- Depth: 9.25″ (235.0 mm)
- Height: 1.75″ (44.5 mm) without feet; 2.0″ (50.8 mm) with feet
- Weight (Net): 7.15 lbs (3.2 kg)
- Shipping Weight: 9.65 lbs (4.4 kg)
- Sampling Rate: 48 kHz / 96 kHz
- Frequency Response: 20 Hz–20 kHz ±1 dB
- Dynamic Range: 104 dB; THD+Noise < 0.01%

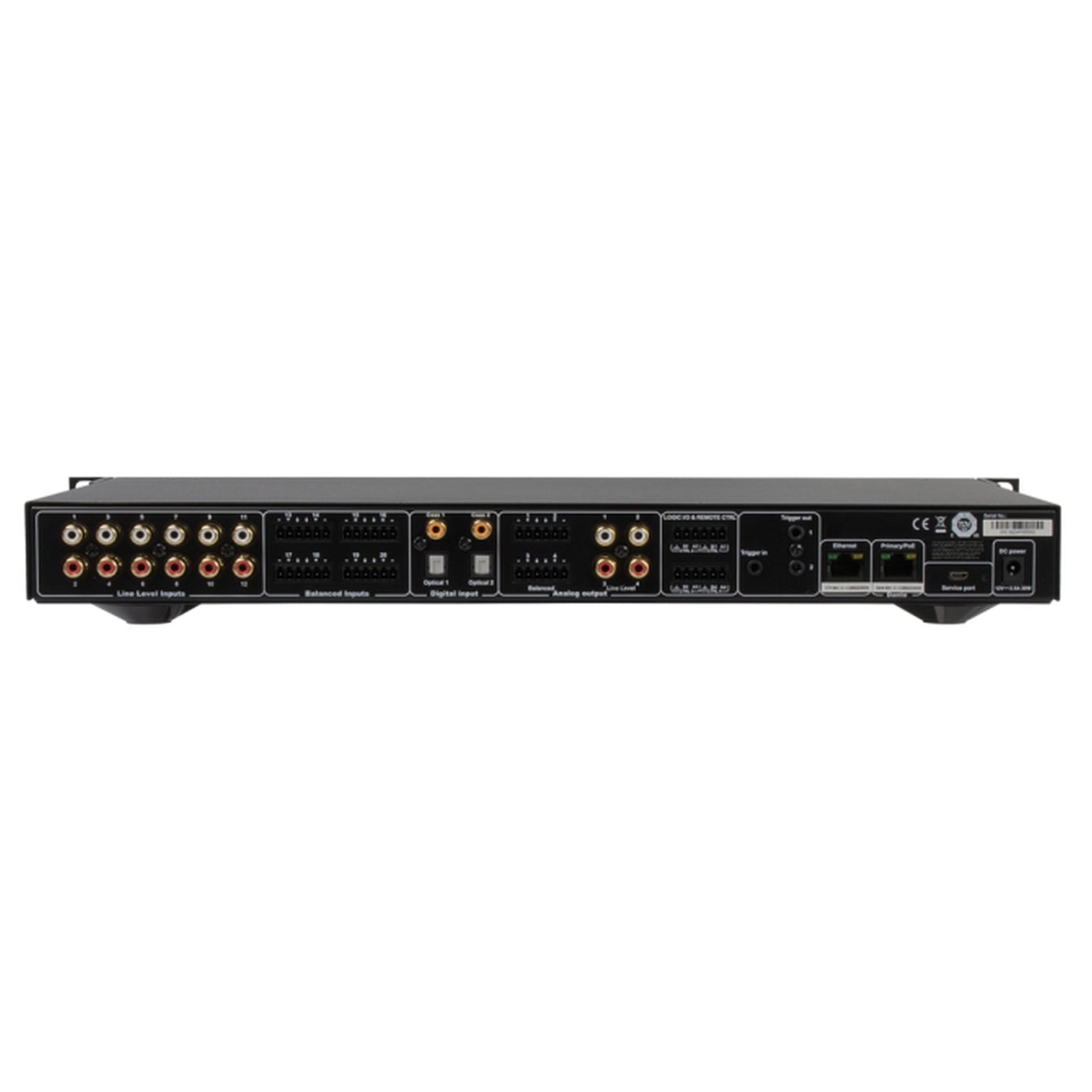

- Inputs: 12 RCA unbalanced; 8 balanced; 2 optical; 2 coax; 8 Dante
- Outputs: 4 analog (line-level); 16 Dante
- Control I/O: GPIO (4 ports), 1× 12 V trigger input, 2× outputs
- Power Input: PoE+ or 24 V DC
- Enclosure: Rack‑mount steel chassis
What's Included
- DSM‑16 unit
- 6-pin Euroblock connector
- Mounting hardware for rack installation
- Power supply (if not using PoE+)
