Condition: New
SoundTube HV101 10-Inch Ported Subwoofer
The PhaseTech HV101 series delivers powerful, controlled bass with a compact footprint. Available in two variations—the standard HV101-II and the slim HV101-LP—these 10" ported subwoofers suit diverse installation needs, from dedicated home theaters to discreet under-furniture placements.
Both models feature a mineral-filled polypropylene woofer with NBR surround and a 150 W integrated amplifier with variable low-pass crossover (50–250 Hz) and LFE bypass. Finished in black with RoHS certification, they integrate seamlessly into any commercial or residential audio system.
Key Features
- Driver: 10" treated pulp cone with NBR surround

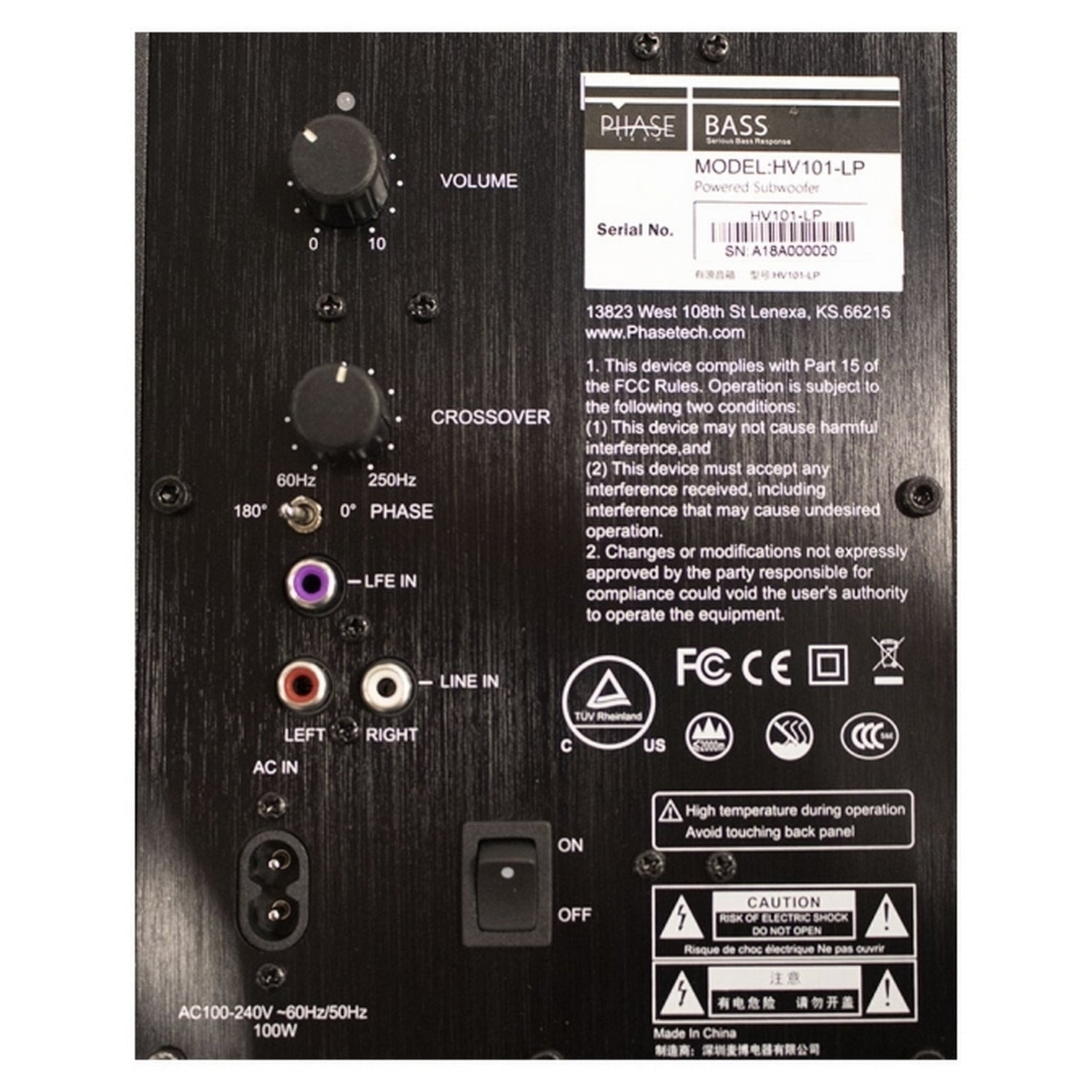

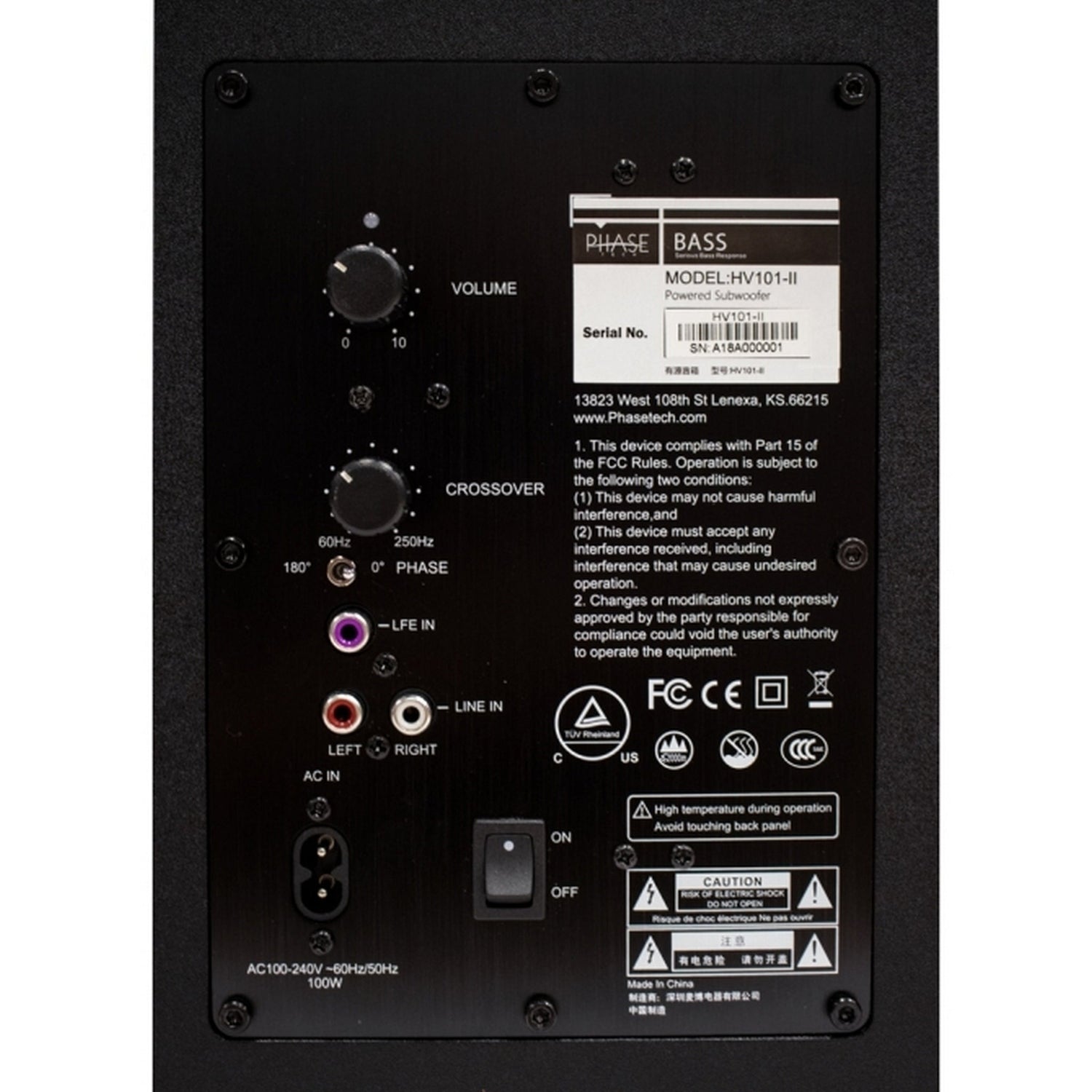

- Amplifier: 150 W RMS class-D with variable low-pass crossover and LFE setting
-
Frequency Response:
- HV101-II: 28 Hz–200 Hz (±3 dB)
- HV101-LP: 35 Hz–200 Hz (±3 dB)
- Crossover: 50–250 Hz, 24 dB/octave
- Inputs: Stereo RCA, LFE
- Finish: Black powder-coat
- Certifications: RoHS, CE
- Included Accessory: Power supply
What's Included
- HV101 Subwoofer (model of choice)
- External power supply
- Owner’s manual & CE certification documents
Variations
-

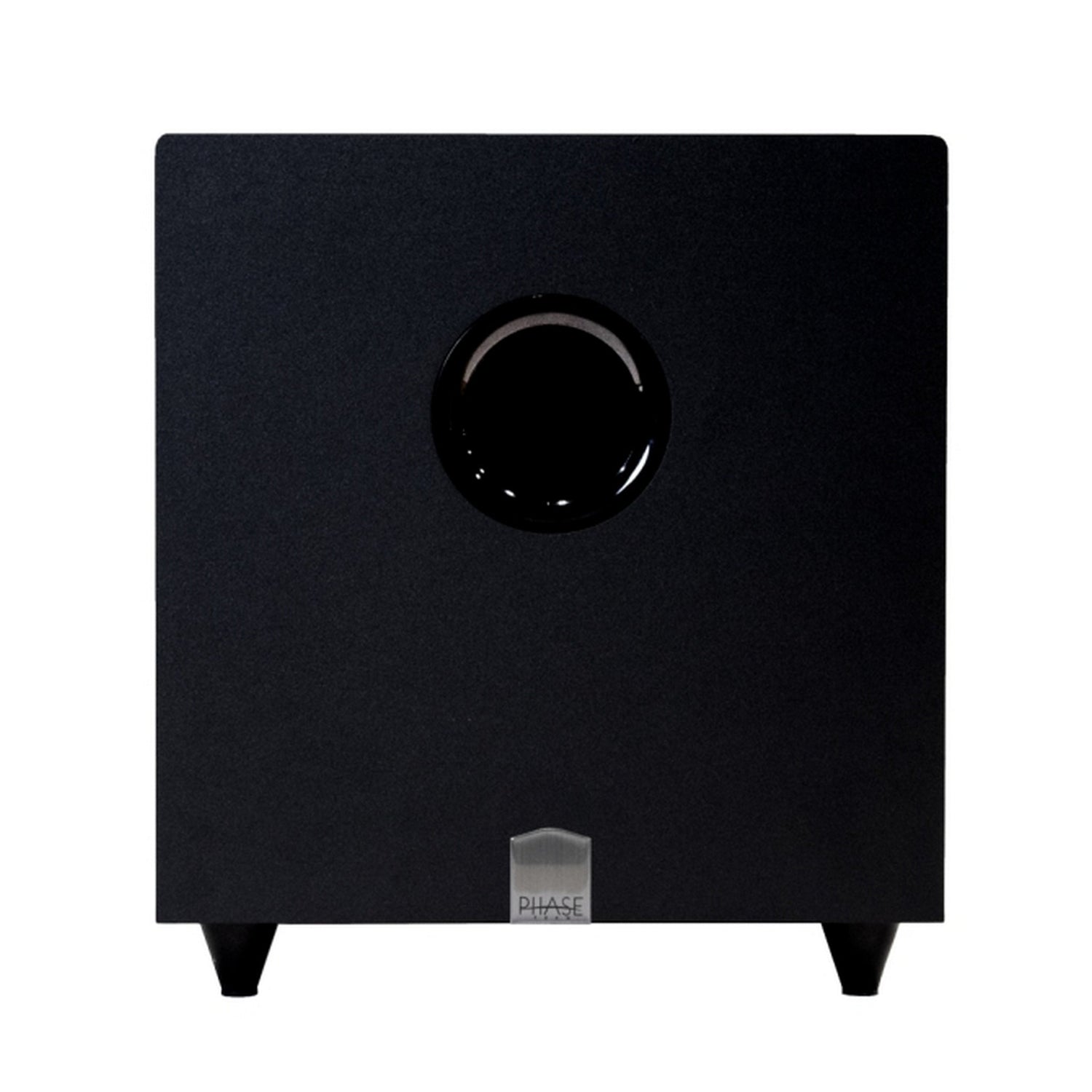

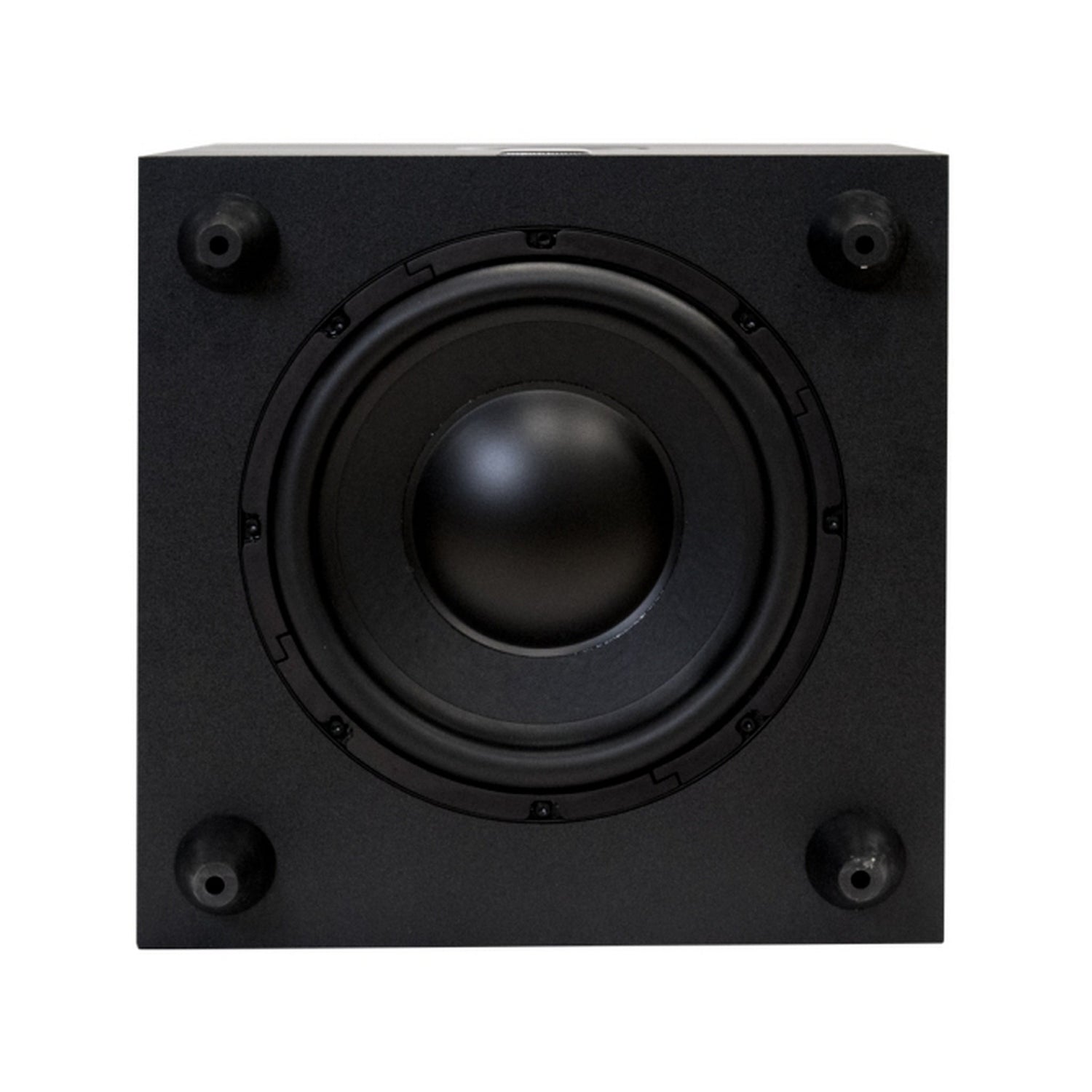

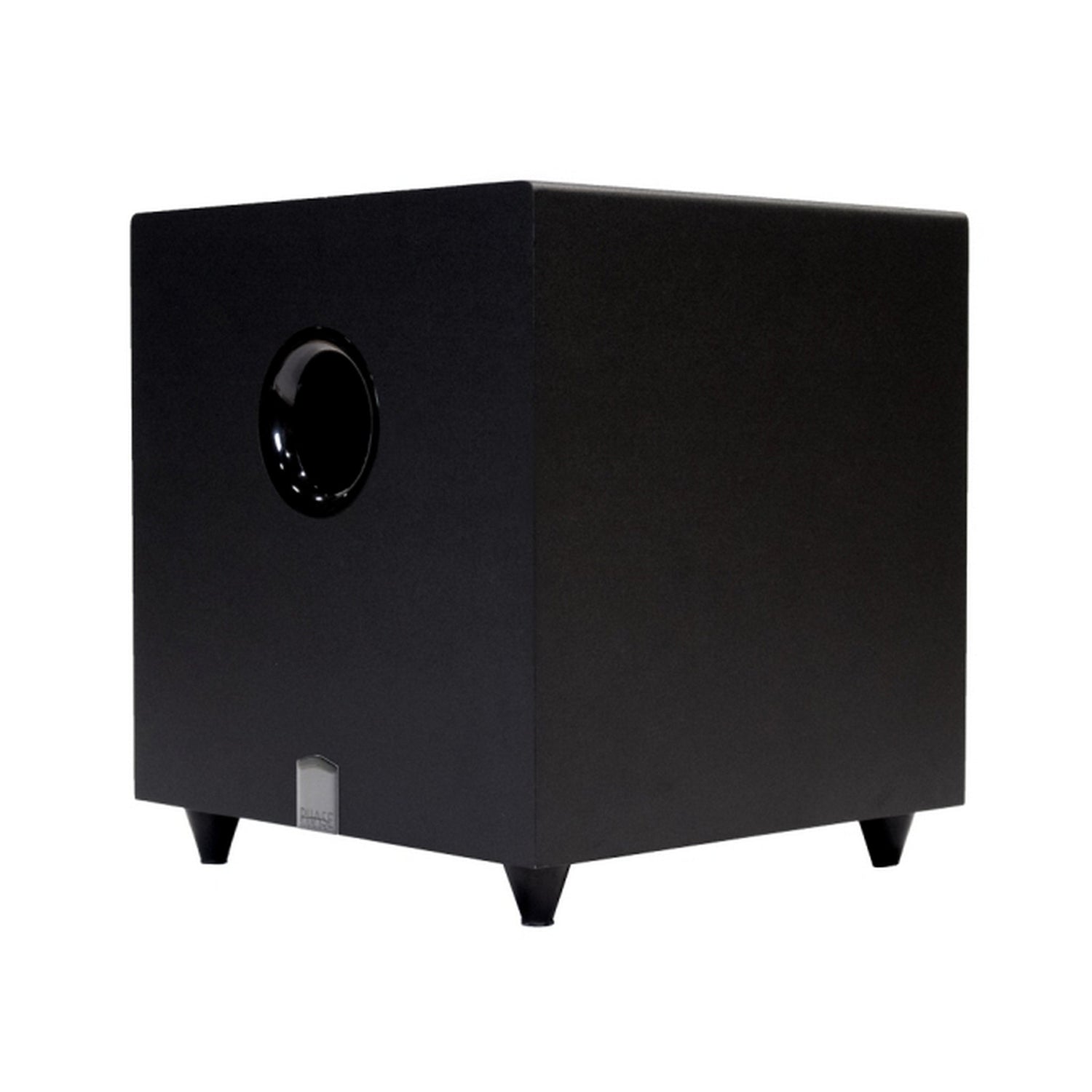

HV101-II (Standard):
- Height: 14.75 in (374.7 mm)
- Width/Diameter: 13.5 in (342.9 mm)
- Mounting Depth: 14.5 in (368.3 mm)
-

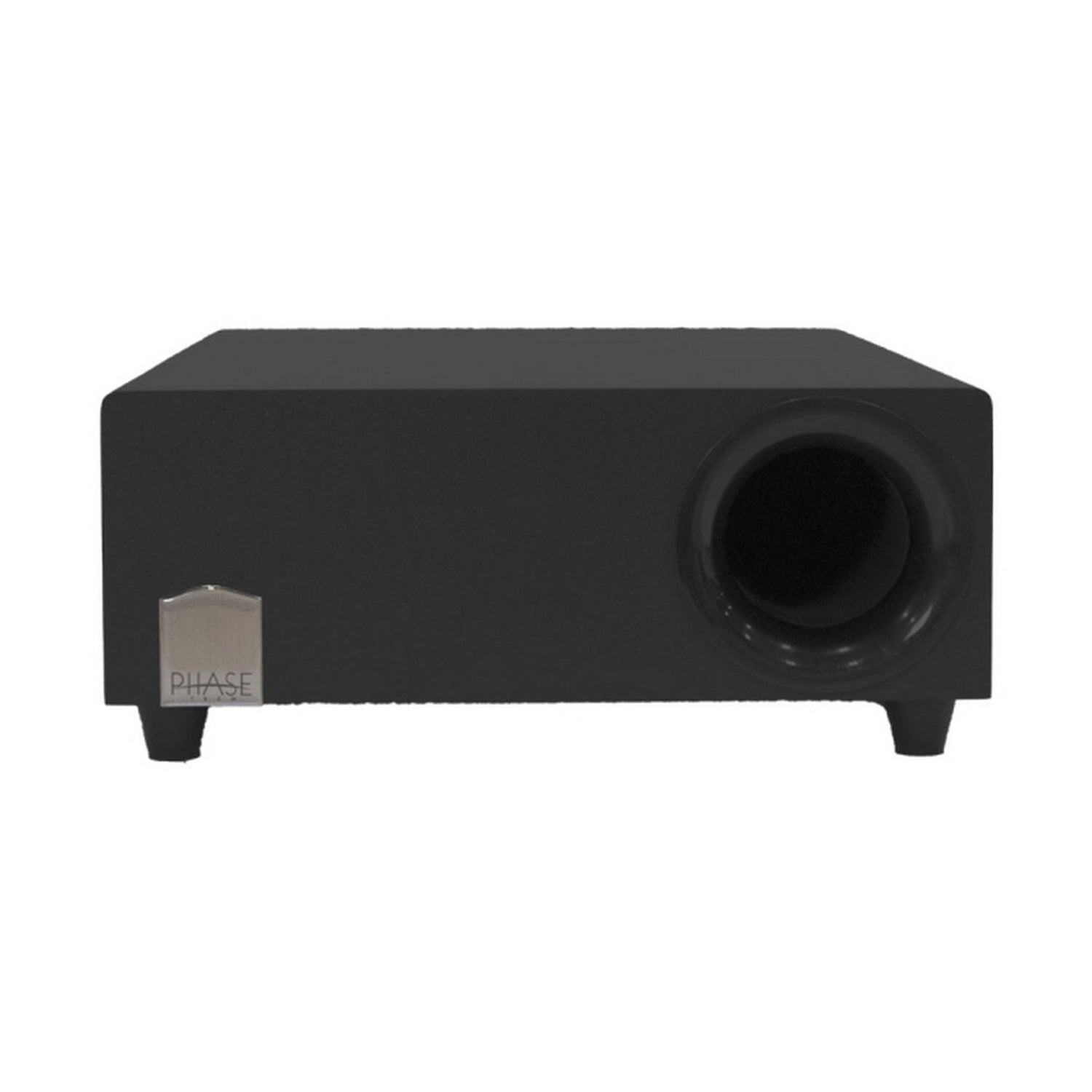

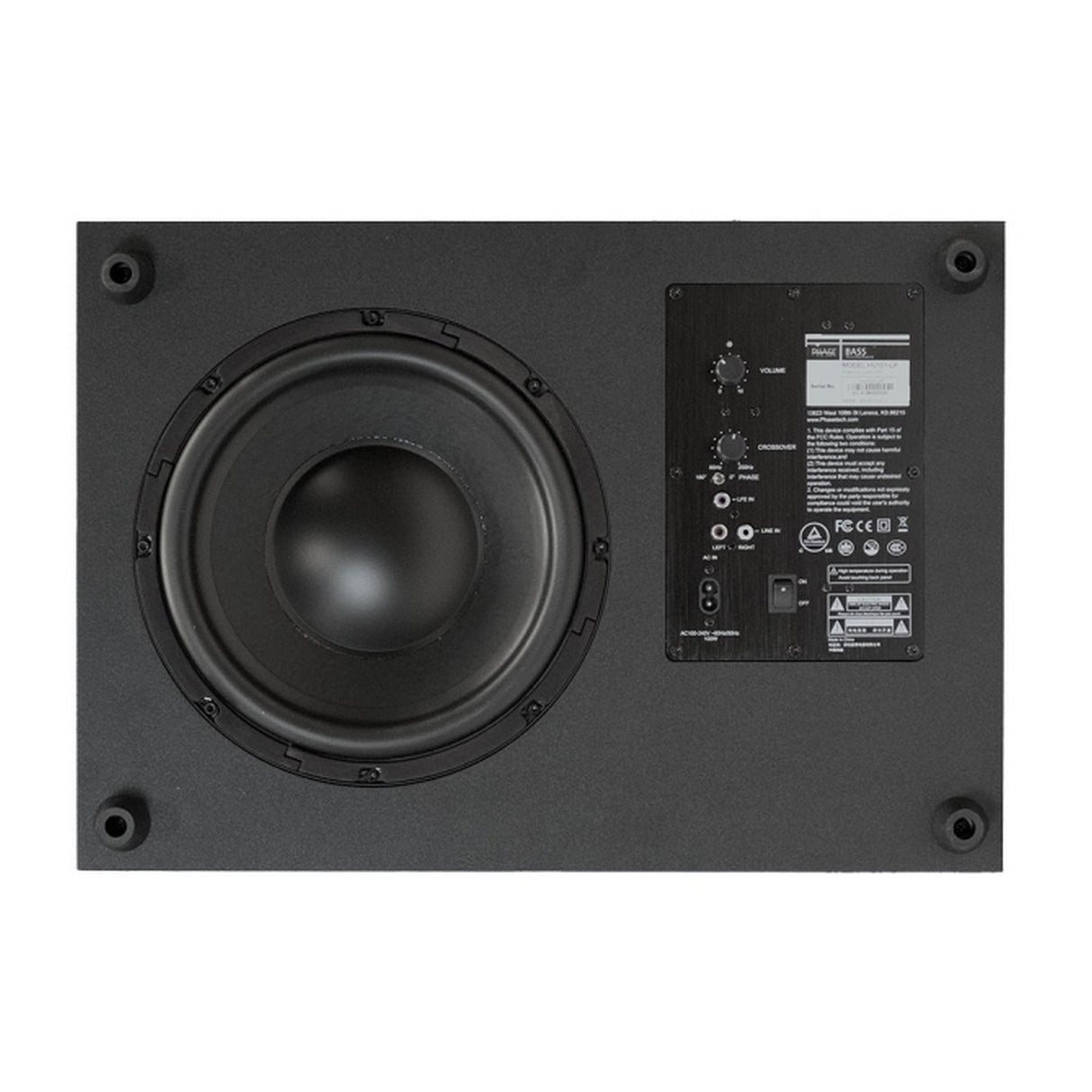

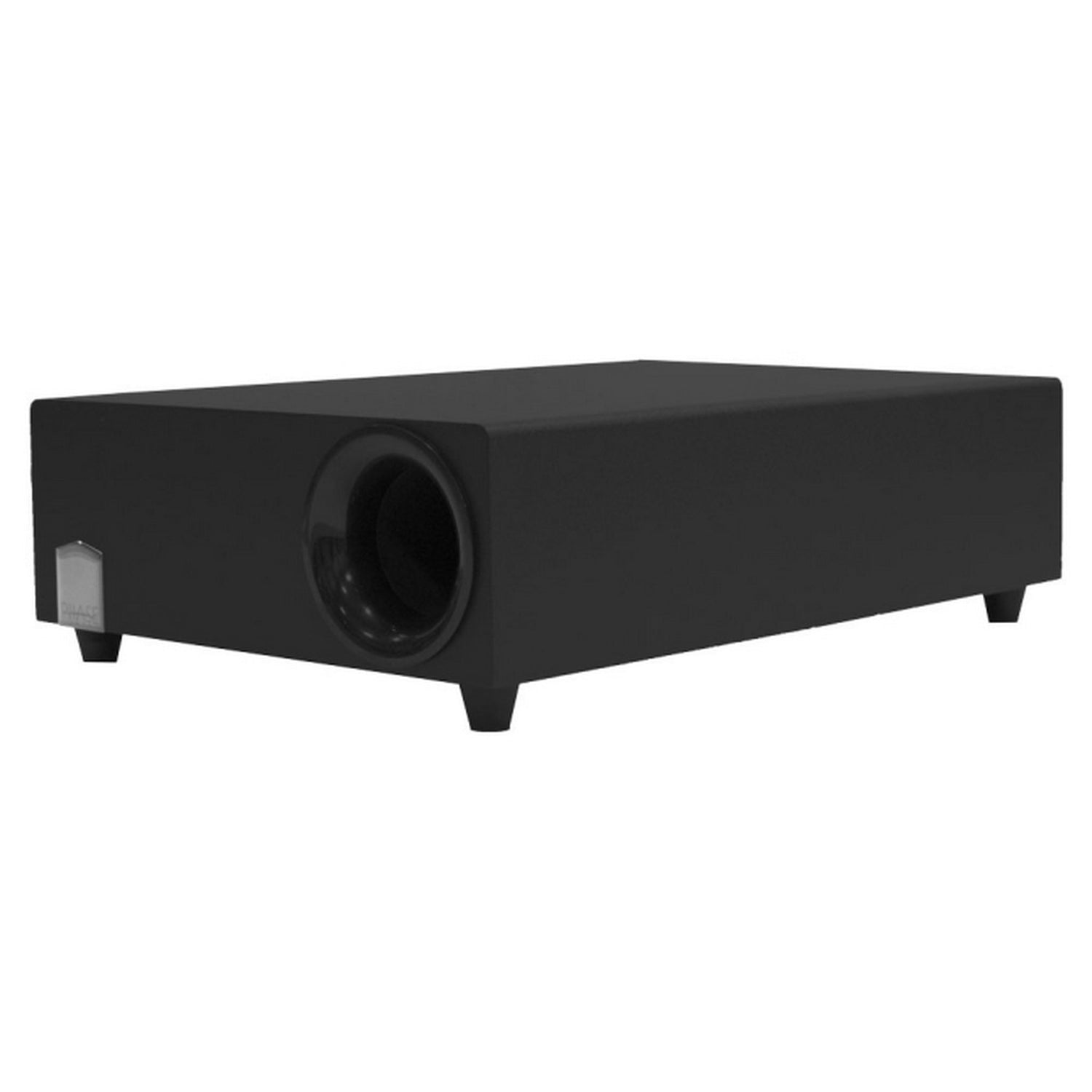

HV101-LP (Low-Profile):
- Height: 6 in (152.4 mm)
- Width/Diameter: 13.5 in (342.9 mm)
- Mounting Depth: 19.75 in (501.7 mm)
