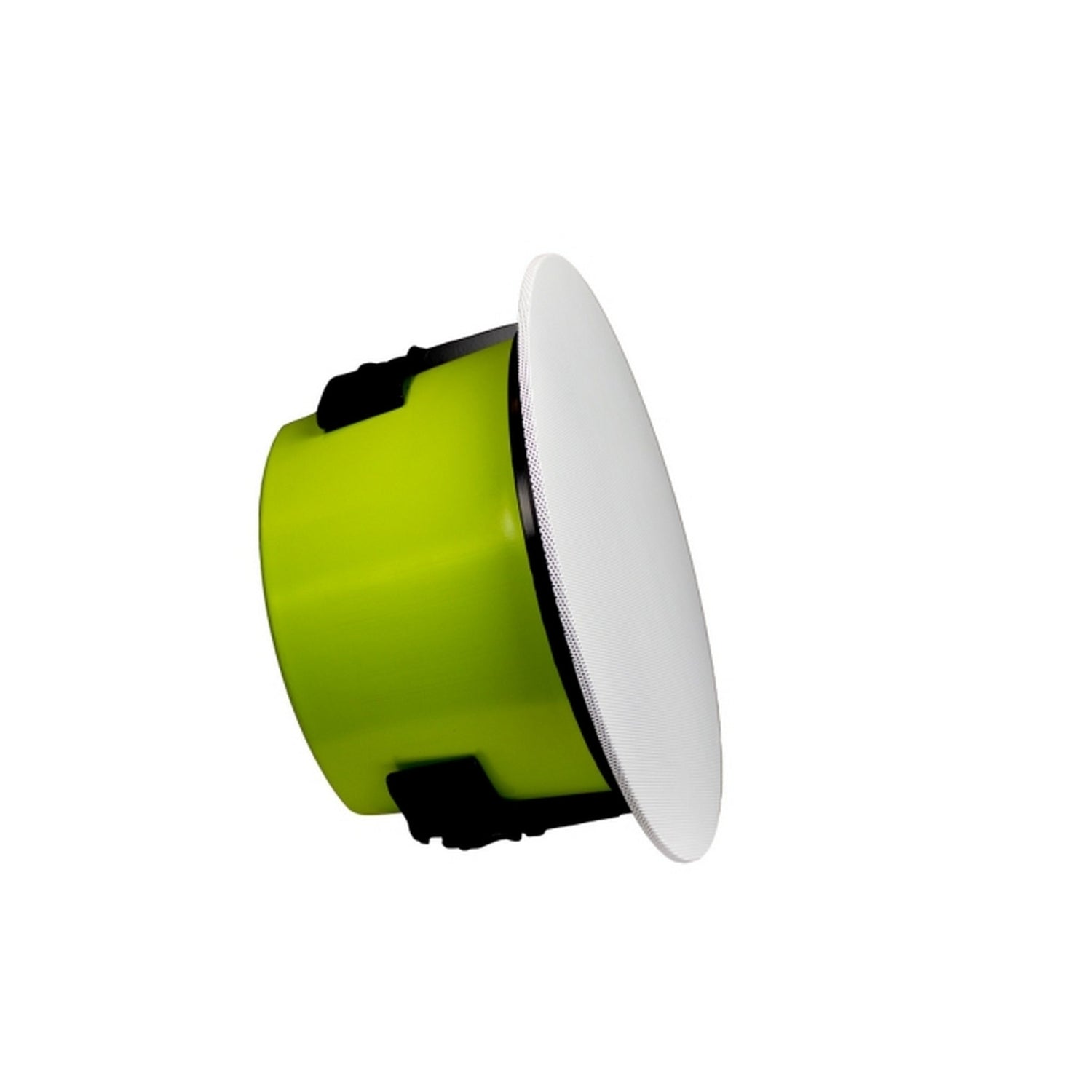

SoundTube IPD‑CM62‑BGM‑II Series 6.5-Inch Dante IP‑Addressable In‑Ceiling Speaker
This 6.5″ coaxial speaker combines Dante®/AES67 network streaming with integrated PoE power via PoE/PoE+ or optional 24VDC. It features BroadBeam Ring™ waveguide for balanced dispersion and includes mounting and accessory hardware. Choose between the standard international model or the U.S.-manufactured BAA/TAA-compliant version.
Key Features

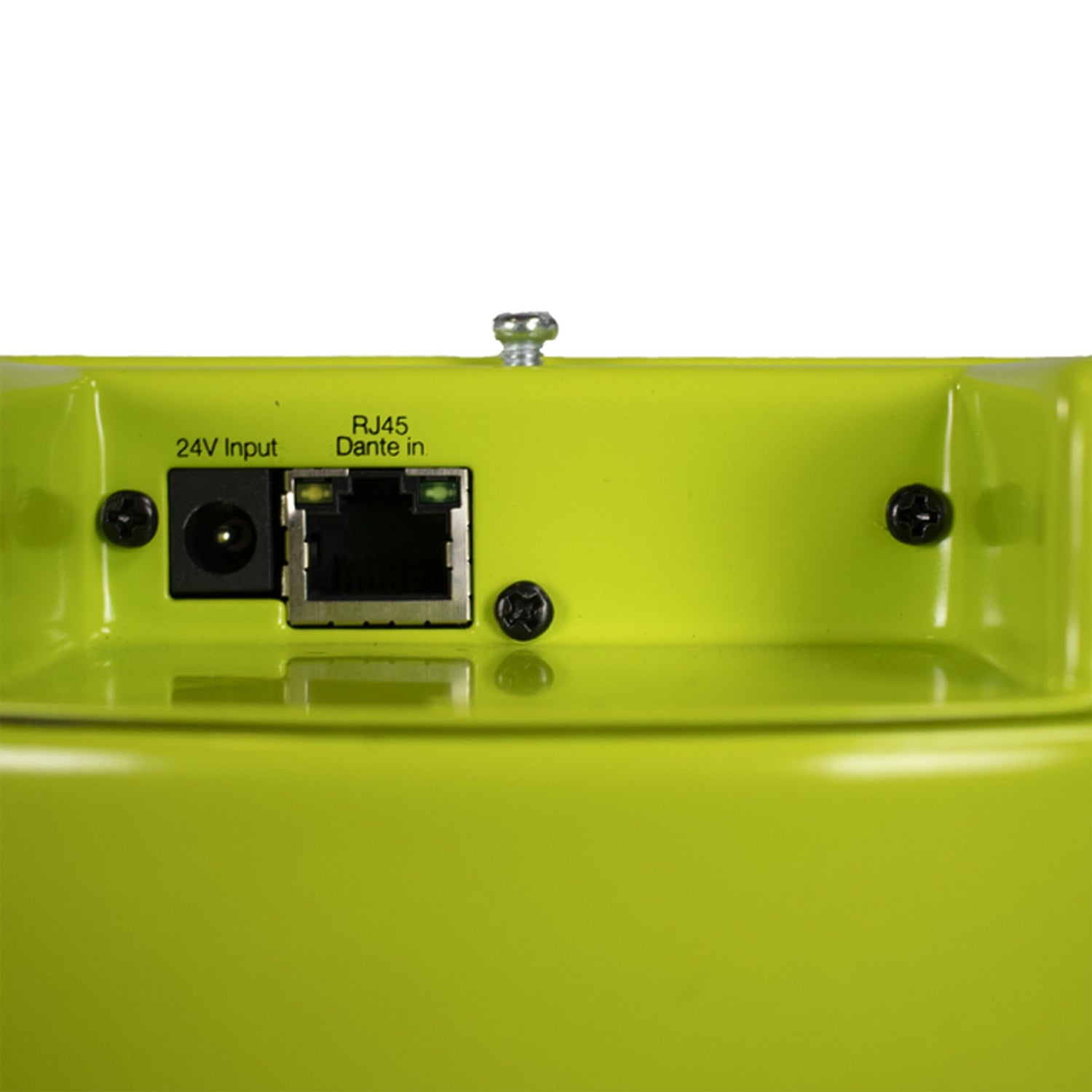

- Dante®/AES67-over-Ethernet streaming with PoE/PoE+ or 24V DC powering
- Four-channel analog output to power up to three passive CM62-BGM speakers

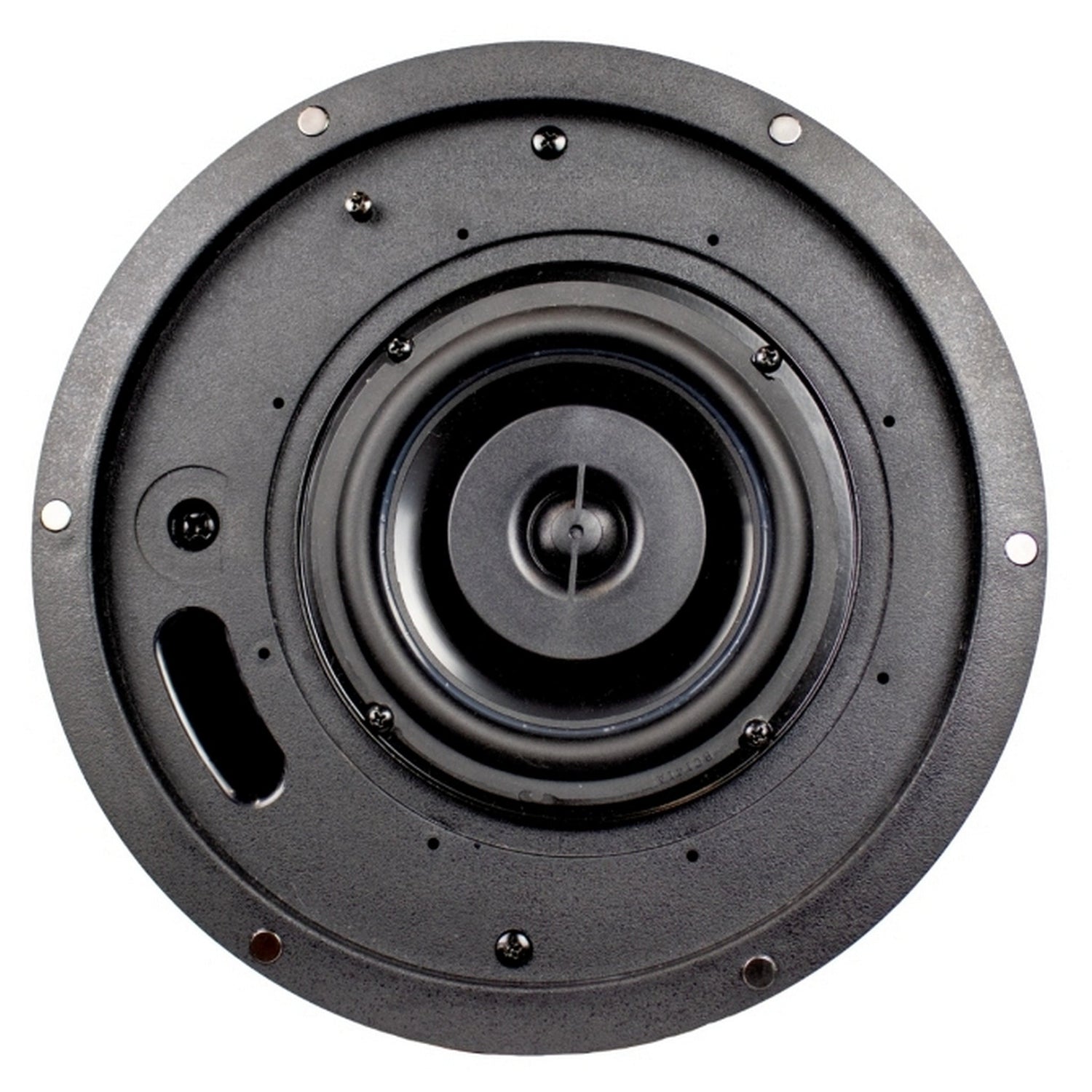

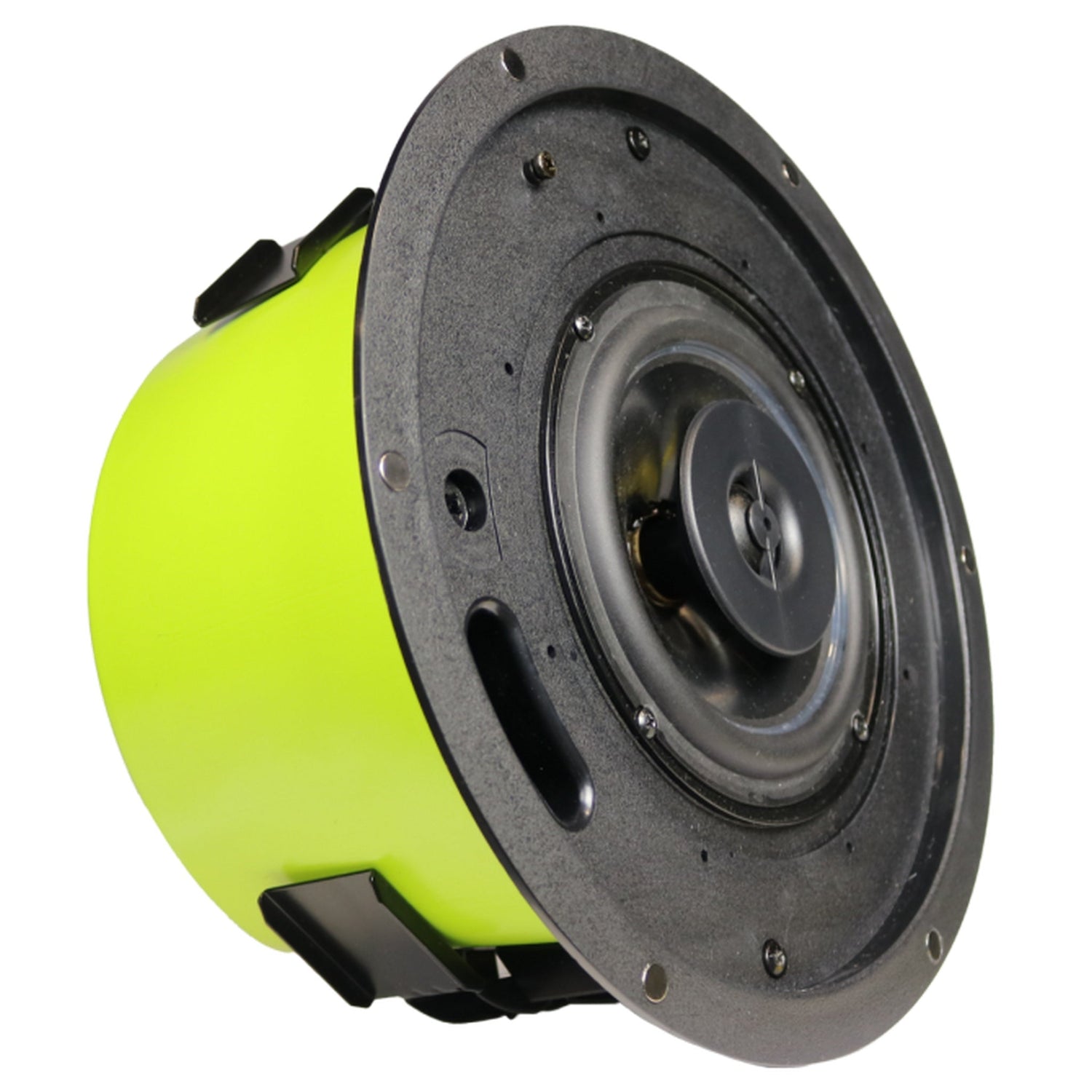

- BroadBeam Ring™ coaxial driver with smooth response to 60Hz (−10dB)
- SpeedWing™ mounting hardware for ceilings up to 1.6″ (40mm)

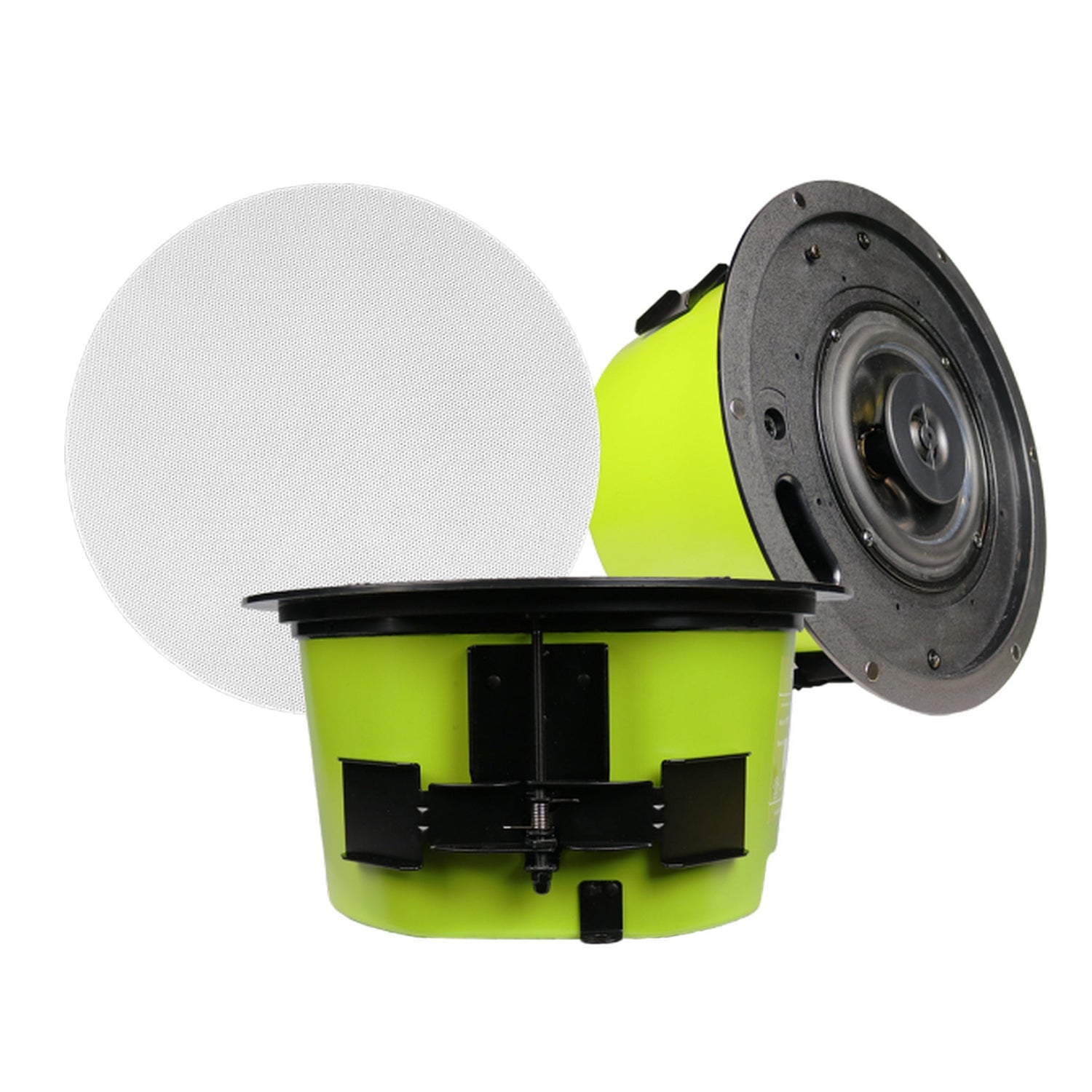

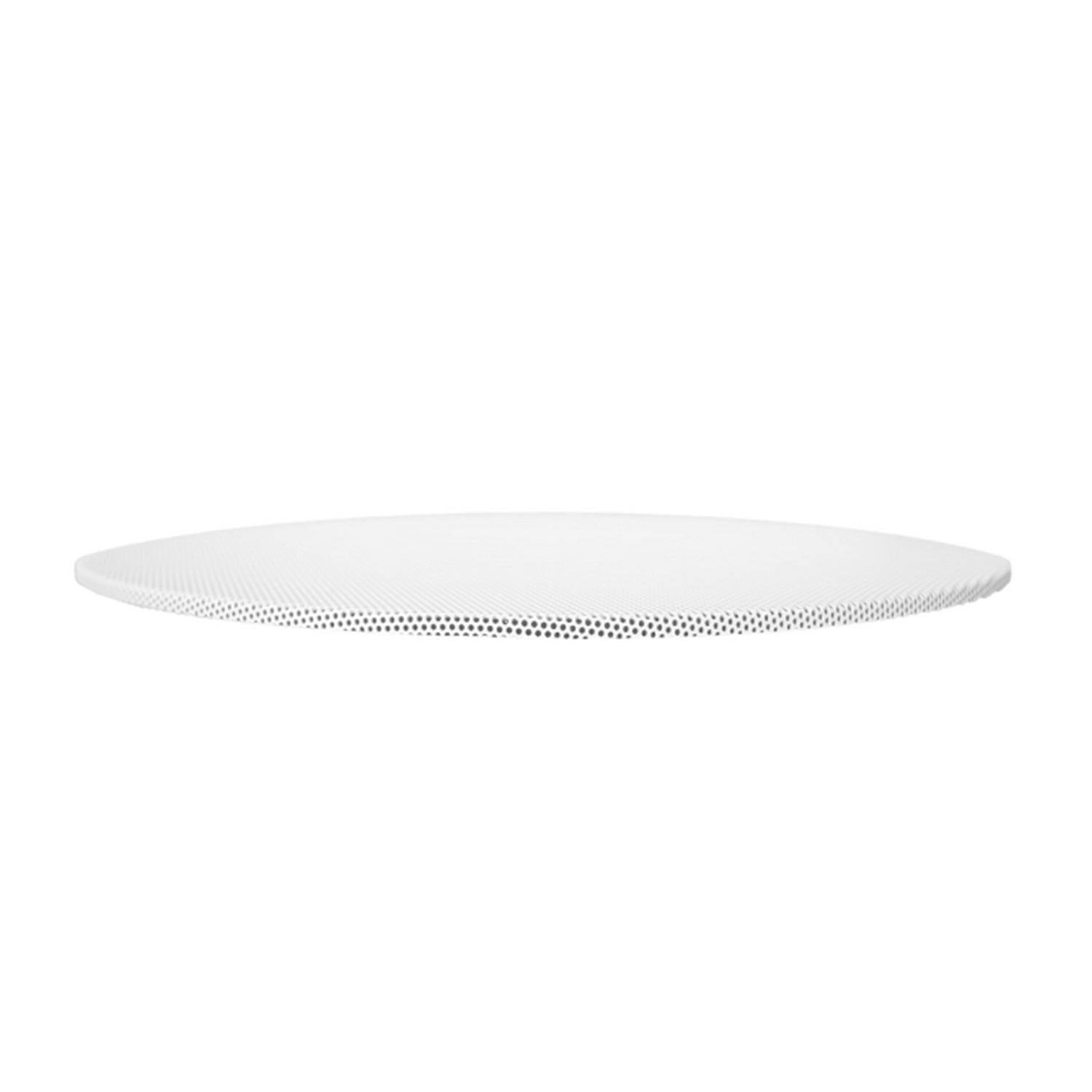

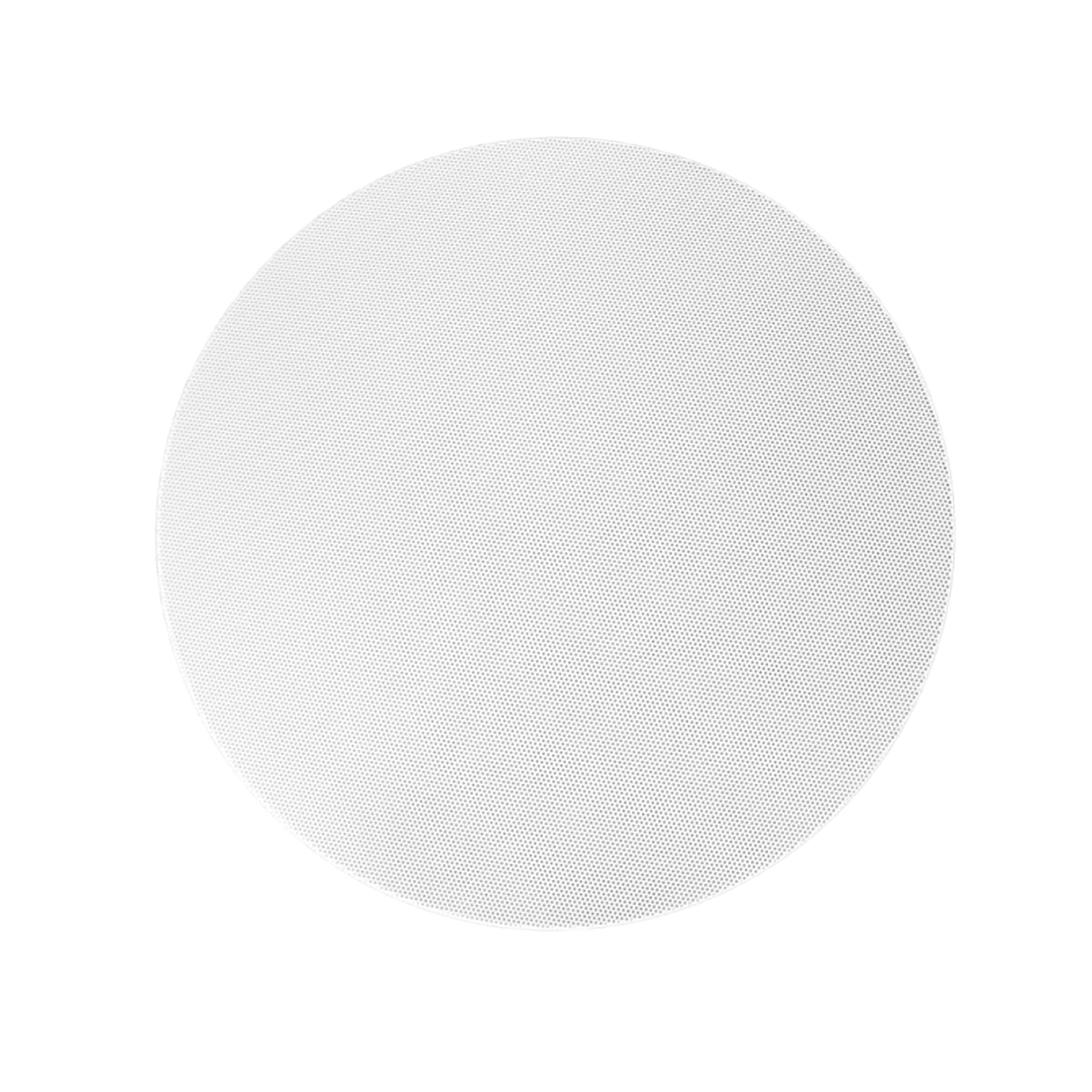

- Included: seamless magnetic grille, tile bridge, conduit clamp, paint mask

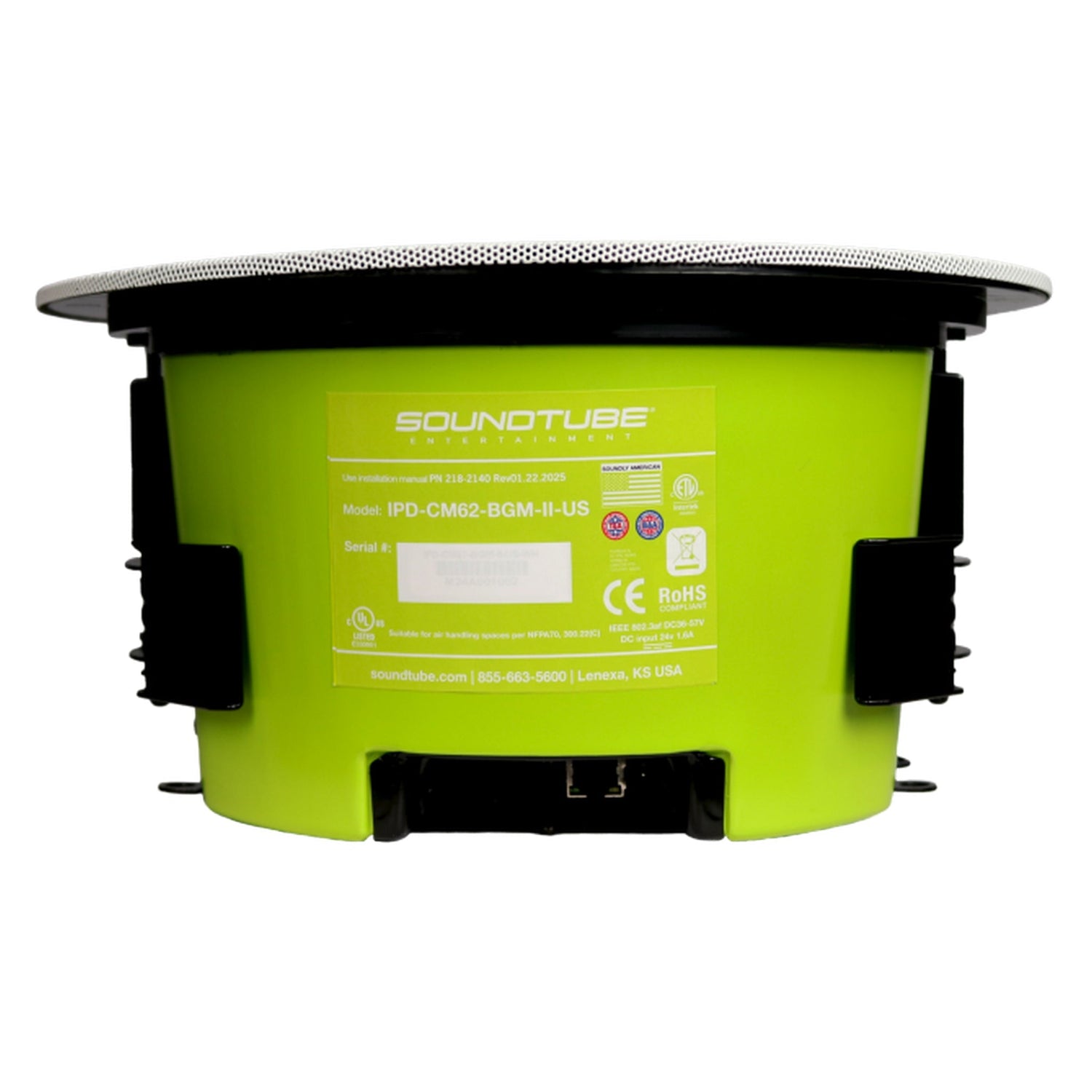

- Certifications: CE, RoHS, UL2043, UL60065, ETL‑C/US; IPX3 rating
Dimensions & Weight
- Net/Shipping Weight: 10.95lb (4.97kg)
- Carton Size: 13.25″ × 13.25″ × 8″ (336 × 336 × 203mm)
- Visible Diameter: 11.75″ (298.5mm); Grille Thickness: 0.34″ (8.6mm)
- Backcan: Ø 9.67″ × Depth 5.75″ (245.6 × 146.1mm); Cutout Diameter: 10.5″ (266.7mm)
Performance Specifications
- Frequency Response (±3dB): 54Hz–20kHz
- Frequency Response (±10dB): 50Hz–22kHz
- Directivity (Q/DI): Q≈5.1–5.9, DI≈6.2–7.0dB
- Max SPL: Up to 101dB @1m (when used in trad cluster)
- Crossover: 4.0kHz, 2nd-order (12dB/oct)
Available Models
- IPD‑CM62‑BGM‑II‑WH: Global standard module
- IPD‑CM62‑BGM‑II‑US‑WH: U.S made model suitable for government procurement (BAA/TAA compliant)
