SoundTube IPD‑CM82‑BGM‑II 8-Inch Dante/AES67 IP‑Addressable Ceiling Speaker

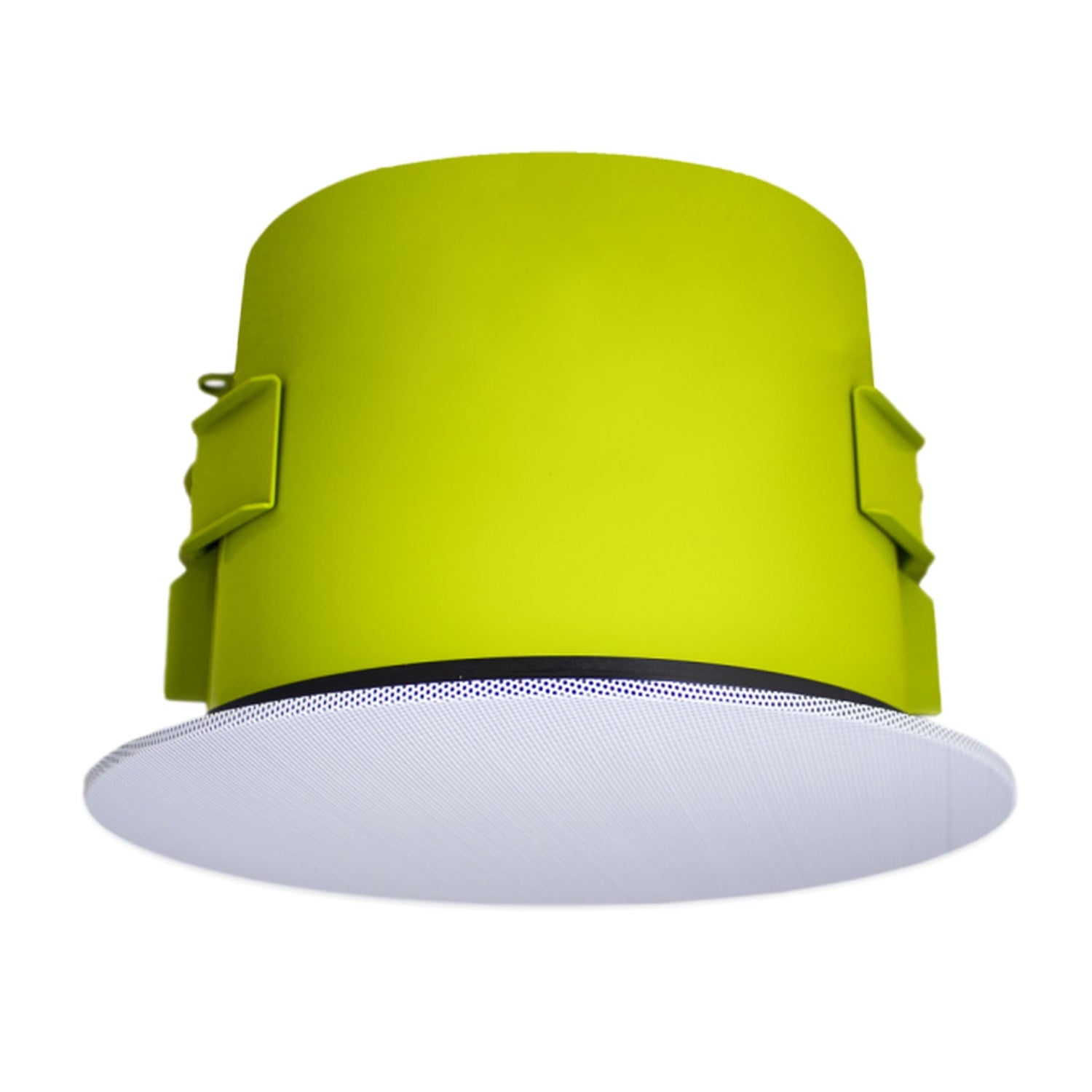

This 8″ coaxial in-ceiling speaker receives Dante®/AES67 streaming audio, power, and control via PoE/PoE+ or optional 24 VDC. Featuring a polypropylene woofer and silk dome tweeter, it delivers precise coverage using BroadBeam Ring™ technology and extends to 55 Hz for enhanced bass performance.
Key Features

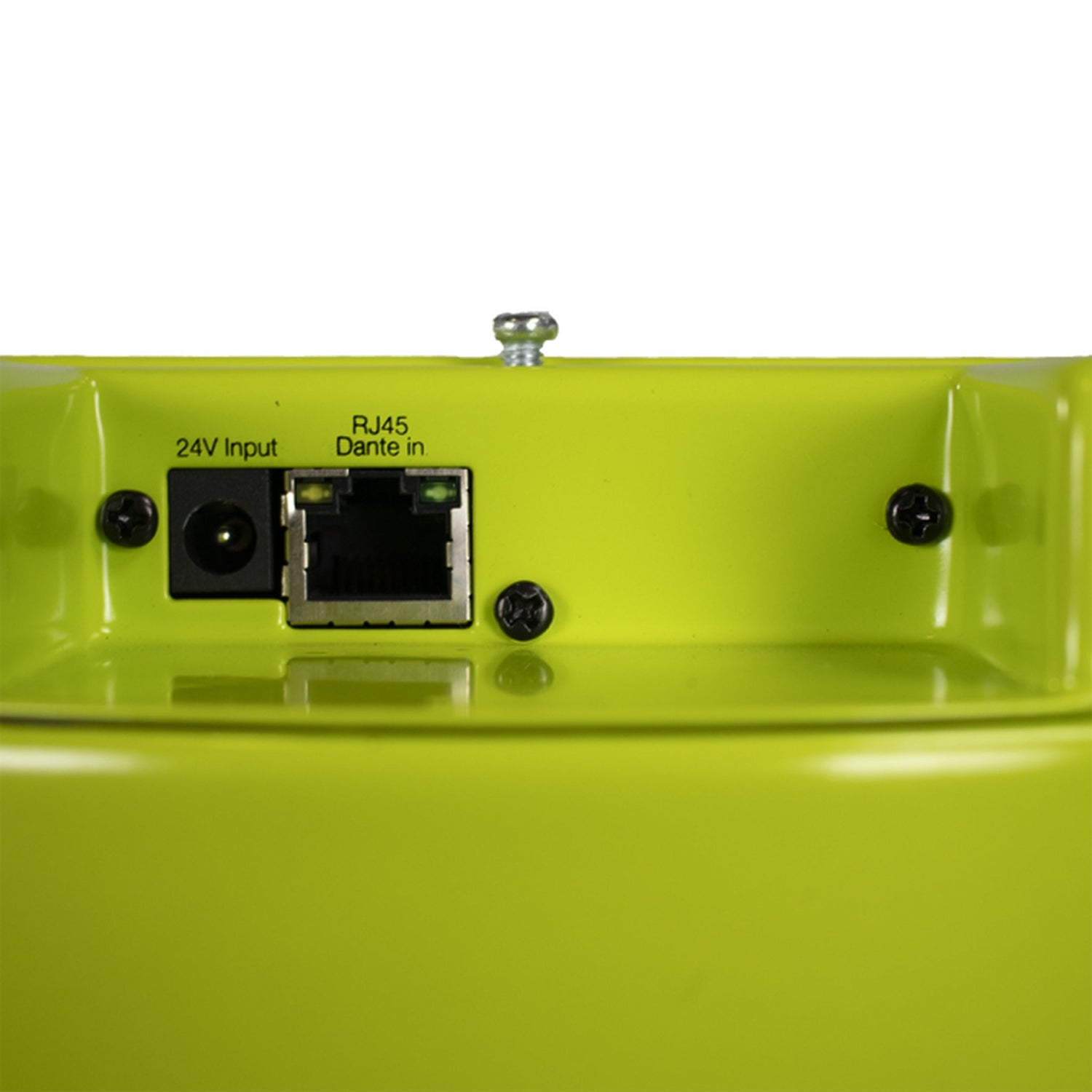

- Dante®/AES67-compatible with PoE (30 W max) or PoE+ (40 W with STNet Switch II)
- BroadBeam Ring™ coaxial transducer system for wide, smooth dispersion and mid-range clarity
- Tuned port in baffle ensures extended low-frequency response down to 55 Hz (–10 dB)
- SpeedWing™ mounting system fits ceilings from 0.035″ to 1.6″ (0.9–40.6 mm)

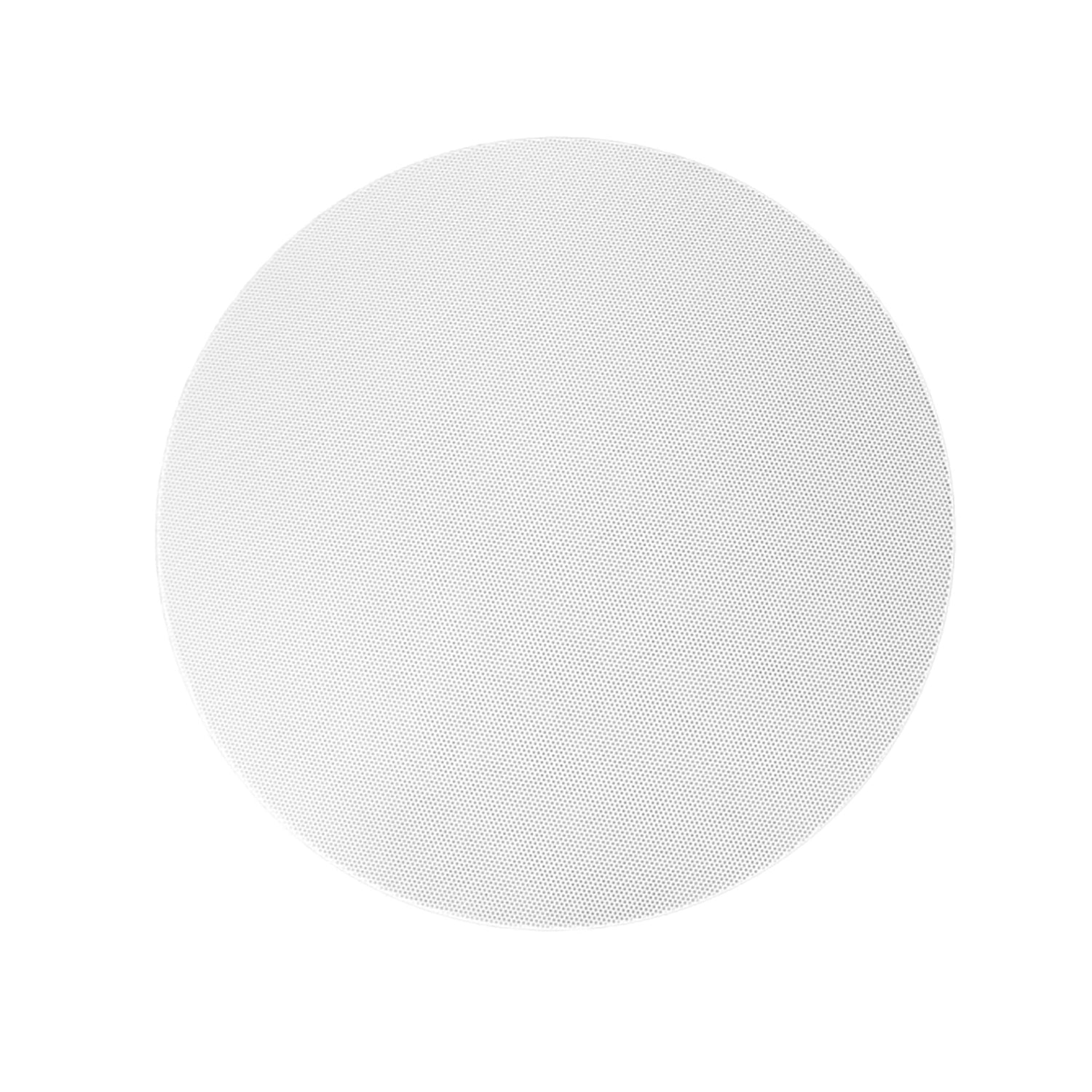

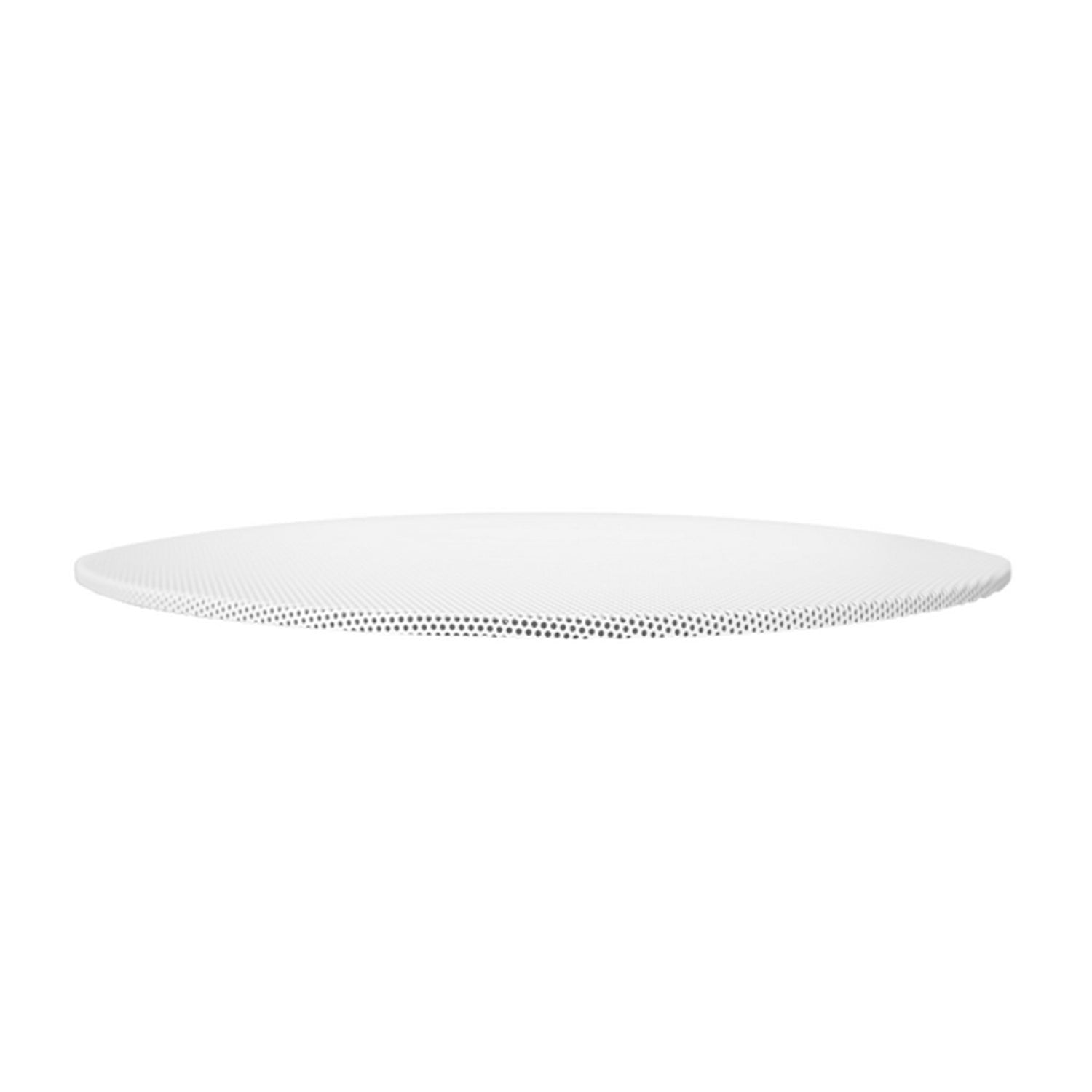

- White seamless magnetic steel grille; optional black grille accessory available
- Includes conduit clamp, paint shield, tile bridge; optional pre-construction bracket
- Certifications: UL 60065, UL 2043, CE, RoHS, ETL‑C/US
Performance & Directivity
- Frequency Response (±3 dB): 70 Hz–18 kHz
- Frequency Response (±10 dB): 55 Hz–22 kHz
- Max SPL @ 1 m: 103 dB (with full PoE input)
- Coverage (±6 dB @ 2 kHz): ~110°; average directivity ~82° from 2–10 kHz
- Directivity Factor (Q): ~5.4 (avg), ~7.2 @ 2 kHz; DI: ~5.5 dB (avg), ~8.6 dB @ 2 kHz
Weight & Dimensions
- Net Weight: ~9 lb (4.1 kg); Shipping Weight: 12.6 lb (5.7 kg)
- Carton Size: 13.25″ × 13″ × 10.5″ (336.6 × 330.2 × 266.7 mm)
- Visible Diameter: 11.75″ (298.5 mm); Grille Height: 0.34″ (8.6 mm)
- Backcan: Ø 9.67″ × Depth 8″ (245.6 × 203.2 mm); Cutout Diameter: 10.5″ (266.7 mm)
