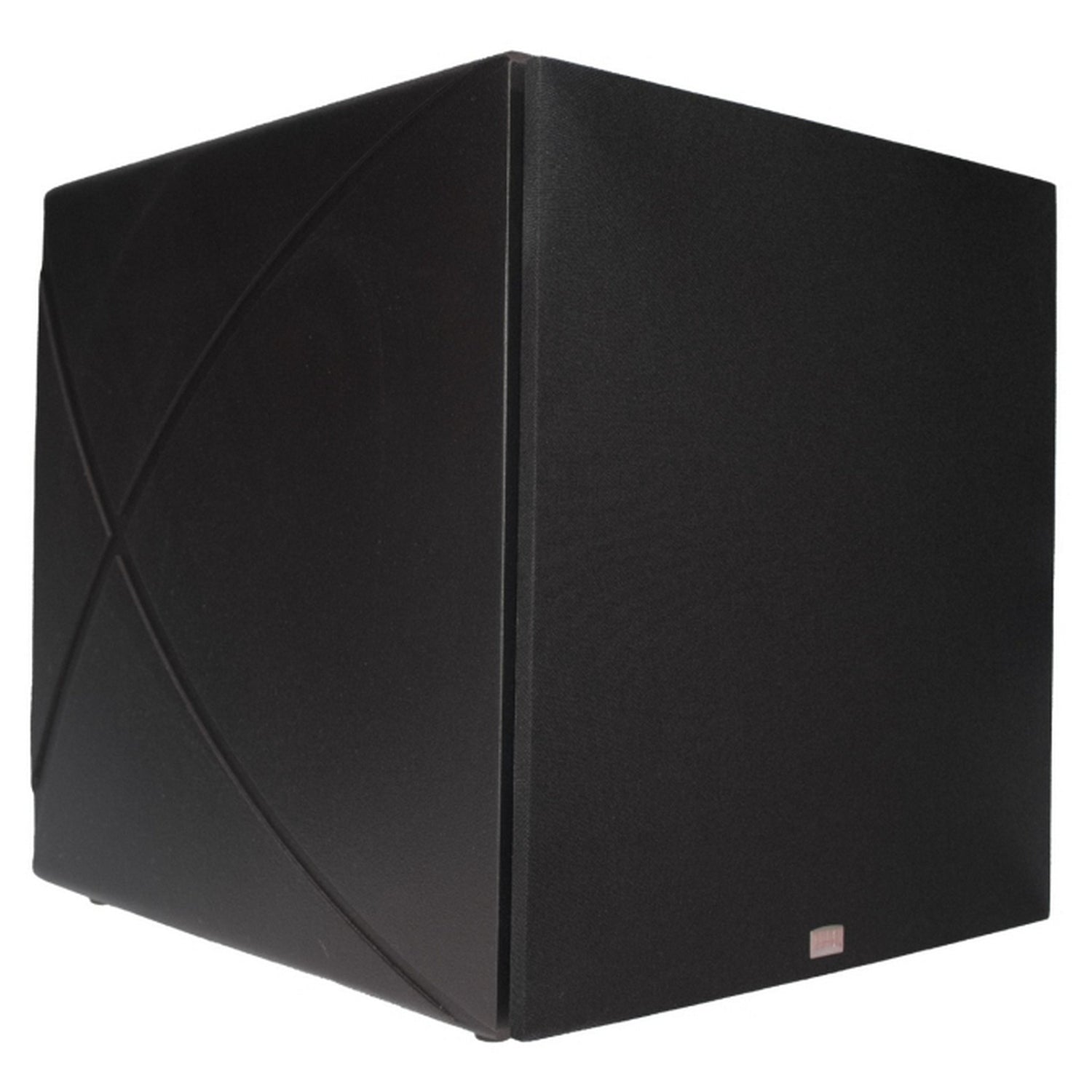

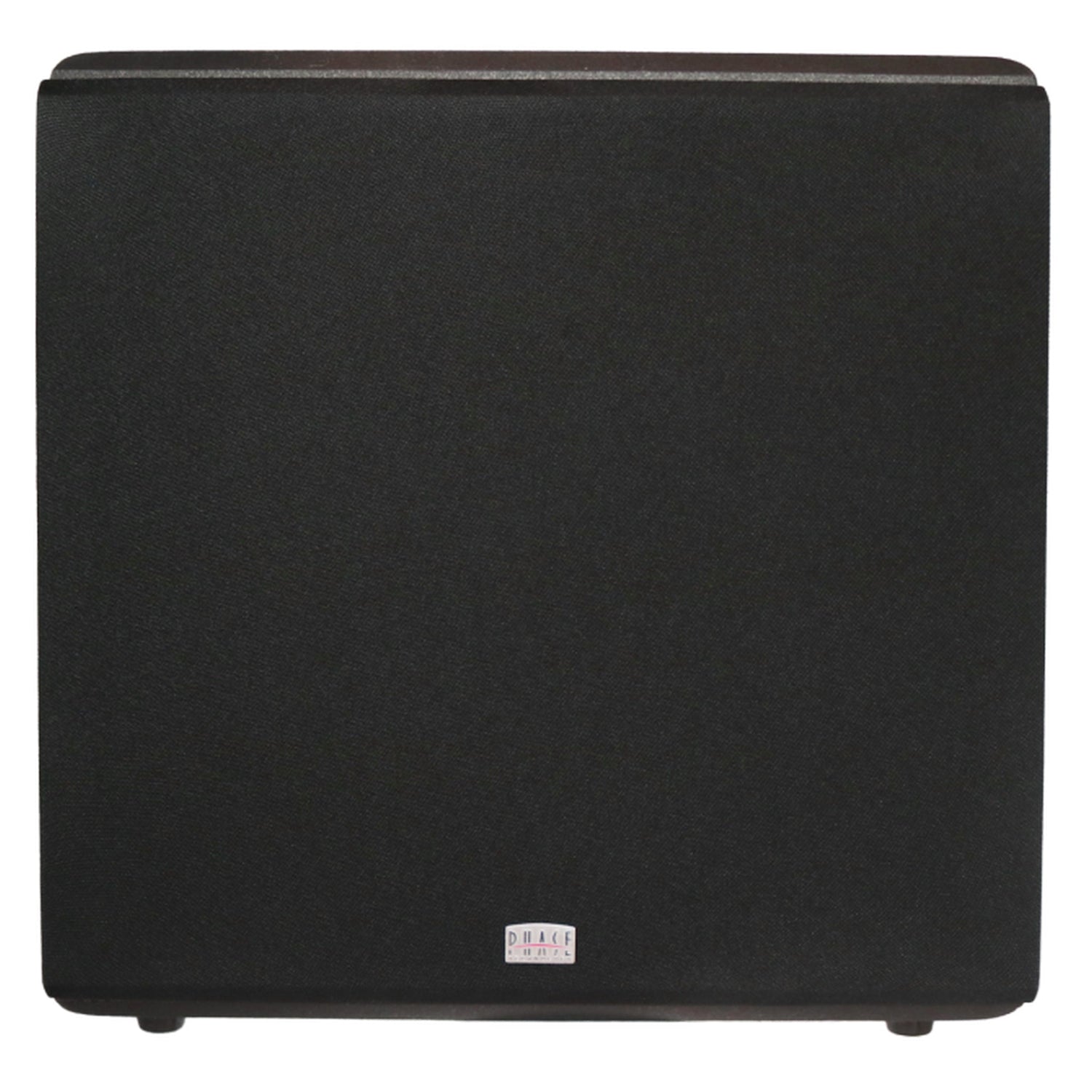

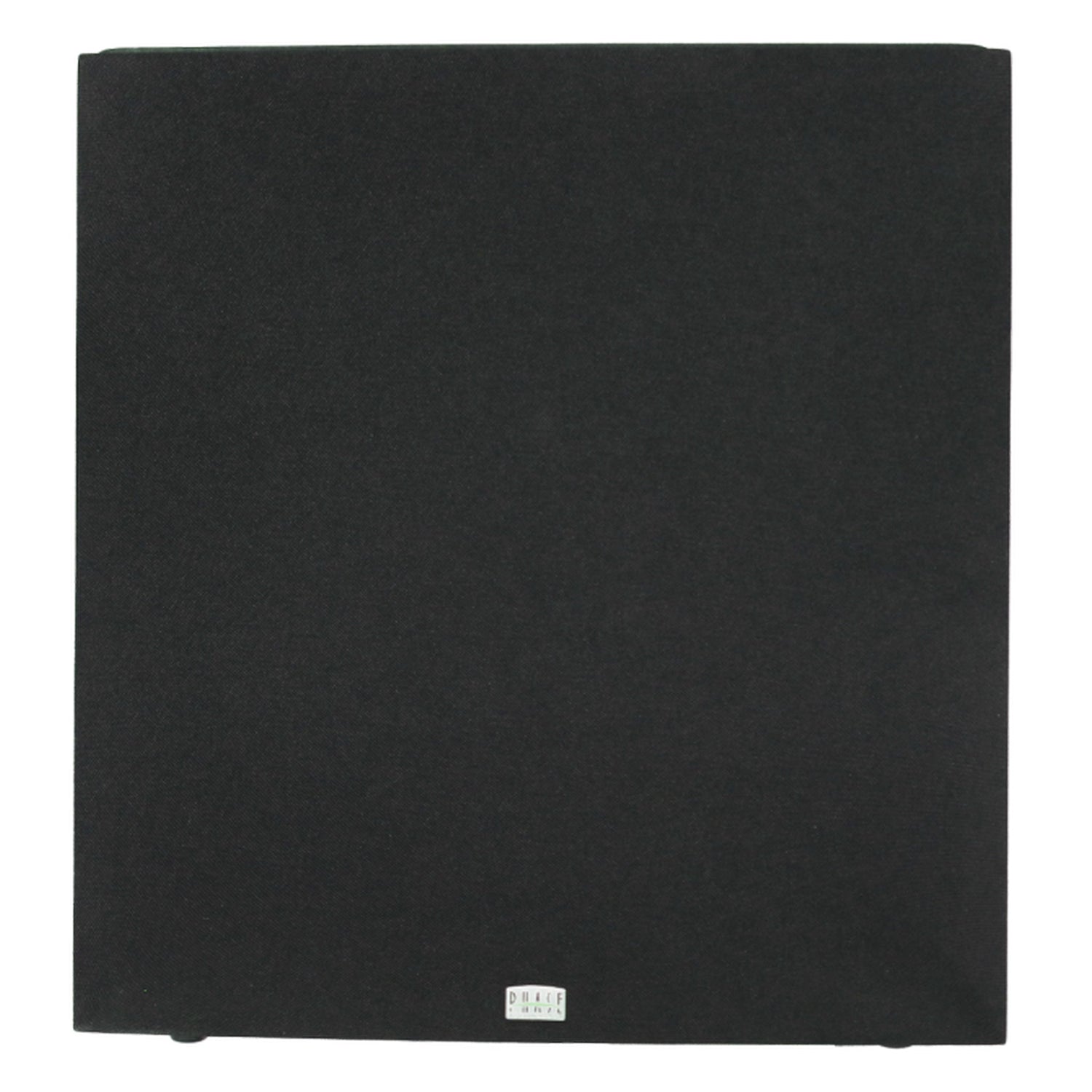

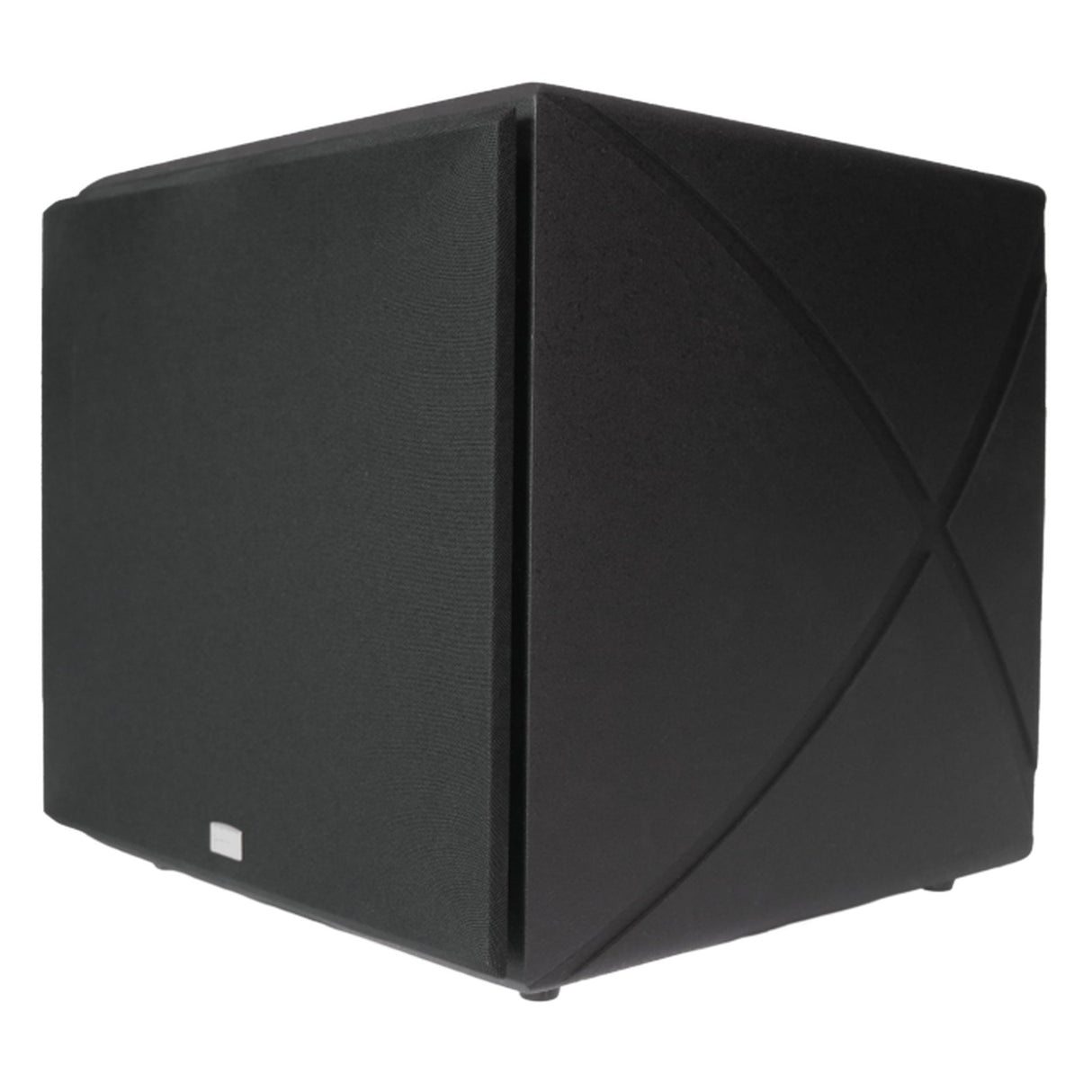

Soundtube PL-12 Series 12-Inch Active DSP Subwoofer
The PhaseTech PL-12 series leverages advanced DSP control and a high-excursion 12″ mica-graphite poly cone driver to deliver precise, room-shaking bass. Choose between a sealed enclosure for tight, controlled response or a ported design for extended low-end output. Both feature app-controllable level, phase, EQ, crossover, auto on/off, and user presets via the MSE Sound app.

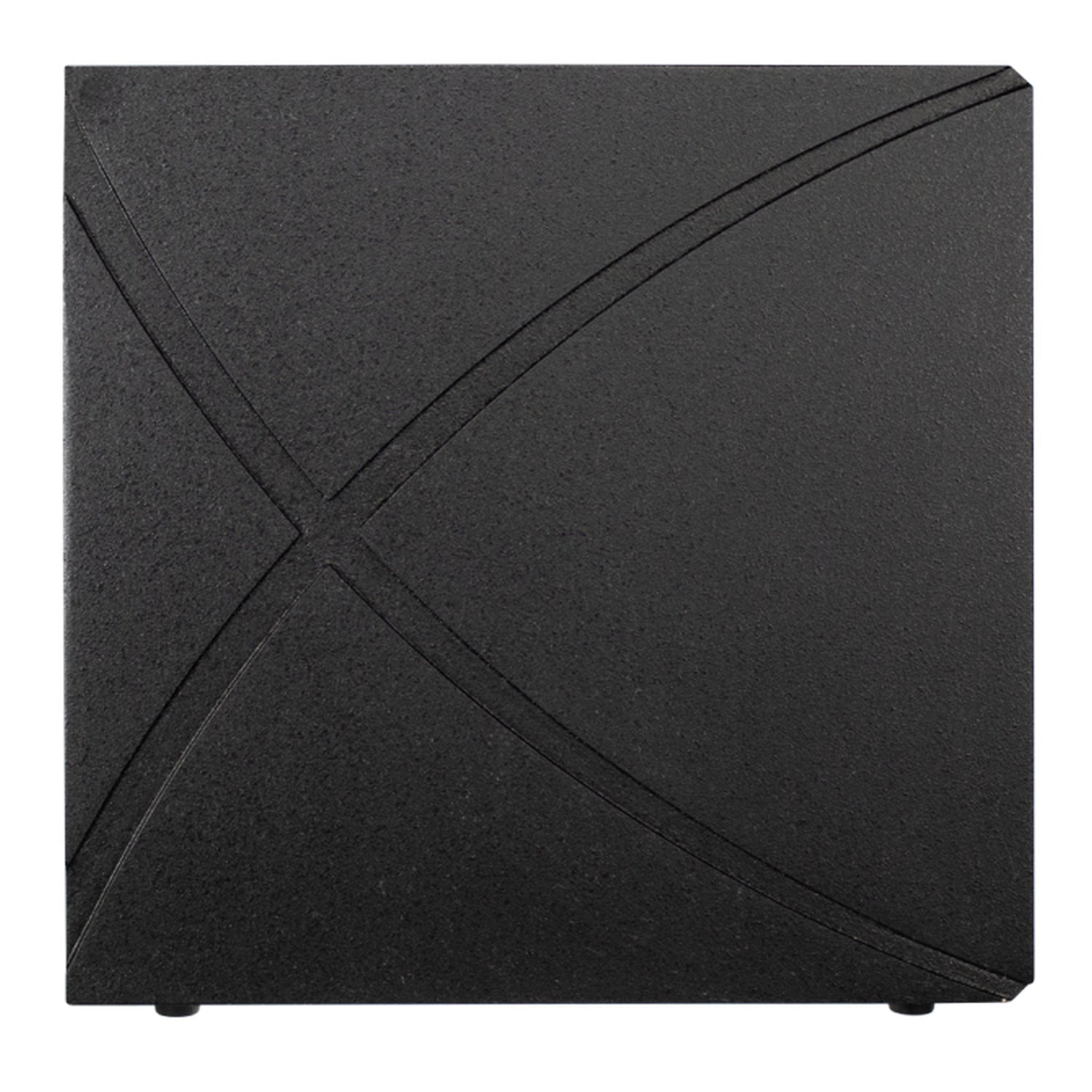

Handcrafted in Gloss Black or Matte White, these subwoofers blend seamlessly into any décor. Robust 900 W program power, versatile I/O (LFE and stereo in/out), and selectable tuning make the PL-12 ideal for home theaters, distributed audio, and commercial installations.
Key Features

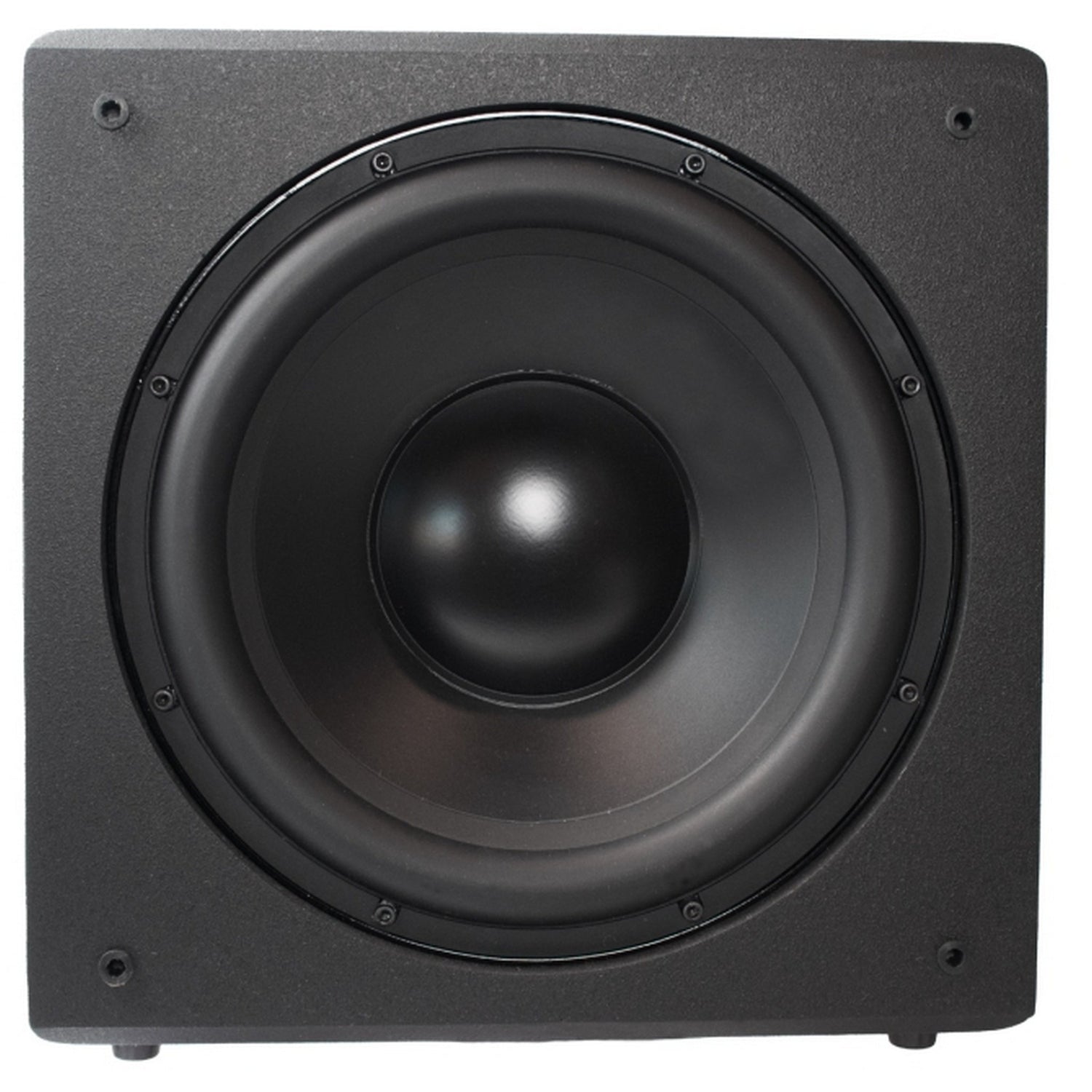

- Driver: 12″ ultra-long-throw mica-graphite poly cone w/ NBR surround
- DSP Controls: Level, phase, selectable crossovers (40–200 Hz), signal-sense auto on/off, user presets

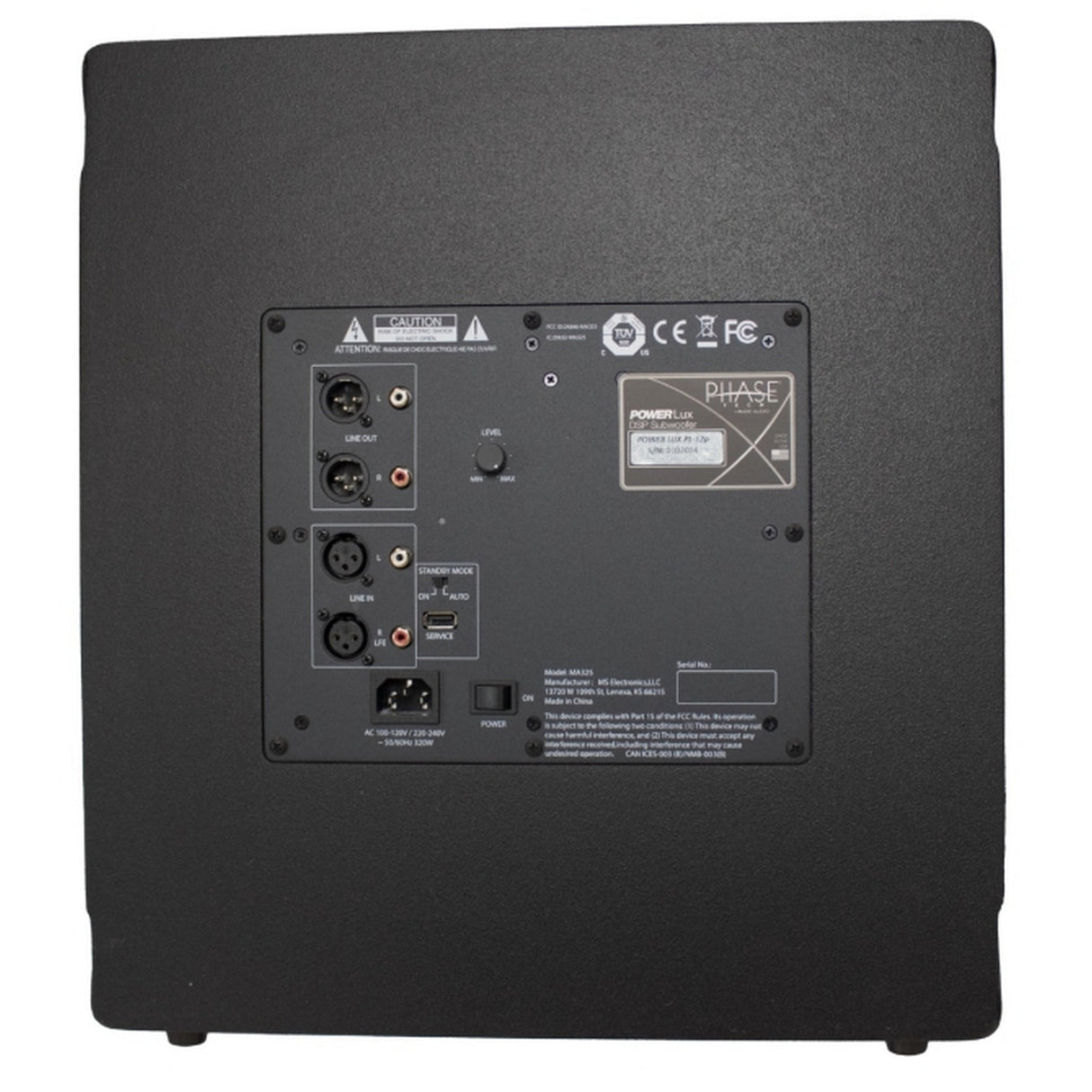

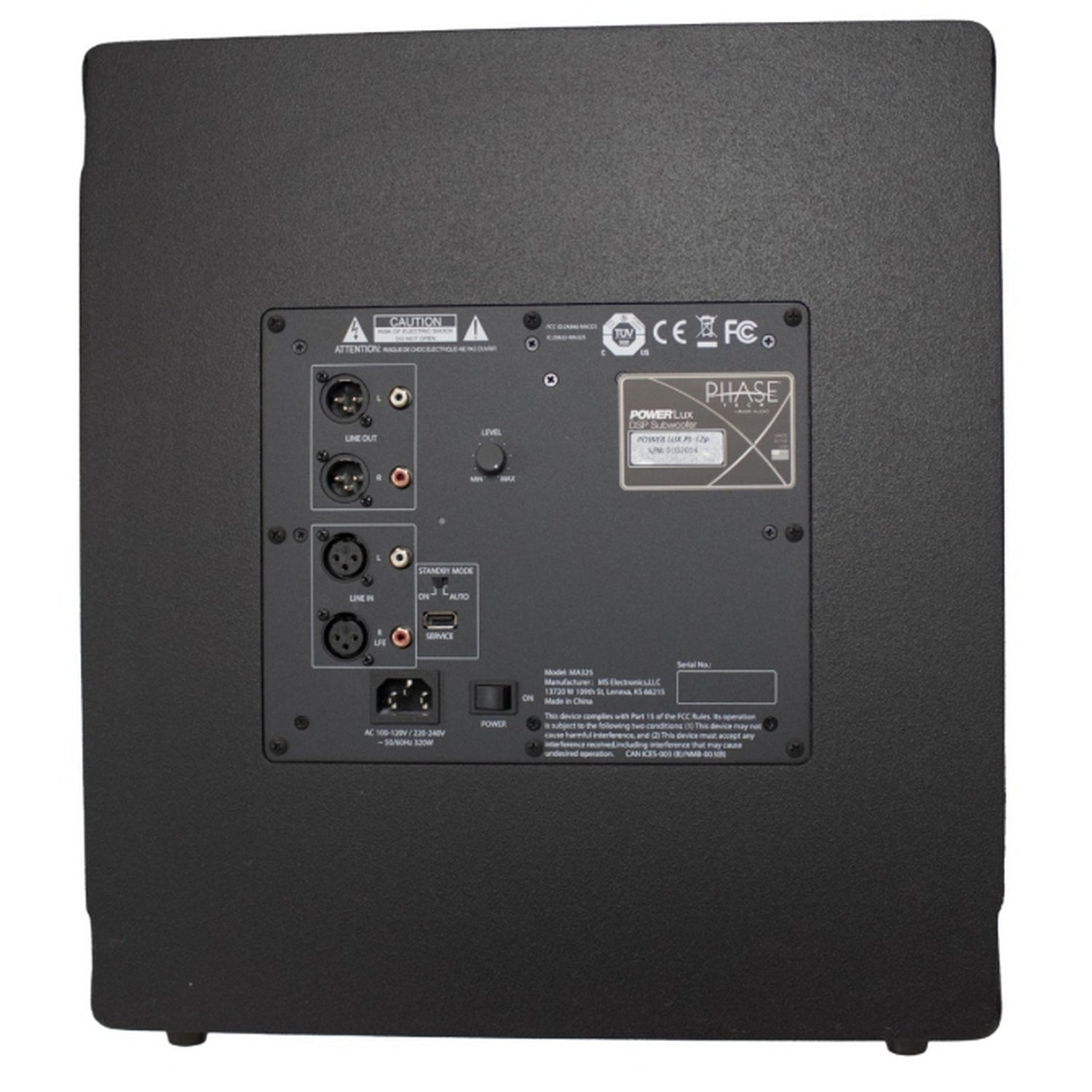

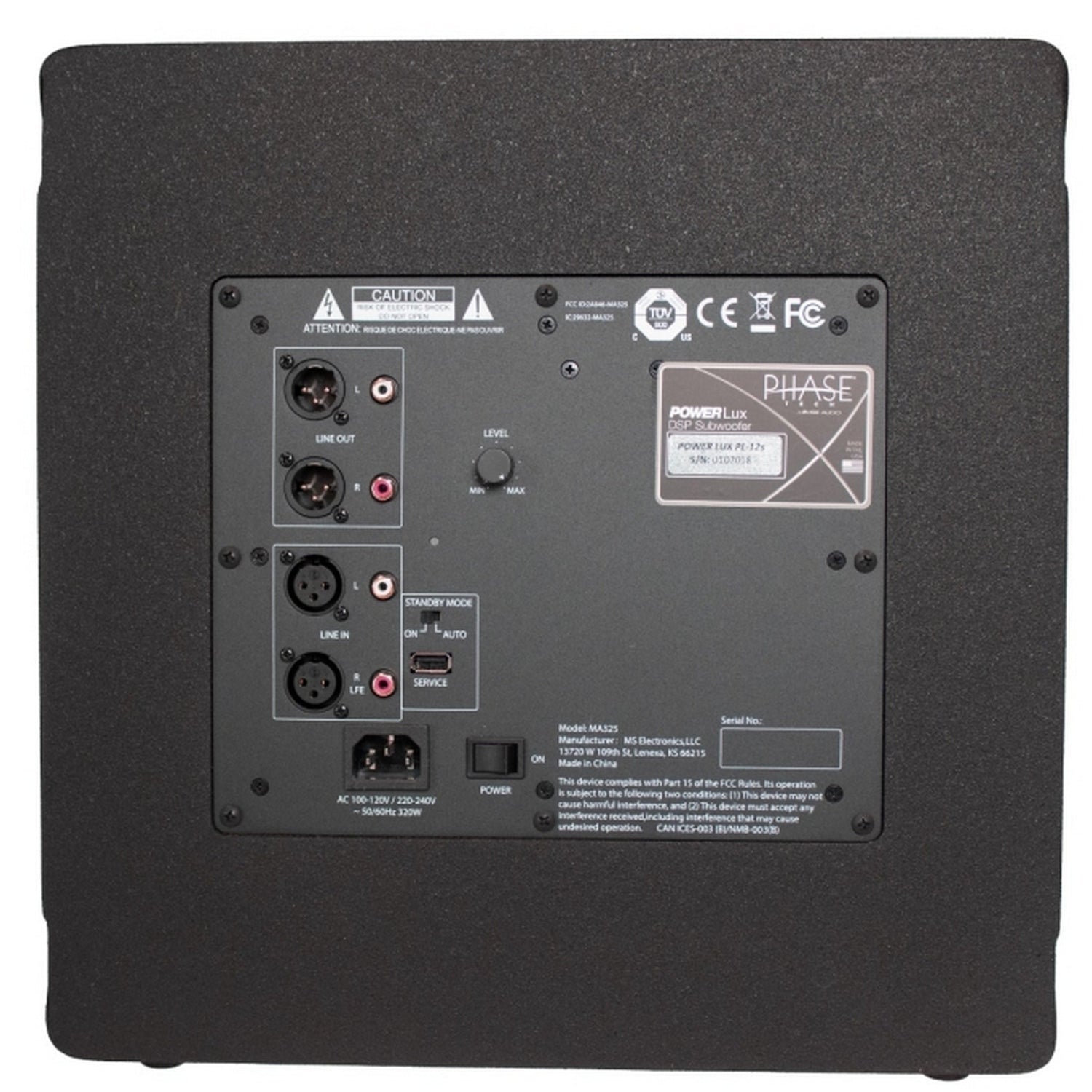

- Inputs/Outputs: LFE in/out, stereo line in/out (RCA) with independent HPF/LPF
- Power Handling: 300 W RMS; 900 W program
- Frequency Response (± 3 dB): 19 Hz – 300 Hz
- Enclosure: Sealed (PL-12s) or Ported (PL-12p) MDF cabinet
- Control App: MSE Sound app for iOS & Android
Technical Specifications
- Depth: 15.625″ (396.9 mm)
- Height: 15″ (381 mm)
- Width/Diameter: 14.5″ (368.9 mm)
- Max Program Power: 900 W
Available Variations

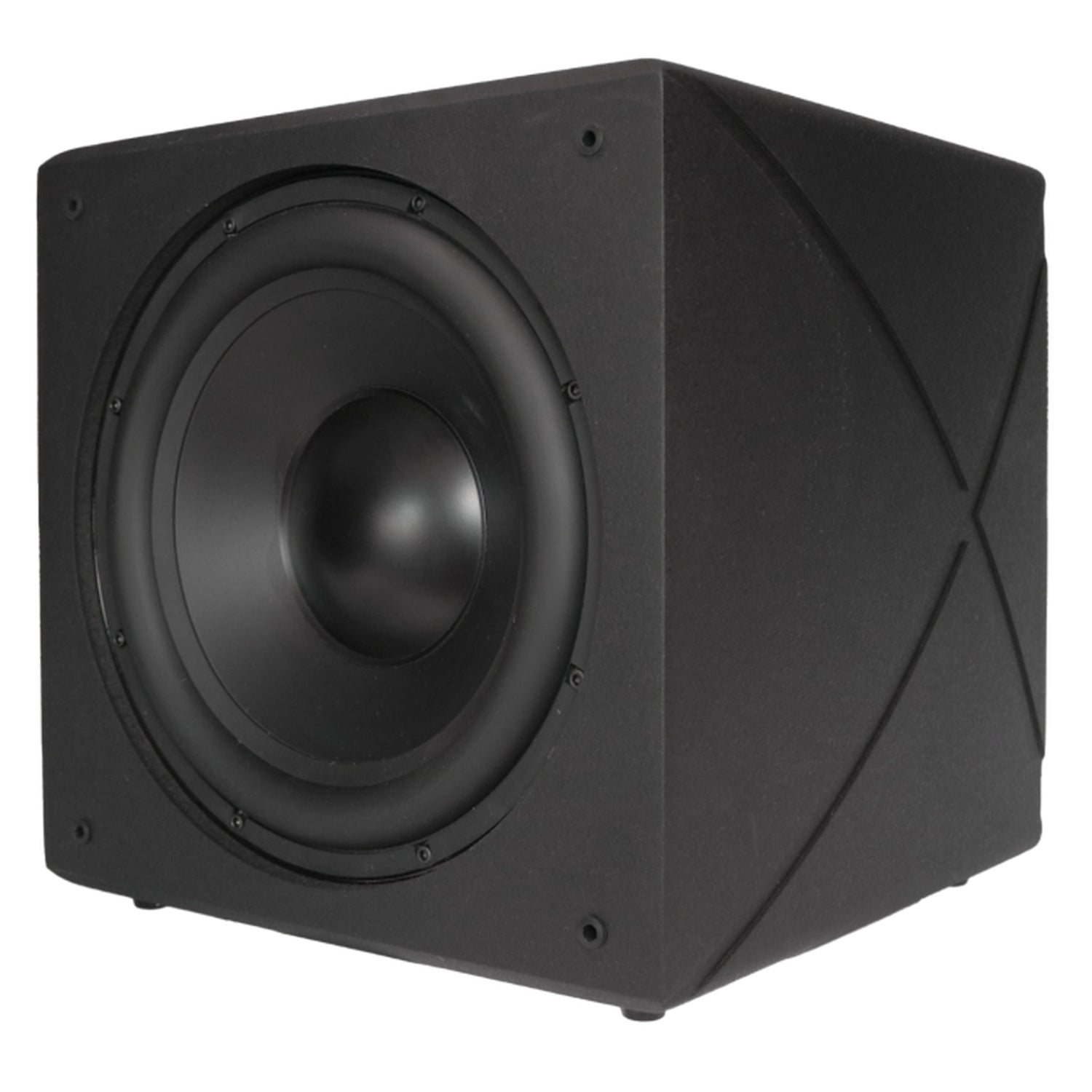

- PL-12s: Sealed DSP Subwoofer

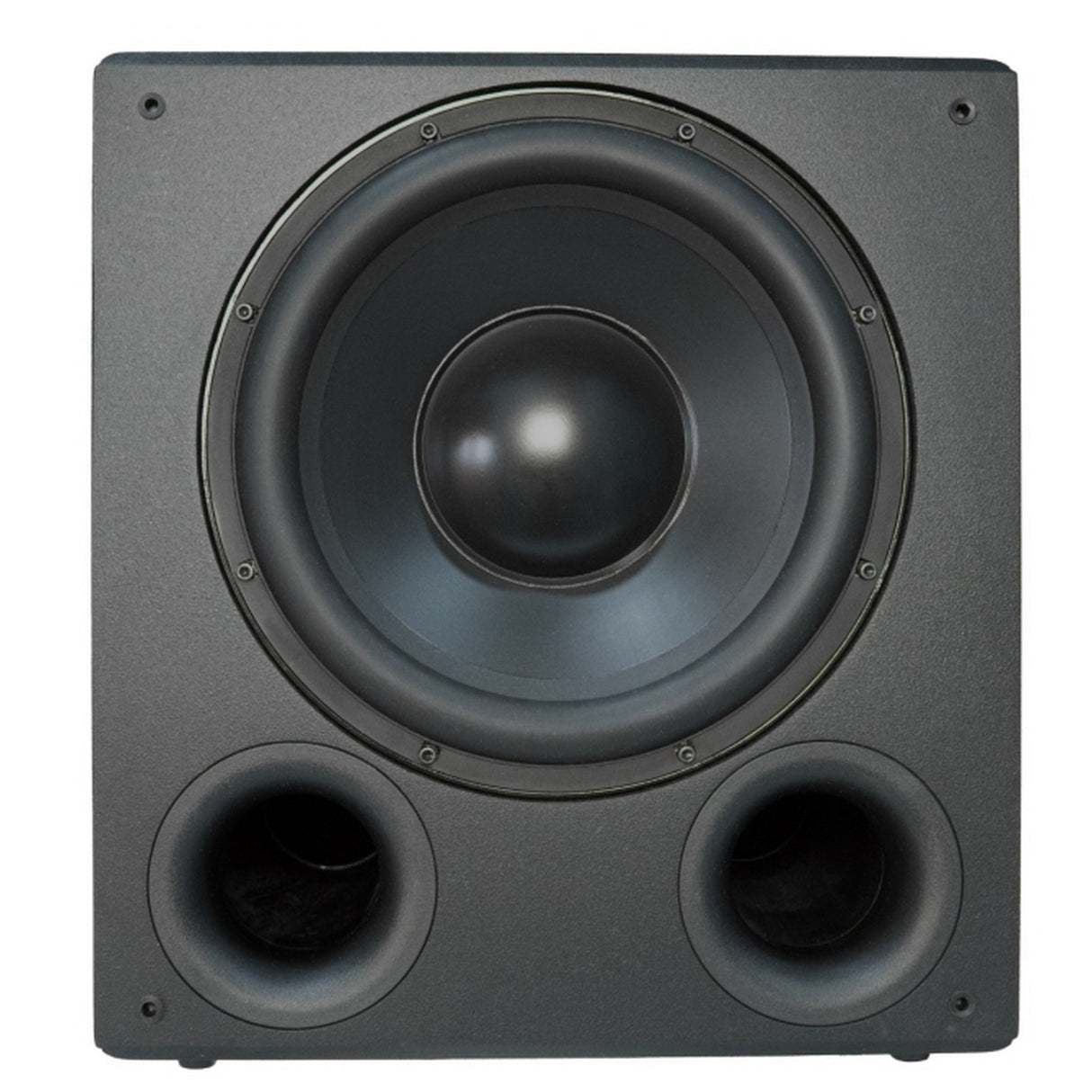

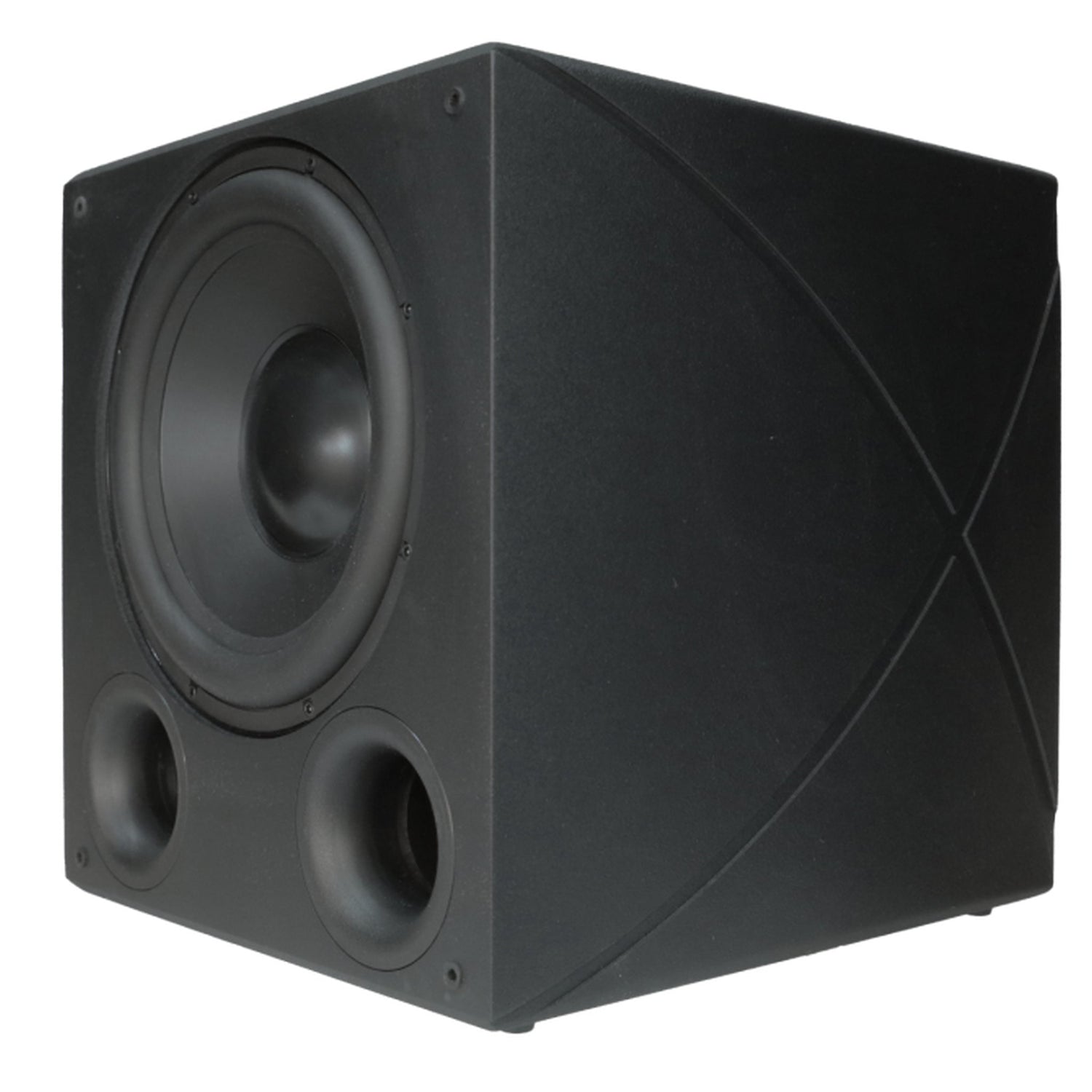

- PL-12p: Ported DSP Subwoofer
