Condition: New
SoundTube PS1090i 10-Inch Passive Performance Series Loudspeaker

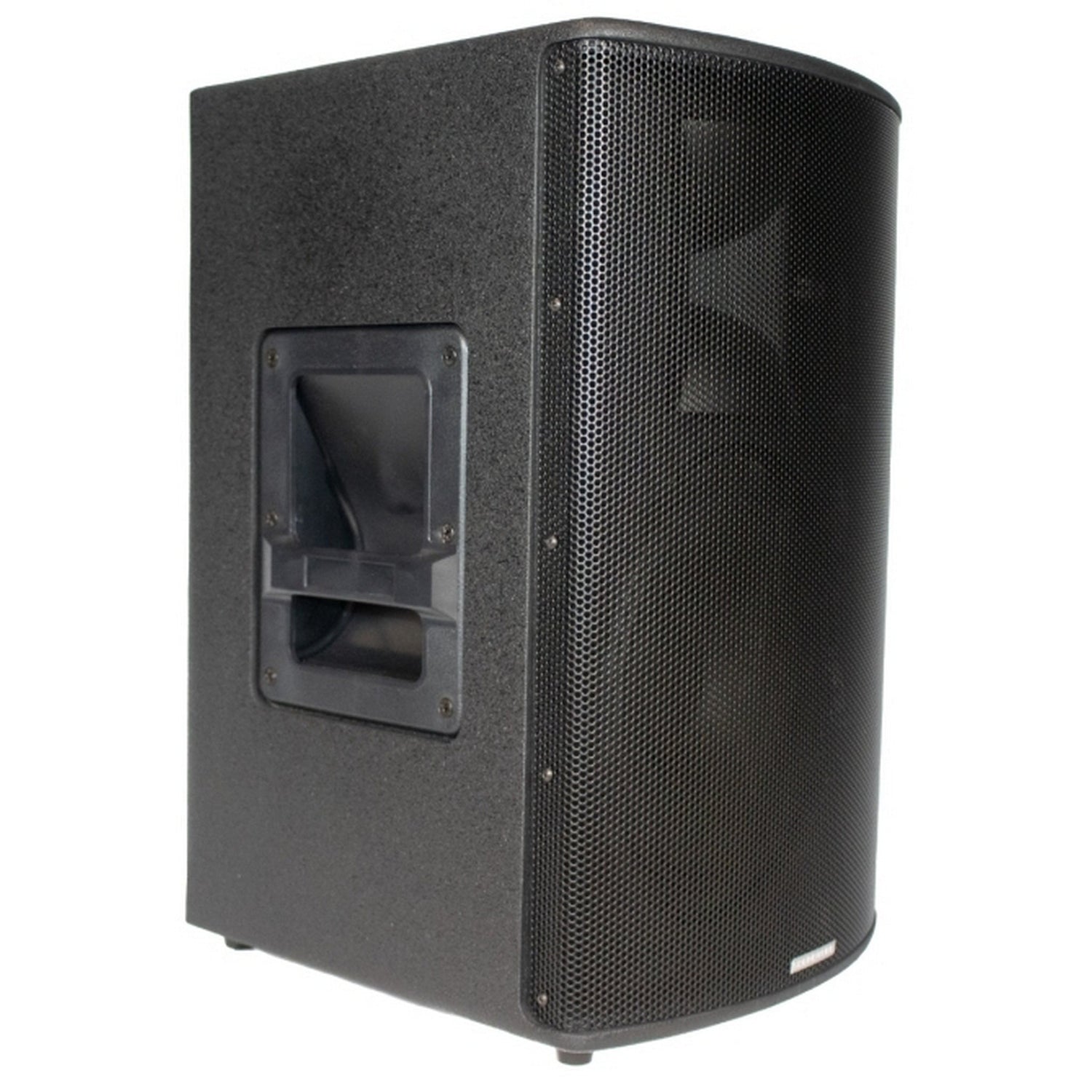

The SoundTube PS1090i is a weatherized passive loudspeaker featuring a 10-inch woofer and 1-inch titanium compression driver in a 90° × 90° horn configuration. Designed for high-output and full-range performance, it's built for demanding indoor and outdoor installations including houses of worship, sports arenas, and nightclubs.
As part of SoundTube's Performance Series, the PS1090i is constructed with a reinforced enclosure, weather-resistant powder-coated steel grille, and IP55 rating. With a robust 300W RMS power handling and 93 dB sensitivity, it delivers clear, articulate sound and impressive SPL. The included Euroblock connector simplifies installation in commercial environments.
Key Features

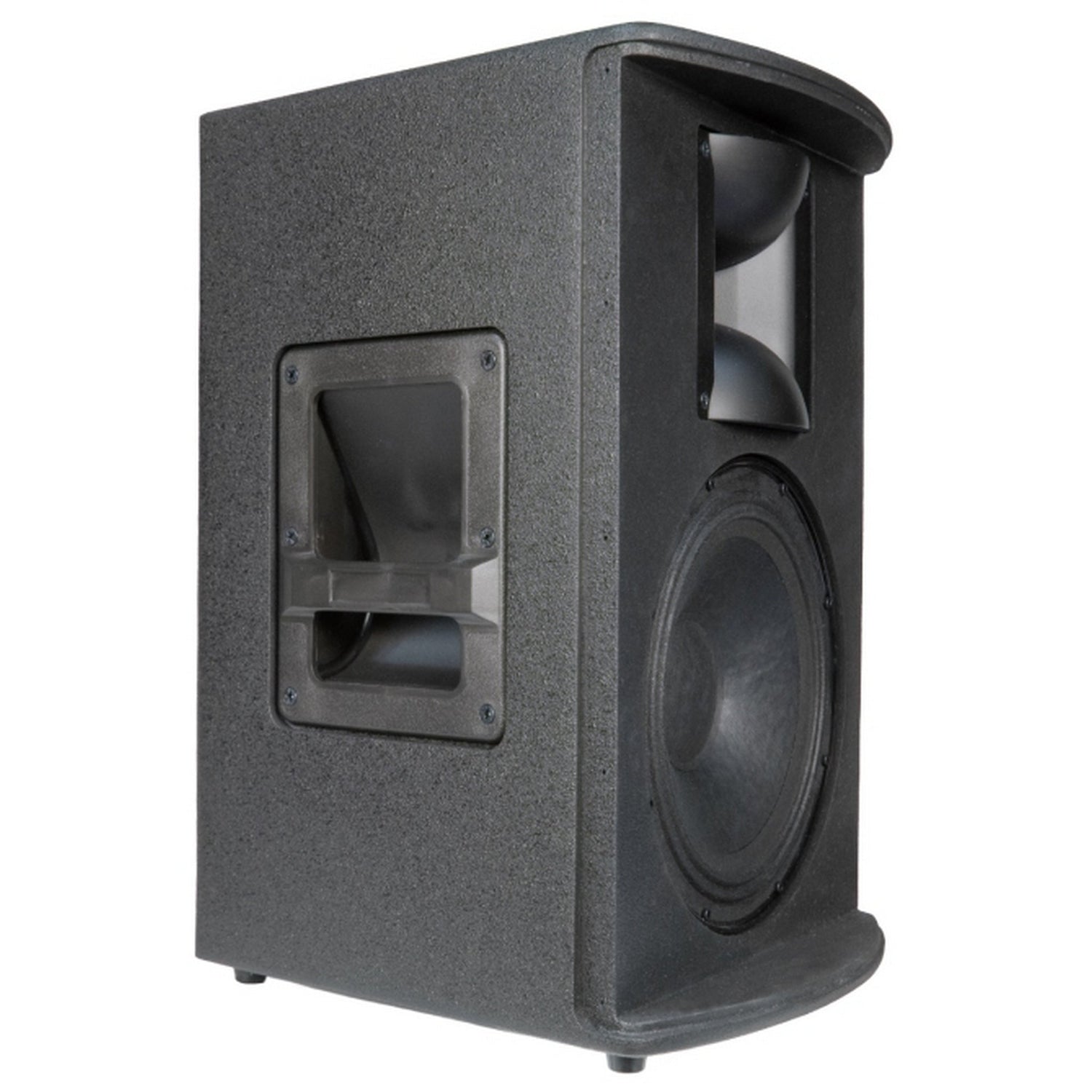

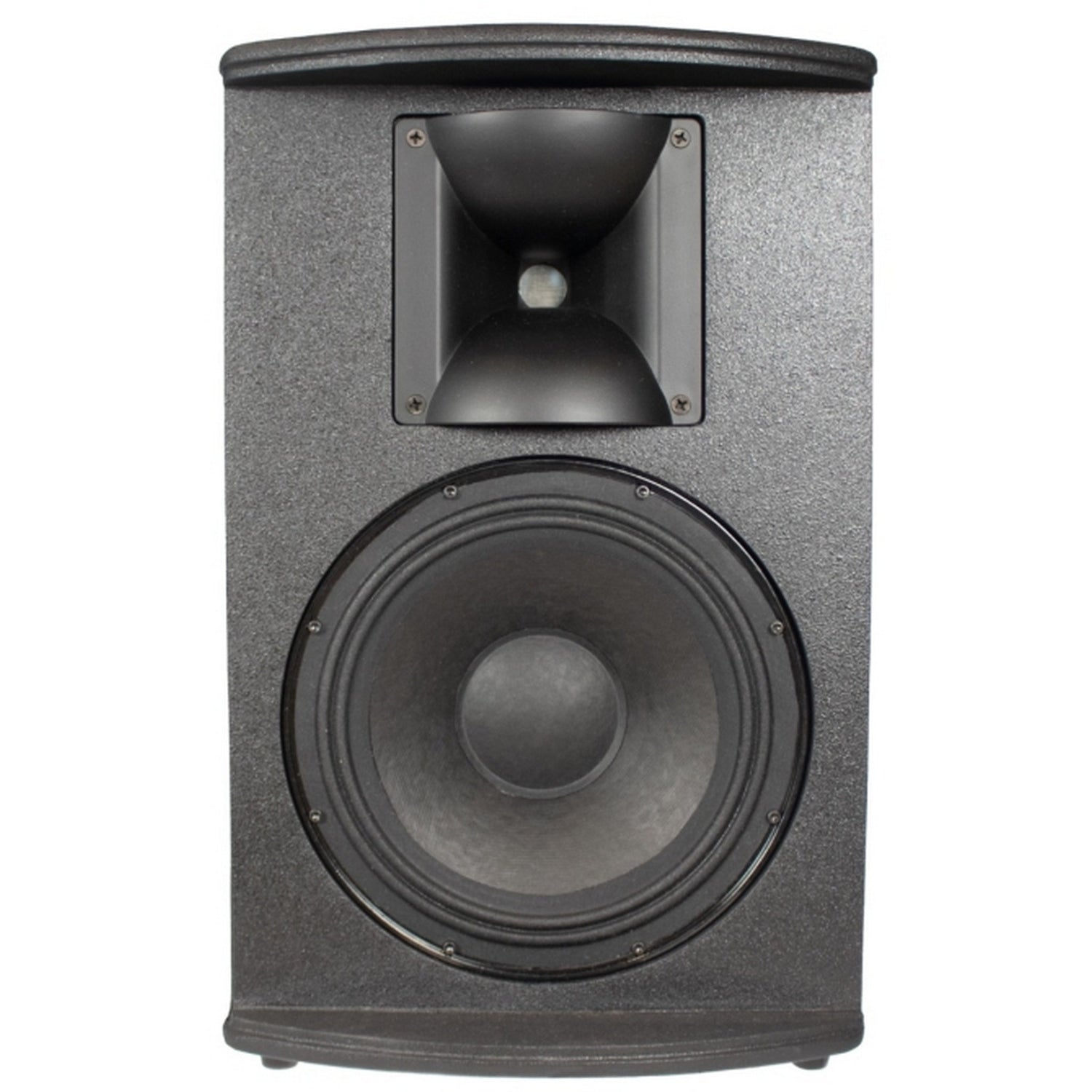

- Driver Configuration: 10″ weather-treated woofer and 1″ titanium compression driver
- Power Handling: 300W RMS, 600W program
- Coverage Pattern: 90° × 90° conical dispersion
- Sensitivity: 93 dB @ 1W/1m
- Frequency Response: 73 Hz – 20 kHz (±3 dB), 50 Hz – 20 kHz (±10 dB)
- Nominal Impedance: 8 ohms
- IP Rating: IP55 weather-resistant
- Grille Material: Powder-coated electro-galvanized steel, backed with foam

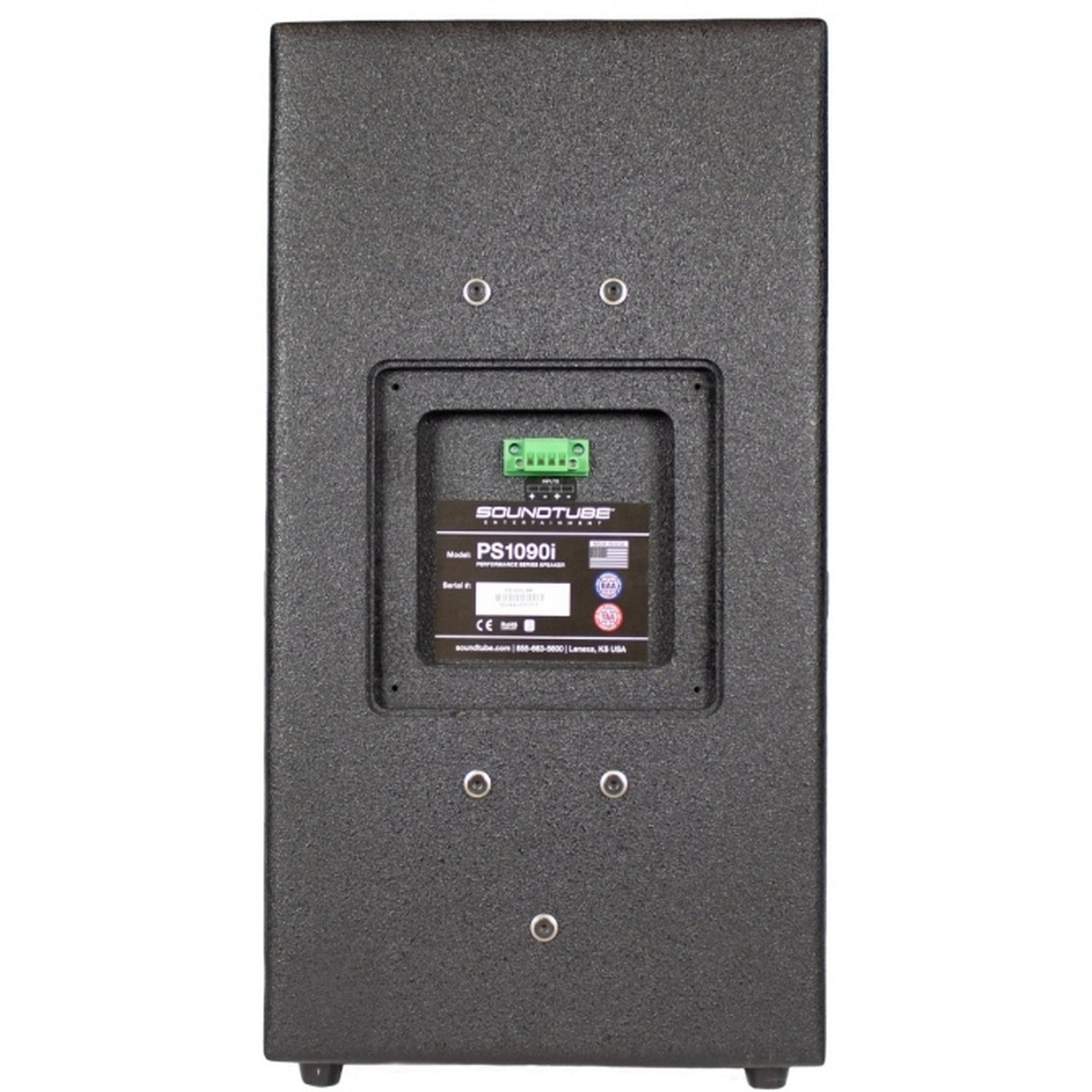

- Connector Type: 4-pin Euroblock for input and pass-through
- Mounting: Multiple M10 fly points; optional pan/tilt bracket
- Enclosure Material: Reinforced wood with textured polyurethane coating
- Compliance: CE, RoHS, MIL-STD-810 approved
- Color: Black
Technical Specifications
- Dimensions: 13.75" × 12.6" × 19.5" (34.93 × 32.0 × 49.53 cm)
- Weight: 40 lbs (18.1 kg)
- Driver Sizes: 10″ LF, 1″ HF
- Power Handling: 300W RMS, 600W peak
- Nominal Impedance: 8 ohms
- Frequency Range: 50 Hz – 20 kHz (±10 dB)
- Maximum SPL: 118 dB
- Crossover: 2 kHz, 12 dB/octave
- Voice Coil Size: 2" LF, 1.4" HF
What's Included
- PS1090i Loudspeaker Unit
- Euroblock Connector
- Protective Grille (Pre-installed)
- Terminal Cover Plate
