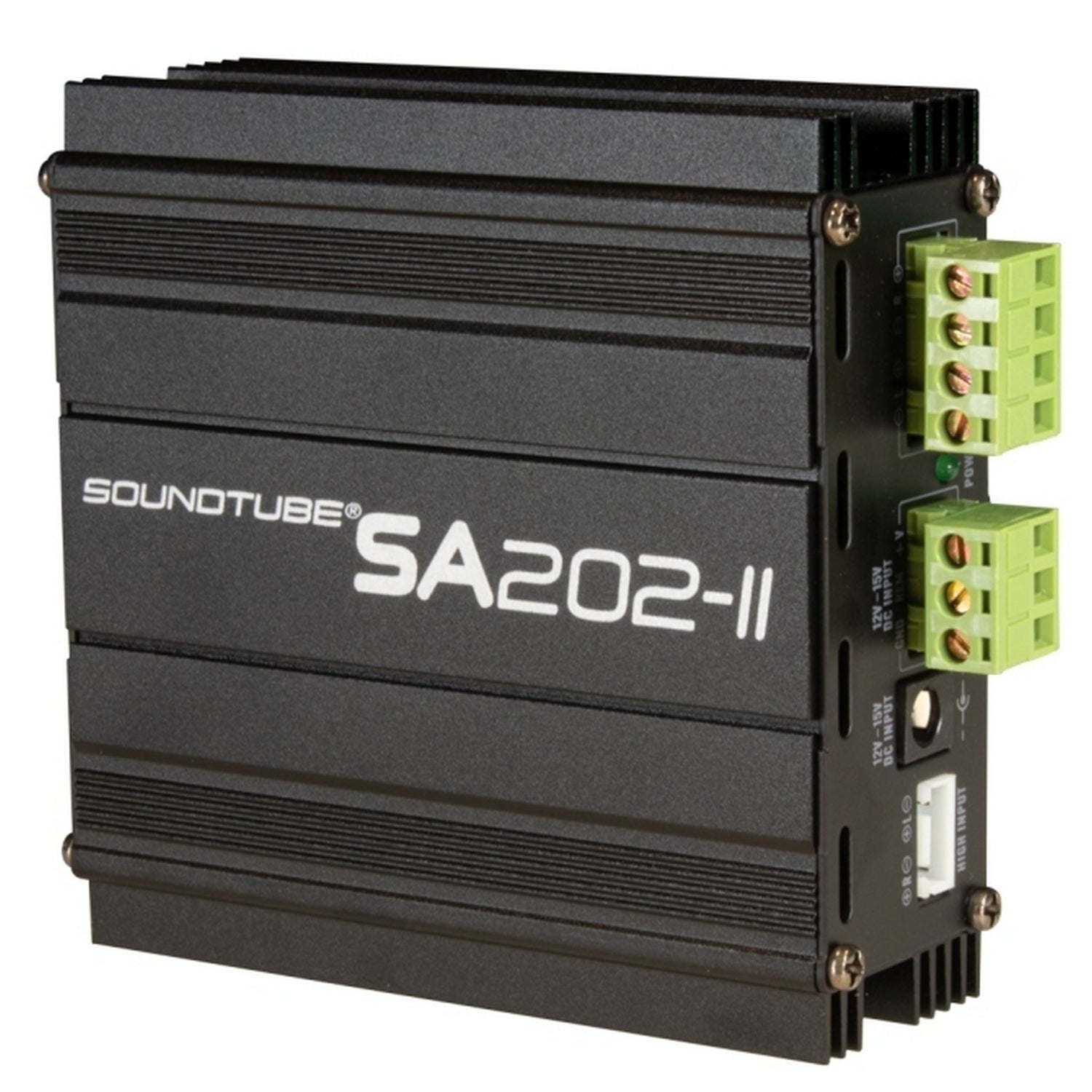

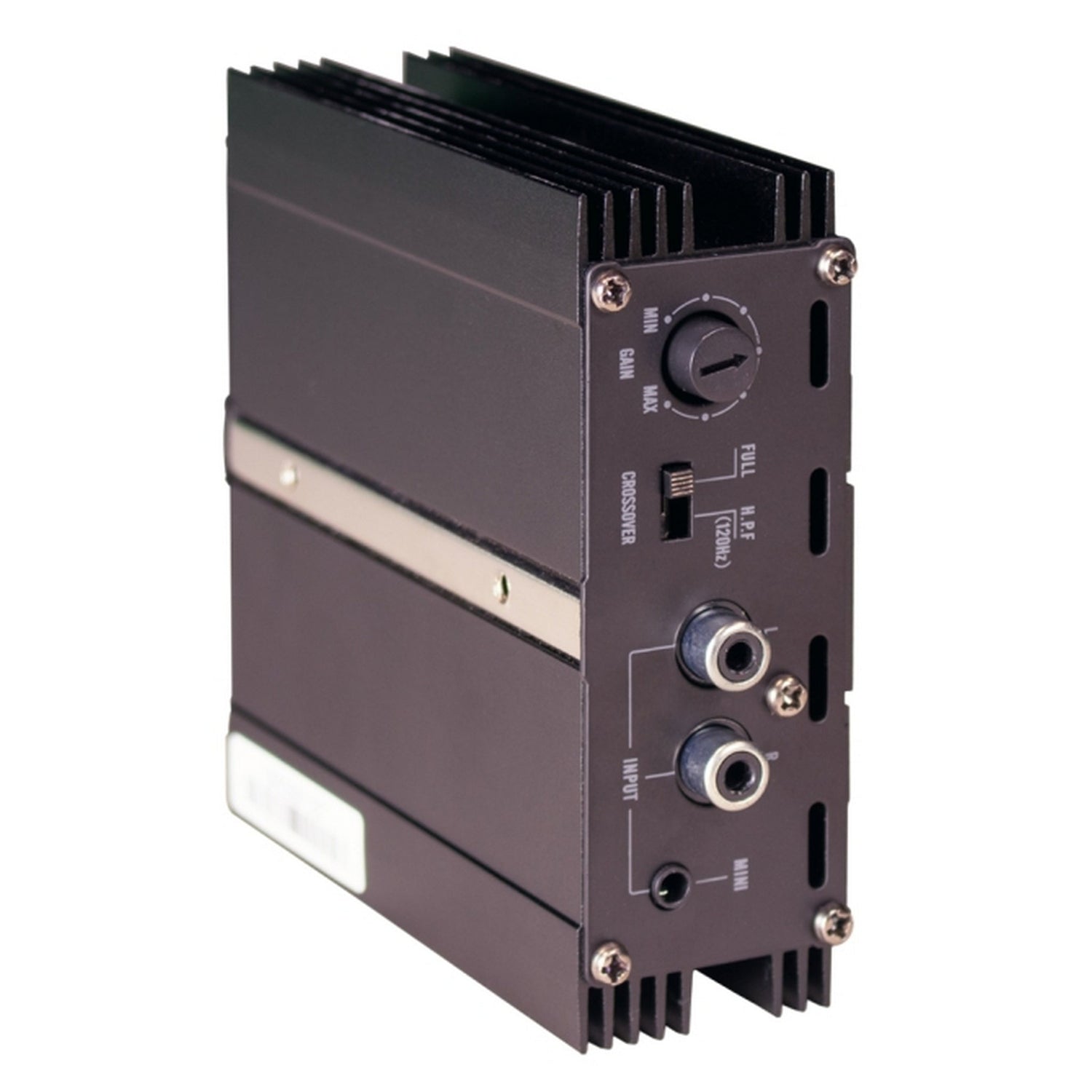

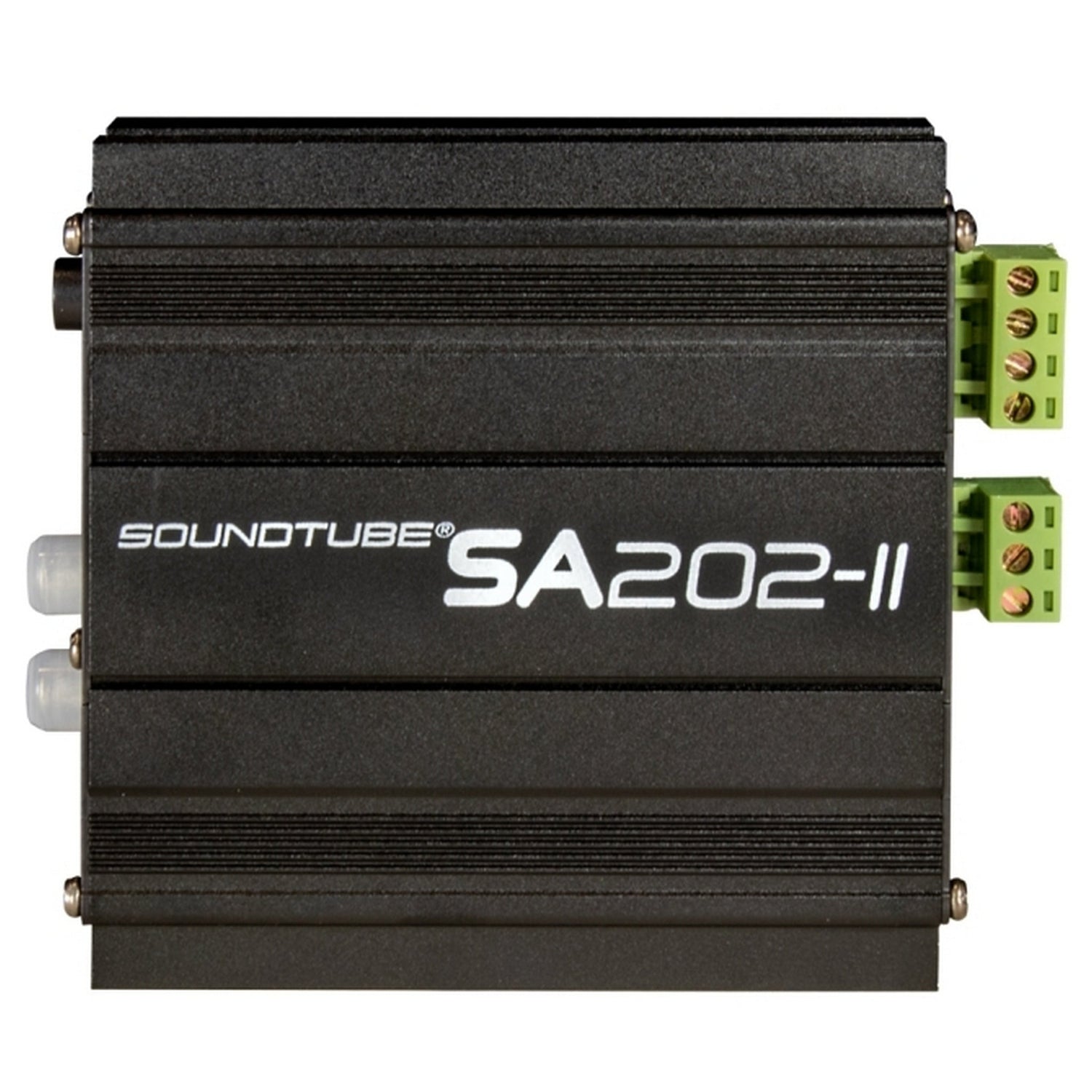

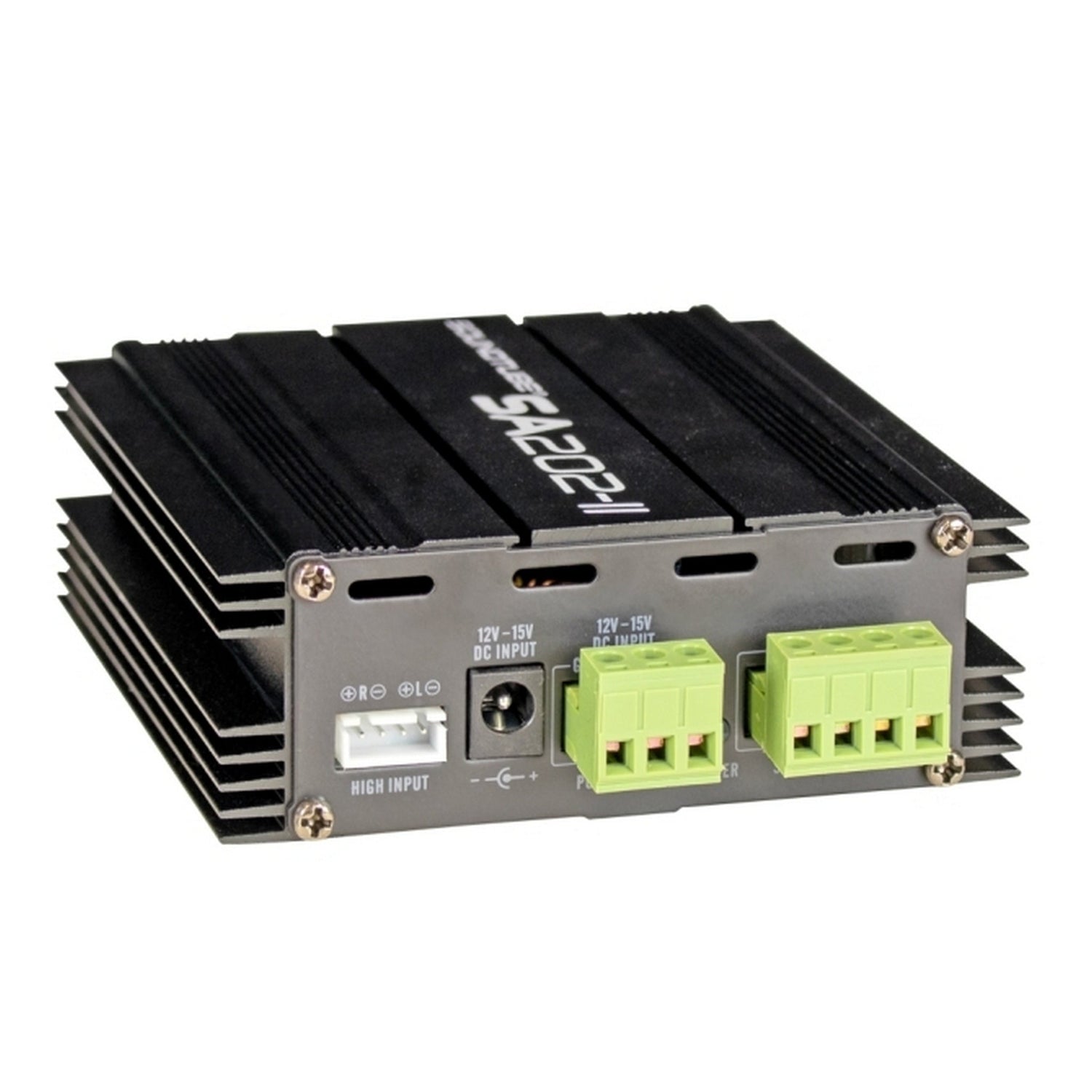

SoundTube SA202-II Class AB Mini Amplifier
The Rockustics SA202-II Class AB Mini Amplifier delivers 20 W per channel (4 Ω stereo) with a compact footprint ideal for discreet commercial installations. Its extra heat-sink surfaces enable extended duty at full power while dual RCA, stereo mini-jack, and high-level inputs accommodate diverse source connections. A 12 V trigger input provides automatic on/off control when paired equipment powers up.
An optional 15 V, 3 A power supply is available as model SA202-II-RDT, which includes the PSU in the package. Both models feature Euroblock or barrel-connector power inputs and mounting hardware for pole, surface, or security-attachment installations.
Key Features
- Amplifier Type: Class AB, 2 channels
- Power Output: 20 W per channel @ 4 Ω stereo (≤ 10 % THD); 15 W @ 4 Ω stereo (≤ 1 % THD)
- Max Gain: 35 dB
- Inputs: Dual RCA stereo, stereo mini-jack, high-level, 12 V trigger
- Input Impedance: 6 kΩ
- Output Connector: 3-pin Euroblock
- Frequency Response: 20 Hz – 20 kHz (± 3 dB)
- Thermal Management: Extra heat-sink surfaces for extended duty
- Certifications: CE, RoHS
- Mounting: Pole, surface, or security attachment (hardware included)
-
Variations:
- SA202-II (amplifier only)

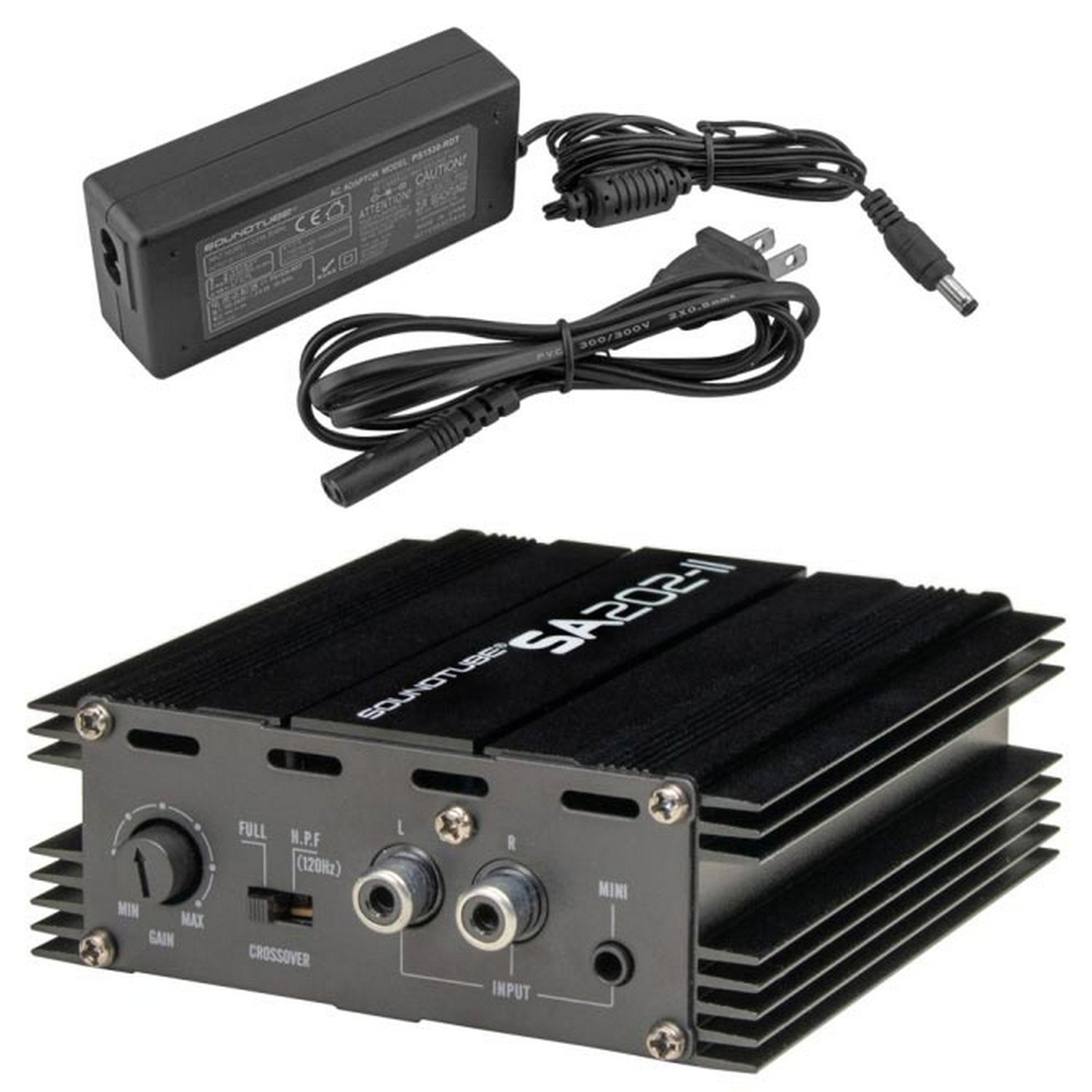

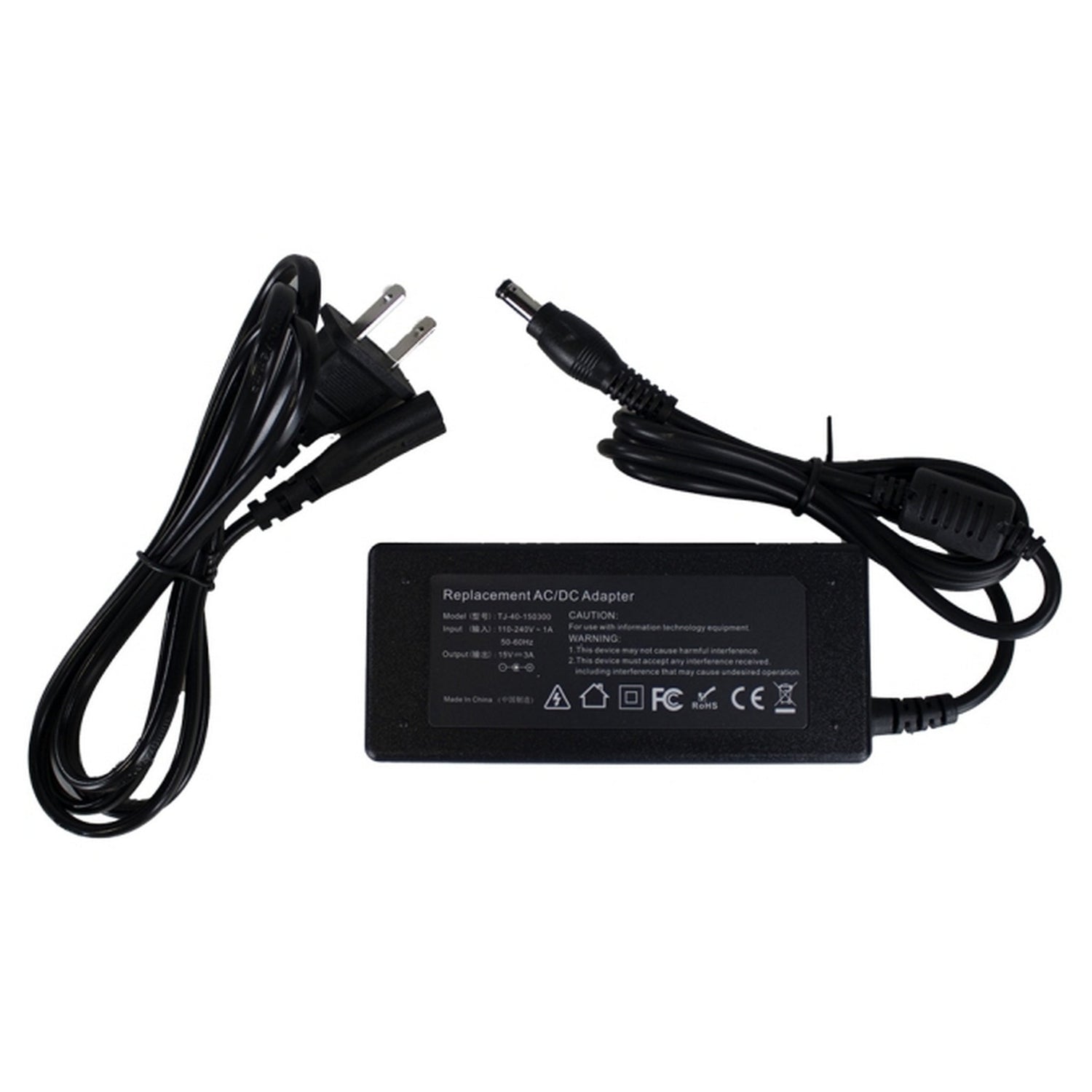

- SA202-II-RDT (includes 15 V, 3 A power supply)
Technical Specifications
- Dimensions: 3.98" (W) × 4.86" (D) × 1.43" (H) (10.11 cm × 12.34 cm × 3.63 cm)
- Shipping Weight (SA202-II): 0.75 lbs (0.34 kg)
- Shipping Weight (SA202-II-RDT): 1.55 lbs (0.70 kg)
- Carton Dimensions: 5.75" (L) × 4.50" (W) × 1.75" (H) (14.61 cm × 11.43 cm × 4.45 cm)
- Power per Channel @ < 10 % THD: 20 W (4 Ω stereo), 10 W (8 Ω stereo)
- Power per Channel @ < 1 % THD: 15 W (4 Ω stereo), 8 W (8 Ω stereo)
- Max Gain: 35 dB
- Input Impedance: 6 kΩ
- Output Connector: 3-pin Euroblock or barrel connector for power
- Frequency Response: 20 Hz – 20 kHz (± 3 dB)
- Certifications: CE, RoHS
What's Included
- 3-Pin Euroblock connector
- 4-Pin Euroblock connector
- Mounting hardware (pole/surface adapter)
- SA202-II-RDT only: 15 V, 3 A power supply
