SoundTube SA502 50W Class D Amplifier

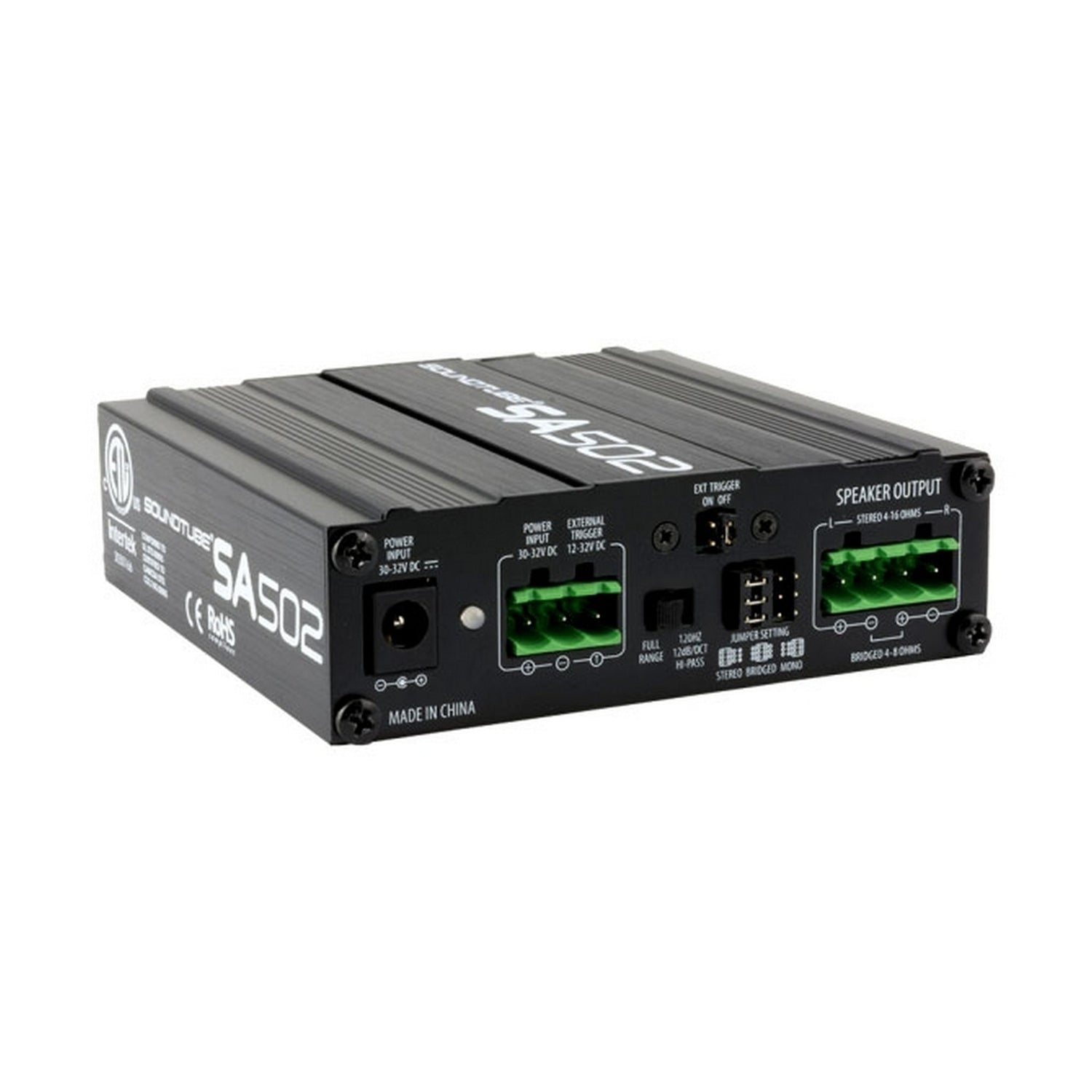

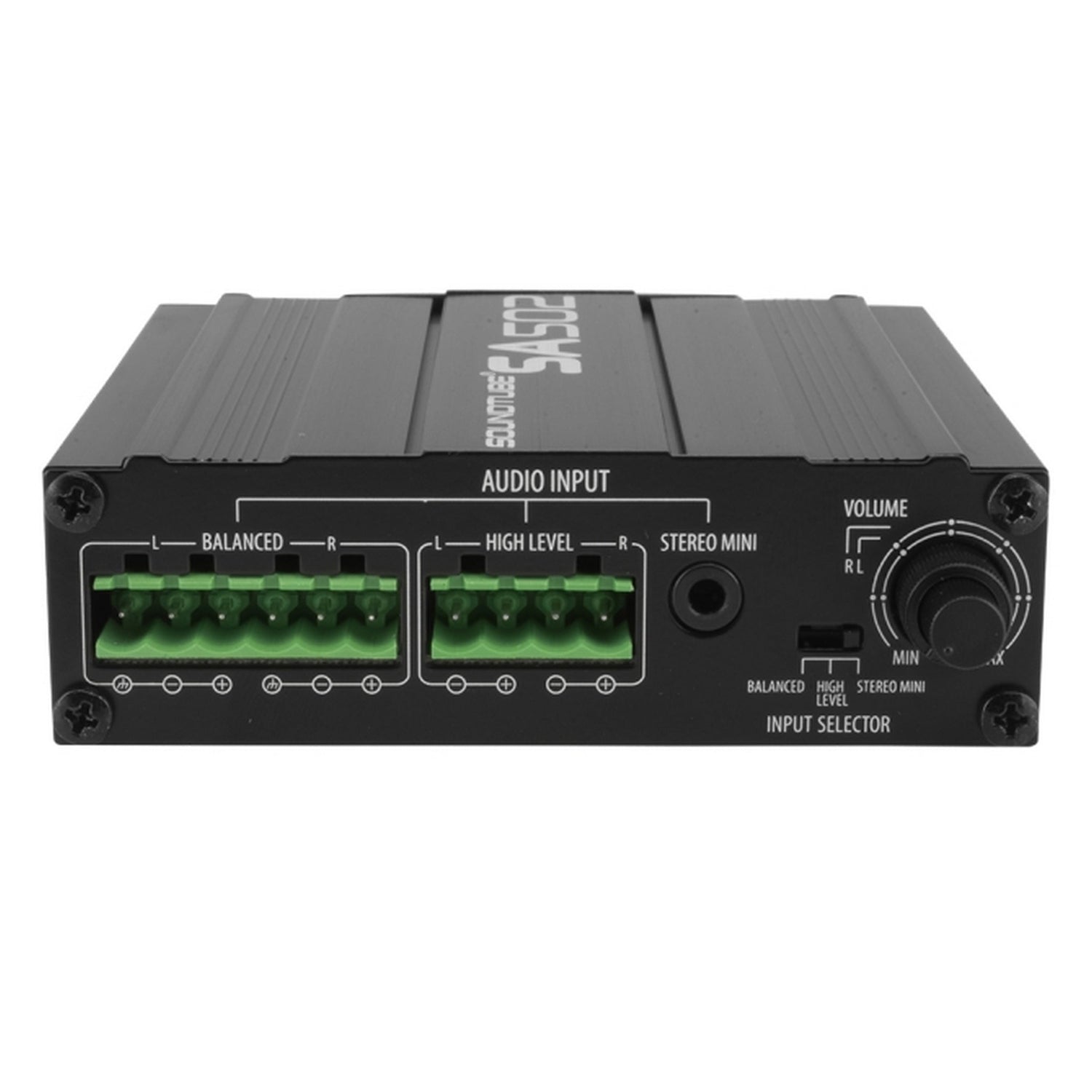

The SA502 delivers 2 × 50 W output into 8 Ω or 4 Ω loads with a maximum gain of 34 dB. It offers three operating modes—stereo, mono, and bridged mono—and three selectable inputs: balanced stereo (Euroblock), unbalanced mini-jack, and high-level Euroblock. An external 12–32 V trigger and signal-detecting auto-standby reduce power consumption in idle conditions.
Dual concentric gain controls allow independent channel adjustment, and a 120 Hz high-pass switch protects speakers from excessive low frequencies. Encased in a rugged aluminum housing, the SA502 is compact enough for discreet mounting yet robust for continuous commercial use.
Key Features
- Power Output: 50 W per channel @ 8 Ω or 4 Ω
- Gain: 34 dB maximum
- Operating Modes: Stereo, Mono, Bridged Mono
- Inputs: Balanced Euroblock, Stereo Mini-Jack, High-Level Euroblock
- Trigger: 12–32 V external, signal-detect auto-standby
- Controls: Dual concentric gain knobs
- Filter: 120 Hz high-pass switch
- Enclosure: Rugged aluminum housing
- Certifications: CE, RoHS, UL 60065, ETL-C/US, FCC
- Variation: Color: Black (UPC 644216202904)
Technical Specifications
- Frequency Response (± 3 dB): 20 Hz – 20 kHz
- Voltage Gain: 34 dB
- Input Impedance: 47 kΩ (line), 600 Ω (balanced)
- Output Connector: 3-pin Euroblock
- Power Requirements: 32 V DC, 3.75 A
- Included Accessories: 3-pin Euroblock, 4-pin Euroblock, mounting hardware, power supply, stereo RCA adapter
- Optional Accessories: Rack mount adapter (AC-SA502-RMA), 32 V DC power supply (AC-PS3240), regional power cords (AC-PSCORD-* )
What’s Included
- SA502 amplifier (black finish)
- 3-pin Euroblock connector
- 4-pin Euroblock connector
- Mounting hardware
- Power supply
- Stereo RCA adapter
