Condition: New

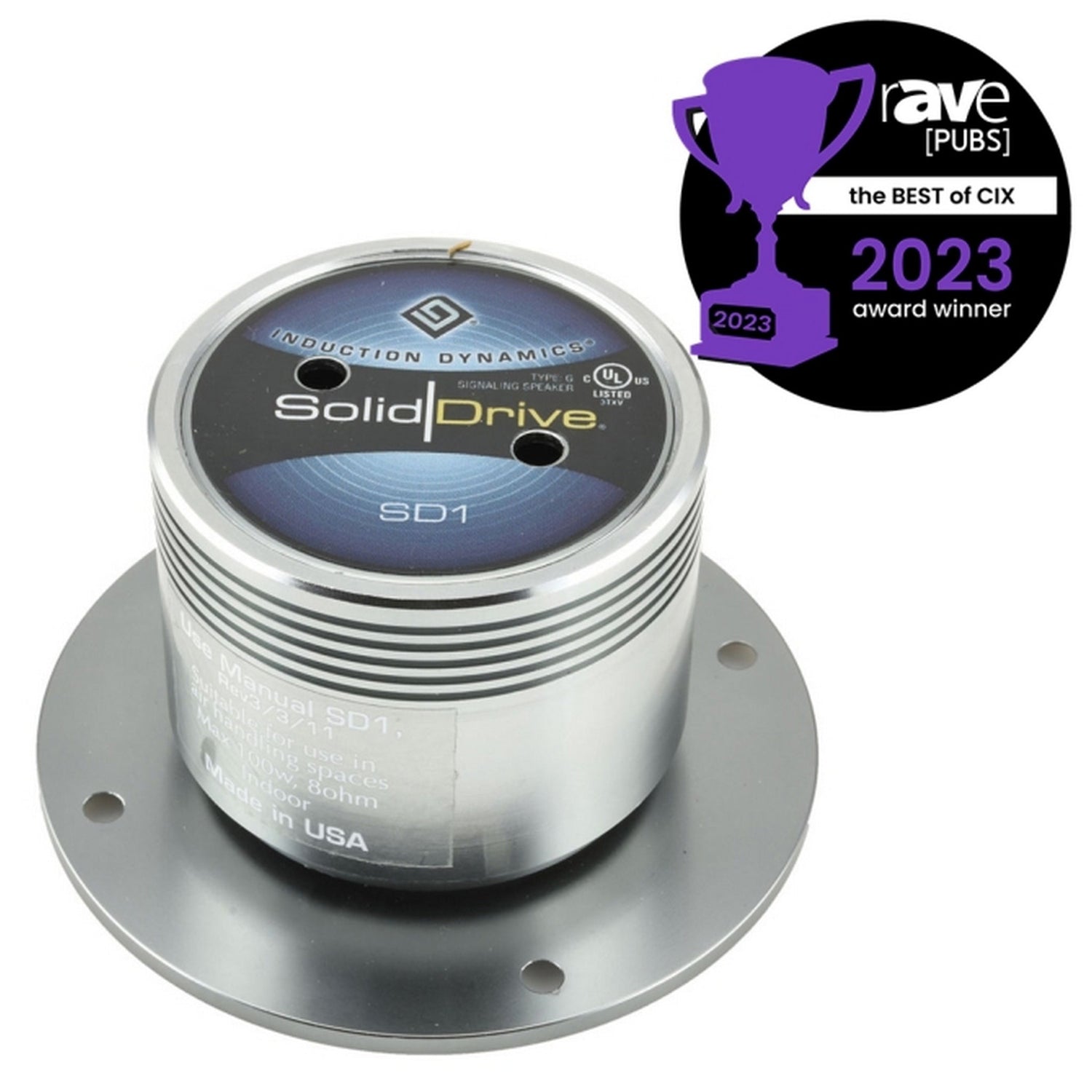

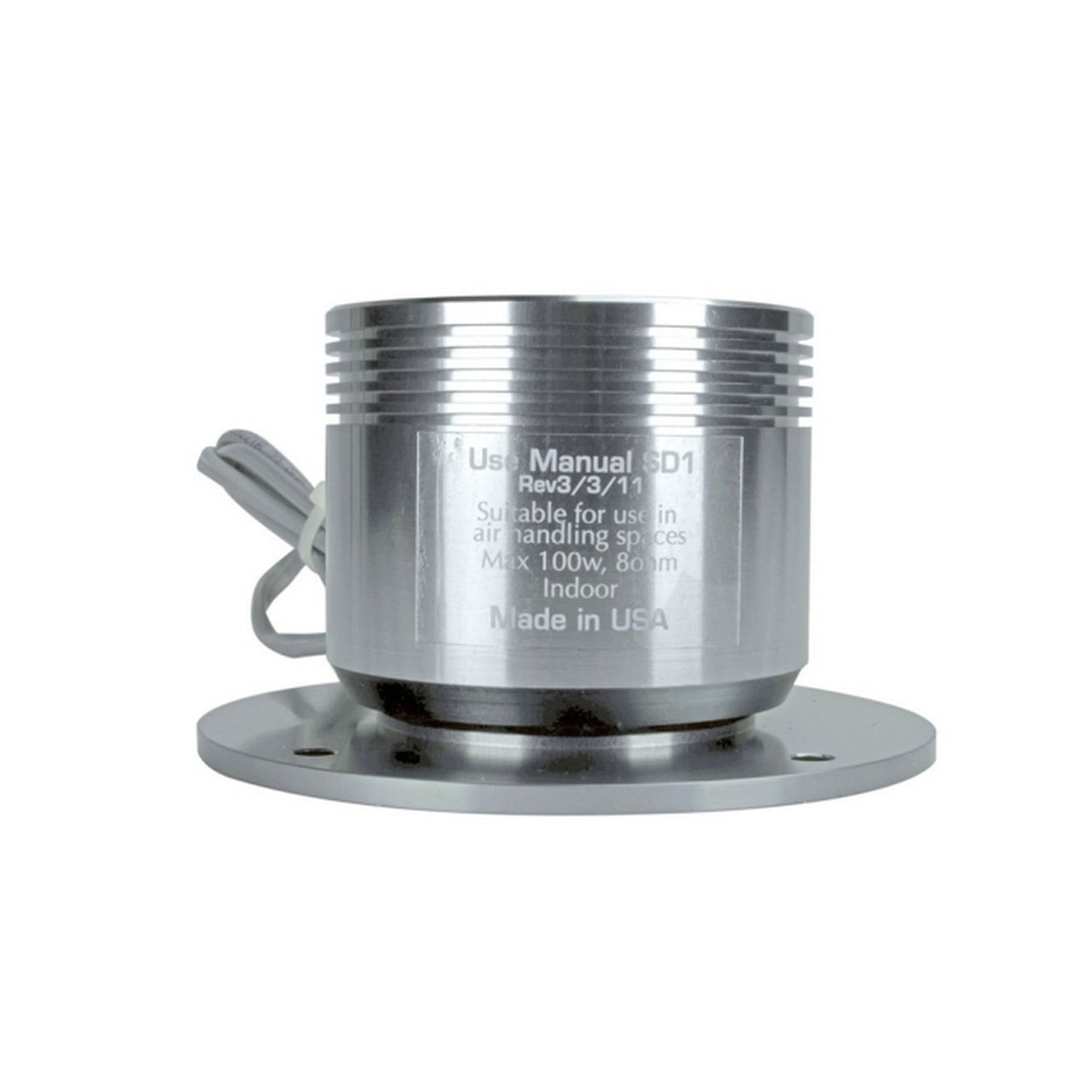

SolidDrive SD-1 Titanium Drywall Surface Mount Actuator
The SolidDrive SD-1 Titanium is a patented surface-mount audio transducer that attaches directly to drywall using a precision-engineered cantilever spring bracket. Featuring dual-voice coil technology within an anodized aluminum enclosure, it delivers full-range sound by converting audio signals into powerful vibrations.
Equipped with high-powered neodymium magnets and symmetrically opposed motors, the SD-1 produces uniform planar-source acoustics across any mounted surface. Its titanium finish not only enhances durability but also complements modern architectural aesthetics.
Key Features
- Drive Technology: Dual-voice coil transducer with patent-pending design
- Mounting: Patented cantilever spring bracket for drywall (SD-1), VHB Adhesive Disc for glass (SD-1G), wood screw mount for wood surfaces (SD-1SM)
- Enclosure: Anodized aluminum with titanium finish
- Inputs: Wire leads
- Certifications: CE, RoHS, UL1480A, UL2043
- Compliance: TAA and BAA (Made in USA)
Technical Specifications
- Frequency Response (Ā±10 dB): 60 Hz ā 15 kHz (without EQ)
- Frequency Response (Ā±3 dB): 80 Hz ā 10 kHz (without EQ)
- Max. Continuous Power (RMS): 30 W
- Max. Program Power: 100 W
- Nominal Impedance: 8 Ī©
- Minimum Impedance: 8 Ī©
- Sensitivity @1 W/1 m: 73.5 dB
- Sensitivity @2.83 V/1 m: 70 ā 75 dB
- Enclosure Properties: Anodized aluminum
