Electro-Voice EVM12L8OHMCLASSIC Zakk Wylde Signature Guitar Speaker

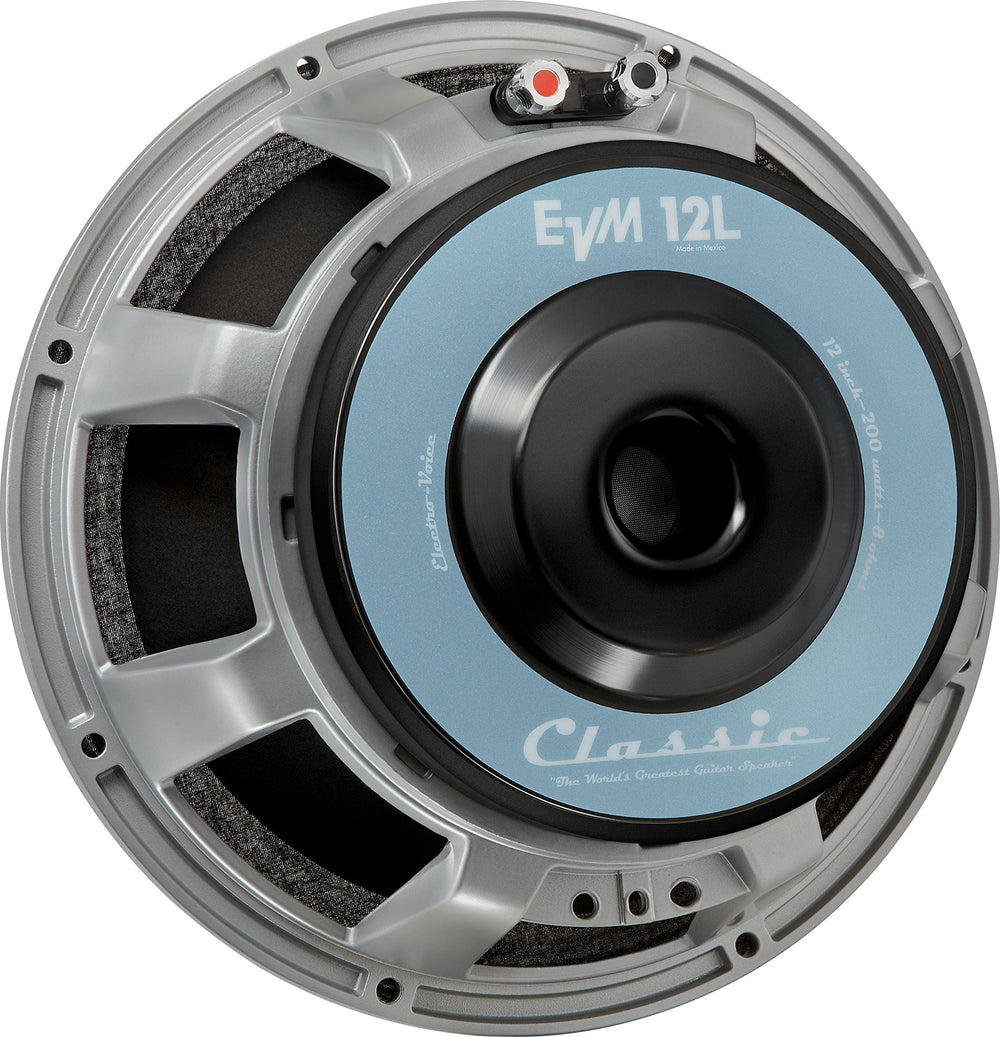

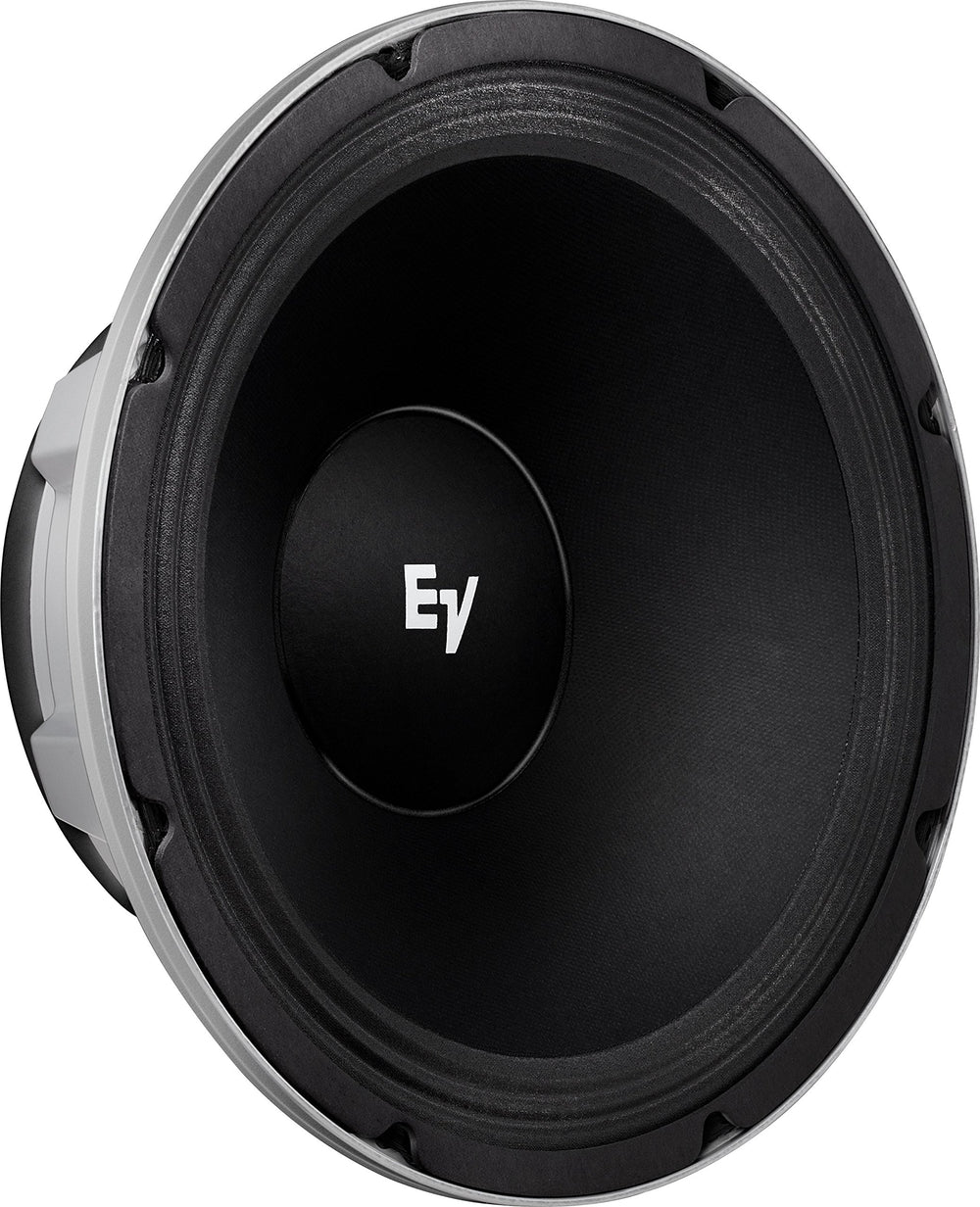

The Electro-Voice EVM12L8OHMCLASSIC Zakk Wylde Signature Guitar Speaker is a 12-inch speaker designed for professional, high-level, high-quality guitar amplification systems. Used full range, the EVM12L’s frequency response is specifically tailored for brilliant lead guitar performance and classic guitar tones. The EVM12L incorporates manufacturing refinements that have improved performance. Power capacity is 300 watts per EIA RS-426-A 1980. The Power- Handling section describes these ratings in detail. This improvement in the EVM12L’s already highly regarded reliability has been made without changing its other performance characteristics in any way. The construction of the EVM12L features a low-mass edgewound voice coil on a rugged laminated polyimide coil form, driven by our large, 16-lb magnetic structure. Also featured are a heavy-duty curvilinear cone and a fatigue resistant cone suspension. Both the coil and magnetic structure are vented. All of this is packaged around a robust, eight-spoke, die cast aluminum frame.
Key Features
- Classic lead guitar performance—full, precise overdriven tones and unrivaled clean tones
- Ideal upgrade speaker
- 300 watts long-term power capacity
- Edge-wound flat aluminum wire for maximum output and “bullet proof” reliability
- 100-dB sensitivity
Technical Specs
Baffle Cutout Diameter
281mm (11.06”)
Coil Diameter
63.5mm (2.5”)
Cone Diameter
305mm (12.01”)
Efficiency
5.9%
Frame Front Diameter
309.6mm (12.19”)
Impedance
8 or 16 ohms
Magnet Diameter
190.5mm (7.5”)
Mounting Bolt Circle Diameter
293.7mm (11.56”)
Speaker Type
Components
Frequency Response (-10dB)
80 – 7000Hz
Sensitivity 1 W / 1 m
100dB
Max. SPL / 1m (calc)
125dB
System Power Handling (Continuous/Program/Peak)
200/1000 Watts
Nominal Impedance (Passive)
16 ohms
Depth
133.4mm (5.25”)
Net Weight
8.6kg (18.96 lbs.)
