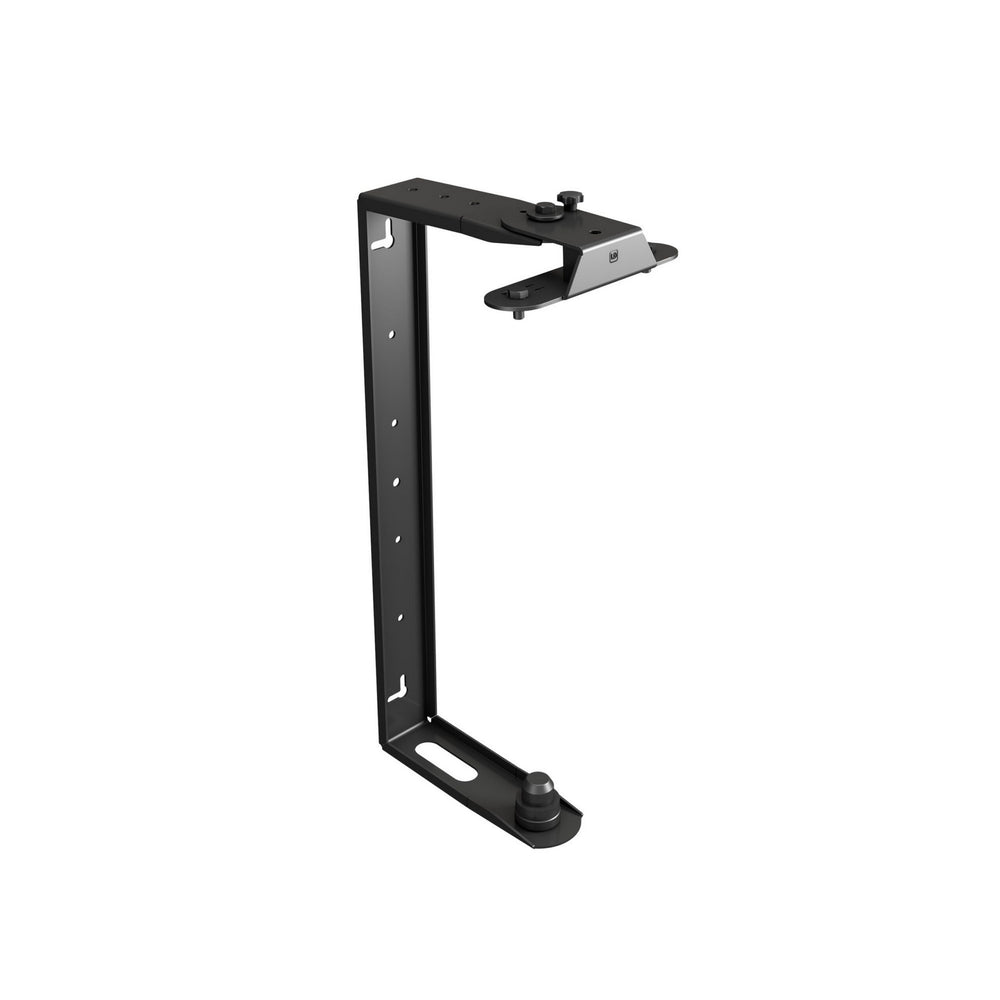

LD Systems ICOA 12 UB Universal Mounting Bracket for ICOA 12, Black
LD Systems ICOA 12 UB Universal Mounting Bracket for ICOA 12, Black
LD Systems ICOA 12 UB Universal Mounting Bracket for ICOA 12, Black
The freedom to achieve the sound you want is the concept behind the ICOA and its matching U-mounting bracket as well. It gives you complete flexibility to mount the ICOA in different ways - to the wall, either horizontally or vertically, or to a truss using an optional clamping tool. You can install the bracket on the wall with six screws and quickly and effortlessly “click” your ICOA into place with the Easy-Click system. All that's left to do is to fasten everything down with a safety screw. The U-bracket's cable feed through behind the ICOA keeps things looking neat and tidy. Once the ICOA is installed, you can freely swivel it around in 10 increments up to 180. Enough flexibility to find your ideal angle.
Key Features
- Universal bracket for horizontal or vertical wall attachment
- Truss mounting with optionally available clamp
- Easy-Click System
- Rotatable in 10 increments up to 180 with scaling indicator
- Five holes for M10 screws
- Six holes for wall installation
- Cable feed through
- Load capacity up to 24 kg
Technical Specifications
Product type
PA Loudspeakers Accessories
Type
Wall bracket
Color
Black
Material
Steel
Surface
Powder-coated
Max. load
24 kg
Weight
3,7 kg
