Blackmagic Design URSA Cine 12K LF 100G Cinema Camera Kit - Body Only, Canon EF

Blackmagic Design URSA Cine 12K LF 100G Cinema Camera

The Blackmagic Design URSA Cine 12K LF 100G Cinema Camera combines a large-format RGBW sensor, 12K Blackmagic RAW recording, and 100Gb/s Ethernet connectivity for professional filmmaking and SMPTE 2110 live production. Available in three kit configurations, the camera offers 16 stops of dynamic range, interchangeable lens mounts, and high-frame-rate recording capabilities.

Designed for cinematographers, broadcast engineers, commercial production teams, and live sports professionals, the URSA Cine 12K LF 100G bridges cinematic image acquisition and IP-based video production. Its 12,288 x 8040 sensor supports open-gate recording, anamorphic workflows, and high-resolution post-production. The 100G QSFP28 connection enables integration with compatible SMPTE 2110 infrastructure, making the camera suitable for live studio production and sports replay systems. Blackmagic RAW recording, built-in ND filters, and dual monitoring displays provide the flexibility needed for demanding film and broadcast environments.

Choose between the Body Only configuration, the complete Cinema Camera Kit, or the Cinema Camera Kit with Electronic Viewfinder. Each option shares the same imaging system, professional connectivity, and recording capabilities. The configurations differ in their included lens mounts, recording media, power accessories, camera support hardware, and viewfinder equipment. All three include DaVinci Resolve Studio for professional editing, color grading, and post-production workflows.

Key Features

• 12K Large-Format RGBW Sensor: Records up to 12,288 x 8040 resolution with 16 stops of dynamic range for detailed cinematic images and flexible post-production.
• 100Gb/s SMPTE 2110 Connectivity: Features a QSFP28 network connection for professional IP video transmission, live production, media transfers, and camera control.
• High-Speed Recording: Supports up to 80 fps in 12K open gate, 144 fps in 8K open gate, 224 fps in 8K widescreen, and 240 fps in 4.6K B4 crop mode.
• Interchangeable Lens Mount System: Supports compatible EF, PL, LPL, and B4 lens mounts, allowing integration with cinema and broadcast lenses.
• Blackmagic RAW Recording: Provides constant bitrate and constant quality recording options with simultaneous H.264 proxy generation.
• Professional Monitoring: Includes dual 5-inch HDR LCD touchscreens, a camera status display, and compatibility with Blackmagic monitoring accessories.
• Built-In Optical ND Filters: Offers clear, 2-stop, 4-stop, and 6-stop IR ND filtration for exposure control under changing lighting conditions.
• Three Kit Configurations: Select a camera body for custom rigging, a complete production package, or a fully equipped kit with an OLED electronic viewfinder.

Available Kit Configurations

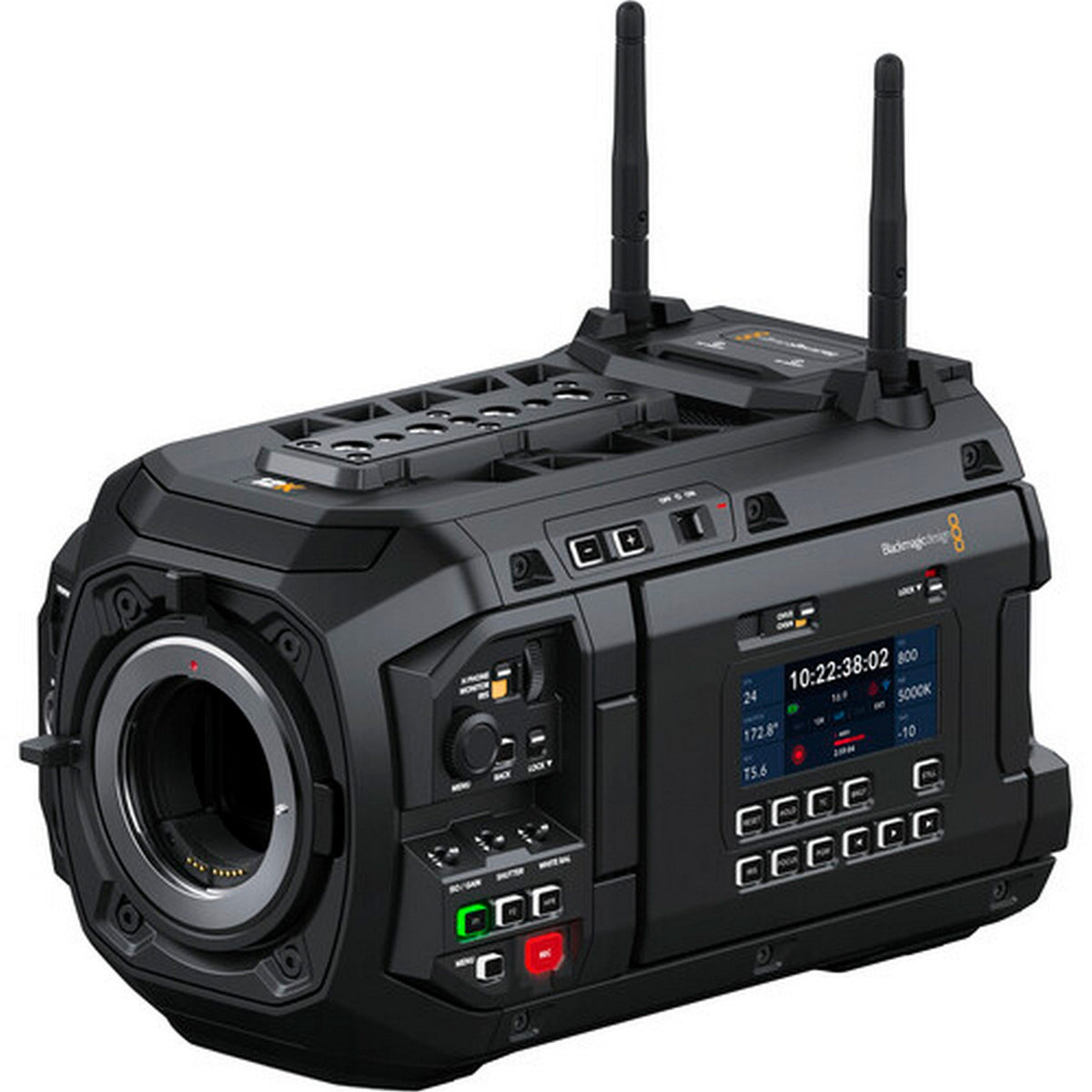

Body Only - EF Mount and CFexpress Media Module

The Body Only configuration is designed for production teams that already own compatible cinema accessories and prefer to build a customized camera system. It includes the URSA Cine 12K LF 100G camera with a locking EF lens mount and a Blackmagic Media Module CF featuring two CFexpress Type B media slots.

This configuration omits the top handle, baseplate, external power supply, battery plate, PL mount, and electronic viewfinder. It provides an economical starting point for cinematographers integrating the camera into existing studio rigs, stabilized camera systems, or customized production equipment.

• Manufacturer Part Number: CINEURSAAB12KLFABDY1
• Configuration: Body Only
• Included Lens Mount: Locking EF
• Included Recording Media Module: Blackmagic Media Module CF
• Media Slots: 2 x CFexpress Type B
• Included Viewfinder: No
• Included Baseplate: No
• Included Battery Plate: No
• Included External Power Supply: No

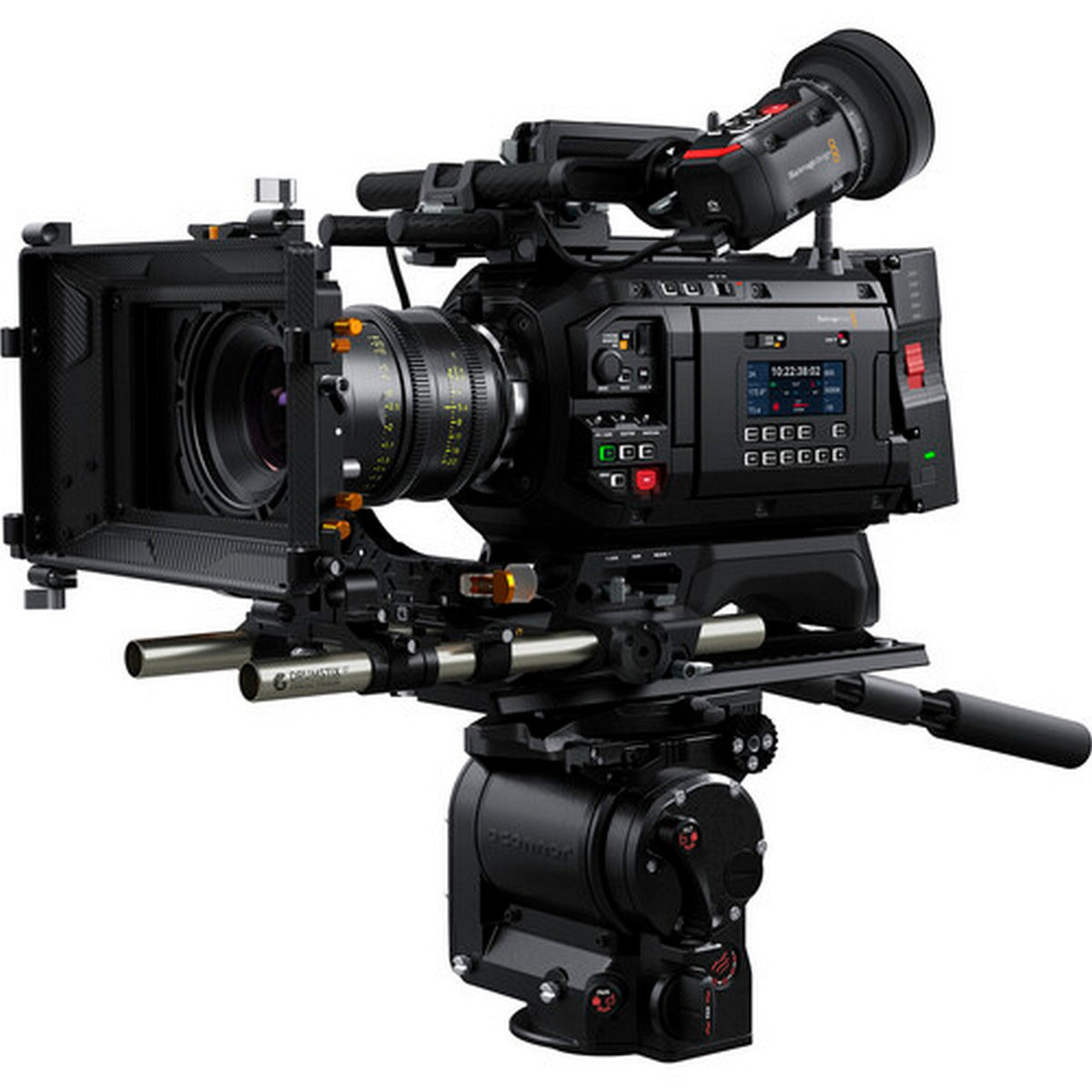

Complete Camera Kit - PL/EF Mounts and 8TB Media Module

The complete camera kit provides a production-ready package for professional cinematography. It includes interchangeable PL and locking EF lens mounts, an 8TB Blackmagic Media Module, a top handle, a top rod mount, a 19mm baseplate, and a B-Mount battery plate.

A 24V 250W power supply and protective Pelican carrying case complete the package. This configuration is suited to filmmakers who need an integrated camera system with professional mounting hardware, high-capacity recording storage, and essential power accessories.

• Manufacturer Part Number: CINEURSAAB12KLFB1
• Configuration: Complete Camera Kit
• Included Lens Mounts: PL and Locking EF
• Included Recording Media: Blackmagic Media Module 8TB
• Included Baseplate: URSA Cine Baseplate 19
• Included Battery Plate: B-Mount
• Included Power Supply: 24V 250W
• Included Viewfinder: No
• Included Carrying Case: Pelican 1510 with Custom Foam

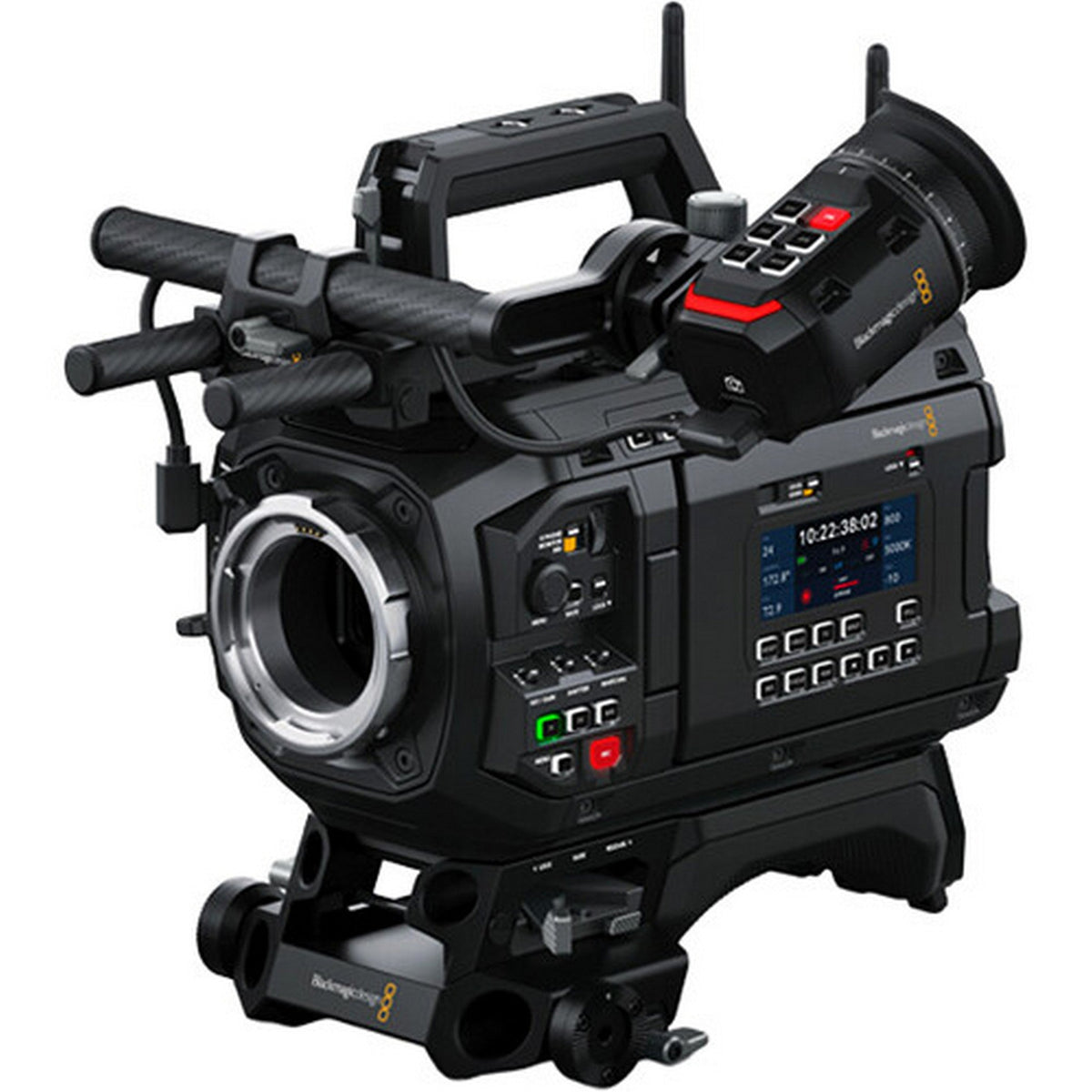

Complete Camera Kit with EVF - PL/EF Mounts and 8TB Media Module

The EVF configuration combines the complete URSA Cine 12K LF 100G camera package with the Blackmagic URSA Cine Electronic Viewfinder. The included EVF uses a 1920 x 1080 OLED display with 6.22 million dots, adjustable diopter correction, and a built-in proximity sensor.

The viewfinder mounts using a rotating bracket and carbon fiber rod assembly. Included USB viewfinder cables provide flexible positioning for handheld, shoulder-mounted, and tripod-based production. This configuration is particularly useful for cinematographers working outdoors or in environments where eye-level monitoring provides greater control over framing and focus.

• Manufacturer Part Number: CINEURSAAB12KLFCEVF1
• Configuration: Complete Camera Kit with EVF
• Included Lens Mounts: PL and Locking EF
• Included Recording Media: Blackmagic Media Module 8TB
• Included Baseplate: URSA Cine Baseplate 19
• Included Battery Plate: B-Mount
• Included Power Supply: 24V 250W
• Included Viewfinder: Blackmagic URSA Cine EVF
• EVF Display: 1920 x 1080 OLED
• EVF Resolution: 6.22 Million Dots
• EVF Diopter Adjustment: -5 to +5
• Included Carrying Case: Pelican 1560 with Custom Foam

Large-Format 12K Cinematography

The URSA Cine 12K LF 100G features a large-format RGBW sensor with an effective imaging area of approximately 1.4 x 0.9 inches. Its 3:2 open-gate recording mode captures the available sensor area at 12,288 x 8040 pixels, allowing editors to reframe footage for multiple delivery formats.

The sensor supports full-width acquisition at 12K, 8K, and 4K resolutions without cropping the sensor's horizontal field of view. Additional 9K Super 35 modes accommodate compatible cinema lenses designed for smaller imaging formats.

An optical low-pass filter helps reduce moire patterns and aliasing when recording fine textures, fabrics, and LED video displays. Combined with Blackmagic RAW processing and 16 stops of dynamic range, the imaging system supports detailed color correction and high-resolution finishing.

100G Ethernet for SMPTE 2110 Live Production

The camera incorporates a 100Gb/s QSFP28 Ethernet connection for SMPTE 2110 video transmission and professional network integration. This connection supports IP video input and output, media management, remote camera control, and Blackmagic Cloud workflows.

Support for SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 enables integration with compatible broadcast infrastructure. Precision Time Protocol provides network synchronization, while NMOS standards support device discovery and connection management.

Production teams can combine the camera with compatible IP routers, production switchers, monitoring equipment, and network storage systems for studio production, sports broadcasting, and distributed video workflows.

High-Frame-Rate Capture and Broadcast Lens Compatibility

The URSA Cine 12K LF 100G supports high-frame-rate recording across multiple sensor formats. Capture up to 100 fps in 12K 17:9, 120 fps in 12K 2.4:1, or 144 fps in 8K open gate.

For additional slow-motion flexibility, 8K and 4K widescreen recording modes support up to 224 fps. A dedicated 4.6K B4 crop mode supports up to 240 fps when using a separately available compatible B4 lens mount.

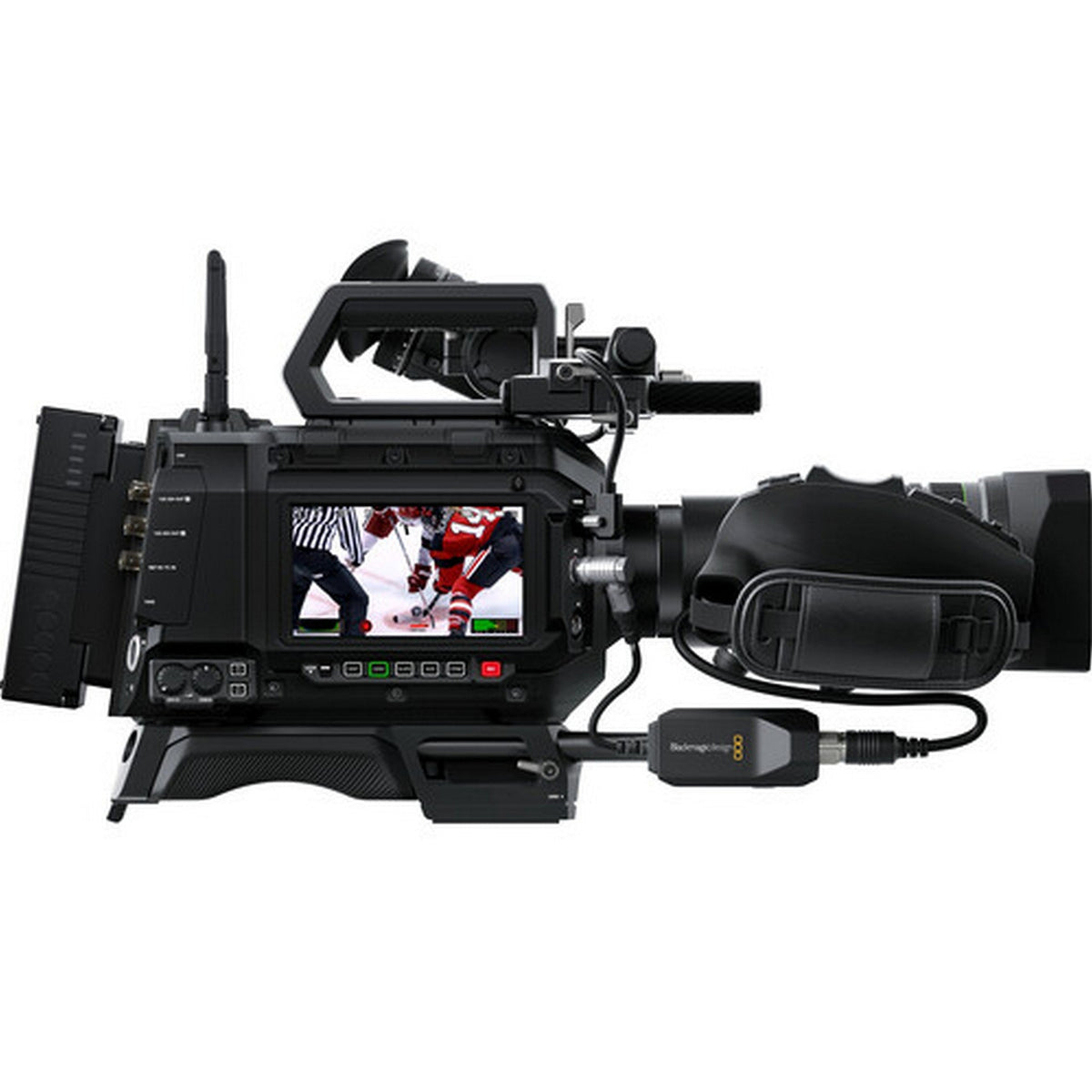

The optional B4 mounting system allows broadcast operators to use compatible servo-controlled zoom lenses. This makes the camera adaptable to sports production, live events, and high-speed replay workflows requiring precise lens control.

Blackmagic RAW Recording and Cloud Collaboration

Blackmagic RAW provides a recording workflow designed to preserve sensor information and production metadata. Camera settings, compatible lens data, white balance, digital slate information, and color adjustments can be stored with recorded footage.

The complete camera configurations include an 8TB Blackmagic Media Module for high-resolution acquisition. The Body Only configuration instead includes the Blackmagic Media Module CF, supporting separately available CFexpress Type B recording media.

Simultaneous H.264 proxy recording enables smaller editorial files to be generated during acquisition. Compatible Blackmagic Cloud workflows allow footage and proxies to be transferred for remote editorial collaboration.

Professional Monitoring and Camera Control

The URSA Cine 12K LF 100G incorporates two 5-inch LCD monitoring displays with 1920 x 1080 resolution and 1500-nit brightness. A separate camera status display provides recording information and system feedback.

Built-in monitoring tools include focus peaking, frame guides, histograms, exposure information, and production metadata displays. Assignable camera controls allow operators to customize access to frequently used functions.

The EVF configuration adds an OLED electronic viewfinder with adjustable diopter correction and customizable controls. Other compatible monitoring accessories include the URSA Cine Studio Viewfinder and PYXIS Monitor systems.

Professional Audio, Power, and Connectivity

Two XLR audio inputs support microphone, line-level, and AES audio sources, with phantom power available for compatible microphones. An integrated stereo microphone and built-in speaker provide additional audio functionality.

Dual 12G-SDI outputs support external video monitoring, while USB-C connections accommodate compatible viewfinders, monitors, and camera accessories. LEMO and Fischer connectors provide accessory power and remote run/stop functionality.

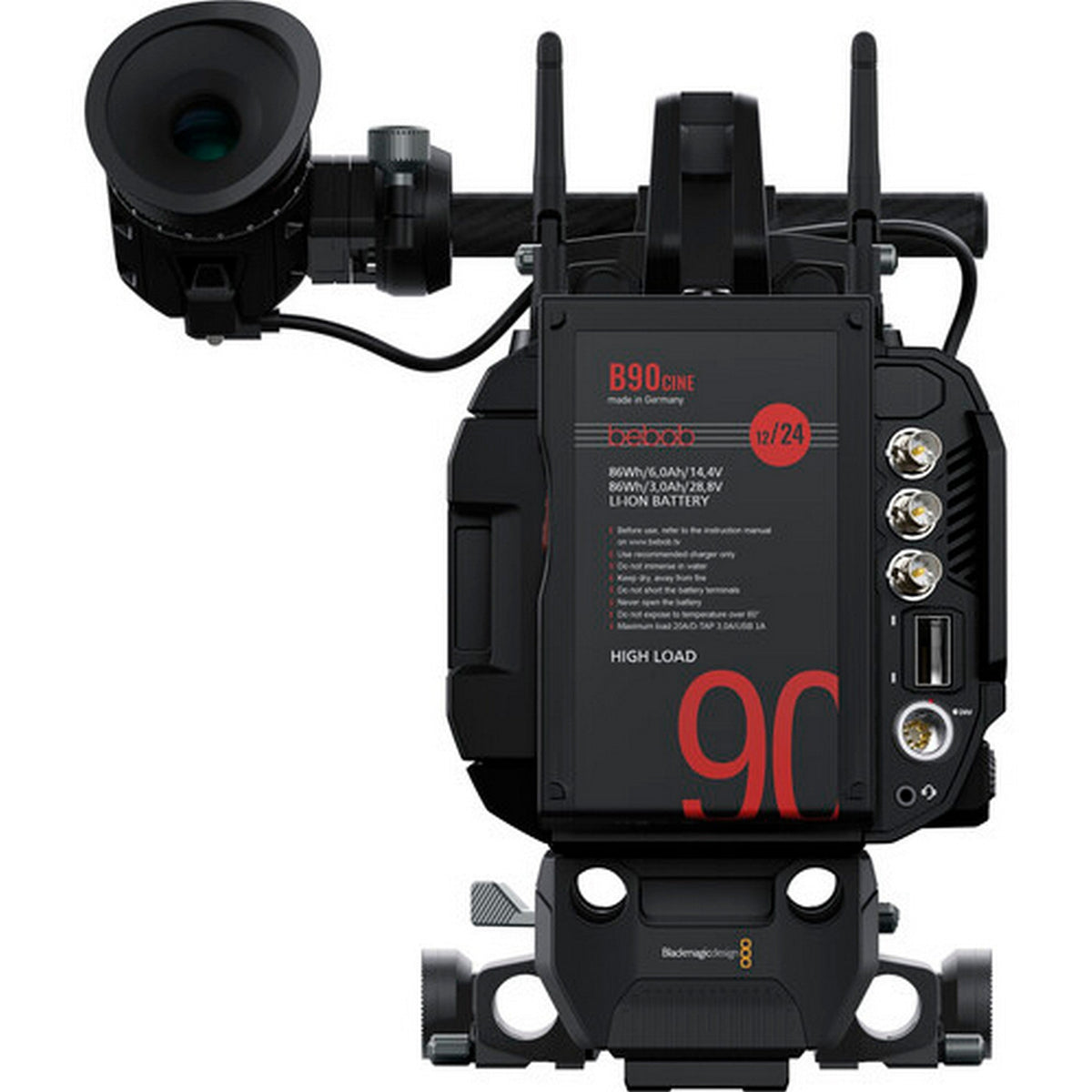

The complete camera kits include a B-Mount battery plate and external power supply. The Body Only configuration requires compatible external power equipment or an optional battery mounting solution.

Technical Specifications

General Camera Specifications

• Brand: Blackmagic Design
• Model: URSA Cine 12K LF 100G
• Product Type: Professional Digital Cinema Camera
• Available Configurations: Body Only, Complete Camera Kit, Complete Camera Kit with EVF
• Imaging Technology: Large-Format RGBW Sensor
• Effective Sensor Size: Approximately 1.4" x 0.9"
• Sensor Pixel Pitch: 2.9 Microns
• Maximum Recording Resolution: 12,288 x 8040
• Dynamic Range: 16 Stops
• Interchangeable Lens Mount System: EF, PL, LPL, and B4
• Included Lens Mounts: Configuration Dependent
• Built-In ND Filters: Clear, 2-Stop, 4-Stop, and 6-Stop IR ND
• Autofocus: Available with Compatible Lenses
• Manual Iris Control: Supported with Compatible Electronic Lenses
• Lens Metadata: Supported with Compatible Electronic EF, PL, and LPL Lenses
• Timecode Accuracy: Less Than 1 Frame Drift Every 8 Hours
• Camera Construction: Magnesium Alloy Chassis with Carbon Fiber Polycarbonate Composite Exterior

Recording Resolutions

• 12K 3:2 Open Gate: 12,288 x 8040
• 12K 16:9: 12,288 x 6912
• 12K 17:9: 12,288 x 6480
• 12K 2.4:1: 12,288 x 5112
• 12K 6:5: 9648 x 8040
• 9K 3:2: 9408 x 6264
• 9K 16:9: 8688 x 4896
• 9K 17:9: 9312 x 4896
• 9K 2.4:1: 9312 x 3864
• 9K 6:5: 7680 x 6408
• 8K 3:2 Open Gate: 8192 x 5360
• 8K 16:9: 8192 x 4608
• 8K 17:9: 8192 x 4320
• 8K 2.4:1: 8192 x 3408
• 8K 6:5: 6432 x 5360
• 4.6K B4 Crop 16:9: 4608 x 2592
• 4K 3:2 Open Gate: 4096 x 2680
• 4K 16:9: 4096 x 2304
• 4K 17:9: 4096 x 2160
• 4K 2.4:1: 4096 x 1704
• 4K 6:5: 3216 x 2680

Frame Rate Specifications

• Supported Project Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps
• 12K 3:2 Open Gate: Up to 80 fps
• 12K 17:9: Up to 100 fps
• 12K 2.4:1: Up to 120 fps
• 9K Super 35 3:2: Up to 100 fps
• 8K / 4K 3:2 Open Gate: Up to 144 fps
• 8K / 4K 2.4:1: Up to 224 fps
• 4.6K B4 Crop 16:9: Up to 240 fps

Display and Monitoring Specifications

• Integrated Monitoring Screens: 2
• Camera Status Screens: 1
• Monitoring Screen Size: 5"
• Monitoring Resolution: 1920 x 1080
• Monitoring Brightness: 1500 Nits
• Monitoring Technology: LCD Capacitive Touchscreen
• Assignable Camera Shortcut Keys: 6
• EVF Compatibility: Blackmagic URSA Cine EVF
• Studio Viewfinder Compatibility: Blackmagic URSA Cine Studio Viewfinder
• Additional Monitor Compatibility: Blackmagic PYXIS Monitor

Included EVF Specifications - EVF Kit Only

• Viewfinder Model: Blackmagic URSA Cine EVF
• Display Technology: OLED
• Display Resolution: 1920 x 1080
• Display Pixel Count: 6.22 Million Dots
• Diopter Adjustment: -5 to +5
• Connection: Locking USB-C
• Viewfinder Functions: Image Monitoring, Focus Assistance, Camera Control, and Recording Control
• Mounting System: Rotating Bracket with Carbon Fiber Rod Assembly
• Viewfinder Cables: 3 Included USB Viewfinder Cables

Video Connectivity

• Total Video Outputs: 3
• SDI Video Outputs: 2
• Supported SDI Rates: 1.5G, 3G, 6G, and 12G
• Network Interface: 1 x 100Gb/s QSFP28
• IP Video Standard: SMPTE 2110
• SMPTE 2110 IP Input: 1 x 100G QSFP28 Connection
• SMPTE 2110 IP Output: 1 x 100G QSFP28 Connection
• Supported Network Video Streams: 1 x Ultra HD Sender and Receiver
• HD Video Standards: 1080p23.98 Through 1080p60 and 1080i50/59.94/60
• Ultra HD Video Standards: 2160p23.98 Through 2160p60
• Supported SMPTE Standards: SMPTE 2110-20, 2110-21, 2110-30, 2110-40, 292M, 424, 2081-1, and 2082-1
• Network Synchronization: IEEE 1588-2008 PTP v2
• PTP Standards: SMPTE ST 2059-1 and ST 2059-2
• NMOS Discovery: IS-04 v1.3.2
• NMOS Connection Management: IS-05 v1.1.2
• NMOS Additional Support: BCP-002-01 and BCP-004-01
• Reference Inputs: Tri-Sync, Black Burst, and Timecode

Audio Specifications

• Professional Audio Inputs: 2 x XLR
• Supported Audio Input Types: Microphone, Line, and AES
• Phantom Power: Supported
• Headset Connection: 1 x 3.5mm
• Integrated Microphone: Stereo
• Integrated Speaker: Mono
• SDI Audio Sampling: 48 kHz / 24-Bit
• SMPTE 2110-30 Audio Conformance: Level C

Recording and Media Specifications

• Recording Format: Blackmagic RAW
• Constant Bitrate Compression: 3:1, 5:1, 8:1, 12:1, and 18:1
• Constant Quality Compression: Q0, Q1, Q3, and Q5
• Additional 4K Compression Options: 4:1 and 6:1
• Simultaneous Proxy Recording: H.264
• Proxy Resolution: 1920 x 1080
• Proxy Color Format: 8-Bit 4:2:0
• Body Only Media Module: Blackmagic Media Module CF
• Body Only Media Slots: 2 x CFexpress Type B
• Complete Camera Kit Media: Blackmagic Media Module 8TB
• EVF Camera Kit Media: Blackmagic Media Module 8TB
• Optional Media Module: Blackmagic Media Module 16TB
• Media Transfer Compatibility: Blackmagic Media Dock
• Recording Metadata: Camera Settings, Lens Information, Slate Data, White Balance, and Custom LUT Information

Network and Remote Control Specifications

• Network Connection: 100Gb/s QSFP28 Ethernet
• Wireless Connectivity: Wi-Fi
• Streaming Protocols: SRT and RTMP
• Cloud Platform: Blackmagic Cloud
• Network File Sharing: SMB and FTP
• Browser-Based File Management: Supported
• Network Time Synchronization: NTP
• Camera Control: Ethernet REST API, Wi-Fi, Bluetooth, and Serial Communication
• Remote Run/Stop: Supported Through LEMO and Fischer Connections
• Compatible Control Accessories: Blackmagic Zoom Demand and Focus Demand

Power and Accessory Connectivity

• External Power Input: 8-Pin LEMO Compatible
• External Power System: 24V DC
• Complete Kit Power Supply: 24V 250W
• Power Supply AC Input: 100-240V AC, 50/60Hz
• Complete Kit Battery Mount: B-Mount
• Accessory Connection: 7-Pin LEMO EXT
• Additional Accessory Connection: 3-Pin Fischer RS
• Accessory Power: 24V DC with Compatible Power Sources
• B-Mount Plate Output: Regulated 12V Through 2-Pin Connector
• Viewfinder Connection: Locking USB-C
• Additional Monitor Connections: 2 x USB-C
• Camera Expansion: 2 x USB-C
• Firmware Updates: USB-C

Software Specifications

• Camera Operating System: Blackmagic OS
• Included Editing Software: DaVinci Resolve Studio
• Additional Software: Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, and Blackmagic RAW SDK
• Supported macOS: macOS 15 Sequoia, macOS 26 Tahoe, or Later
• Supported Windows: Windows 11

Environmental Specifications

• Operating Temperature: 32 to 104 Degrees Fahrenheit
• Storage Temperature: -4 to 113 Degrees Fahrenheit
• Relative Humidity: 0% to 90%, Non-Condensing
• Manufacturer Warranty: 1 Year Limited

What's In the Box

Body Only Configuration - CINEURSAAB12KLFABDY1

• 1 x Blackmagic URSA Cine 12K LF 100G Camera with Locking EF Lens Mount
• 1 x Blackmagic Media Module CF
• Blackmagic URSA Cine Connector Protection Caps
• Blackmagic URSA Cine Wi-Fi Antennas
• 1 x Blackmagic EF Body Cap
• 1 x DaVinci Resolve Studio Activation Key
• 1 x Welcome Wallet with Software Download QR Code

Complete Camera Kit - CINEURSAAB12KLFB1

• 1 x Blackmagic URSA Cine 12K LF 100G Camera with PL Lens Mount
• 1 x Blackmagic Media Module 8TB
• 1 x Blackmagic URSA Cine Handle with Mounting Bolts
• 1 x Blackmagic URSA Cine Top Rod Mount
• 1 x Blackmagic URSA Cine Baseplate 19
• 1 x Blackmagic URSA Cine B-Mount Battery Plate
• 1 x Blackmagic URSA Cine EF Lens Mount with Mounting Screws
• 1 x Blackmagic URSA Cine 24V 250W Power Supply
• Blackmagic URSA Cine Connector Protection Caps
• Blackmagic URSA Cine Wi-Fi Antennas
• 1 x Blackmagic EF Body Cap
• 1 x Blackmagic PL Body Cap
• 1 x Folding Protective Screen Hood for 5" LCD
• 1 x DaVinci Resolve Studio Activation Key
• 1 x Welcome Wallet with Software Download QR Code
• 1 x Blackmagic Sticker
• 1 x Pelican 1510 Carrying Case with Custom Foam

Complete Camera Kit with EVF - CINEURSAAB12KLFCEVF1

• 1 x Blackmagic URSA Cine 12K LF 100G Camera with PL Lens Mount
• 1 x Blackmagic Media Module 8TB
• 1 x Blackmagic Media Module Case
• 1 x Blackmagic URSA Cine Handle with Mounting Bolts
• 1 x Blackmagic URSA Cine Top Rod Mount
• 1 x Blackmagic URSA Cine Baseplate 19
• 1 x Blackmagic URSA Cine B-Mount Battery Plate
• 1 x Blackmagic URSA Cine EF Lens Mount with Mounting Screws
• 1 x Blackmagic URSA Cine 24V 250W Power Supply
• Blackmagic URSA Cine Connector Protection Caps
• Blackmagic URSA Cine Wi-Fi Antennas
• 1 x Blackmagic EF Body Cap
• 1 x Blackmagic PL Body Cap
• 1 x Folding Protective Screen Hood for 5" LCD
• 1 x Blackmagic URSA Cine Electronic Viewfinder
• 1 x EVF Rotating Bracket with 19mm Carbon Fiber Rod
• 1 x EVF Bracket Rod Mount
• 1 x EVF Extension
• 2 x Short 15mm Carbon Fiber Rods
• 1 x Long Right-Angle to Straight USB Viewfinder Cable
• 1 x Short Right-Angle to Straight USB Viewfinder Cable
• 1 x Short Right-Angle to Right-Angle USB Viewfinder Cable
• 1 x Rubber Eyecup
• 1 x Fabric Eye Chamois
• 1 x DaVinci Resolve Studio Activation Key
• 1 x Welcome Wallet with Software Download QR Code
• 1 x Blackmagic Sticker
• 1 x Pelican 1560 Carrying Case with Custom Foam
