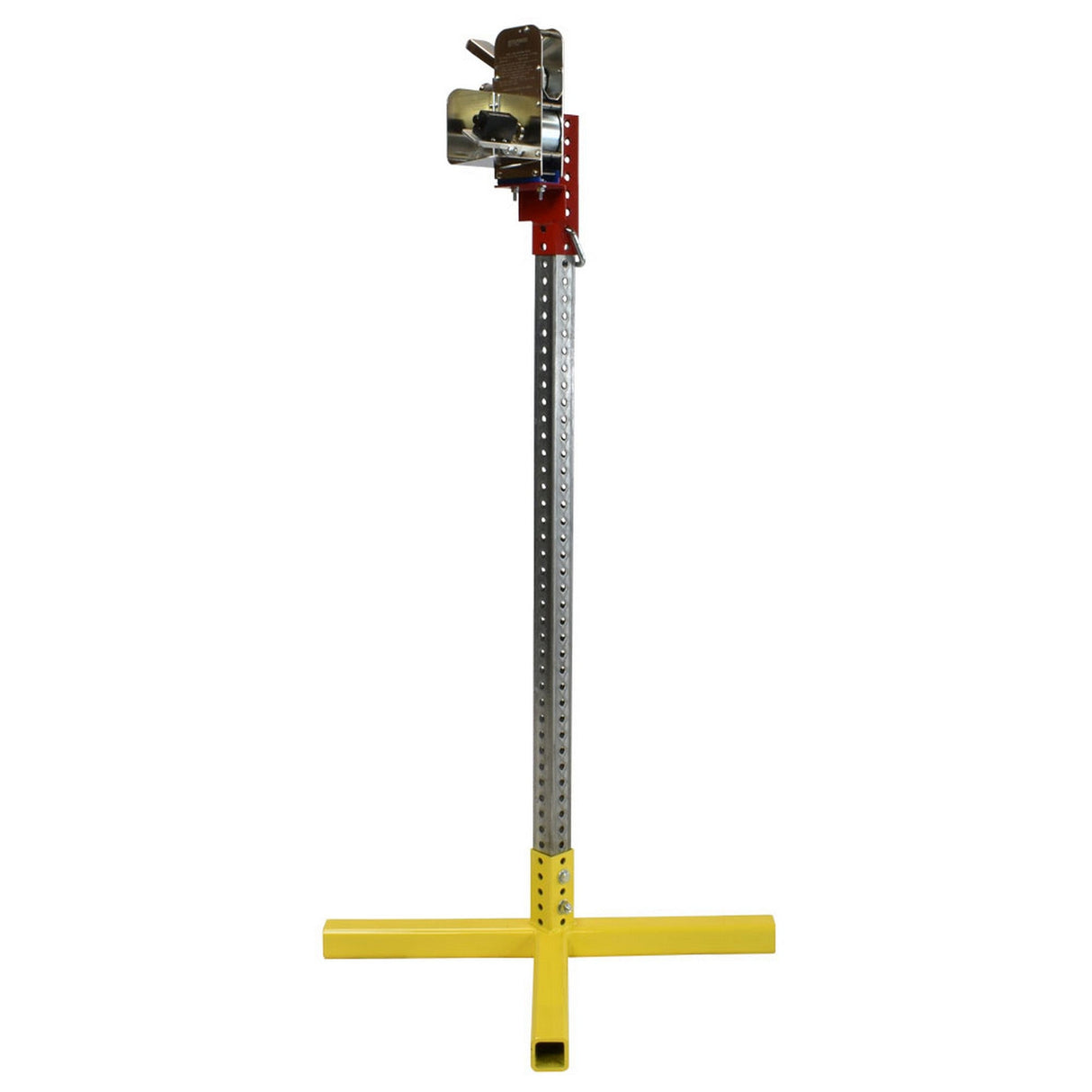

SpoolMaster SMP-WM-1410-NC Wire Measurer with Floor Stand
The SMP-WM-1410 wire measurer with floor stand features a heavy-duty powder coated steel base, galvanized steel upright and telescoping measurer bracket for height adjustment. The measurer can accommodate a variety of flexible materials ranging from 1/64-inch to 7/8-inch diameter and an optional integrated cutter allows the material to be easily cut at an accurate length (cutter is not compatible with steel wire or armored cable).
This Imperial measurer adds or subtracts inches and feet, the metric counter adds or subtracts centimeters or meters, and both reset to zero with a turn of the reset knob. Stainless and heat-treated steel are used for all shafts and surfaces subject to wear by the materials passage. Toolless, interchangeable guide tubes of 1/4-inch and 1-inch afford accurate guiding of smaller and larger materials.
Key Features
- Measures flexible material from 1/64ā-7/8ā (0.4-24 mm) diameter
- Measures wire rope & stiffer materials up to 1/2ā (13mm) diameter
- Guide tubes feature inside diameters of 1/4ā & 1ā (6.3 & 25 mm)
- Maximum measurable length: 999.9 meters (Metric Counter)
- Maximum measurable length: 9,999ā-11ā (Imperial Counter)
- Counter is not compatible with steel wire or armored cable (MC)
- Frames constructed of 10-guage steel
- Outside dimensions: 44ā H x 28ā W x 28ā D
- Product weight: 46 lbs.
- Conforms to Weights & Measures specifications in USA & Canada
- Made in the USA
