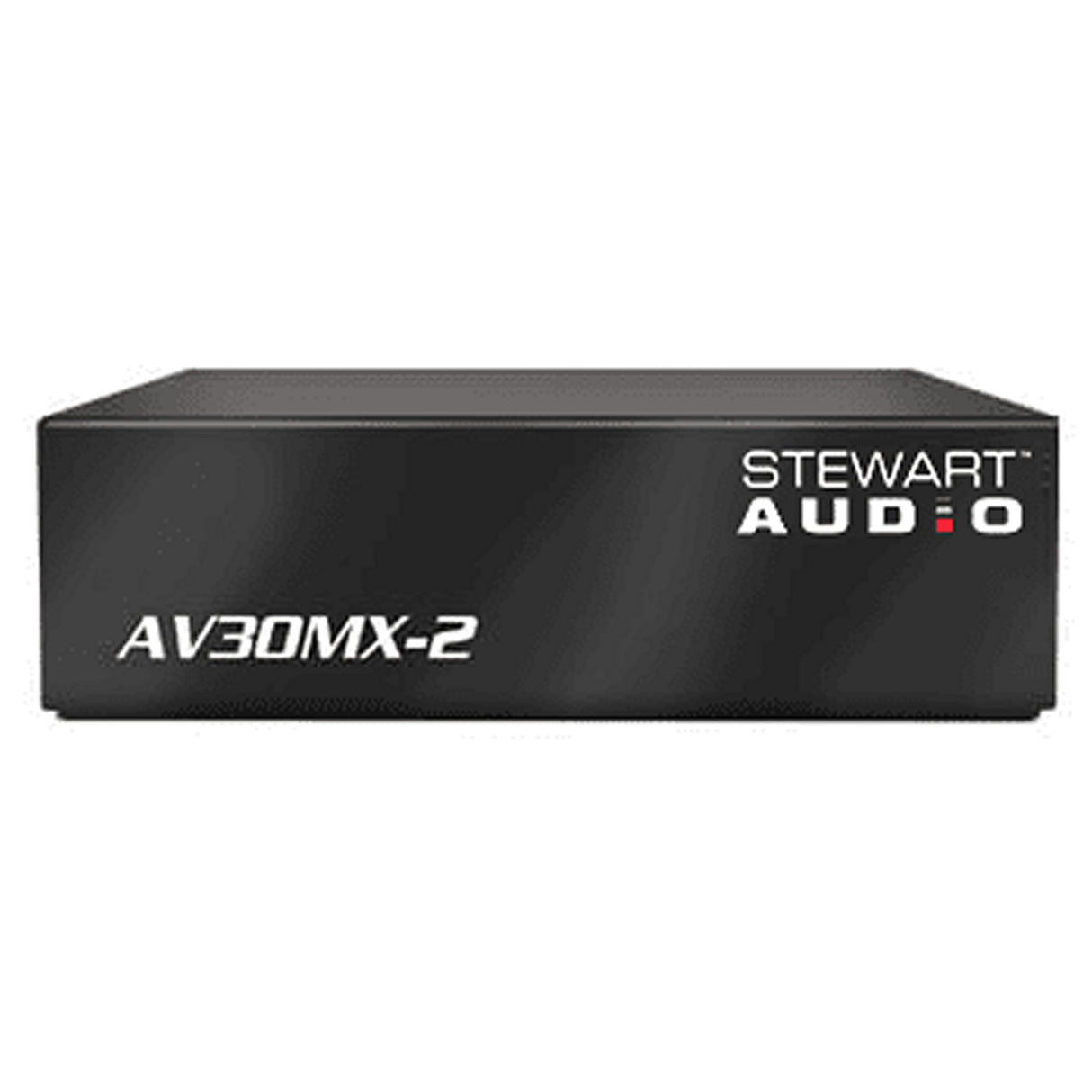

Stewart Audio AV30MX-2 30W 2-Channel Stereo Mixer Amplifier
Stewart Audio AV30MX-2 30W 2-Channel Stereo Mixer Amplifier
The sub compact AV30MX-2 is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D mixer amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV30MX-2 allows amplification to be located in places off limits to normal mixer amplifiers without compromising sound or power. Like all Stewart products, the AV30MX-2 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology (SSPT) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.
Key Features
- 2 channel stereo mixer amplifier in a subcompact, 1/4 rack form factor
- Music and fire alarm muting
- Clean full-range dynamic power
- Signal Detect trigger for sleep & wake up
- Multiple mounting options
- External inline power supply
Technical Specifications
4 Ohm Stereo Power
30W
8 Ohm Stereo Power
30W
Frequency Response (+0, -3 dB, 1W)
30 Hz-20 kHz
Power Bandwidth (+3dB, -3dB)
30 Hz-30 kHz
THD+N
<.1% @ Full Power
Signal-to-Noise Ratio
>100dB
External Mute
contact closure
Slew Rate
30V/microsecond
Input Sensitivity
.5V (-6 dBV)
Standard Voltage Gain
28X (26.5dB)
Input Impedance (Unabalanced)
10k Ohms
Standby, Idle Current Draw, 1/8 Power Draw
0.005/0.01/0.15 Amps
Class
D
Input Connectors
3.5mm Stereo, Dual RCA
Output Connectors
Euro Block
Power Supply
External in-line 48VDC (Included)
Cooling
Convection-Cooling (No Fans)
Controls
2 Independent Level Controls
LED Indicators
Power, Signal Present & Clip
Construction
Aluminum Chassis
Dimensions (height, width, depth)
1.25āH x 4.35ā W x 3.2ā D
Weight
<.37 lbs (0.16kg)
Warranty
3 years
Plenum Rating
UL 2043 Approved
