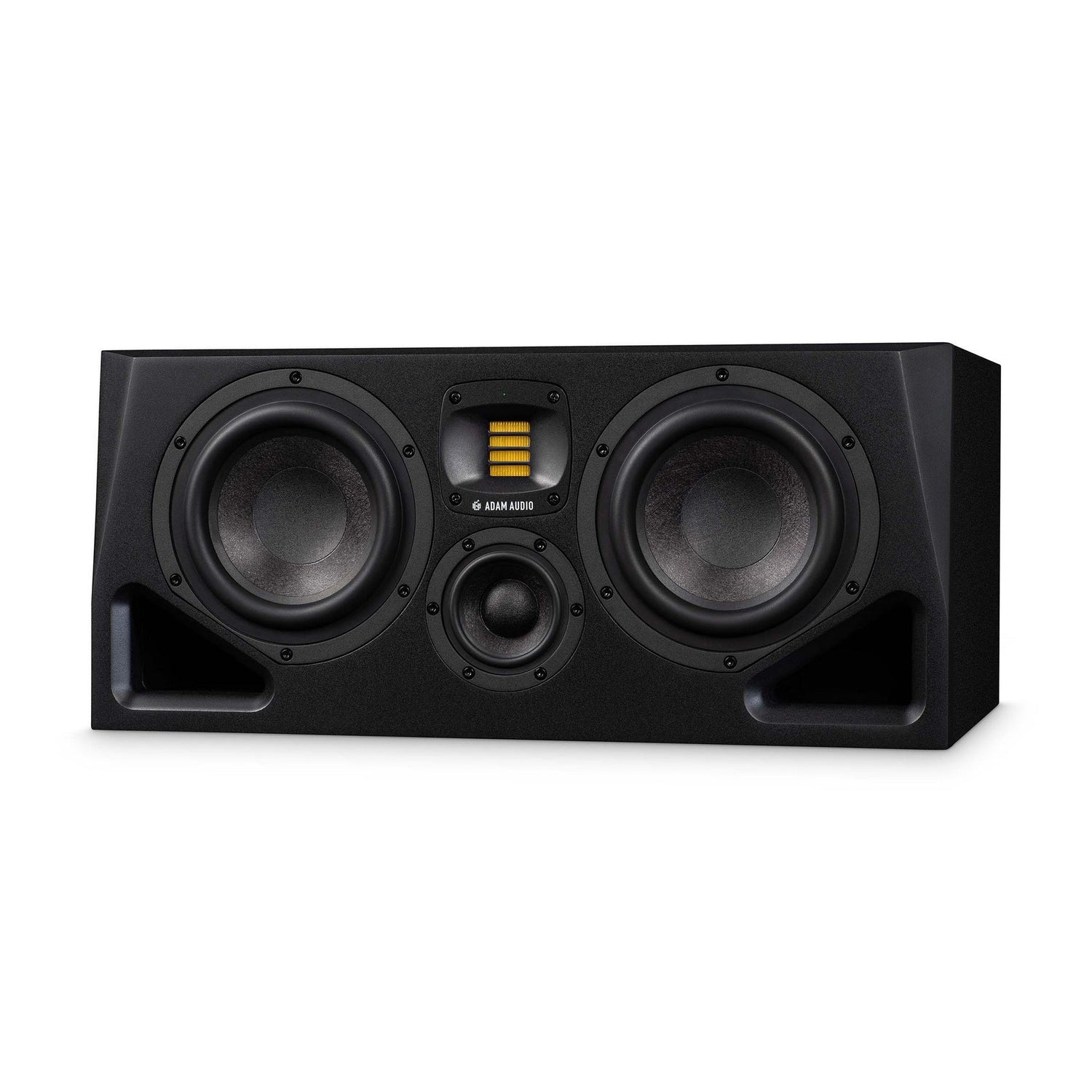

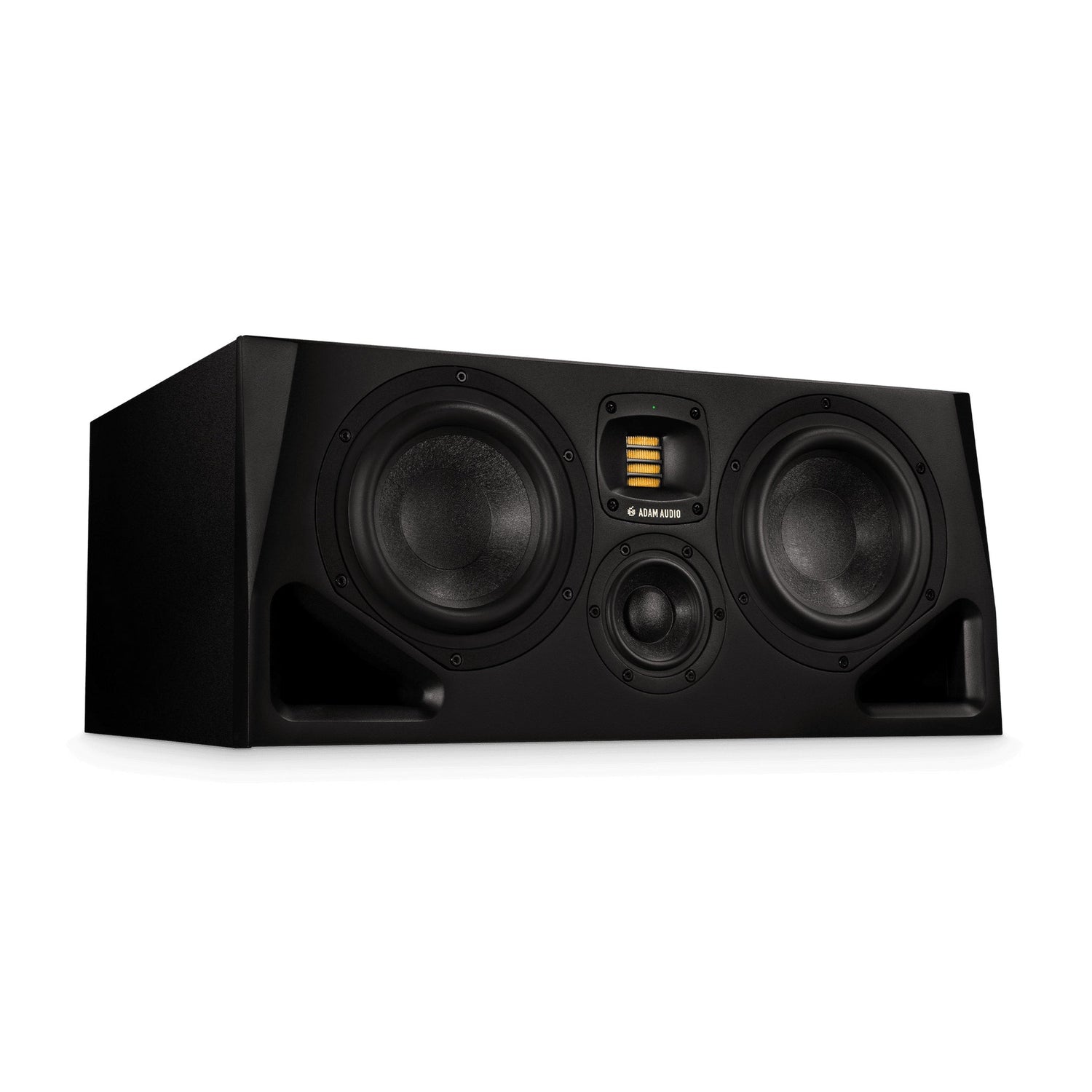

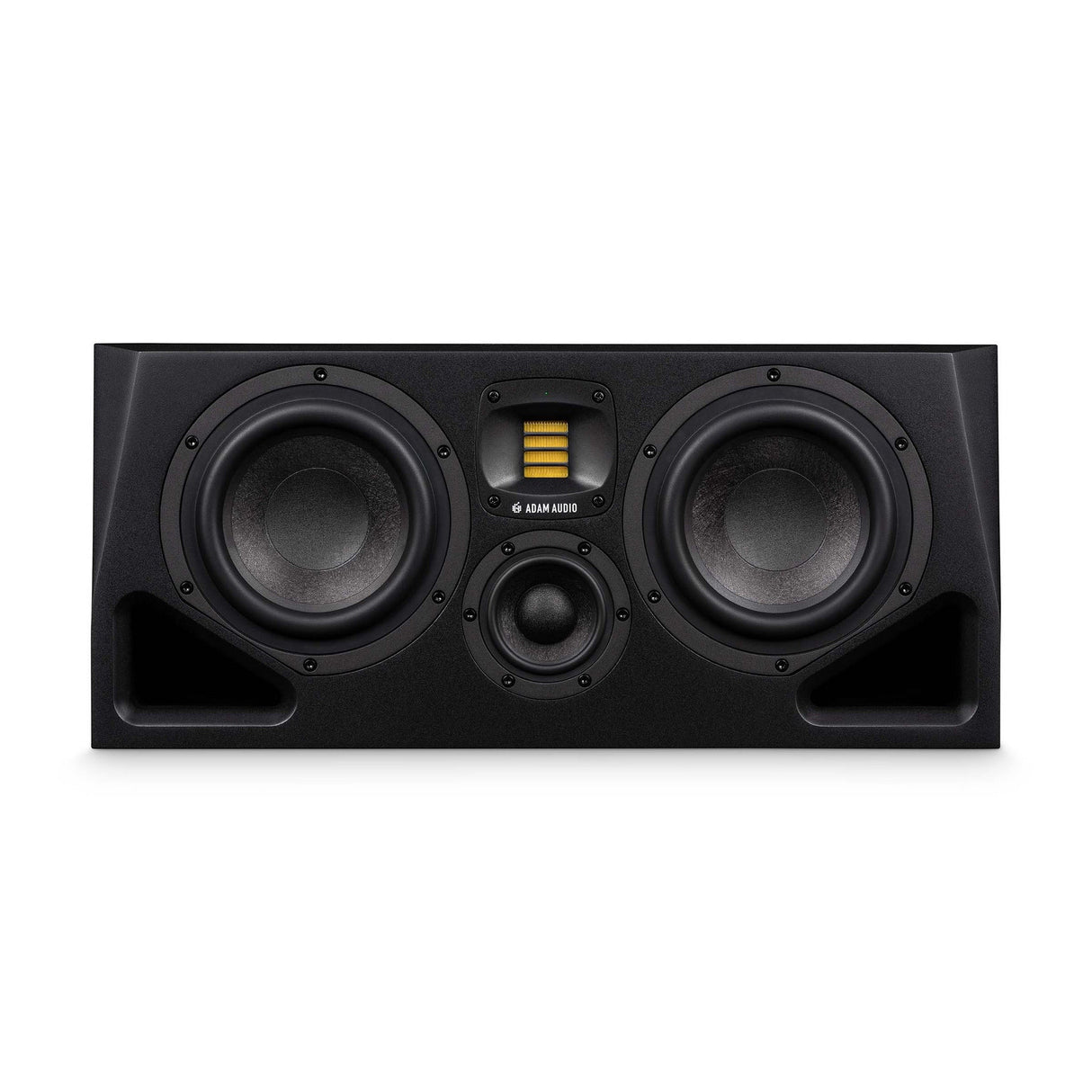

ADAM Audio A77H 7-Inch Three-Way Powered Midfield Studio Monitor
The ADAM Audio A77H is a true three-way midfield monitor built for precision listening in professional and project studios. Dual 7″ woofers, a dedicated 3.5″ midrange driver, and the X-ART ribbon tweeter work together to deliver rock-solid imaging, deep bass down to 34 Hz, and crystal-clear highs up to 45 kHz.
Tri-amped with high-power Class-D (250 W for each woofer), Class-AB (70 W midrange), and Class-AB (20 W tweeter) amplification, the A77H can reach up to 106 dB SPL per speaker without distortion. Onboard DSP controls and Ethernet connectivity via the free A Control app let you fine-tune EQ, voicings, and room-correction settings from anywhere in your studio.
Key Features
- Three-Way Design: Dual 7″ woofers + 3.5″ midrange + X-ART ribbon tweeter
- High-Power Amplification: 250 W ×2 (woofers), 70 W (midrange), 20 W (tweeter)
- Wide Frequency Response: 34 Hz – 45 kHz (–6 dB)
- High SPL: Up to 106 dB per speaker @ 1 m
- Dual Front-Ported Cabinet: Controlled bass extension and minimal resonance
- Onboard DSP & Remote Control: Room EQ, voicing presets, firmware updates via Ethernet/A Control app
- Robust Build: Vinyl-wrapped MDF, threaded M8 mounting inserts
Technical Specs
- Dimensions: 9.25″ × 20.87″ × 13.75″ (236 × 531 × 350 mm)
- Weight: 37 lb 11 oz (17.1 kg)
- Frequency Response: 37 Hz – 41 kHz (–3 dB) / 34 Hz – 45 kHz (–6 dB)
- Crossover Frequencies: 400 Hz, 3 kHz
- Max. Peak SPL: 106 dB @ 1 m
- THD: < 0.5 % above 80 Hz

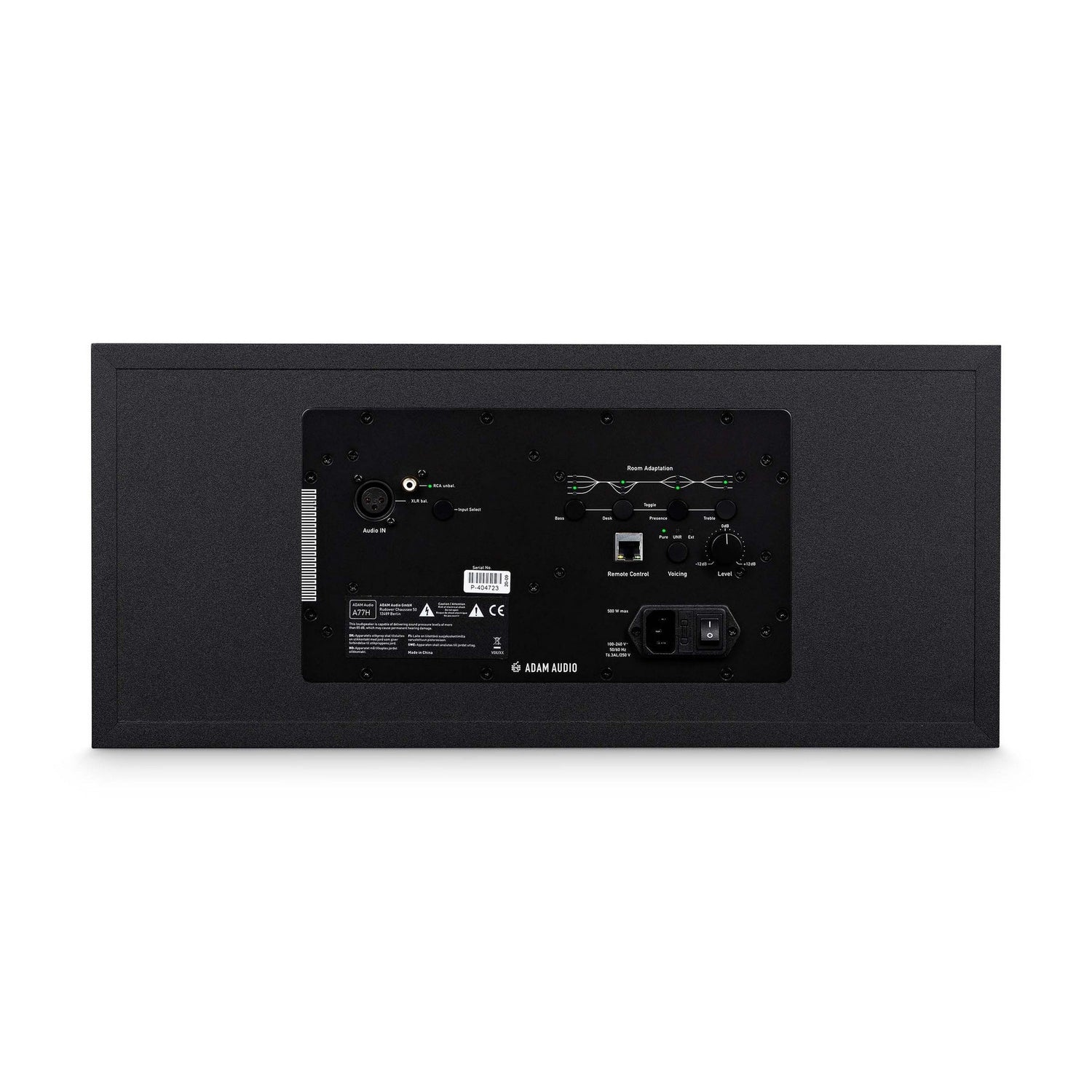

- Inputs: XLR (balanced), RCA (unbalanced), Ethernet
- Power Consumption: 220 W max / 15 W idle / 3.5 W sleep (100–240 V, 50/60 Hz)
- Operating Conditions: –10 °C to +40 °C; < 75 % RH
In the Box
- 1x ADAM Audio A77H Monitor
- 1x Power Cable
- 1x Quick Start Guide
