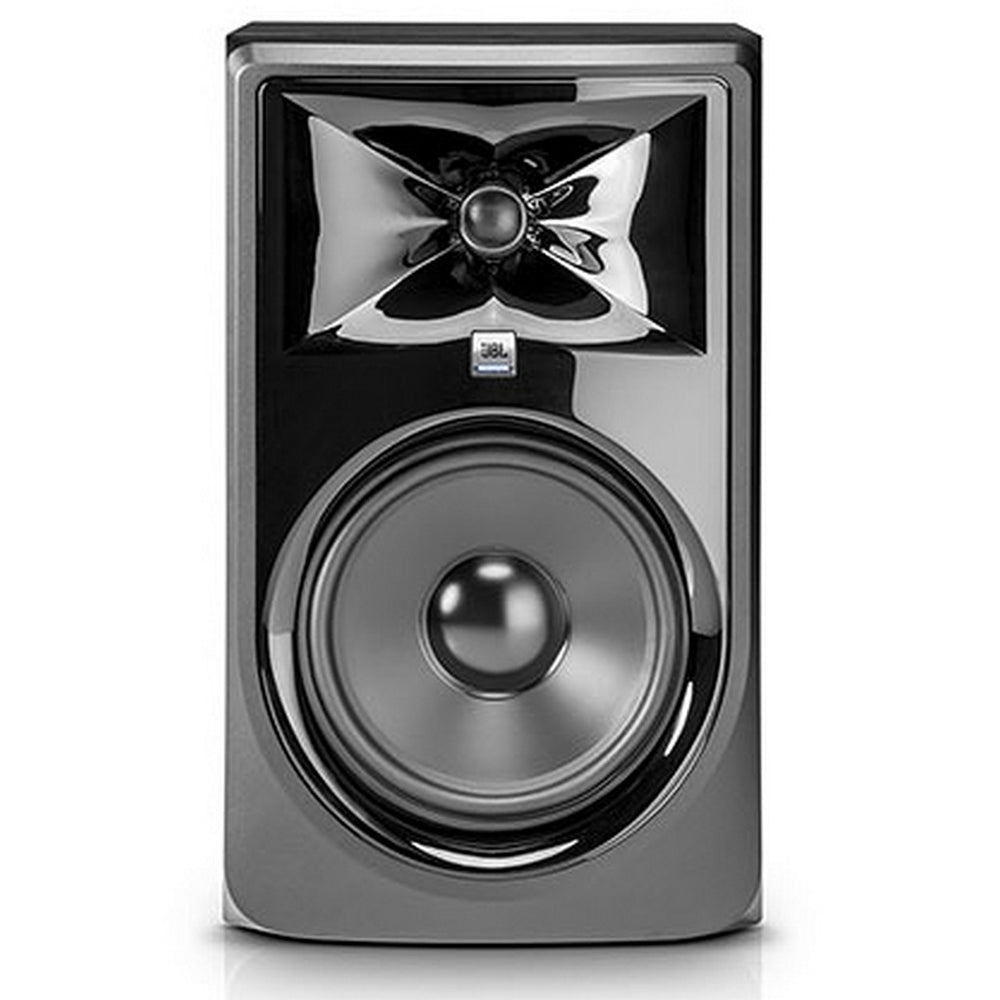

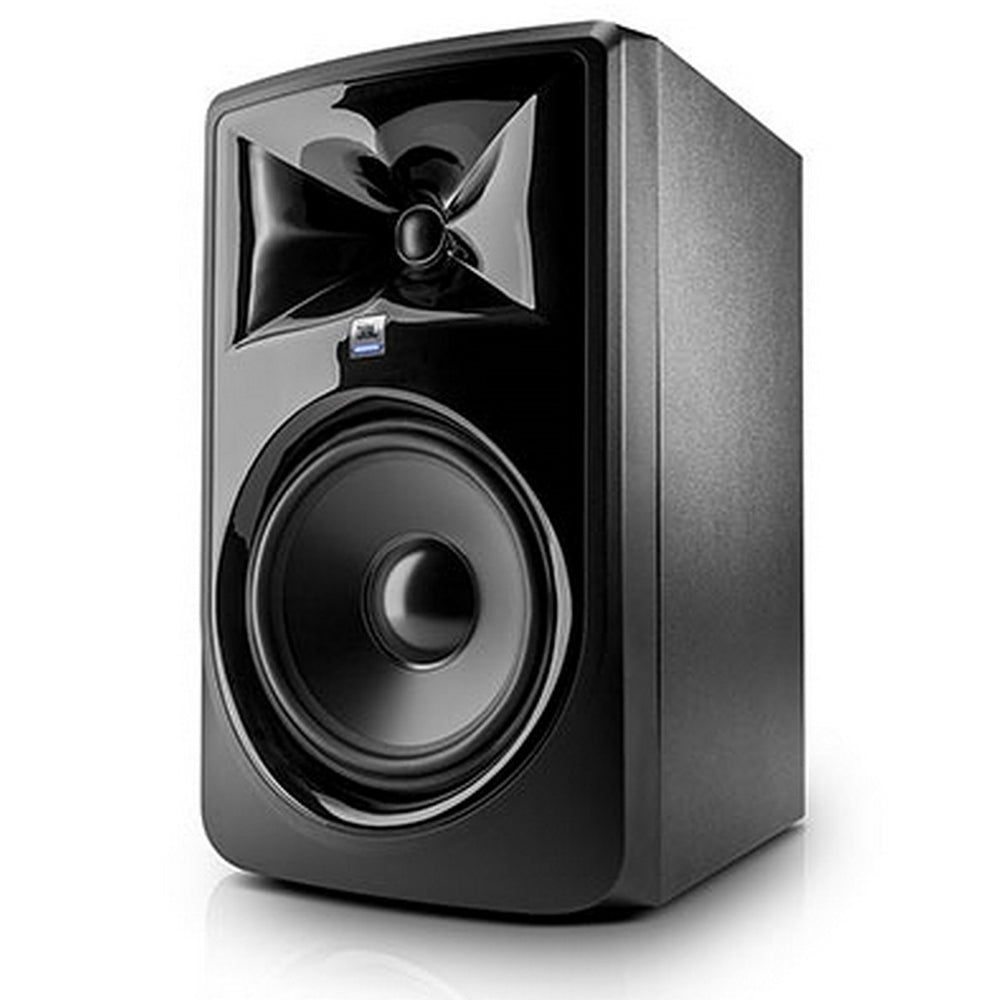

JBL 308P MKII | Powered 8 Inch Two-Way Studio Monitor

The next-generation JBL 308P MkII powered studio monitor offers legendary JBL performance at an accessible price, making it perfect for every studio. Featuring state-of-the-art JBL Image Control Waveguide technology and refined transducers, the JBL 308P MkII provides stunning detail, precise imaging, a wide sweet spot, and impressive dynamic range. These attributes dramatically enhance the mixing capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors, this studio monitor also boasts a sleek, modern design that will upgrade the visuals of any studio setting.

Whether you're a seasoned professional or just starting your journey in the audio production world, the JBL 308P MkII is optimized to meet your needs. Dual integrated, custom Class-D amplifiers provide 112 watts of power, ensuring high output and dynamic range. New Boundary EQ settings compensate for any low-frequency variants introduced by the environment, and the HF Trim switch allows you to adjust high-frequency output based on room acoustics or your personal preferences. Offering superior bass performance at all playback levels, thanks to the patented Slip Stream low-frequency port, this studio monitor provides an enjoyable and reliable mixing experience.

The JBL 308P MkII is engineered according to JBL Linear Spatial Reference design criteria, ensuring outstanding accuracy in any workspace. Its flexible connectivity options, which include balanced XLR and 1/4" TRS inputs, and an adjustable volume control, provide the versatility you need for your evolving studio setup. With a rigorous 100-hour full-power test ensuring years of reliability, the JBL 308P MkII is a long-term investment in your audio production environment.

Key Features

• Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
• Next-generation JBL transducers for optimized transient response and improved linearity
• Patented Slip Stream low-frequency port for superior bass performance at all playback levels
• Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
• New Boundary EQ settings compensate for low frequency variants introduced by the environment
• HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

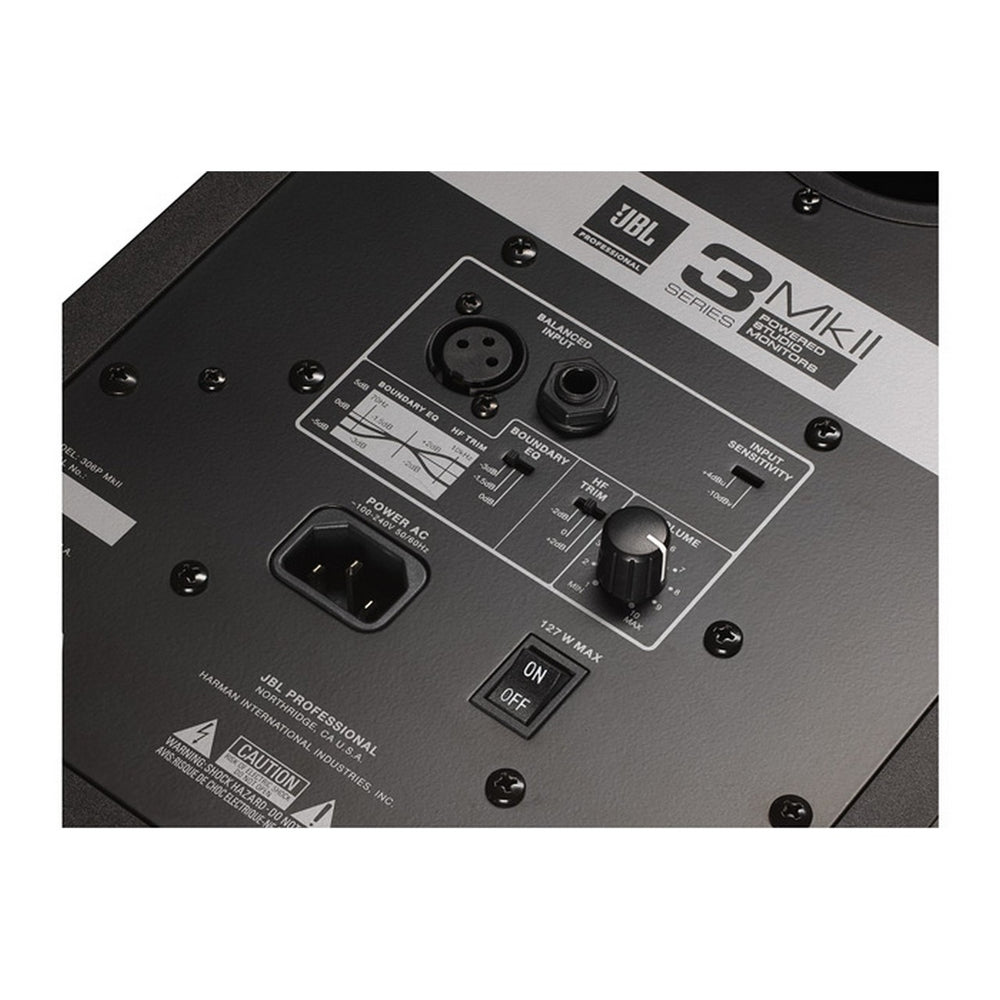

• Flexible connectivity with balanced XLR and 1/4" TRS inputs +4dBu / -10dBV input-sensitivity switch, and adjustable volume control
• Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
• Strenuous JBL 100-hour full-power test ensures years of reliability
• Sleek, modern design provides a visual upgrade to any studio

Specifications

• LF DRIVER SIZE: 203mm (8")
• HF DRIVER SIZE: 25mm (1")
• HF DRIVER TYPE: Soft dome
• CROSSOVER: 1800Hz 4th order acoustic Linkwitz-Riley
• OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT: Yes
• INPUT SENSITIVITY (-10dBV INPUT): 92dB / 1m
• POWER CONFIGURATION: Bi-amplified
• HF DRIVER POWER AMP: 56W, Class-D
• LF DRIVER POWER AMP: 56W, Class-D
• FREQUENCY RESPONSE (±3dB): 45Hz - 20kHz
• FREQUENCY RANGE (-10dB): 37Hz - 24kHz
• LOW FREQUENCY EXTENSION (-10dB): 37Hz
• MAXIMUM CONTINUOUS SPL: 102dB
• MAXIMUM PEAK SPL: 112dB
• MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu): +6dBV / +20.3dBu
• SYSTEM DISTORTION CRITERIA: <10% THD at maximum output with full compressor / limiter engagement
• ELECTRICAL DISTORTION CRITERIA: 0.2% THD @ 1kHz / 2.83VRMS output; < 1% THD @ 1kHz, full rated output
• SIGNAL TO NOISE RATIO: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• COVERAGE HORIZONTAL x VERTICAL: 120° x 90°
• ANALOG INPUT TYPES: 1 x XLR female, 1 x TRS female, balanced
• HF TRIM CONTROL: -2dB, 0dB +2dB
• BOUNDARY EQ: LF Shelf @ 50Hz: -3dB -1.5dB, 0dB
• AC INPUT VOLTAGE: 100 - 240VAC (±10%), 50 / 60Hz
• ENCLOSURE TYPE: Ported
• ENCLOSURE CONSTRUCTION: 15mm MDF
• ENCLOSURE FINISH: Matte black PVC
• BAFFLE CONSTRUCTION: Injection-molded structural ABS
• CABINET DIMENSIONS (H x W x D): 419 x 254 x 308mm (16.5" x 10" x 12.1")
• DISPLAY CARTON (H x W x D): 473 x 312 x 358mm (18.6" x 12.3" x 14")
• SHIPPING CARTON (H x W x D): 491 x 326 x 372mm (19.3" x 12.8" x 14.6")
• NET WEIGHT: 8.1 kg (17.87 lbs)
• SHIPPING GROSS WEIGHT: 9.4 kg (20.73 lbs)

Package Contents

• 1 x JBL 308P MKII Powered 8 Inch Two-Way Studio Monitor
• 1 x Power cable
• 1 x Quick setup guide
• 1 x Warranty card
