Sony LMD-A Series Broadcast Monitors

The Sony LMD-A Series offers a range of versatile, high-performance LCD monitors designed for both studio and field use. These monitors are ideal for professionals in broadcast, production, and video monitoring environments. Featuring Full HD and WUXGA resolution, the LMD-A170, LMD-A180, LMD-A220, and LMD-A240 deliver exceptional image quality and color accuracy, making them the perfect tool for critical viewing in various lighting conditions. With advanced features such as wide viewing angles, multiple input/output options, and robust build quality, these monitors ensure reliability and precision wherever you need it most.

Whether you're working in a controlled studio environment or on location, the LMD-A Series ensures that you can count on clear, crisp, and accurate visuals. From the compact LMD-A170 with its 17-inch screen to the large-format LMD-A240 with a 24-inch display, this series offers the ideal solution for professionals seeking high-quality, lightweight monitors that can handle demanding tasks. The energy-efficient design ensures long-lasting performance while maintaining low power consumption, making it an environmentally friendly choice for your broadcast or production setup.

The LMD-A Series offers a variety of connectivity options, including HDMI, SDI, and composite inputs, allowing seamless integration into any workflow. These monitors also come equipped with convenient features such as built-in speakers, headphone outputs, and remote control capabilities, providing users with a comprehensive viewing experience. No matter the size of your production, the LMD-A Series delivers the performance and versatility required for precise monitoring in dynamic and fast-paced environments.

Key Features

• Full HD (1920 x 1080) and WUXGA (1920 x 1200) resolution for clear and detailed images
• Wide viewing angles of 89°/89°/89°/89° for consistent image quality
• Multiple input options including HDMI, SDI, and composite for flexible connectivity
• Lightweight design for easy portability between studio and field environments
• Built-in speakers and headphone outputs for comprehensive audio monitoring
• Energy-efficient with low power consumption, supporting both AC and DC power sources

Technical Specifications

---

Shared Features (Technical Specifications Common to All Models)

• Panel Type: a-Si TFT Active Matrix LCD
• Aspect Ratio: 16:9
• Colors: Approx. 1,073 million
• Viewing Angle: 89°/89°/89°/89° (up/down/left/right)
• Normal Scan: 0% scan
• Parallel Remote: RJ-45 (x1)
• Serial Remote: RJ-45 (x1, 10BASE-T/100BASE-TX)
• Composite Output: BNC (x1, Loop-through)
• SDI Output: BNC (x2)
• Speaker (Built-in) Output: 1.0 W (Monaural)
• Headphone Output: Stereo mini jack (x1)
• Inrush Current: Maximum 60 A peak (at initial switch-on)
• Operating Temperature: 0°C to 35°C (Recommended: 20°C to 30°C)
• Accessories Included: AC power cord (1), AC plug holder (1), Handle (1, including 4 screws)

---

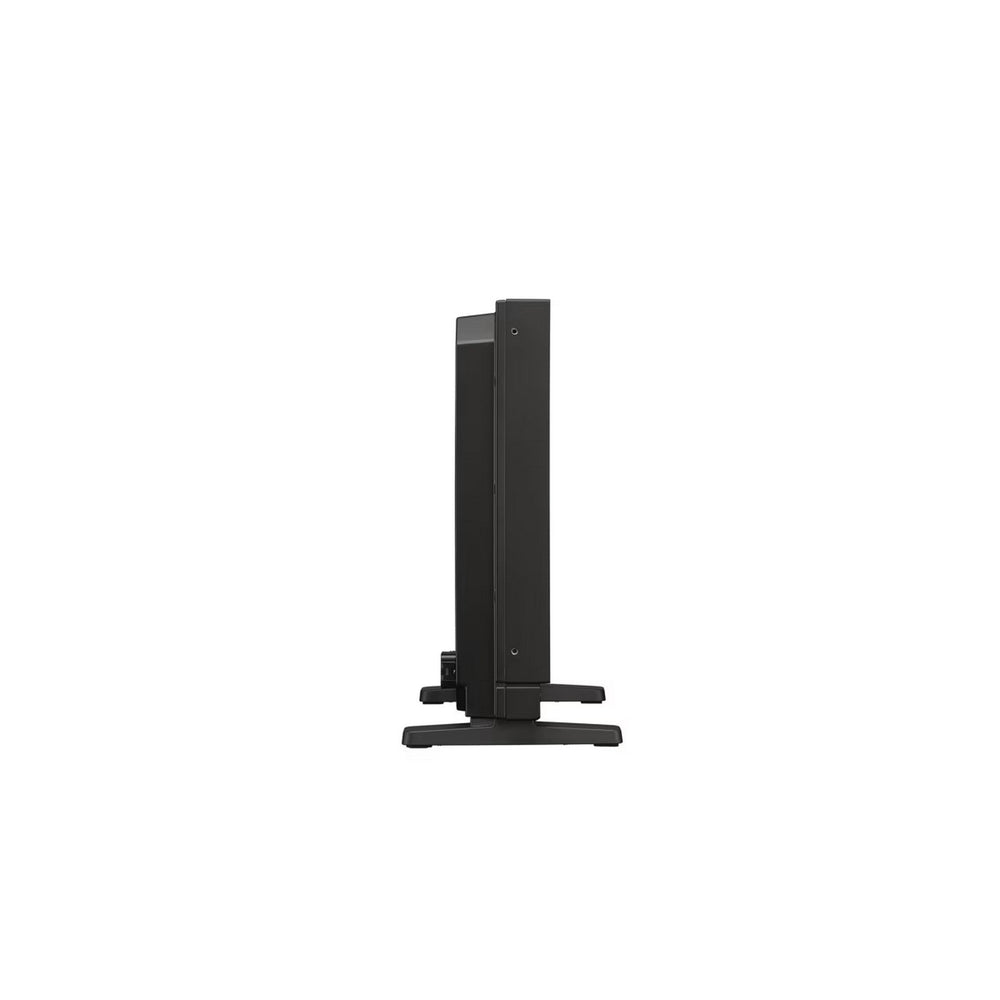

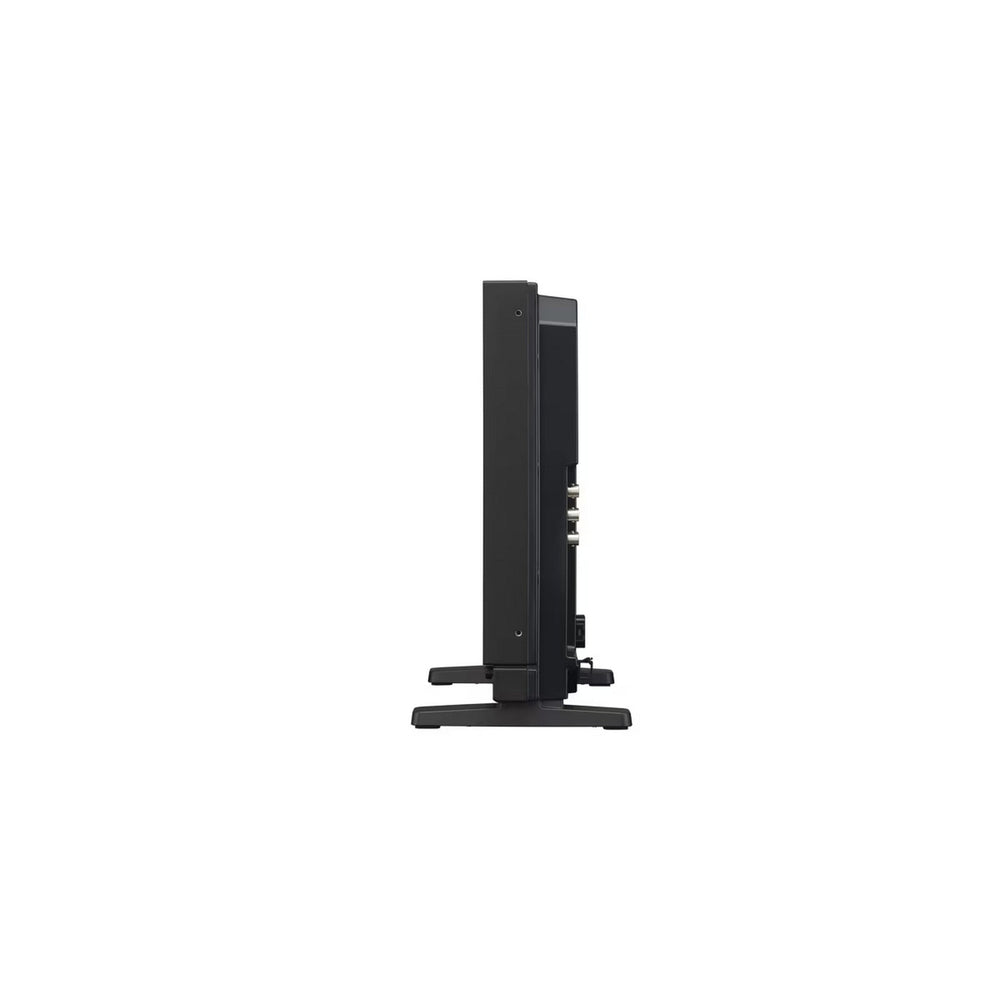

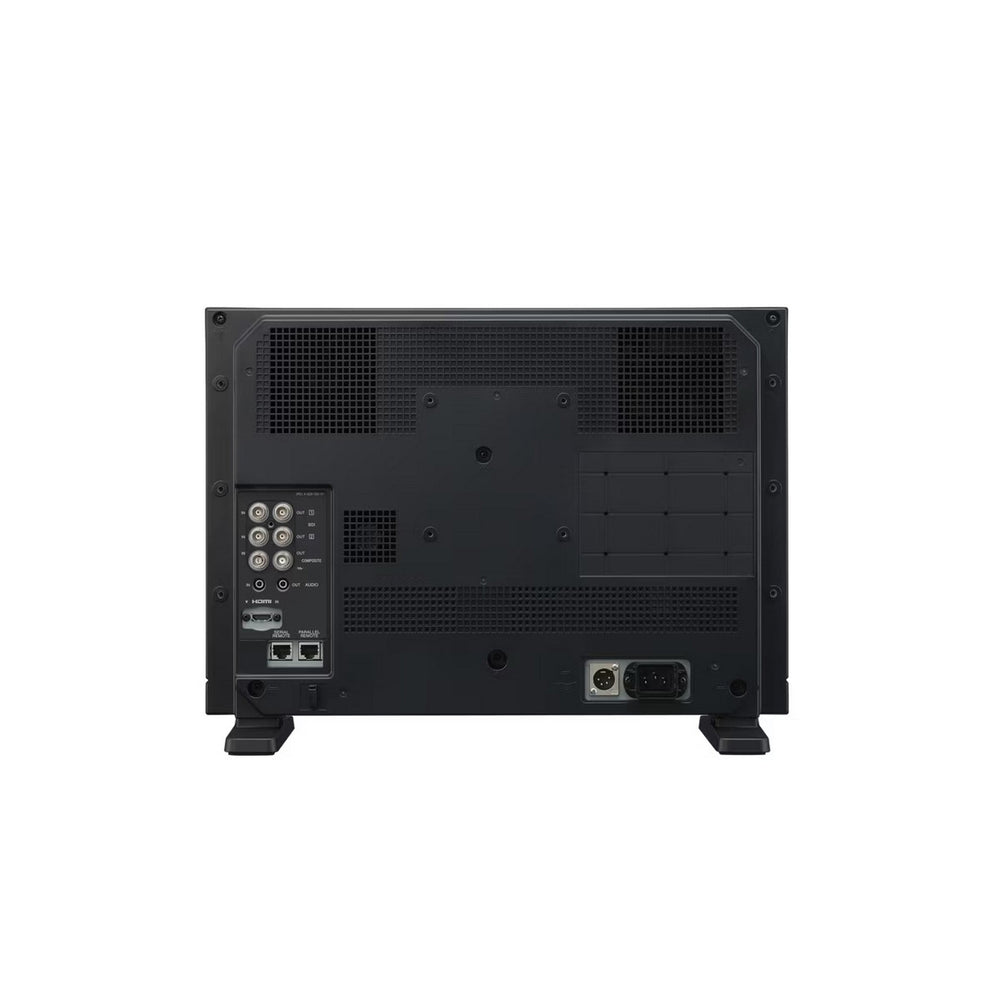

Sony LMD-A170 - 17-inch LCD Broadcast Monitor

Picture Performance:

• Picture Size (Diagonal): 17 inches (365.8 x 205.7 mm / 14 1/2 x 8 1/8 inches)
• Resolution: 1920 x 1080 pixels (Full HD)

Input/Output:

• Composite Input: BNC (x1)
• SDI Input: BNC (x2)
• HDMI Input: HDMI (x1, HDCP correspondence)
• Audio Input: Stereo mini jack (x1)
• DC Input: XLR-type 4-pin (x1)
• Audio Monitor Output: Stereo mini jack (x1)

Power Requirements:

• AC Power: 100 V to 240 V AC, 0.5 A to 0.2 A, 50/60 Hz
• DC Power: 12 V to 17 V, 3.6 A to 2.5 A
• Power Consumption: Approx. 50 W (max.), 43 W (average)

Dimensions & Weight:

• Without Feet: 420.2 x 288.8 x 70.0 mm
• With Feet: 420.2 x 311.3 x 165.0 mm
• Weight: Approx. 4.9 kg (10 lb 13 oz)

---

Sony LMD-A180 - 18.5-inch LCD Broadcast Monitor

Picture Performance:

• Picture Size (Diagonal): 18.5 inches (409.8 x 230.8 mm / 16.12 x 9.09 inches)
• Resolution: 1920 x 1080 pixels (Full HD)

Input/Output:

• Composite Input: BNC (x1)
• SDI Input: BNC (x2)
• HDMI Input: HDMI (x1, HDCP correspondence)
• Audio Input: Stereo mini jack (x1)
• DC Input: XLR-type 4-pin (x1)
• Audio Monitor Output: Stereo mini jack (x1)

Power Requirements:

• AC Power: 100 V to 240 V AC, 0.6 A to 0.3 A, 50/60 Hz
• DC Power: 12 V to 17 V, 4.0 A to 3.0 A
• Power Consumption: Approx. 55 W (max.), 48 W (average)

Dimensions & Weight:

• Without Feet: 441.4 x 295.8 x 70.0 mm
• With Feet: 441.4 x 318.8 x 165.0 mm
• Weight: Approx. 5.4 kg (11 lb 15 oz)

---

Sony LMD-A220 - 21.5-inch LCD Broadcast Monitor

Picture Performance:

• Picture Size (Diagonal): 21.5 inches (476.3 x 267.8 mm / 18.73 x 10.54 inches)
• Resolution: 1920 x 1080 pixels (Full HD)

Input/Output:

• Composite Input: BNC (x1)
• SDI Input: BNC (x2)
• HDMI Input: HDMI (x1, HDCP correspondence)
• Audio Input: Stereo mini jack (x1)
• DC Input: XLR-type 4-pin (x1)
• Audio Monitor Output: Stereo mini jack (x1)

Power Requirements:

• AC Power: 100 V to 240 V AC, 0.6 A to 0.4 A, 50/60 Hz
• DC Power: 12 V to 17 V, 6.0 A to 4.0 A
• Power Consumption: Approx. 70 W (max.), 61 W (average), 0.3 W (off-mode)

Dimensions & Weight:

• Without Feet: 517 x 310 x 70 mm
• With Feet: 517 x 332.5 x 165 mm
• Weight: Approx. 5.2 kg (11 lb 7.5 oz)

---

Sony LMD-A240 - 24-inch LCD Broadcast Monitor

Picture Performance:

• Picture Size (Diagonal): 24.0 inches (522.2 x 293.2 mm / 20.56 x 11.54 inches)
• Resolution: 1920 x 1080 pixels (Full HD)

Input/Output:

• Composite Input: BNC (x1)
• SDI Input: BNC (x2)
• HDMI Input: HDMI (x1, HDCP correspondence)
• Audio Input: Stereo mini jack (x1)
• DC Input: XLR-type 4-pin (x1)
• Audio Monitor Output: Stereo mini jack (x1)

Power Requirements:

• AC Power: 100 V to 240 V AC, 0.6 A to 0.4 A, 50/60 Hz
• DC Power: 12 V to 17 V, 6.0 A to 4.0 A
• Power Consumption: Approx. 70 W (max.), 61 W (average), 0.3 W (off-mode)

Dimensions & Weight:

• Without Feet: 558.0 x 329.0 x 70.0 mm
• With Feet: 558.0 x 352.0 x 166.5 mm
• Weight: Approx. 6.0 kg (13 lb 3 oz)
