TC-Helicon GoXLR Mini 4-Channel USB Streaming Mixer & Audio Interface

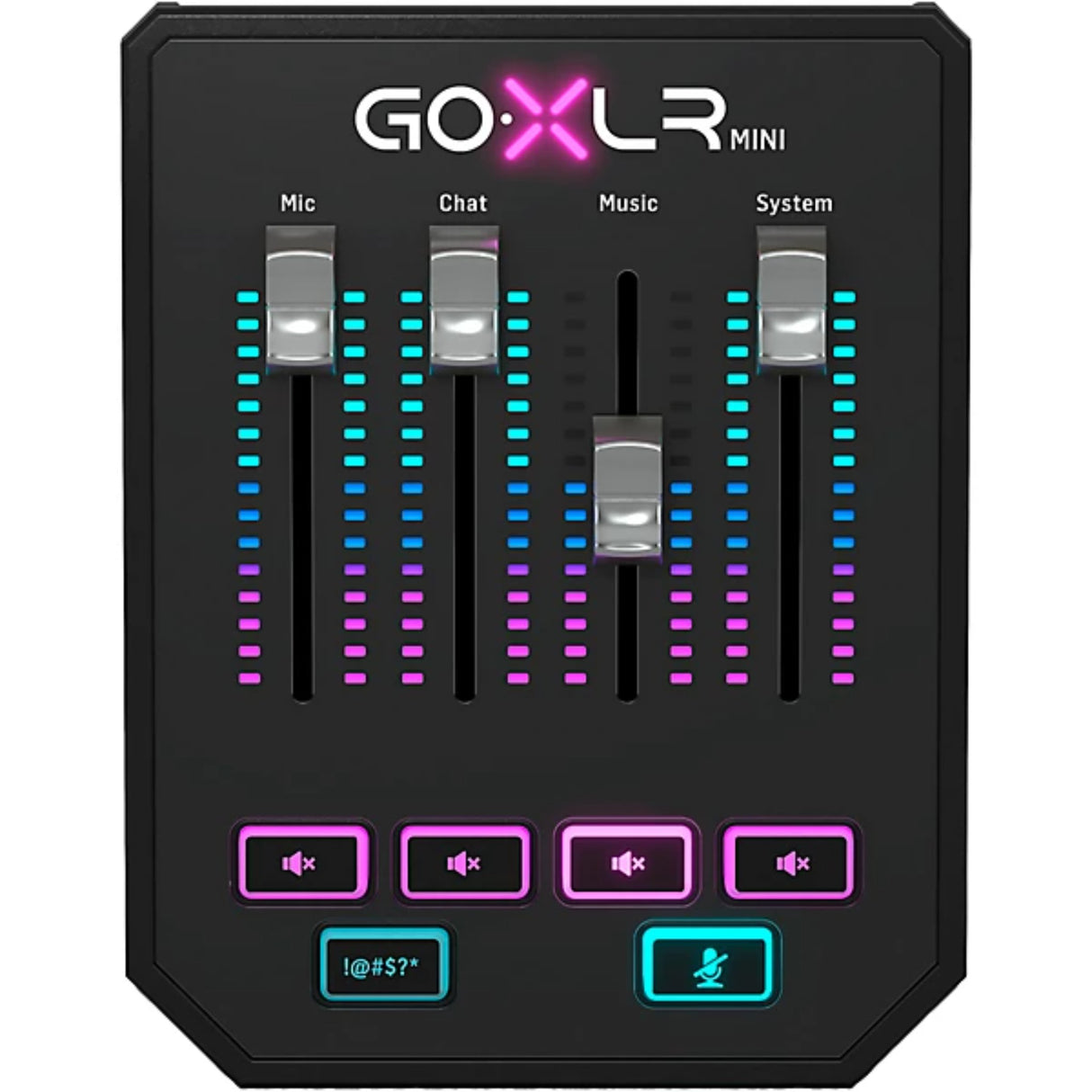

TC-Helicon GoXLR Mini USB Streaming Mixer and Audio Interface

The TC-Helicon GoXLR Mini USB Streaming Mixer is an all-in-one 24-bit/48kHz audio interface and broadcast mixer built specifically for live streamers, podcasters, and content creators. It establishes multiple independent USB audio devices on Windows, giving you a dedicated fader for each of your most important apps — mic, game audio, music, chat, and more — without ever tabbing out of your stream.

For creators comparing compact audio interfaces for streaming, the GoXLR Mini delivers the same award-winning Midas microphone preamplifier found in professional studio consoles, handling everything from dynamic broadcast mics like the Shure SM7B to condenser and ribbon microphones with ease. Its onboard DSP handles studio-quality EQ, compression, and gating directly in hardware, freeing your CPU for higher frame rates and faster rendering — a critical advantage for any best USB mixer for Twitch streaming or gaming setup. The built-in manual censor and cough buttons keep your broadcast clean and sponsor-friendly in real time.

The GoXLR Mini integrates seamlessly into a professional creator's signal chain. The TOSLINK optical input accepts audio from video game consoles, the XLR input supports +24V phantom power for condenser microphones, and the companion Windows app enables deep customization of lighting, routing profiles, and mute behavior. Windows 7, 8, 10, and 11 are officially supported; macOS is not compatible.

Key Features of the GoXLR Mini Broadcast Mixer

• Midas Microphone Preamplifier: Delivers pristine, broadcast-quality gain with an ultra-low noise floor, handling everything from high-output condensers to low-sensitivity dynamic mics without a separate activator.
• 4 Assignable Channel Faders: Enables hands-on control of individual app volumes — mic, game audio, music, alerts, and more — so you never break immersion during a live stream.
• Onboard DSP Processing: Handles studio-quality EQ, compression, and gating in hardware, eliminating CPU overhead and keeping your PC focused on graphics and rendering.
• Multi-Device USB Audio Routing: Creates up to 12 virtual audio devices on Windows, giving each app its own independently controllable channel for professional stream mixing.
• TOSLINK Optical Input: Accepts digital audio directly from PlayStation, Xbox, or other game consoles, enabling clean console audio integration without ground loop noise.
• Censor & Cough Buttons: The dedicated bleep button masks audio with a tone on demand, while the cough button instantly mutes the mic — keeping every broadcast clean and professional.
• Customizable RGB Lighting: Fully programmable per-channel lighting via the GoXLR Mini App, with animated presets and save/load profile support for instant scene switching.

Technical Specifications

• Channels: 4
• A/D – D/A Conversion: 24-bit @ 48 kHz
• Microphone Input: 1 x XLR, balanced OR 1 x 1/8" TS, unbalanced
• Phantom Power: +24V, switchable via control app
• Line Input: 1 x 1/8" TRS, stereo
• Line Output: 1 x 1/8" TRS, stereo
• Headphone Output: 1 x 1/8" TRS, stereo
• USB: 1 x USB 2.0, Type B
• Optical (Digital) Input: 1 x TOSLINK
• Effects: EQ, compression, gating (hardware DSP)
• Frequency Response: 10 Hz – 20 kHz, +0/–2 dB
• Dynamic Range: >110 dB
• Signal-to-Noise Ratio (Line In): >101 dB
• Lighting: RGB, fully customizable
• Faders: 4
• Buttons: 6
• Power Supply: USB bus power, 5V DC, 0.5A
• Power Consumption: 2.5W
• OS Compatibility: Windows 7, 8, 10, 11 (32-bit and 64-bit); macOS not supported
• Dimensions (H x W x D): 2.8" x 5.2" x 6.6"
• Weight: 1.5 lbs

What's Included

• TC-Helicon GoXLR Mini USB Streaming Mixer
• USB Cable
• Quick Start Guide
