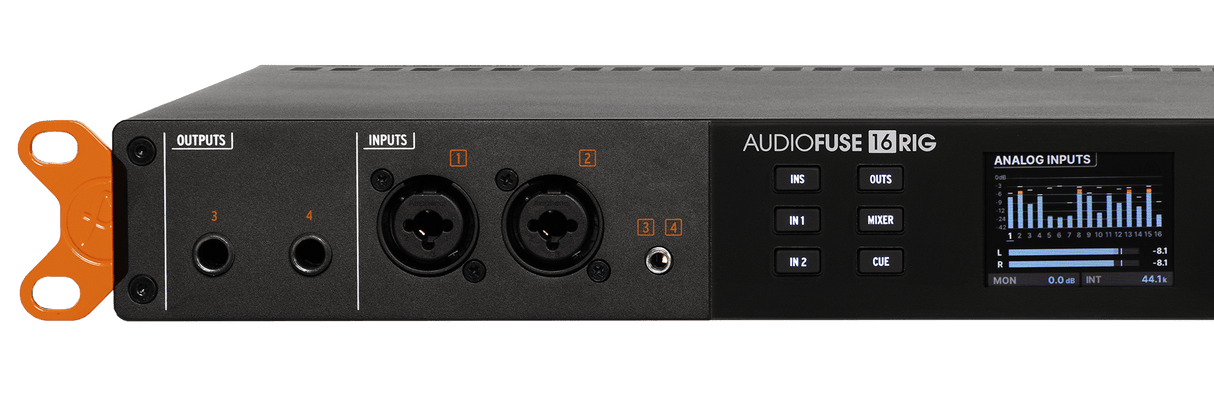

Arturia AudioFuse 16Rig 16-Channel Audo and MIDI Interface

Arturia AudioFuse 16Rig 16-Channel Audio and MIDI Interface: The Ultimate Audio Solution

Discover the unrivaled audio capability of the Arturia AudioFuse 16Rig 16-Channel Audio and MIDI Interface. Designed for professionals who demand superior sound quality and extensive connectivity options, this interface is perfect for everything from comprehensive recording setups to intricate live performances. With a focus on user-friendly design, the AudioFuse 16Rig encourages creativity and experimentation, making it an exceptional centerpiece for any studio or live configuration.

The AudioFuse 16Rig offers a wealth of connectivity options with its 16 analog inputs, 12 analog outputs, dual-ADAT I/O ports, low-latency DSP mixers, and standalone MIDI capability. Its premium 24-bit AD/DA converters ensure pristine audio quality, while the internal mixer allows for flexible and computer-free audio processing. Whether you're recording a full band, running a synth studio, or needing complex audio routing, the AudioFuse 16Rig adapts to meet your needs, providing professional-level control and sound.

Beyond its hardware, the AudioFuse 16Rig is equipped with the AudioFuse Creative Suite, a rich software package that includes premium plugins and virtual instruments. This suite, along with the versatile AudioFuse Control Center, allows you to manage and control every aspect of your audio setup with ease. From its standalone mixer to its flexible routing capabilities, the AudioFuse 16Rig is designed to be the ultimate audio solution for modern audio professionals.

Key Features

• High-density audio inputs: 16 TRS analog inputs, including 2 combo Inst/XLR inputs with high-quality digitally recallable preamps and a convenient 3.5mm stereo input.
• Flexible outputs & monitoring: 12 analog outputs, 8 DC-coupled TRS line outputs, front panel outputs for reamping or dual-headphone configuration, and both 6.35mm and 3.5mm TRS headphone connections.
• ADAT with Word Clock: Expand up to 16 channels of input and output at 48kHz with precise synchronization.
• Standalone MIDI: Connect MIDI gear with USB or 5-pin DIN connectors and route signals with ease.
• USB mastermind: Class-compliant MIDI hosting, low-latency USB-C connection, and additional front & back USB hub ports.

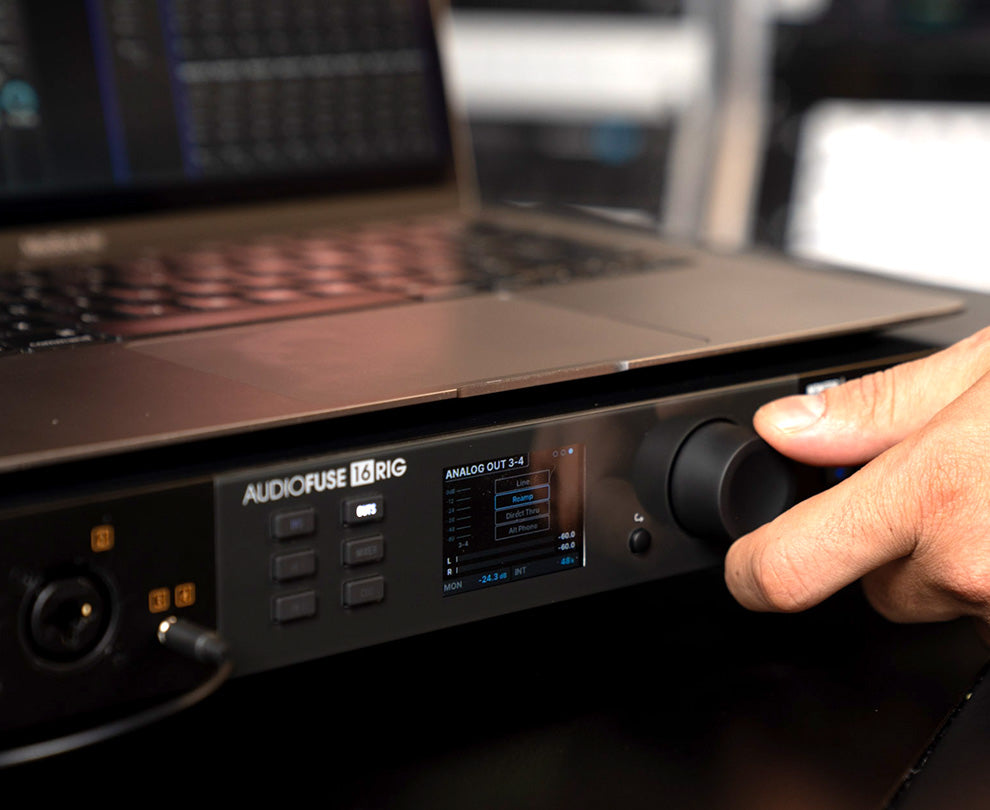

• Color display: Real-time feedback on levels, routing, settings, and more.
• Desktop or rackmount: Configurable for desktop use or 1U rackmount attachment.
• AudioFuse Creative Suite: Includes Analog Lab Intro and Arturia FX plugins.

Specifications

• 16 x TRS analog inputs, including 2 high-quality digitally-controlled preamps
• Inputs 3 & 4 also available as 3.5mm stereo input
• 12 x analog outputs including 8 x DC-coupled TRS line outputs
• Stereo monitor outputs
• 6.35mm front-panel outputs for reamping, dual-headphones
• 2 x ADAT in, 2 x ADAT out, up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz
• 1 x MIDI in, 2 x MIDI out/thru with 5-pin DIN connectors
• Low-latency USB-C connection
• Class-compliant MIDI and 3 x USB hub connections
• Two internal standalone mixers, no computer needed
• Color display with rotary control and menu buttons
• Desktop or 1U rackmount configuration
• Includes AudioFuse Control Center and AudioFuse Creative Suite

Installation / Use Cases

• Use as a 16-channel audio and MIDI interface for professional studio, live performance, and complex routing workflows.
• Suitable for full-band recording, synth studios, hybrid hardware setups, and computer-based production systems.
• Use 16 TRS analog inputs, including 2 combo Inst/XLR inputs with digitally recallable preamps.
• Use 12 analog outputs, including 8 DC-coupled TRS line outputs, for flexible routing and monitoring.
• Use dual ADAT input and output to expand up to 16 channels of I/O at 48kHz.
• Use the two internal standalone mixers for computer-free audio processing.
• Use USB-C connectivity, class-compliant MIDI hosting, and USB hub ports for modern studio integration.
• Use the color display for real-time level, routing, and setting feedback.
• Use in desktop setups or configure it for 1U rackmount placement.

Package Contents

• AudioFuse 16Rig unit
• Power supply
• 2 x USB cables
• Instrument dimensions: 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)
• Platform requirements:
• Windows: Win 10+ PC, 4 GB RAM; Intel i5 CPU or faster, 1GB free hard disk space, OpenGL 2.0 compatible GPU
• Apple: 10.13+, 4 GB RAM; Intel i5 CPU or faster, 1GB free hard disk space, OpenGL 2.0 compatible GPU
