Palmer ORBIT 11 Active Coaxial 3-Way Studio Monitor

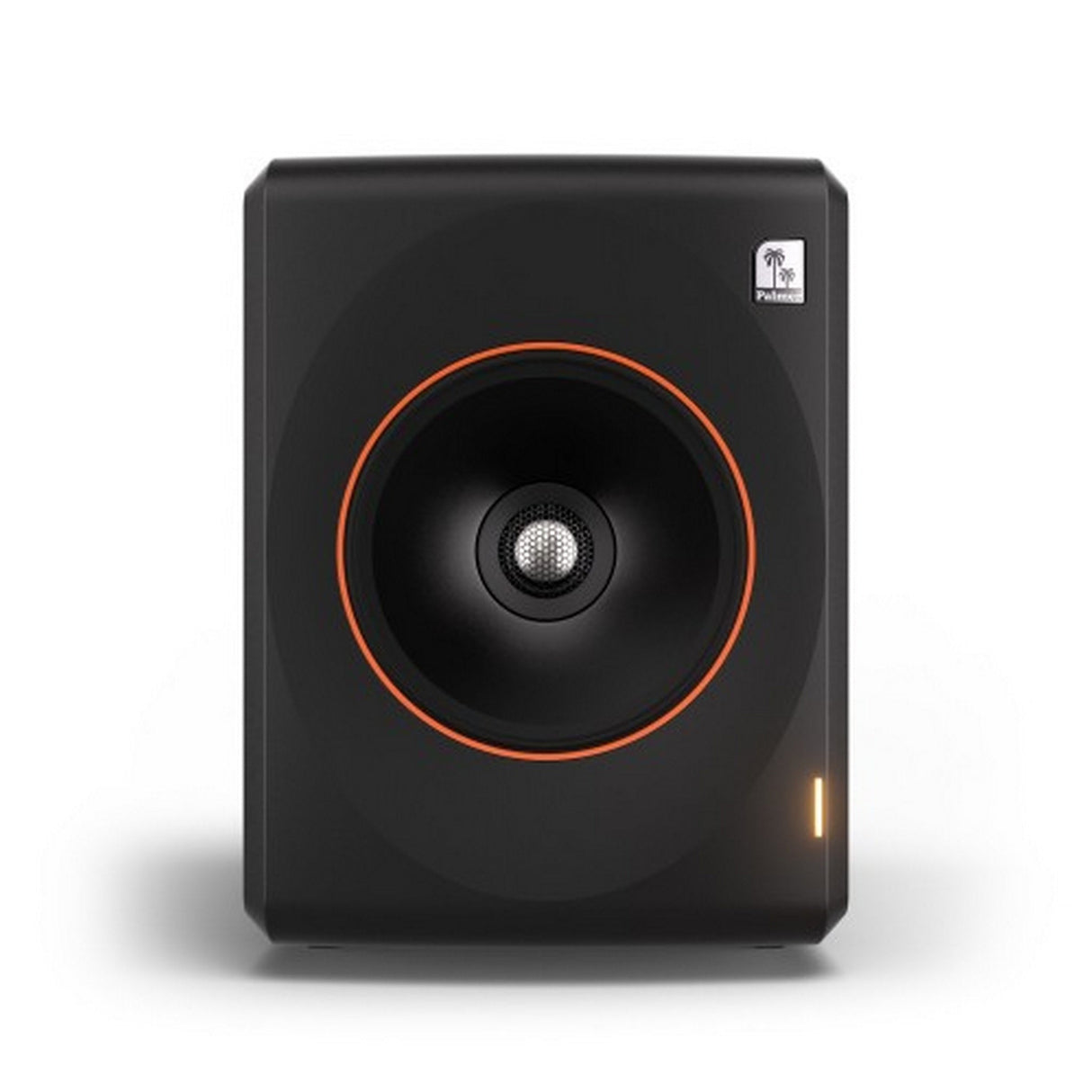

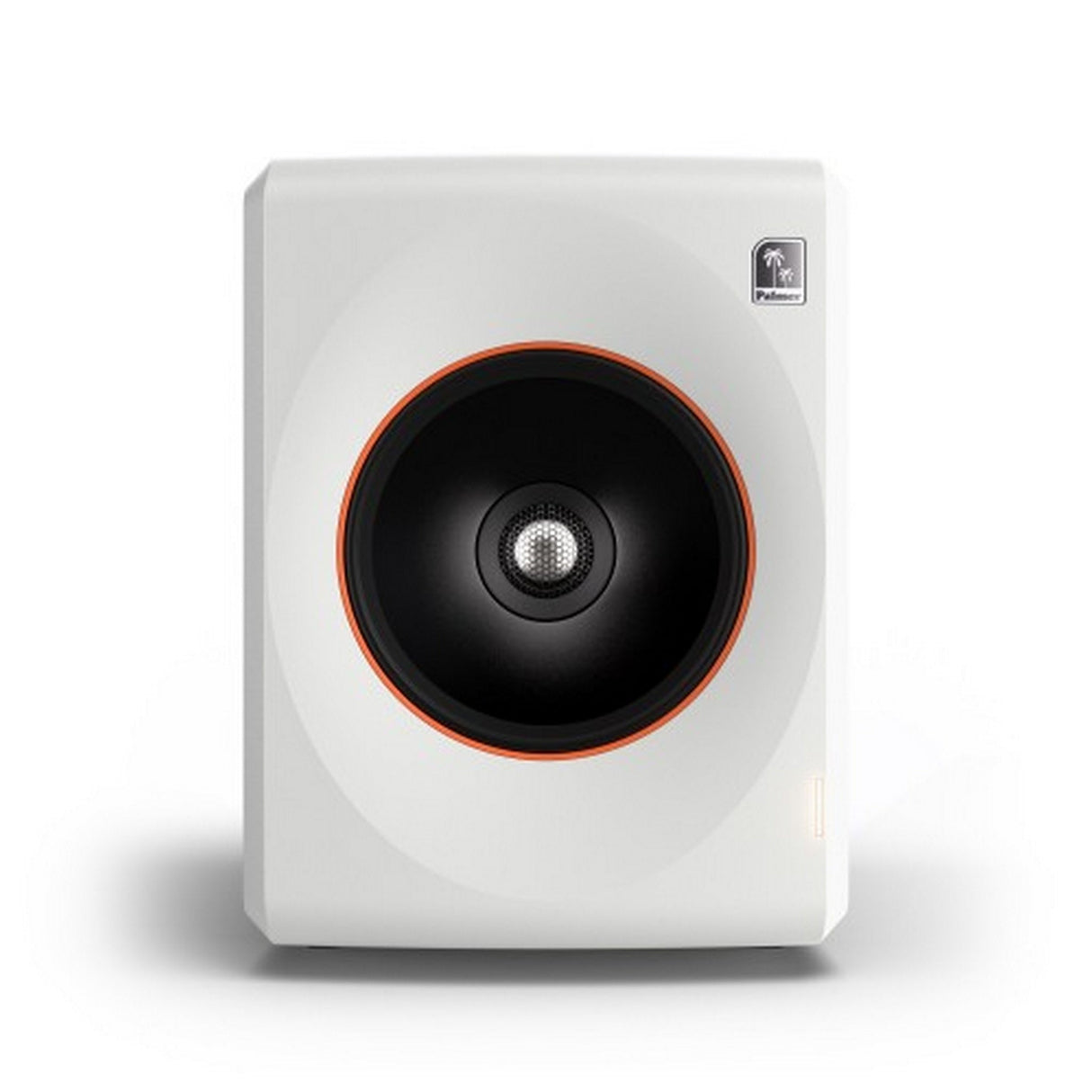

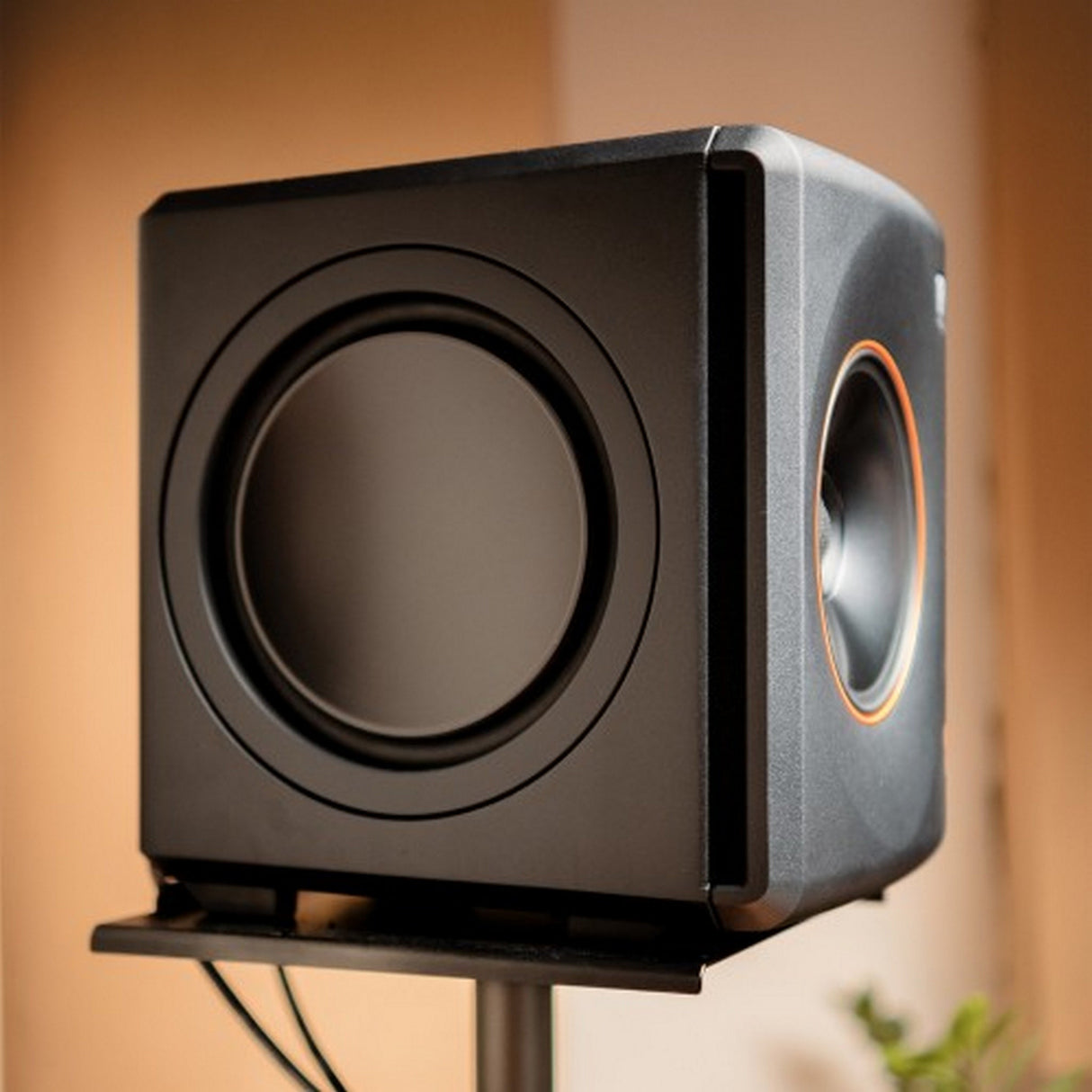

The Palmer ORBIT 11 is an active coaxial 3-way studio monitor built for mixing, mastering, post-production, broadcasting, and content creation. Its coaxial True Point Source design aligns the 6.5-inch midrange and 1-inch tweeter on a single acoustic axis for stable imaging and consistent tonal balance across the listening area.

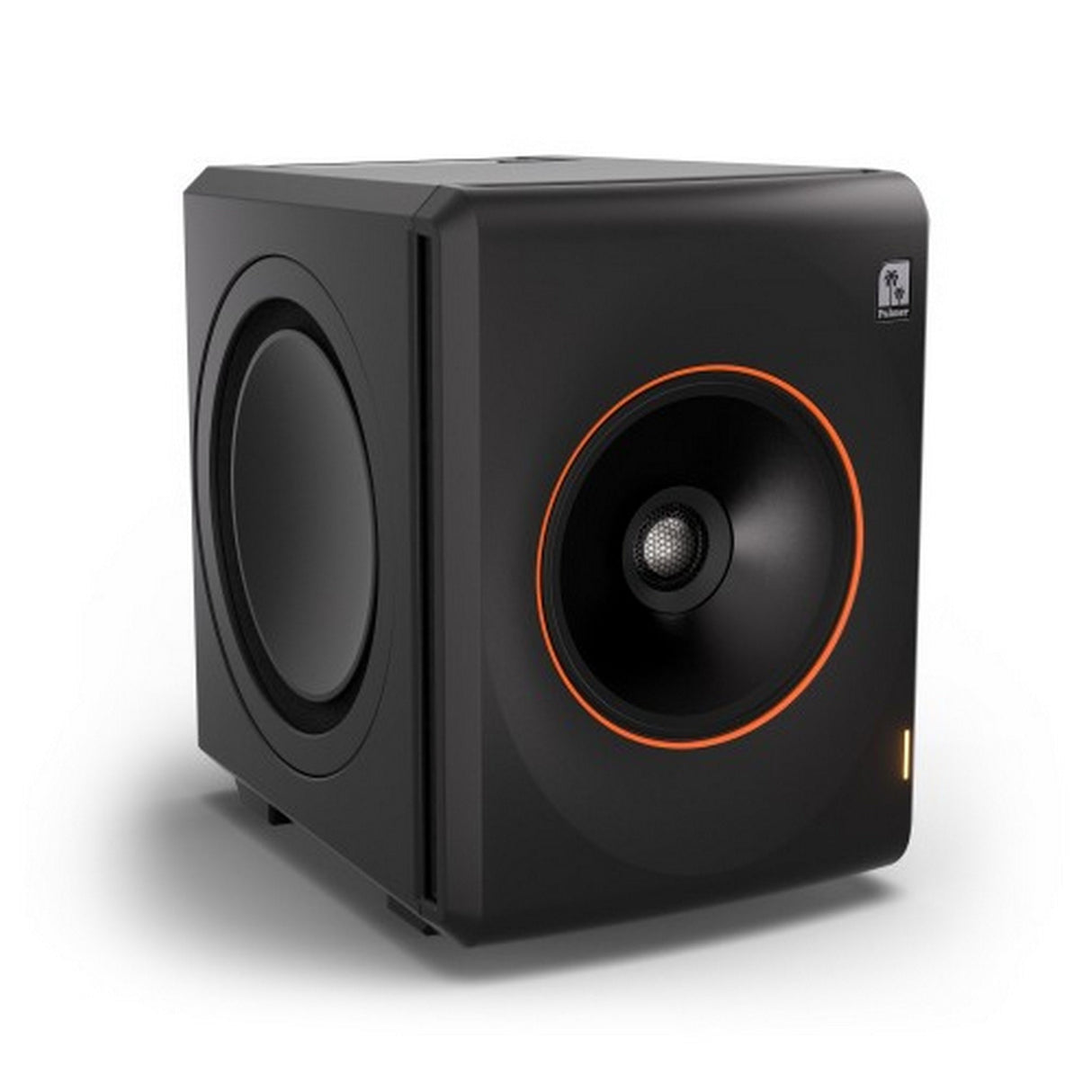

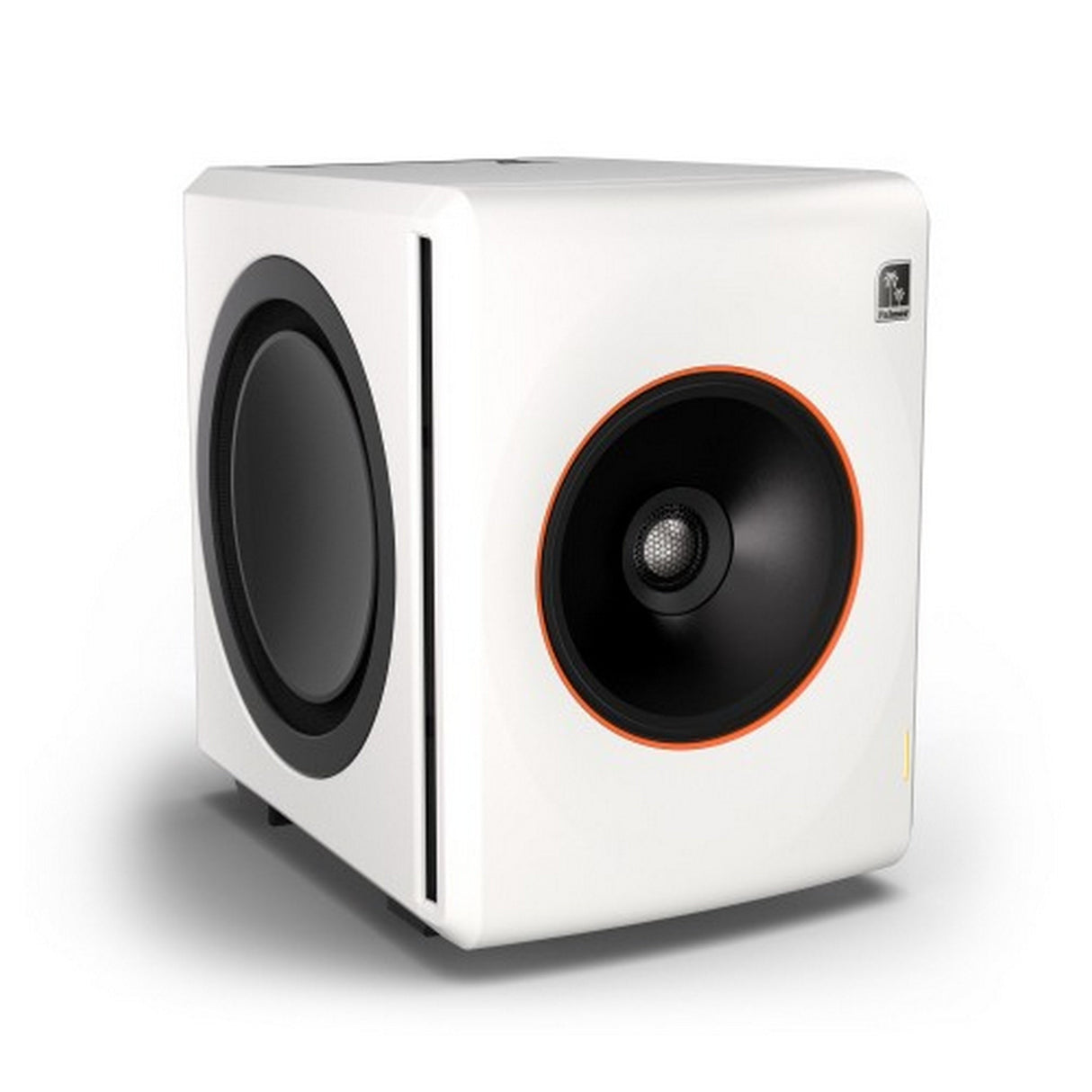

A controlled 120Ā° x 120Ā° dispersion pattern helps maintain reliable translation, while the cardioid front baffle reduces rearward energy to limit room interaction. Low frequencies are driven by dual impulse-compensated 8-inch woofers in a sealed die-cast aluminum enclosure designed to minimize cabinet vibration and deliver tight, extended bass response.

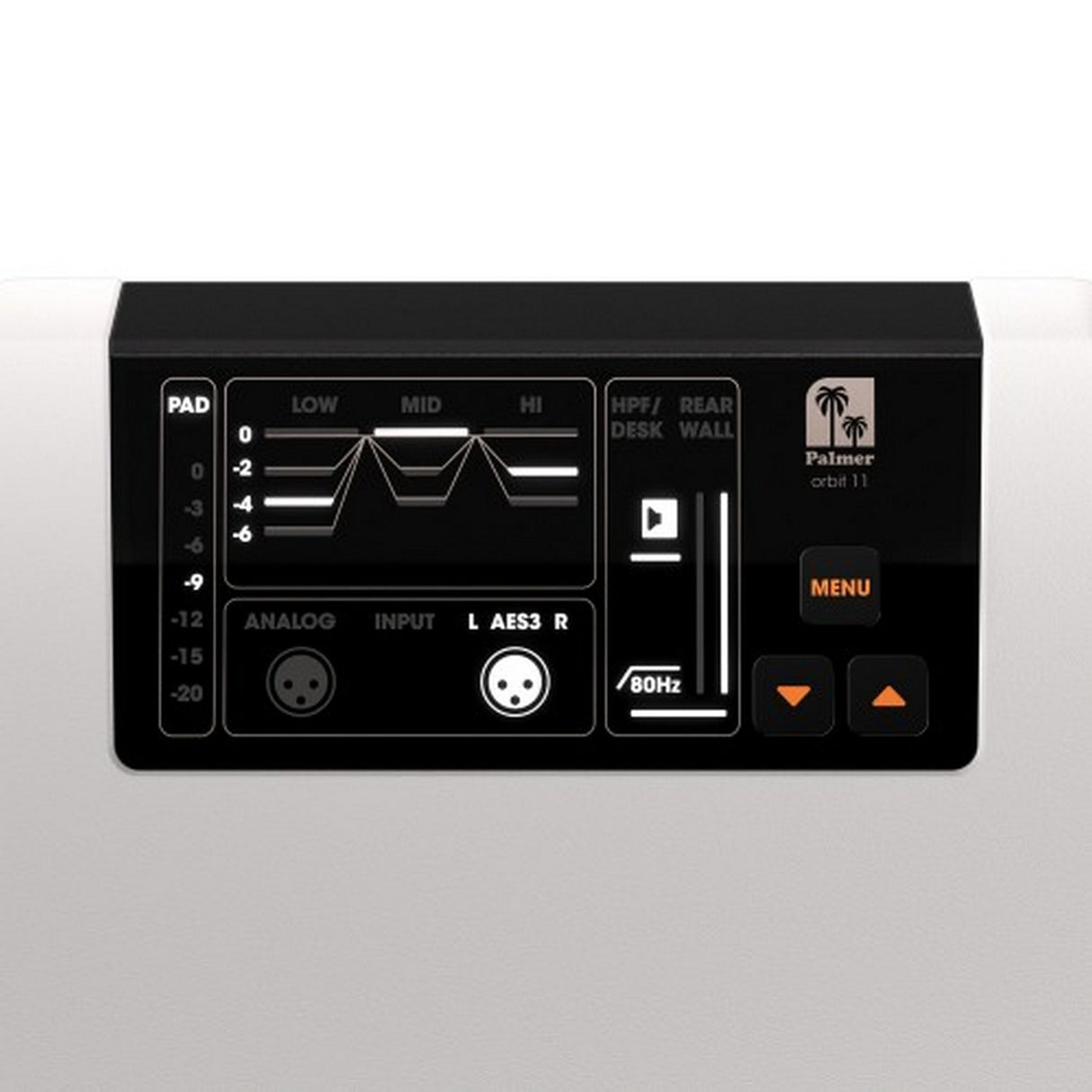

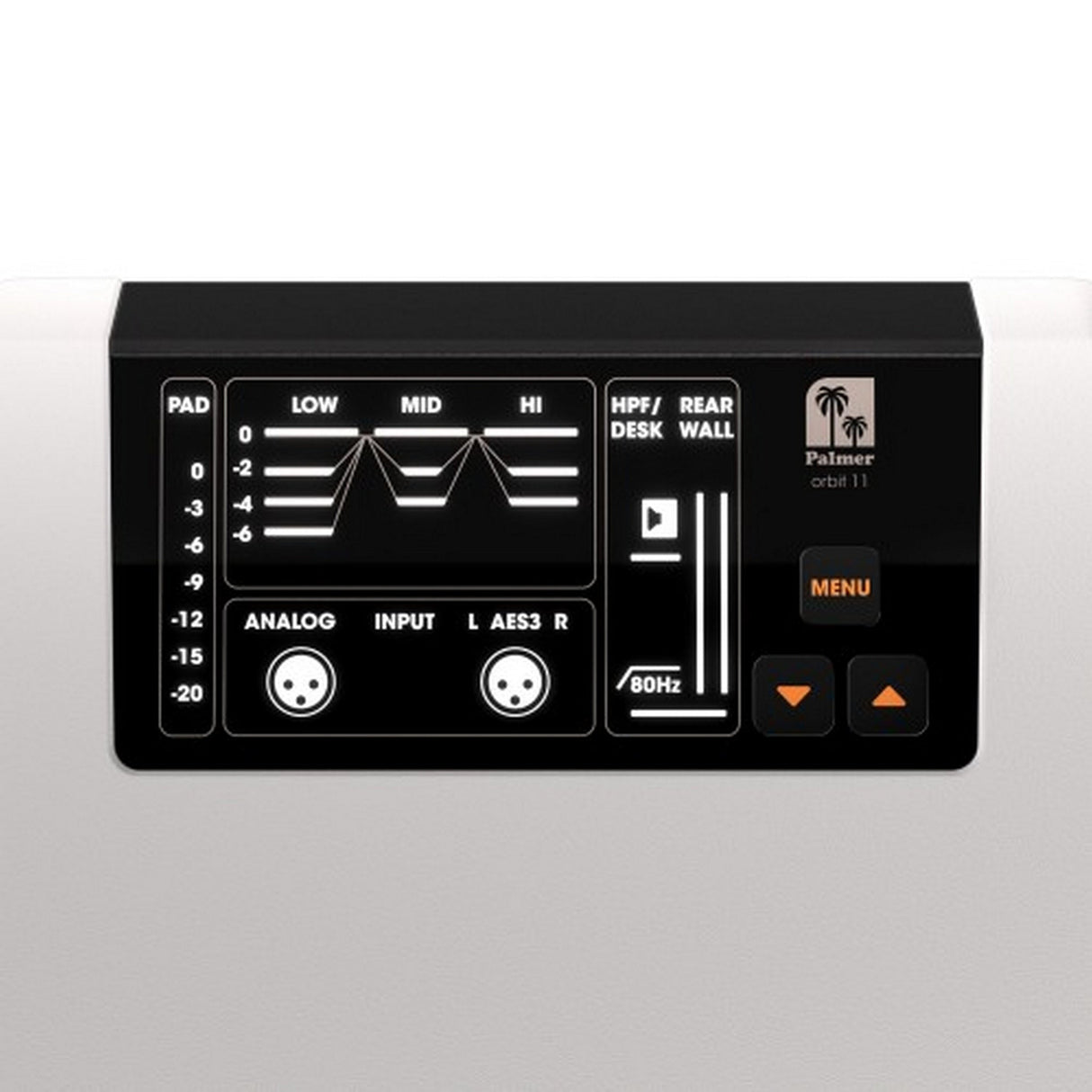

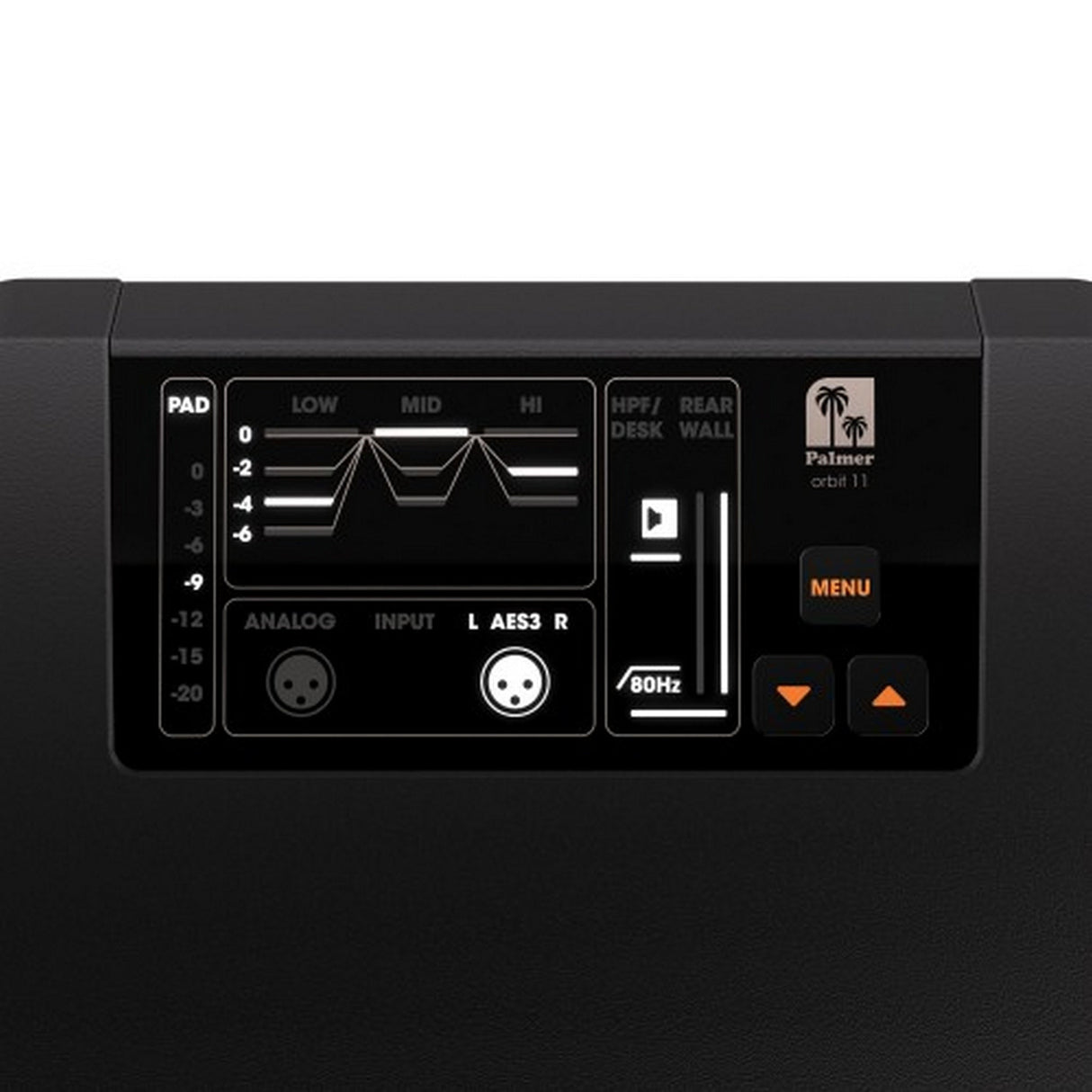

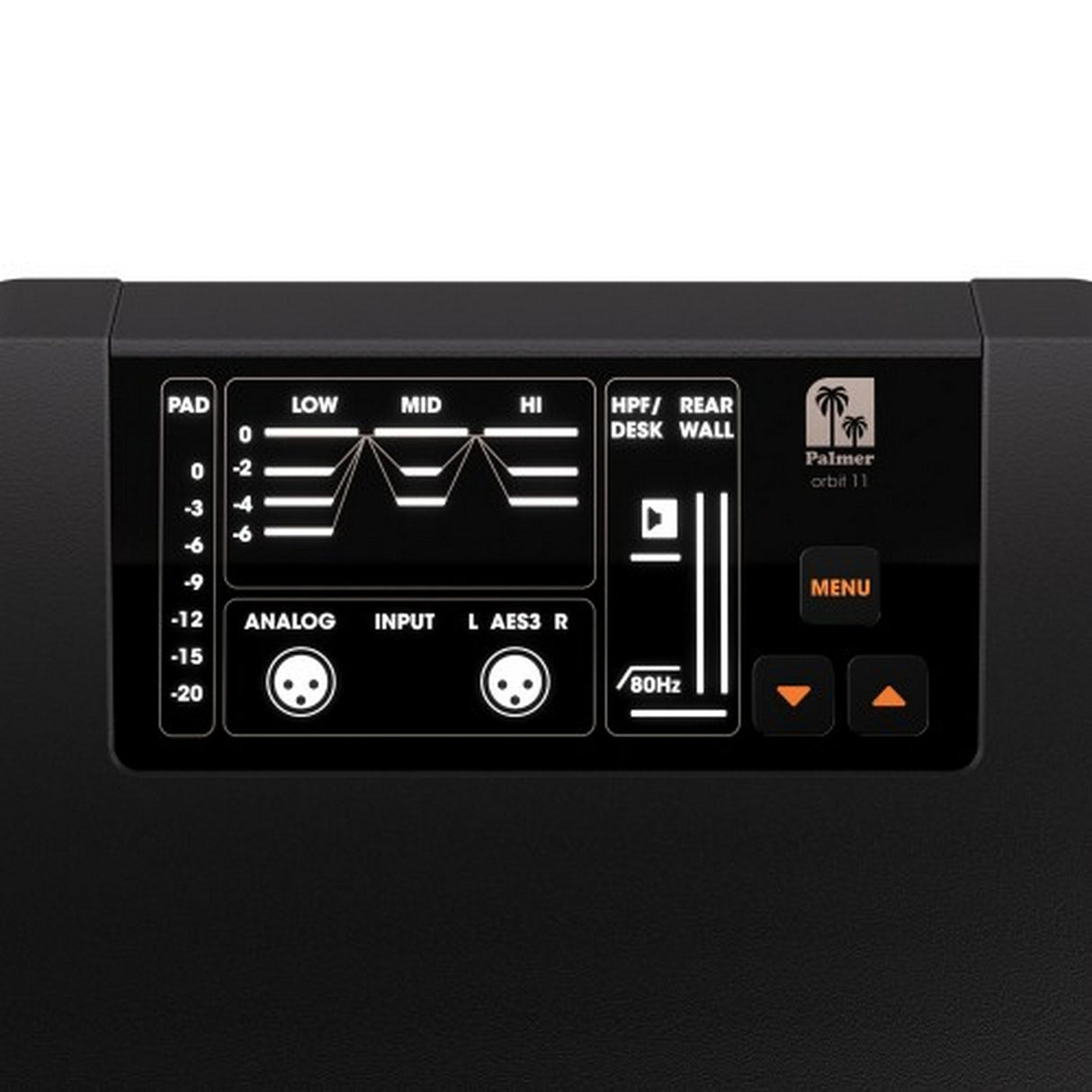

Internal DSP operates at 96 kHz / 24-bit with FIR filtering for linear-phase behavior and time-coherent driver integration. The top-mounted control panel supports fast setup with EQ and placement presets, and connectivity includes balanced analog XLR and AES3 digital I/O for straightforward studio integration.
Key Features
- Active coaxial true point source design with 6.5-inch midrange and 1-inch tweeter
- Dual impulse-compensated 8-inch woofers for controlled, resonance-reduced bass
- Cardioid design helps reduce room interaction and improve placement flexibility
- 120Ā° x 120Ā° constant directivity for uniform coverage and stable imaging
- 96 kHz / 24-bit DSP with FIR filters for linear phase with minimal latency
- Ultra-wide frequency response down to 28 Hz (-3 dB) for full-range monitoring

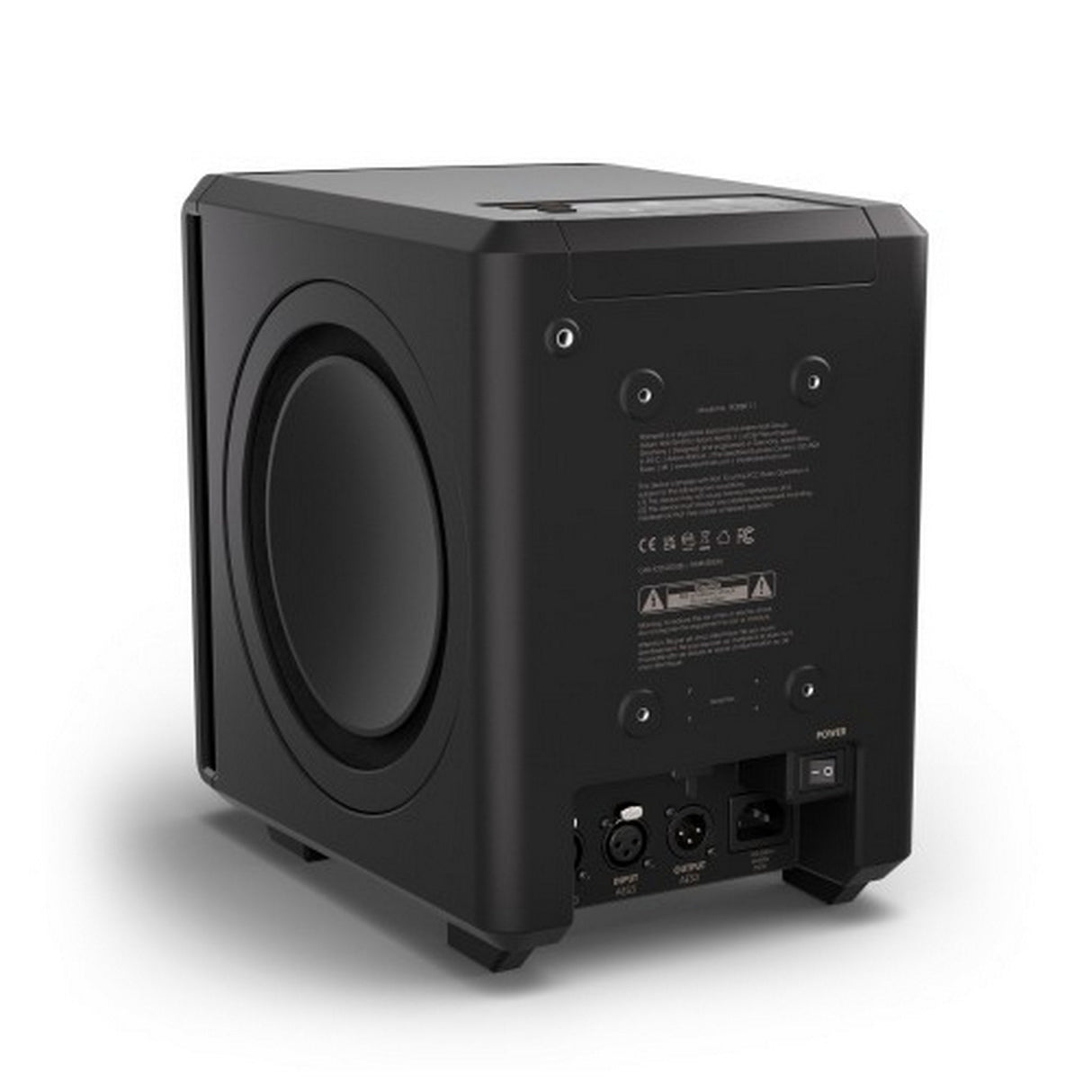

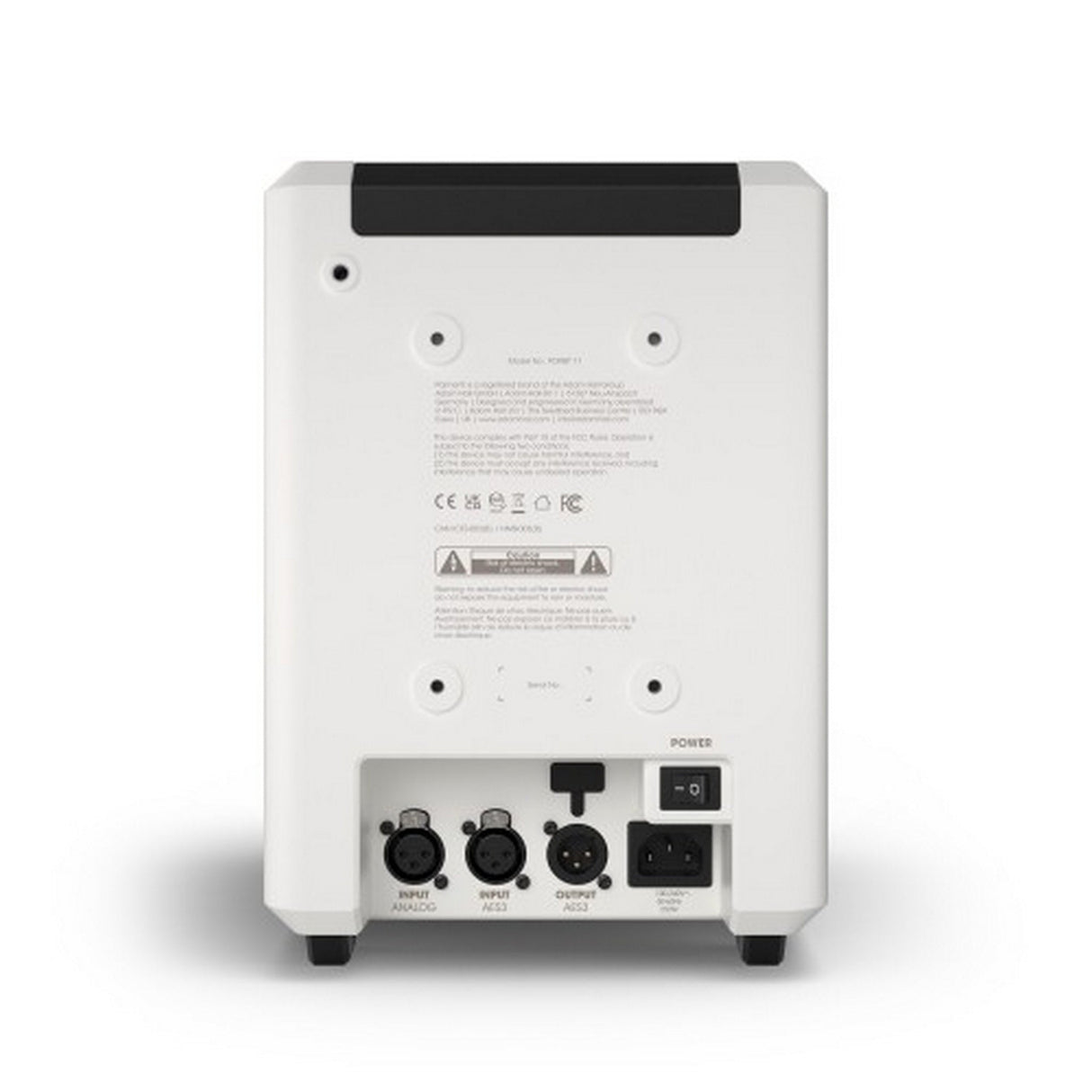

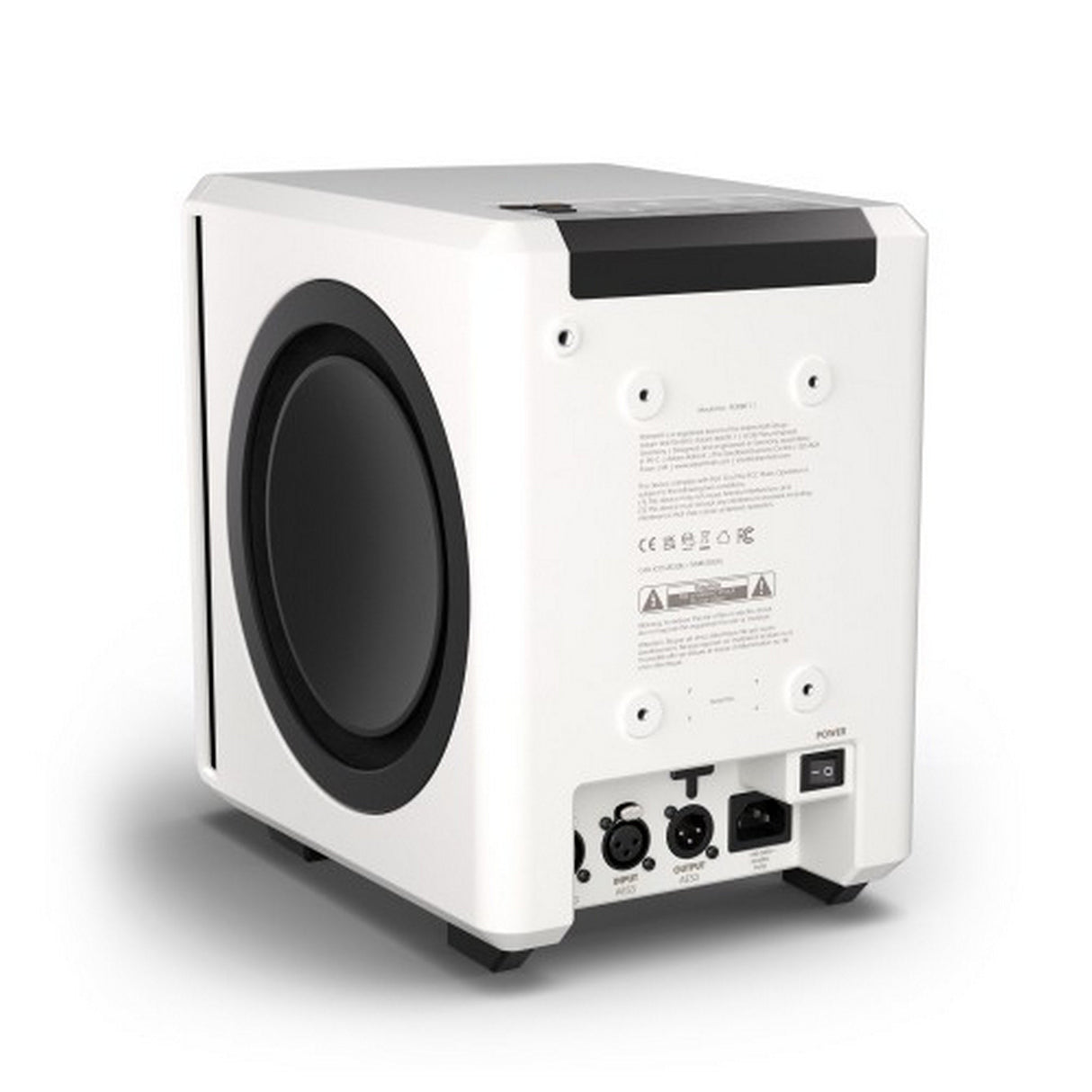

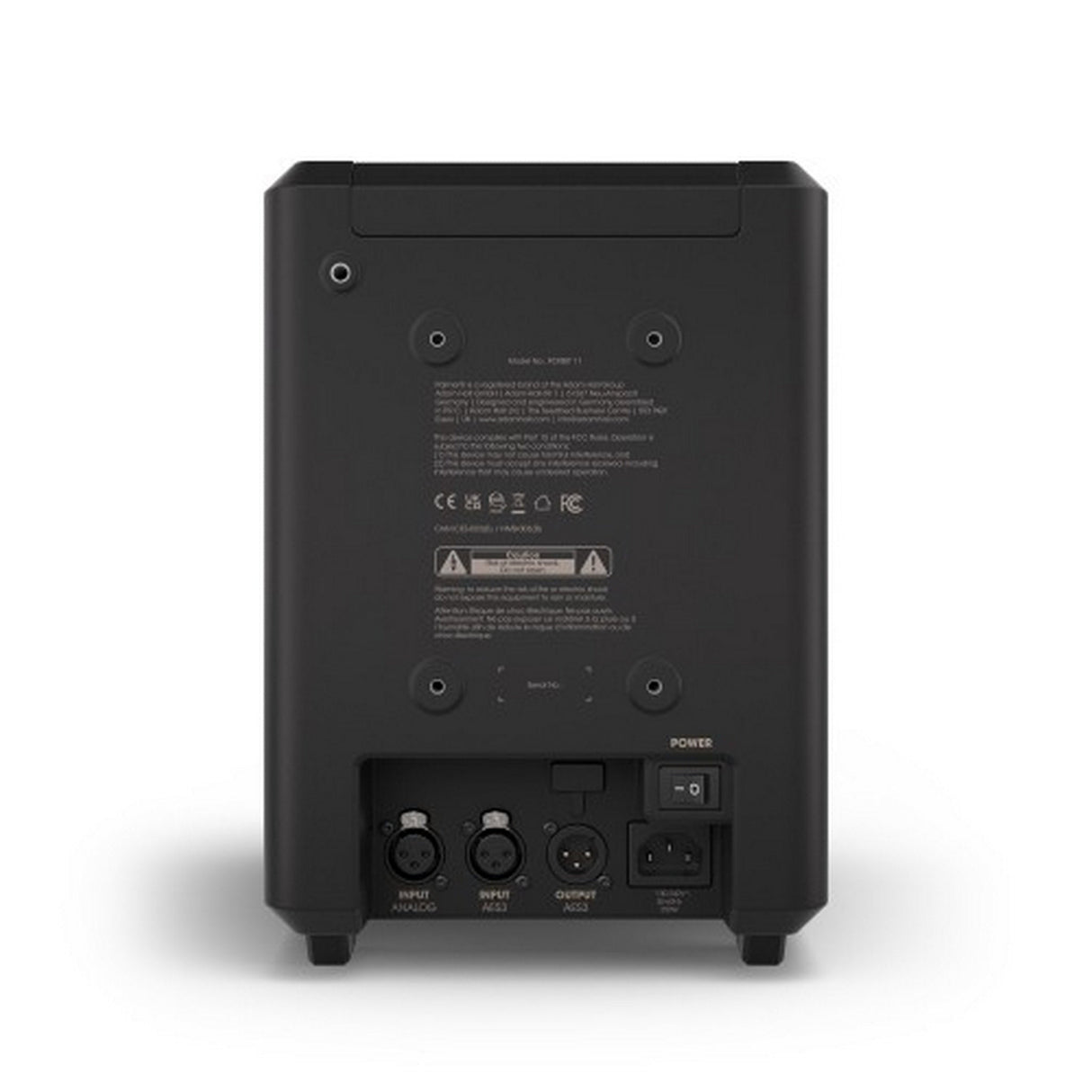

- Analog XLR and AES3 (XLR) connectivity with AES3 Thru for daisy-chaining
- Die-cast aluminum housing designed for ultra-low resonance
- Available in black or white finish
Technical Specifications
TypeActive
Amplifier Class
Class D
Peak Output Power
1000 W
RMS Output Power
400 W
Max SPL (Peak)
116 dB
Frequency Response (-3 dB, rel. Avg)
28 to 28,000 Hz
Crossover Frequency
250 Hz / 1800 Hz
Beam Angle
Hor.: 120Ā° / Vert.: 120Ā°
Number of Inputs
2
Number of Outputs
1
Protection Features
Limiter, Multiband Limiter, Overheating
Color Options
Black or White
