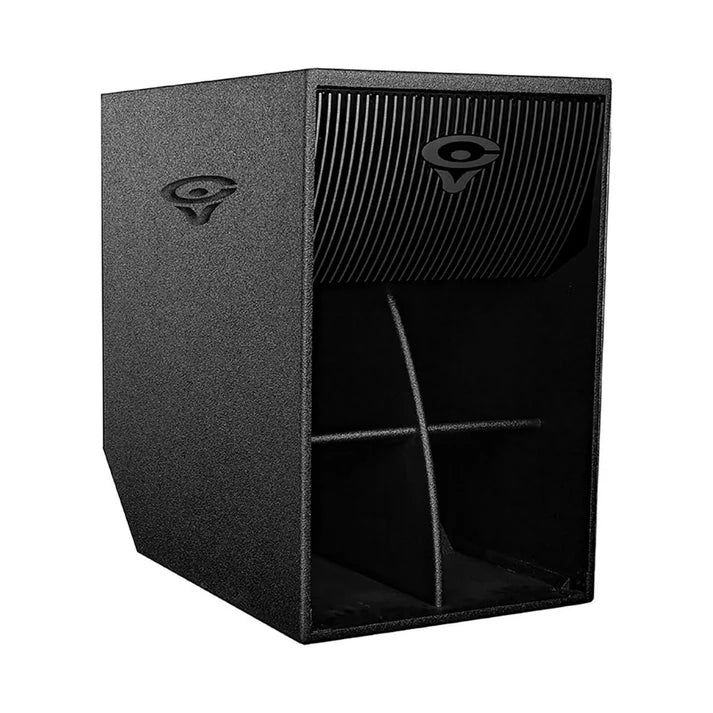

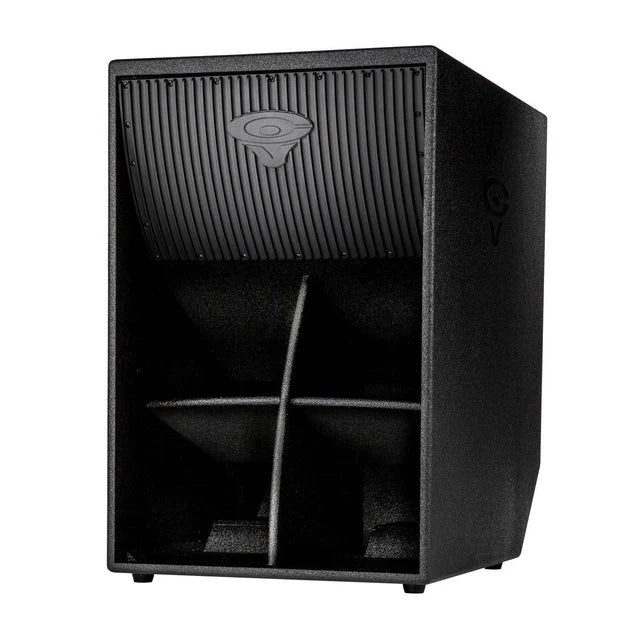

Cerwin-Vega EL-36D 18-Inch Passive Folded Horn Subwoofer
Introducing the Cerwin-Vega EL-36D 18-Inch Passive Folded Horn Subwoofer, a pinnacle of audio engineering drawing on over 65 years of industry-leading innovation. This top-of-the-line subwoofer boasts an impressive 2000 watts of power handling capability and delivers bass extension down to an astounding 36 Hz. A product of Cerwin-Vega's relentless drive for excellence, the EL-36D is designed to meet the demands of professional DJs, musicians, and audio engineers who require unparalleled performance and durability.
The EL-36D features Cerwin-Vega's renowned TourShield protective coating, ensuring that it can withstand the rigors of transport and live performances. Its sleek, all-black design makes it a visually appealing addition to any stage setup. Integrated handles and redesigned casters make it easy to move, making it equally suitable for onstage, club, or on-the-road use. With its robust construction and advanced audio technology, the Cerwin-Vega EL-36D consistently delivers thunderous, high-quality sound.
Designed for serious bass enthusiasts, the Cerwin-Vega EL-36D utilizes an 18-inch folded horn Earthquake Bass System, ensuring deep, resonant sound reproduction. The subwoofer employs acoustic impedance balancing, which reduces cone rocking and enhances overall sound clarity. Additional features such as a cast aluminum door that functions as a heat sink and a reinforced deep pole cup further enhance the performance and durability of this exceptional subwoofer.
Key Features
- 18-inch folded horn Earthquake Bass System: Delivers deep and efficient low-frequency output
- 500W program / 1000W peak power handling: Supports high-output sound reinforcement systems
- Maximum SPL of 141 dB: High acoustic output for large venues
- Extended low-frequency range: Down to 37 Hz for deep bass performance
- Acoustic impedance balancing: Reduces cone rocking and improves sound clarity
- TourShield protective coating: Enhances durability for transport and touring use
- Cast aluminum door heat sink: Improves thermal performance
- Reinforced deep pole cup: Supports stable speaker mounting
- Integrated handles and casters: Simplifies transport and setup
- Professional cabinet design: Built for live sound and mobile applications
Technical Specifications
-
General
- Product Type: Passive Folded Horn Subwoofer
- Model: EL-36D
-
Driver
- Driver Size: 18-inch
- System Design: Folded horn Earthquake Bass System
-
Performance
- Power Handling (Program): 500 W
- Power Handling (Peak): 1000 W
- Frequency Response: 45 Hz – 328 Hz
- Frequency Range: 37 Hz – 673 Hz
- Maximum SPL: 141 dB
- Nominal Impedance: 8 ohms
-
Connectivity

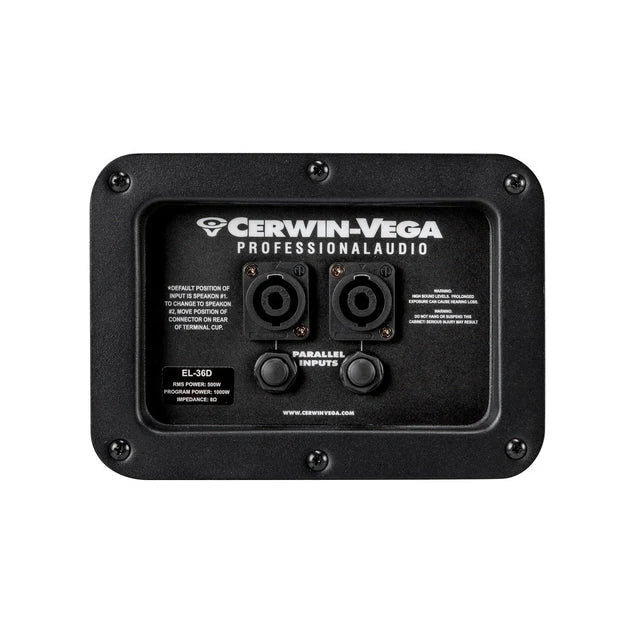

- Input Connectors: 1/4" and Speakon
-
Physical
- Dimensions (H × W × D): 26" × 38" × 39"
- Weight: 160 lbs (72.6 kg)
- Finish: TourShield protective coating
- Handles: Integrated

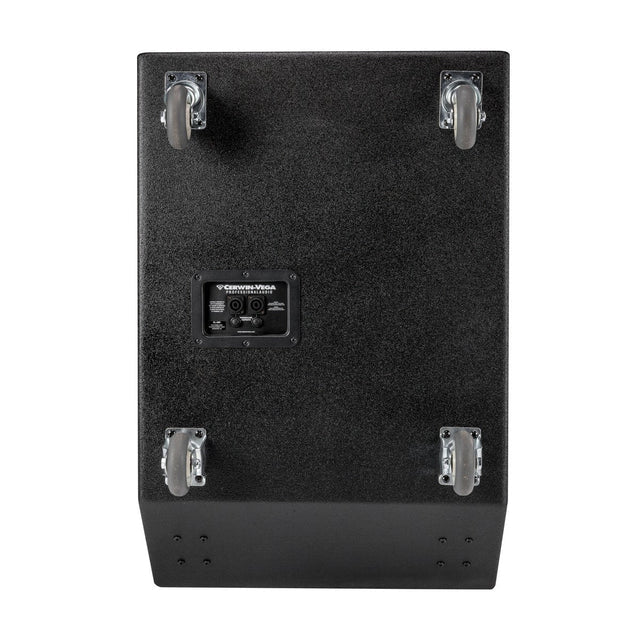

- Transport: Redesigned casters
- Pole Mount: Reinforced deep pole cup
-
Installation & Mounting
- Placement: Floor-standing subwoofer for PA systems
Use Case
The EL-36D is designed for professional sound reinforcement in live events, DJ systems, and large venues where high-output, low-frequency performance is required. Its folded horn design ensures efficient bass projection across wide areas.
Package Contents
- Cerwin-Vega EL-36D 18-Inch Passive Folded Horn Subwoofer
- Integrated Handles
- Redesigned Casters
- Instruction Manual
Frequently Asked Questions
What is the Cerwin-Vega EL-36D used for?
The Cerwin-Vega EL-36D is a passive folded horn subwoofer designed for live sound reinforcement, delivering high-output low-frequency performance for DJs, concerts, and event venues.
Is the Cerwin-Vega EL-36D an active or passive subwoofer?
The EL-36D is a passive subwoofer, meaning it requires an external amplifier to operate.
What type of enclosure does the EL-36D use?
The EL-36D uses a folded horn enclosure design to increase efficiency and improve low-frequency projection in large spaces.
Is the Cerwin-Vega EL-36D suitable for large venues?
Yes, it is designed for high-output applications such as concerts, live events, and large sound reinforcement systems.
What size driver does the Cerwin-Vega EL-36D use?
The EL-36D features an 18-inch low-frequency driver for deep bass performance.
What makes the EL-36D different from powered subwoofers?
Unlike powered models, the EL-36D is a passive subwoofer that requires an external amplifier, offering flexibility for integration into custom sound systems.
