Electro-Voice ELX118P Powered Subwoofer
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

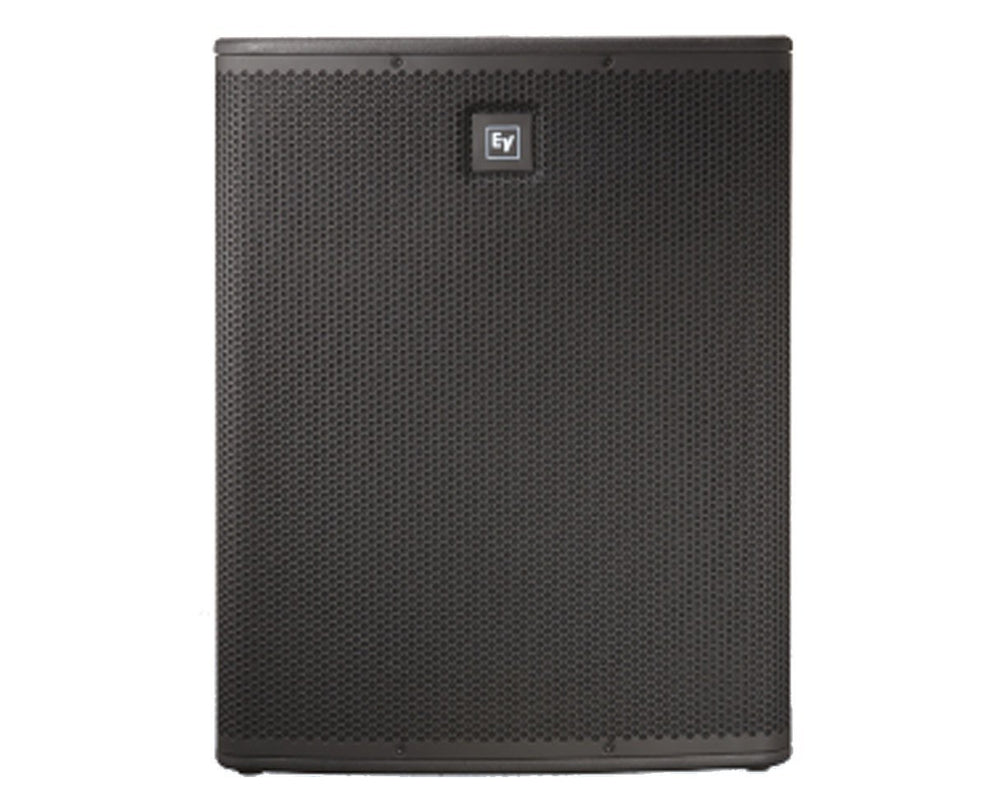

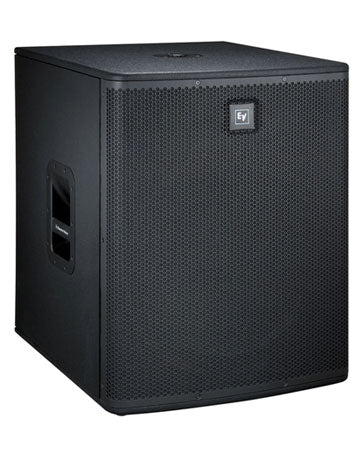

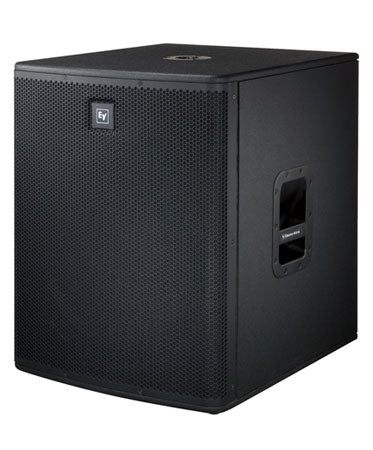

Electro-Voice ELX118P Powered Subwoofer
The Electro-Voice ELX118P Powered Subwoofer offers pro-quality bass reinforcement, and is an ideal companion for full-range loudspeakers such as the ELX112P and ELX115P. The sub has an 18" woofer to provide bass frequencies as low as 32Hz. A 700W Class-D amplifier provides a strong, distortion-free performance while keeping weight and heat to a minimum.
The plywood cabinet has a standard 35mm pole socket for creating stacks or mounting speakers on top. An XLR/TRS combo input and an XLR link output connector allow you to connect to virtually any professional sound system. The steel grille protects the driver and provides a sleek look. Integrated carrying handles provide convenient transportation.
Key Features
- Woofer Size: 18” Woofer
- Amplifier: 700W Class-D Amplifier
- Input: XLR/TRS Combo Input
- Output: XLR Link Output
- Cabinet: Plywood Construction
- Grille: Steel Grille
- Frequency Range: 32Hz – 130Hz
- Modes: Selectable Normal / Boost Modes
Technical Specifications
- Case Material: 9-ply, 15mm plywood, internally braced with textured paint
- Coverage (Nominal -6dB): Omnidirectional
- Input Connections: Parallel Neutrik NL4
- Nominal Impedance: 8 Ohms
- Power Rating: 700W
- Speaker Type: Subwoofer
- Woofer Size: 457.2mm (18”)
- Frequency Response (-3dB): 42 – 100Hz
- Frequency Response (-10dB): 32 – 130Hz
- Internal Crossover: Yes
- Maximum SPL/1m (calc): 134 dB
- LF Transducer: 1 x EVS-18K, 457mm (18”)
- HF Transducer: N/A
- Crossover Frequency: 100Hz
- Connector Type: 1 x XLR/TRS Combo Jack, 1 x XLR Link Output
- Grille: 18GA steel with black powdercoat
- Dimensions (H x W x D): 661 x 507 x 574 mm (26.02” x 19.96” x 22.6”)
- Weight: 31.3 kg (69 lbs)
Installation / Use Cases
- Reinforcing low-frequency audio using a powered subwoofer in live sound systems
- DJ and event setups requiring deep bass extension for music playback
- Portable PA systems needing high-output subwoofer support
- Stage and venue sound systems requiring dedicated low-end reproduction
- Audio setups paired with full-range speakers for balanced sound coverage
Package Contents
- Electro-Voice ELX118P Powered Subwoofer
Frequently Asked Questions
What is the ELX118P used for?
It is a powered subwoofer designed to reproduce low-frequency audio in live sound and PA systems.
Is the ELX118P a powered subwoofer?
Yes. It has a built-in amplifier for standalone operation.
Where is it typically used?
It is used in live events, DJ setups, and portable PA systems.
Can it be paired with full-range speakers?
Yes. It is commonly used with full-range speakers to complete the audio system.
Is it suitable for mobile setups?
Yes. It is designed for portable sound reinforcement applications.
