Electro-Voice ELX200-18S 18-Inch Passive Subwoofer, White
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

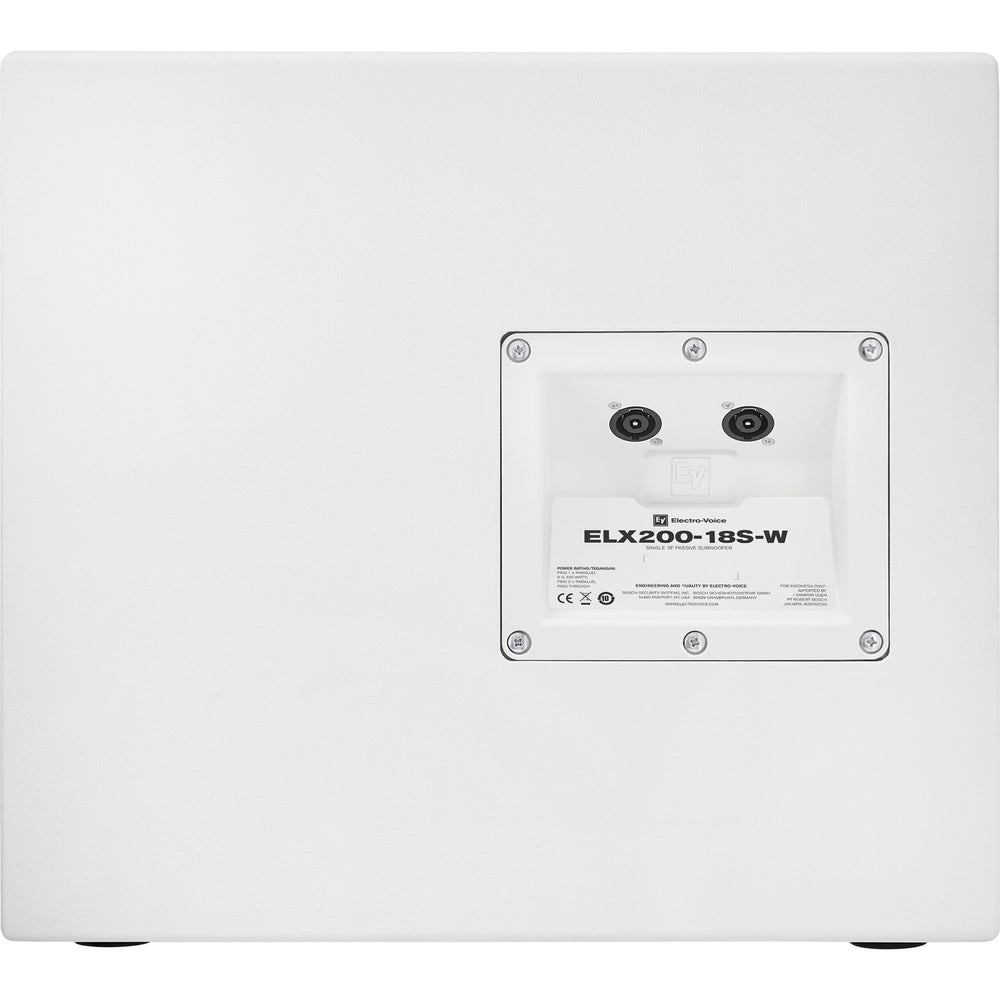

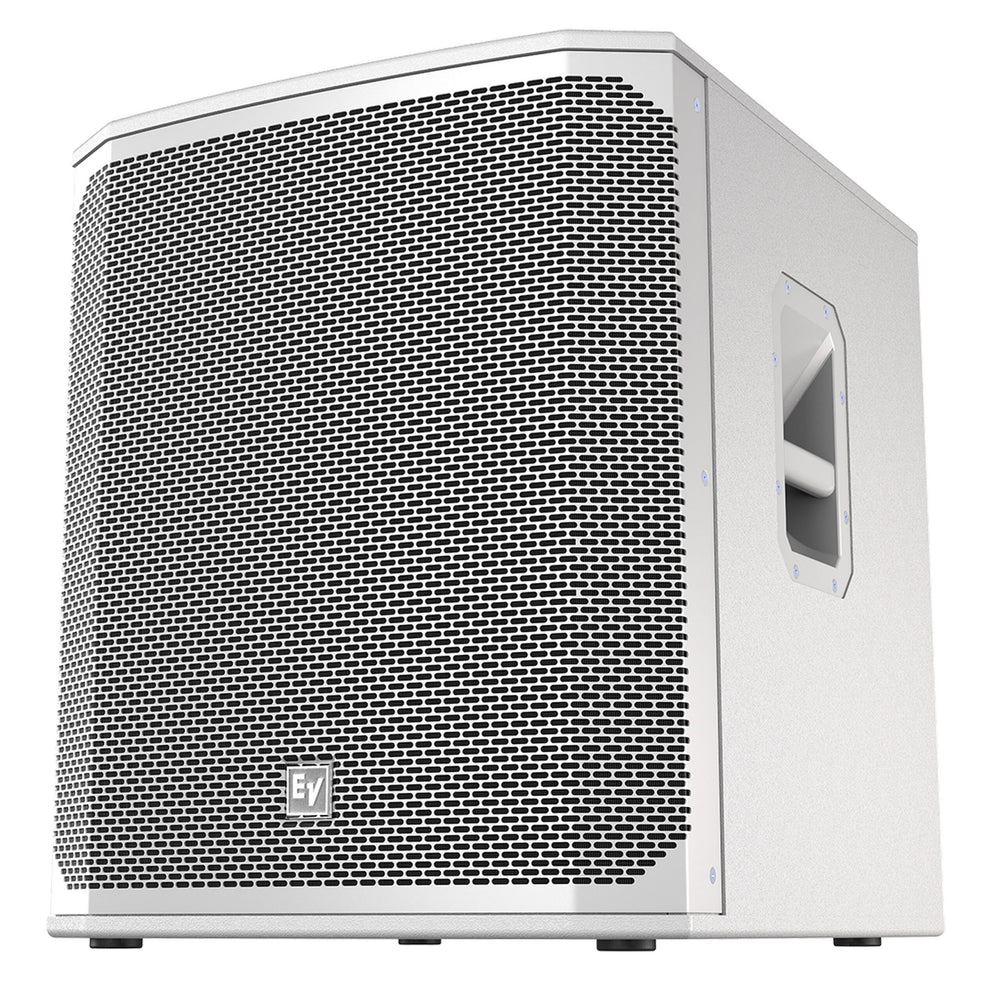

Electro-Voice ELX200-18S-W 18-Inch Passive Subwoofer, White
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components-tested to levels far exceeding the industry norm-make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Key Features
- 1600 W (peak), 133 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
- High-output EVS-18L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- System reliability verified with over 500 hours of abuse testing and endurance testing.
- Ideal for portable and installed applications.
- Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
- Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
Technical Specifications
Weight Net
58.64lbs (26.6kg)
Depth
22.6" (574mm)
Width
19.96" (507mm)
Height
23.62" (600mm)
Available Color
Black or White
Axial Sensitivity (SPL, 1 W @ 1 m)
94dB
Connector Type
Dual NL4
Enclosure Material
15 mm plywood with durable polyurea top-coat finish
Family
ELX200
Frequency Range (-10 dB)
28 Hz - 300 Hz
Frequency Response (-3 dB)
45 Hz - 200Hz
Grille
18 AWG steel with powdercoat
LF Transducer
EVS-18L 457 mm (18 in)
Max. SPL/1m (calc)
133 HzdB
Minimum Impedance
7.2 OHM
Nominal Impedance
8OHM
Power Handling (Continuous / Peak)
400W/1600W
Power Rating
1600W
Recommended High-Pass Frequency
35 HzHz
Shipping Weight
67.24lbs (30.5kg)
Speaker Type
Subwoofer
Woofer Size
18inch
