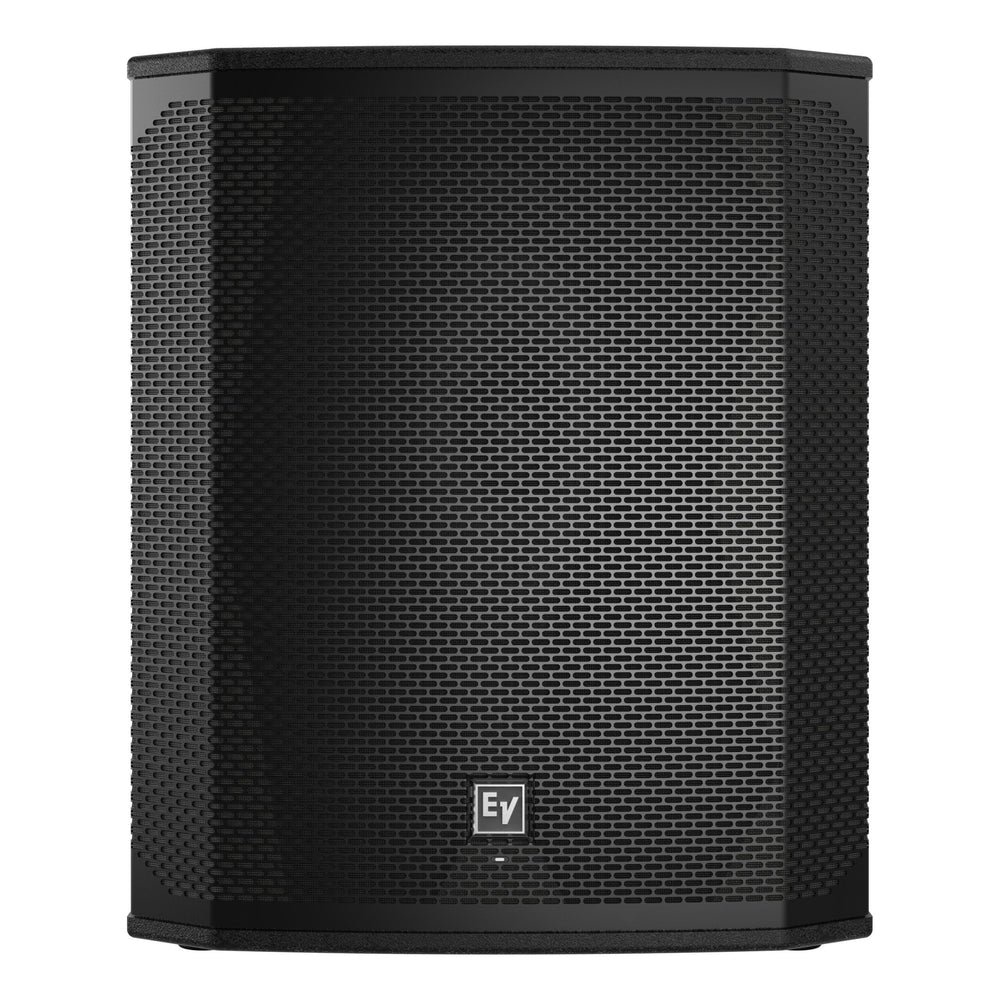

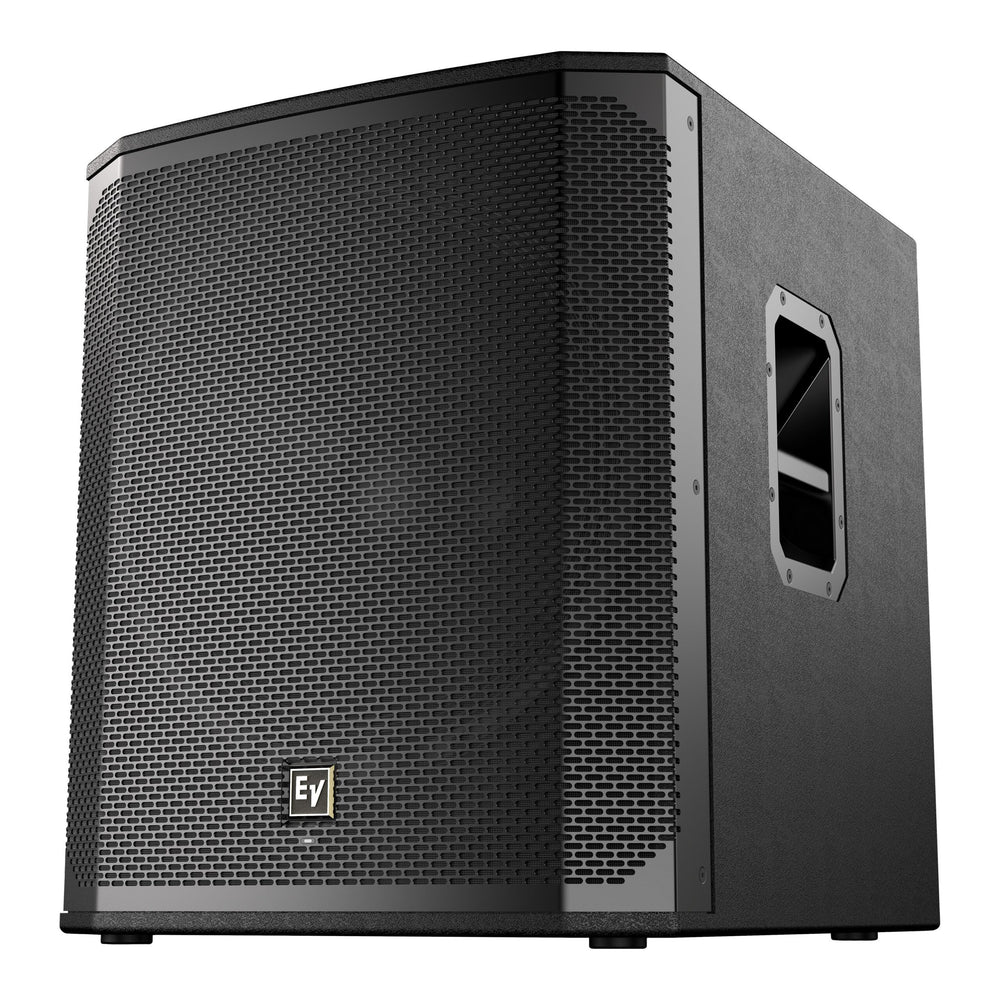

Electro-Voice ELX200-18SP 1200 Watt Class-D Powered Subwoofer, 18 Inch
Electro-Voice ELX200-18SP 1200 Watt Class-D Powered Subwoofer, 18 Inch
Electro-Voice ELX200-18SP 1200 Watt Class-D Powered Subwoofer, 18 Inch
ELX200-18SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (18-inch EVS-18L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
Technical Specifications
Frequency response (-3 dB)
47 Hz - 105 HzĀ¹
Frequency range (-10 dB)
40 Hz - 145 HzĀ¹
Maximum SPL
132 dBĀ²
Power rating
1200 W
LF transducer
EVS-18L 457 mm (18 in)
Low-Pass frequency
Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz

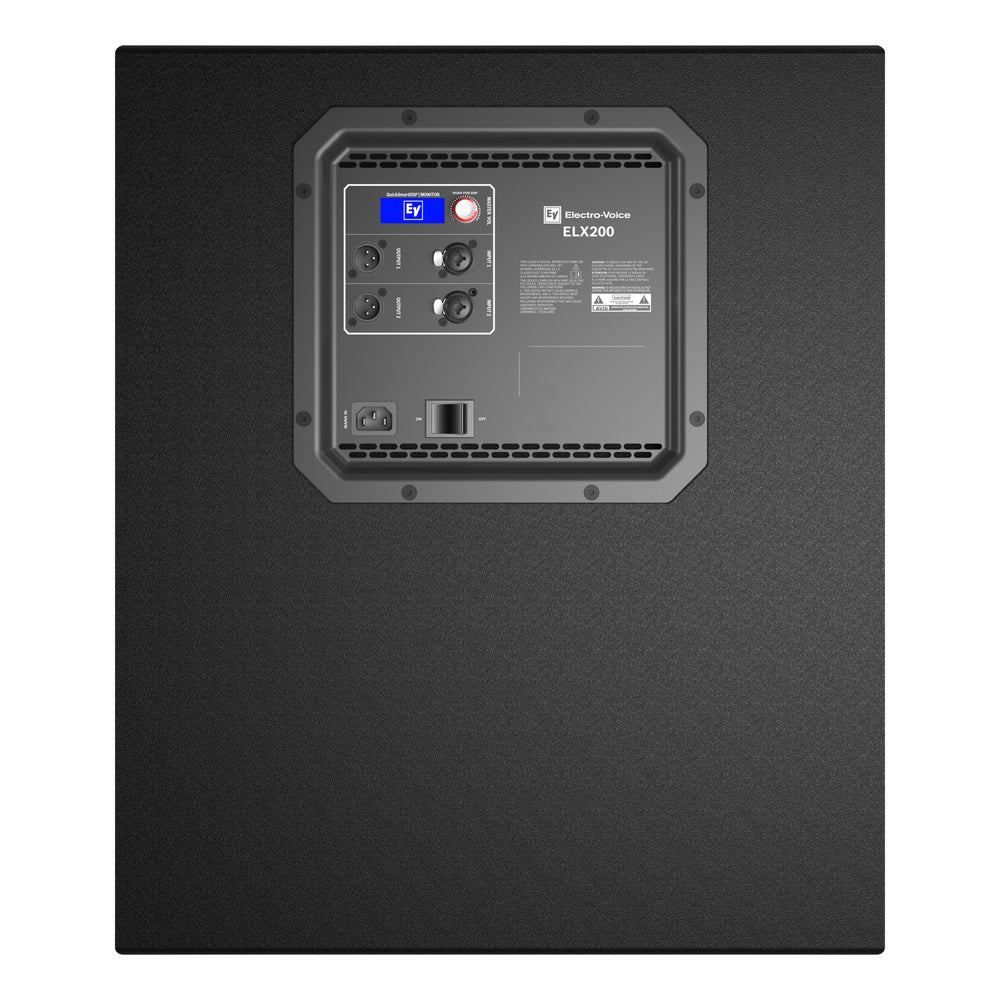

Connectors
(2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure
15 mm plywood with EVCoat
Grille
18 AWG steel with powdercoat
Color
Black
Dimensions (H x W x D)
600 mm x 507 mm x 574 mm (23.7 in x 20.0 in x 22.6 in)
Net weight
29.0 kg (64 lb)
Shipping weight
33.1 kg (73.0 lb)
Power consumption
100 - 240 V~, 50 - 60 Hz, 1.8 AĀ³
