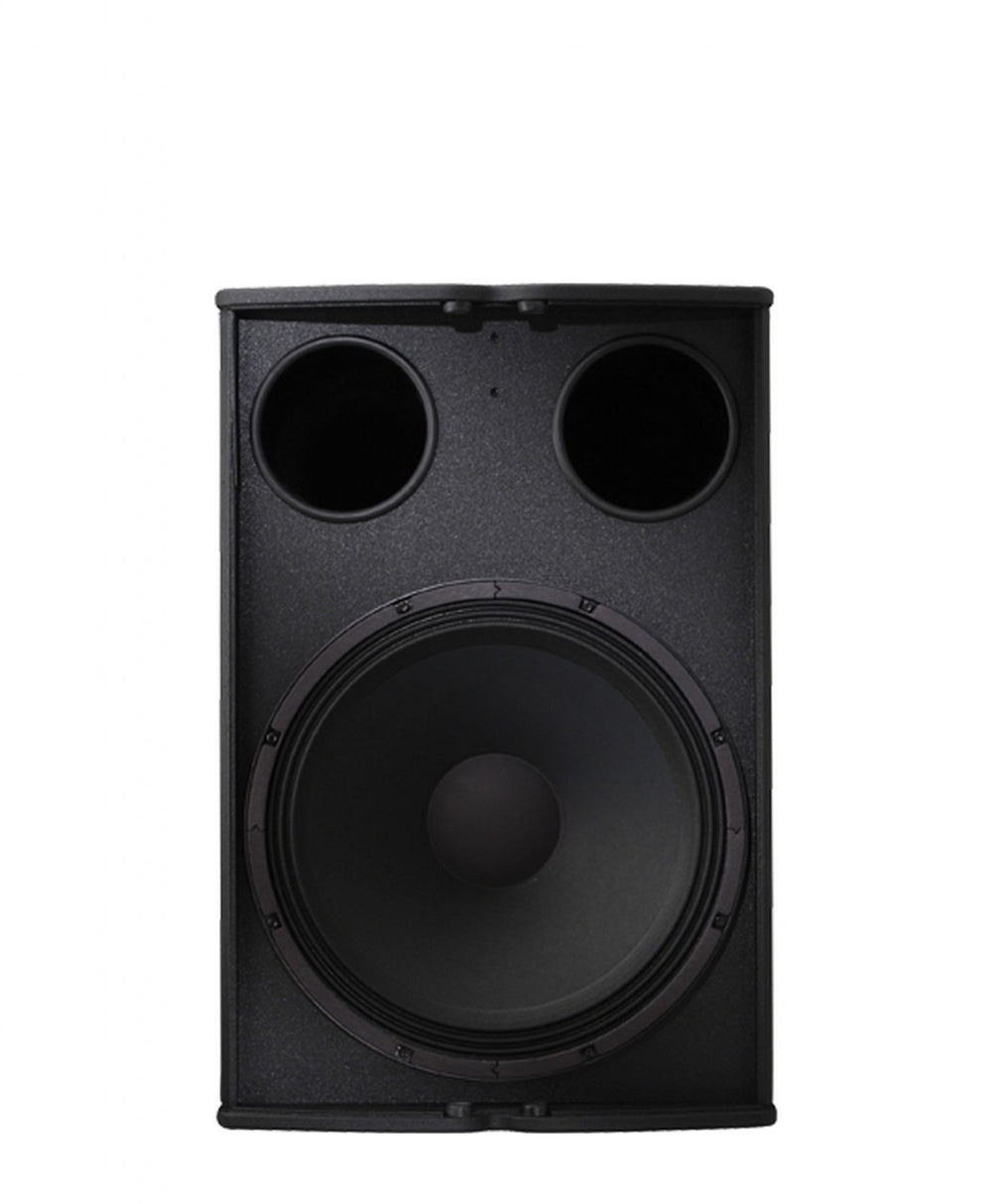

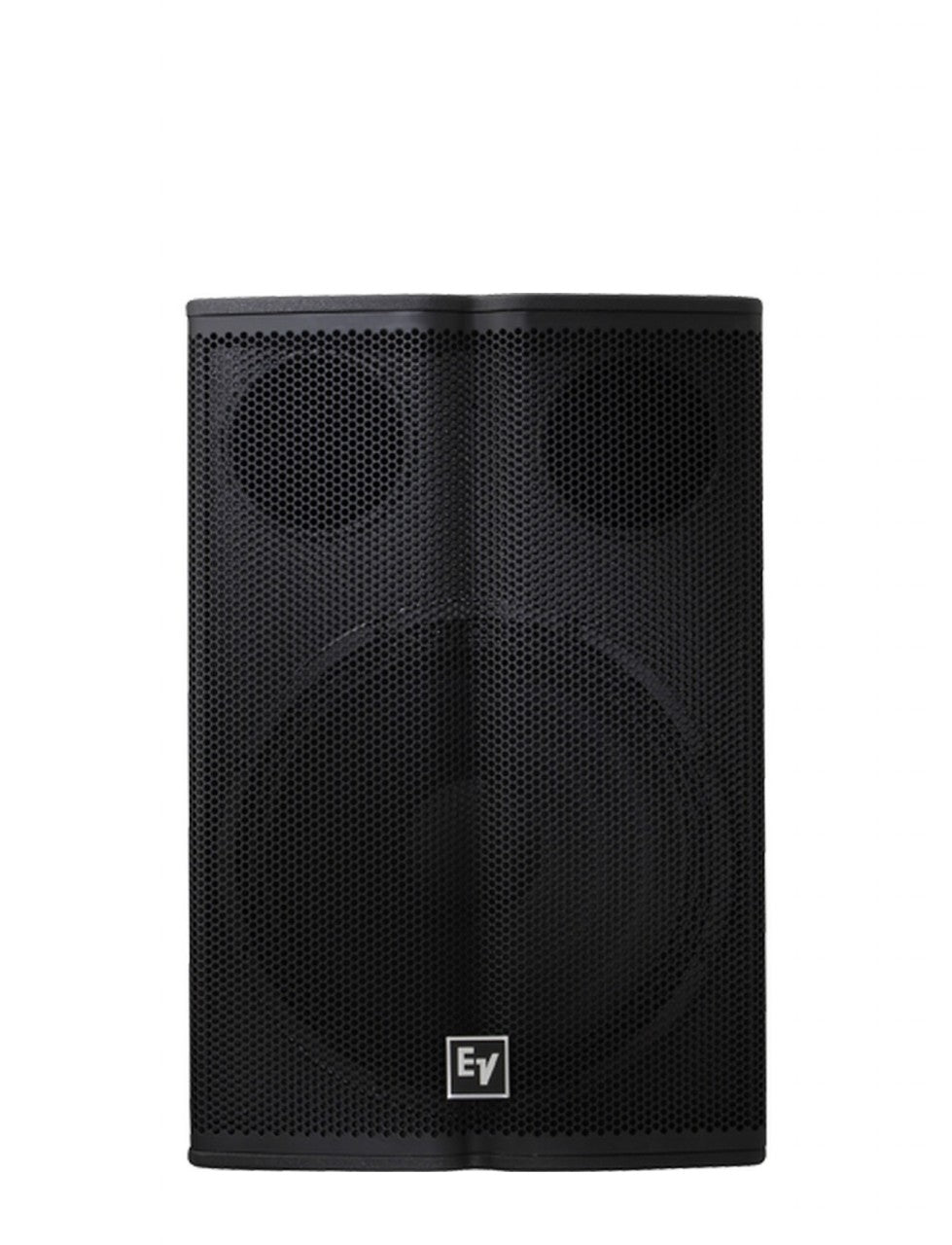

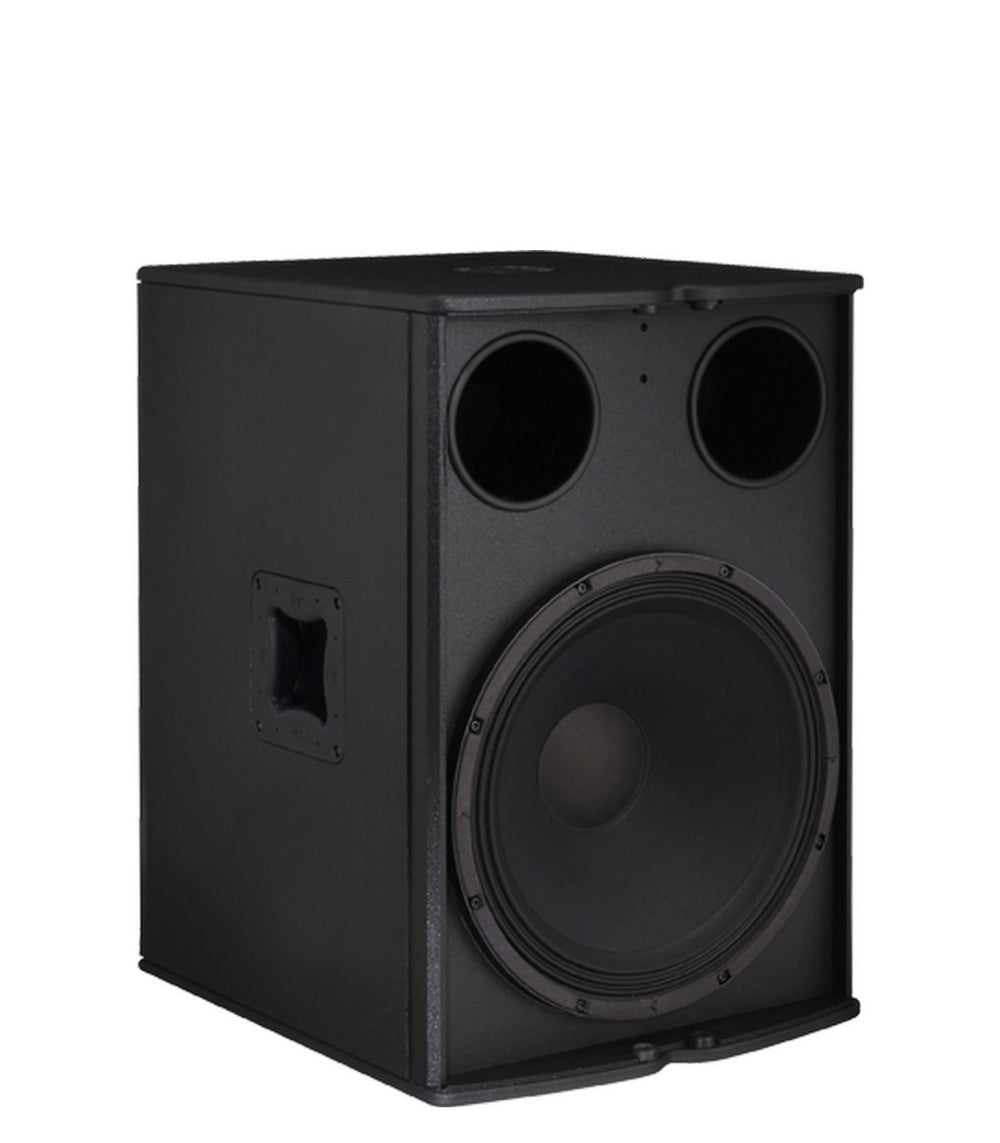

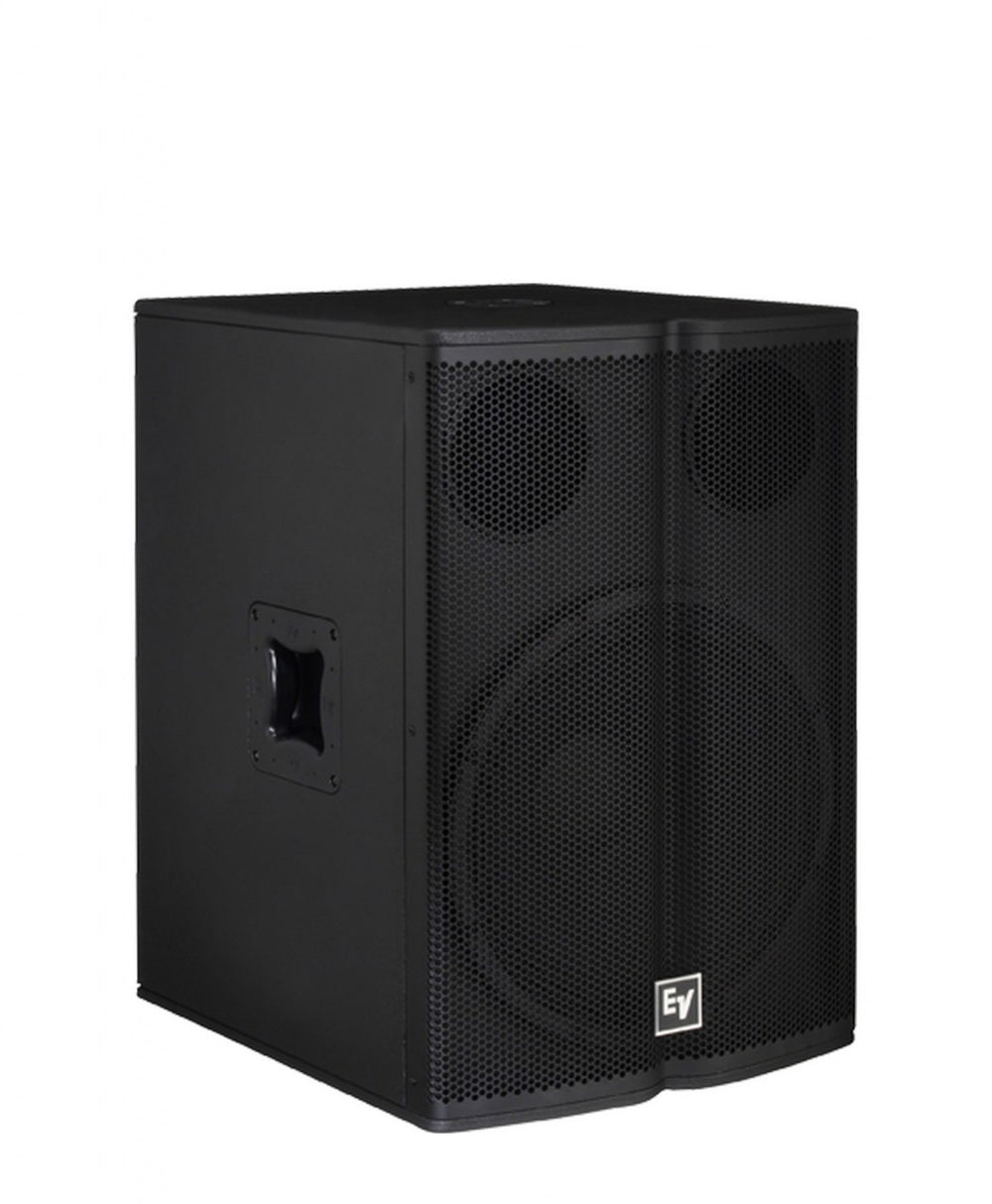

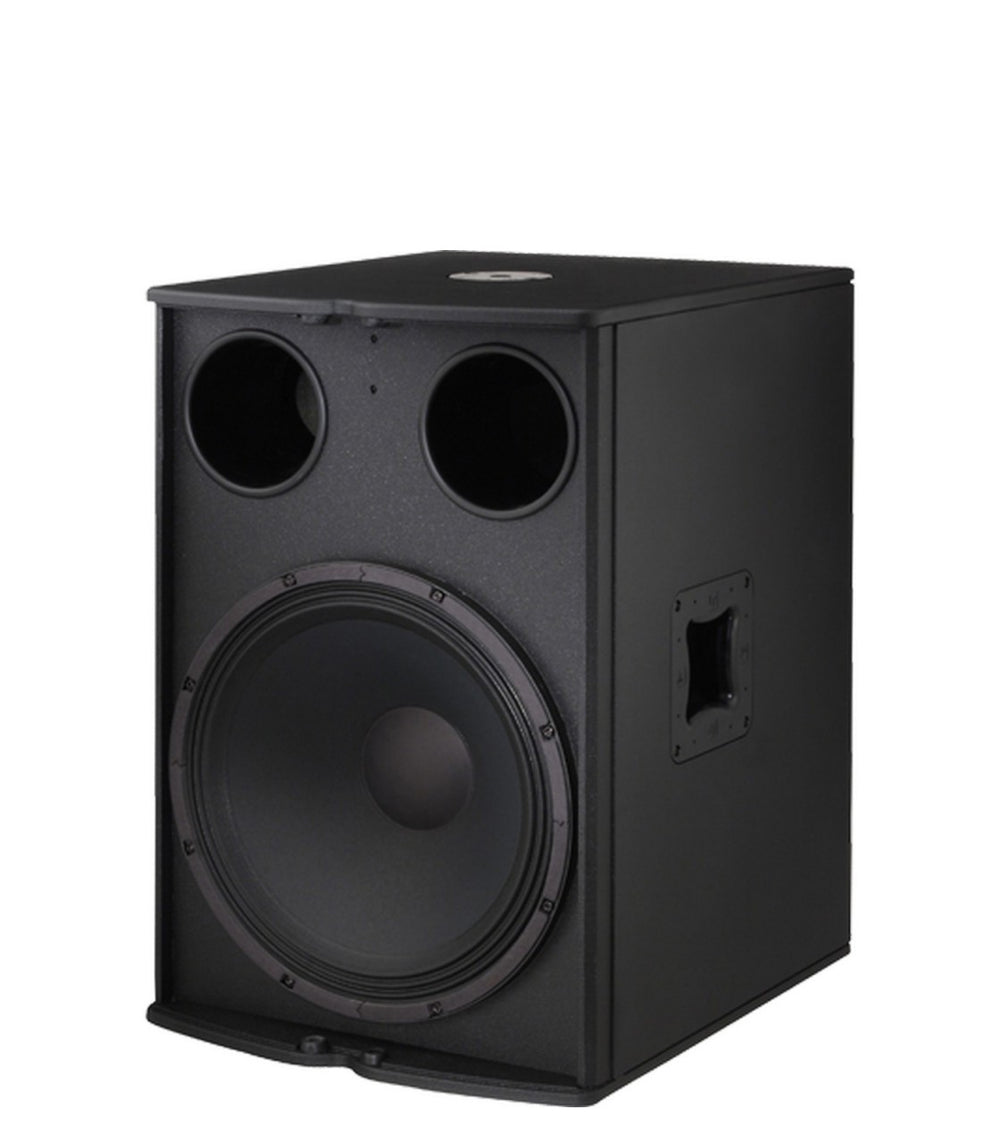

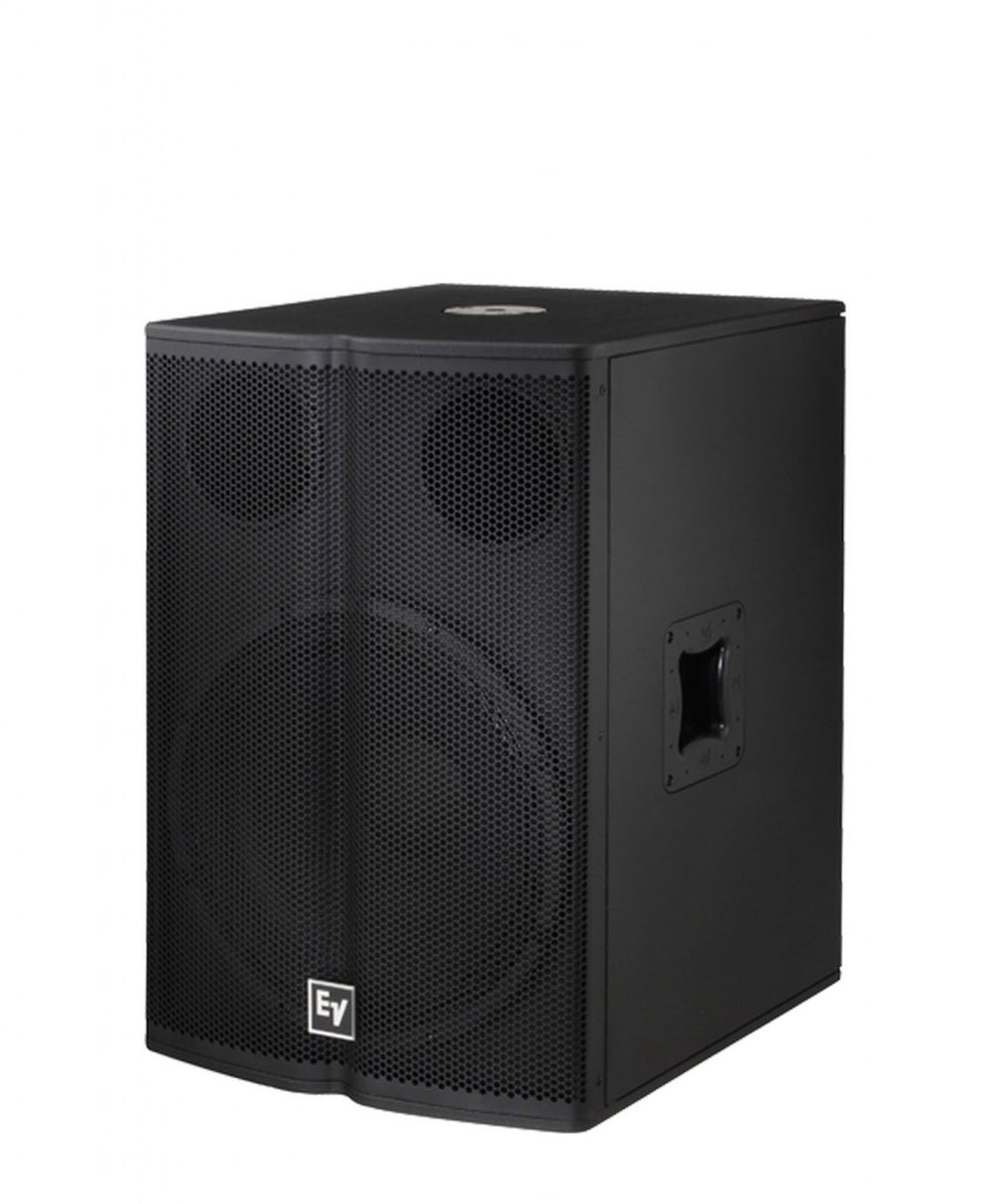

Electro-Voice TX1181 18-Inch Subwoofer
Electro-Voice TX1181 18-Inch Subwoofer
Electro-Voice TX1181 18-Inch Subwoofer
The Electro-Voice TX1181 18-Inch Subwoofer is a high power subwoofer that can be used to extend the low frequency performance of the TX1122 and TX1152 loudspeaker systems.
The TX1181 uses the EVS-18S, a high excursion 18” woofer, coupled to well braced enclosure with large, low distortion ports, to add high impact bass response to any fullrange loudspeaker. An integrated low pass filter allows the TX1181 to be connected in parallel with a TX1122 or TX1152 on a single amplifier channel, eliminating the need for additional amplifier channels and processing.
The TX1181 has many features that make it a versatile subwoofer system. The enclosure is constructed out of a combination of MDF and plywood, and coated with EVCoatTM for maximum strength and durability. The unique grille design is very strong, dent resistant, and features a rotatable logo. Four way handles allow for gripping the TX1181 in a variety of positions. The recessed input panel with dual NL4 connectors keeps the connectors hidden and allows for closer placement to a wall or other boundary. An integrated pole mount allows for elevating a TX1122 or TX1152, and integrated mounting points on the rear of the enclosure allow the optional TX-W1 wheel kit to be attached for easy portability.
Key Features
- EVS-18S 18” (457mm) LF Transducer
- 100dB Sensitivity, 132dB Maximum SPL
- Integrated Low Pass Filter with 6dB / Octave Slope
- 500W Continuous (2000W Peak) Power Handling
- Pole Mount to Elevate a Two-Way Loudspeaker
- Mounting Points to Attach Optional TX-W1 Wheel Kit
Technical Specs
Frequency Response (-3dB)
50 Hz – 160 Hz
Frequency Range (-10dB)
45 Hz – 700 Hz
Rec. Hipass Frequency
30 Hz
Axial Sensitivity
100dB (1W / 1m)
Max. Calculated SPL
132 dB
Horizontal Coverage
Omnidirectional
Vertical Coverage
Omnidirectional
Power Handling
500W Continuous, 2000W Peak
LF Transducer
EVS-18S, 18-in. (457mm) Driver
Nominal Impedance
8 ohms
Minimum Impedance
7.5 ohms
Connectors
2 x Neutrik Speakon NL4’s
Enclosure Material
Plywood and MDF with EVCoat
Grille
16GA Steel, Black Powdercoat, with Rotatable Logo
Dimensions (H x W x D)
30.3” x 20.0” x 23.3” (769mm x 508mm x 591mm)
Net Weight
74.5 lbs. (33.8kg)
