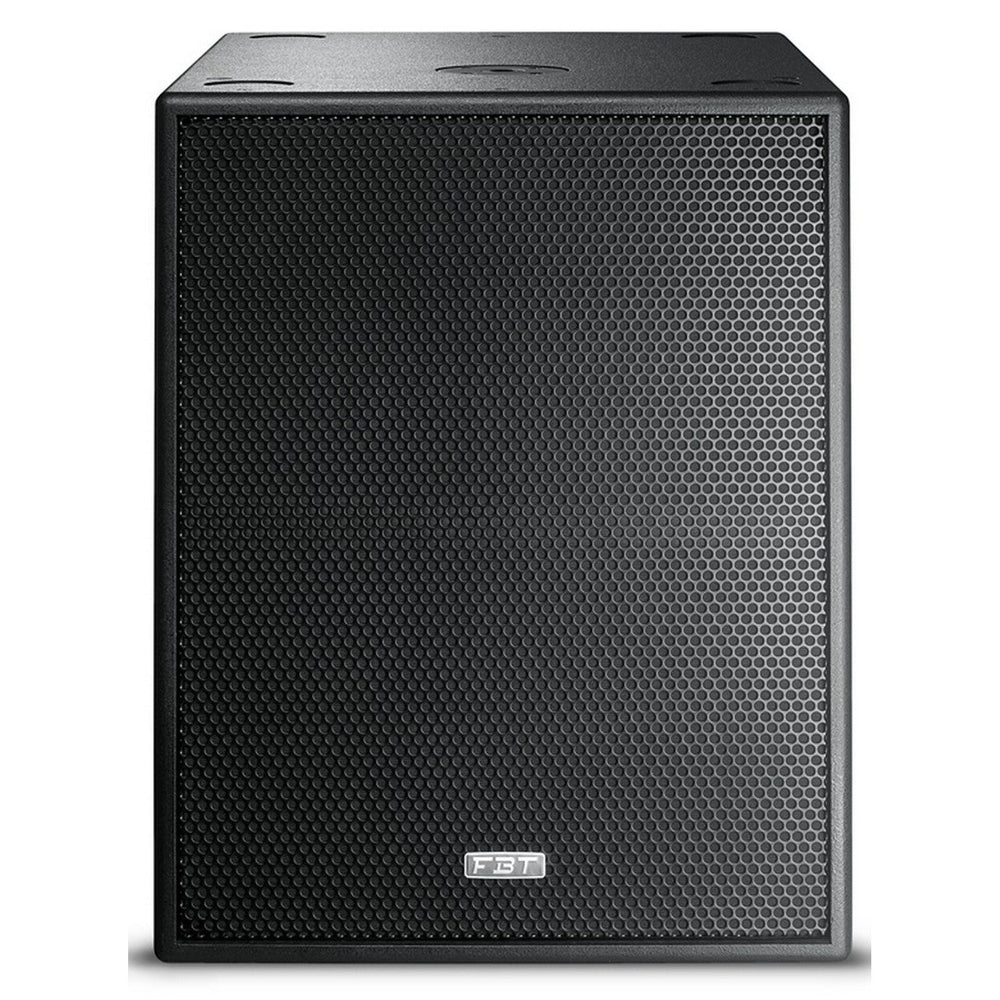

FBT Q 118 SA 18 Inch 1200W Processed Active Subwoofer
FBT Q 118 SA 18 Inch 1200W Processed Active Subwoofer
FBT Q 118 SA 18 Inch 1200W Processed Active Subwoofer
The Q118SA is a newly designed, extremely powerful subwoofer, capable of delivering extremely high SPL and guaranteeing significant low frequency extension. The optimisation of the woofer load volume and port tube with BEM finite element simulation, and the careful development of the grille and the protective fabric to minimise acoustic impedance, has led to a net improvement in performances as compared with previous models. Equipped with an high excursion ceramic B&C woofer with 100mm ventilated coil, it has negligible power compression, ensuring maximum acoustic pressure even after hours of continuous use.
Key Features
- 18" woofer with 4" voice coil
- 1200W RMS Class D power amplifier with switch mode power supply
- DSP with 6 presets, digital 6 step Delay
- Control panel with: 3 status led indicators, Phase, Level, Preset, Delay, stereo XLR in/link, Power supply with powerCON TRUE1 cable duplex with input and output
- 0,70" baltic birch plywood cabinet with scratch and scuff resistant paint finish
- 2 M20 top mount speaker stand socket, 4 aluminum carrying handles
Technical Specifications
Code
39893
Configuration
1 BASS REFLEX way
Built-in amplifier LF/HF
1200 W RMS
Built-in amplifier peak LF/HF
2400 W
Frequency response
30Hz - 100Hz -6dB
Low Frequency woofer
1x18- 4 coil inch
Maximum SPL cont/peak
135/139 half-space dB
Dispersion
omnidirectional HxV
Input impedance
22 Kohm
Crossover Frequency
preset dependant KHz
AC Power requirements
800 VA
Input connector
XLR with loop
Power cord
5 m/ft
Net Dimension (WxHxD)
550 x 700 x 720 / 21,65 x 27,55 x 28,34 mm/inch
Transport Dimension (WxHxD)
610 x 857 x 780 / 24,01 x 33,74 x 30,70 mm/inch
