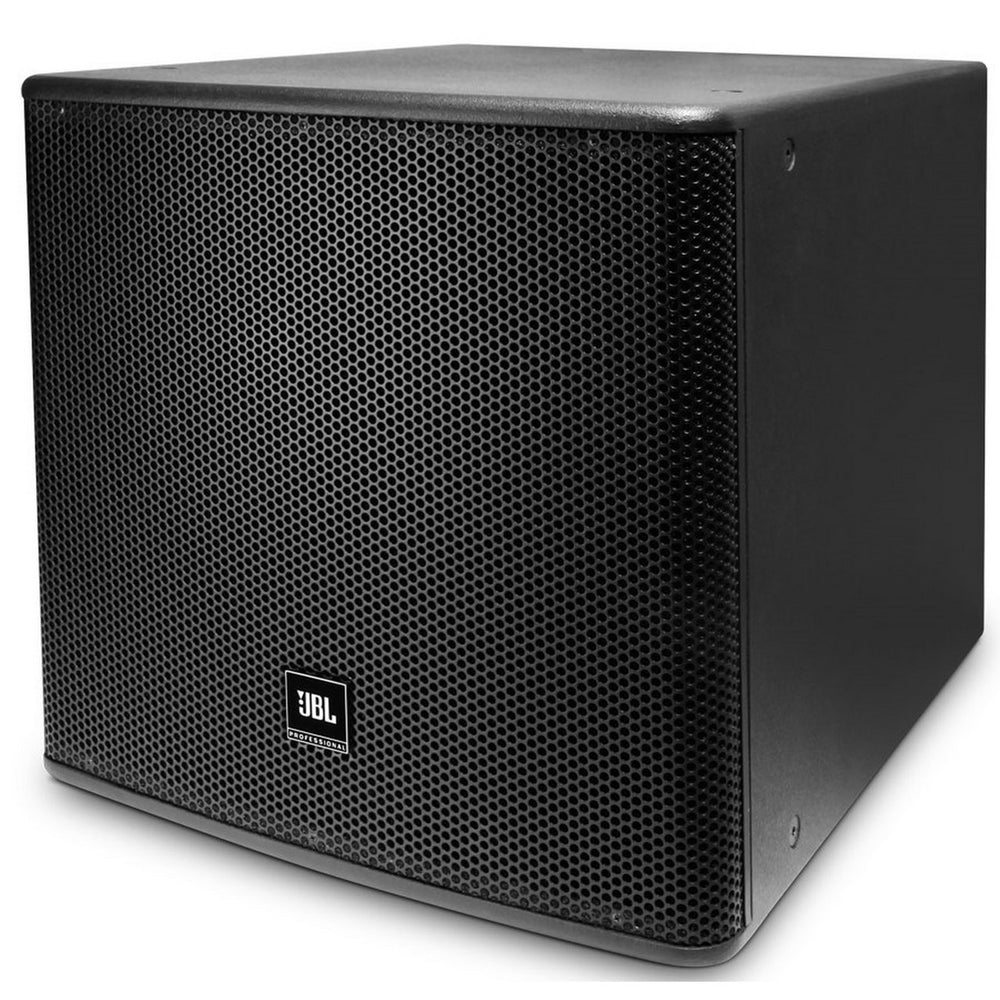

JBL AC118S 18 Inch High Power Subwoofer System Black

JBL AC118S | 18 Inch High Power Subwoofer System Black

The JBL AC118S is a robust, high-power subwoofer system designed for professionals who demand nothing but the best in sound quality and performance. Engineered with precision, this powerful subwoofer features an 18-inch low-frequency driver housed in a vented, front-loaded configuration, extending its bandwidth to deliver deep, immersive bass. Its rectangular cabinet is not only stylish but also highly practical, equipped with M10 threaded suspension points that offer ultimate flexibility in mounting options. This meticulously crafted subwoofer is a perfect match for concert halls, theaters, and professional sound reinforcement applications.

What sets the JBL AC118S apart is its superior sound clarity and minimal power compression, thanks to its high sensitivity design. This ensures that even at maximum output, the subwoofer remains clear and distortion-free. The large port of the subwoofer allows for high-efficiency output, perfect for low-frequency reinforcement in larger venues. In addition, the unit is built from durable 18 mm multi-ply hardwood, finished with a textured black coating, making it both visually appealing and rugged enough for rigorous use.

Whether you are setting up for a live concert, a theater production, or an immersive AV experience, the JBL AC118S subwoofer delivers unmatched performance and flexibility. The meticulous craftsmanship and high-quality components ensure that this subwoofer will stand the test of time, providing reliable and consistent performance for years to come.

Key Features

• Color: Black
• High-power and long excursion driver for lower frequency reproduction
• High sensitivity with lower power compression
• Large port for high output and low-frequency reinforcement
• Multiple attachment points for ultimate flexibility
• Robust 18 mm multi-ply hardwood with textured black finish

Specifications

• Frequency Range (-10 dB): 32 Hz - 250 Hz
• Frequency Response (-3 dB): 40 Hz - 250 Hz
• System Sensitivity (1w @ 1m): 95 dB
• Nominal Impedance: 8 ohms
• Maximum SPL (1m): 122 dB (128 dB peak)
• Power Rating (Continuous/Program/Peak): 450 W/900 W/1800 W

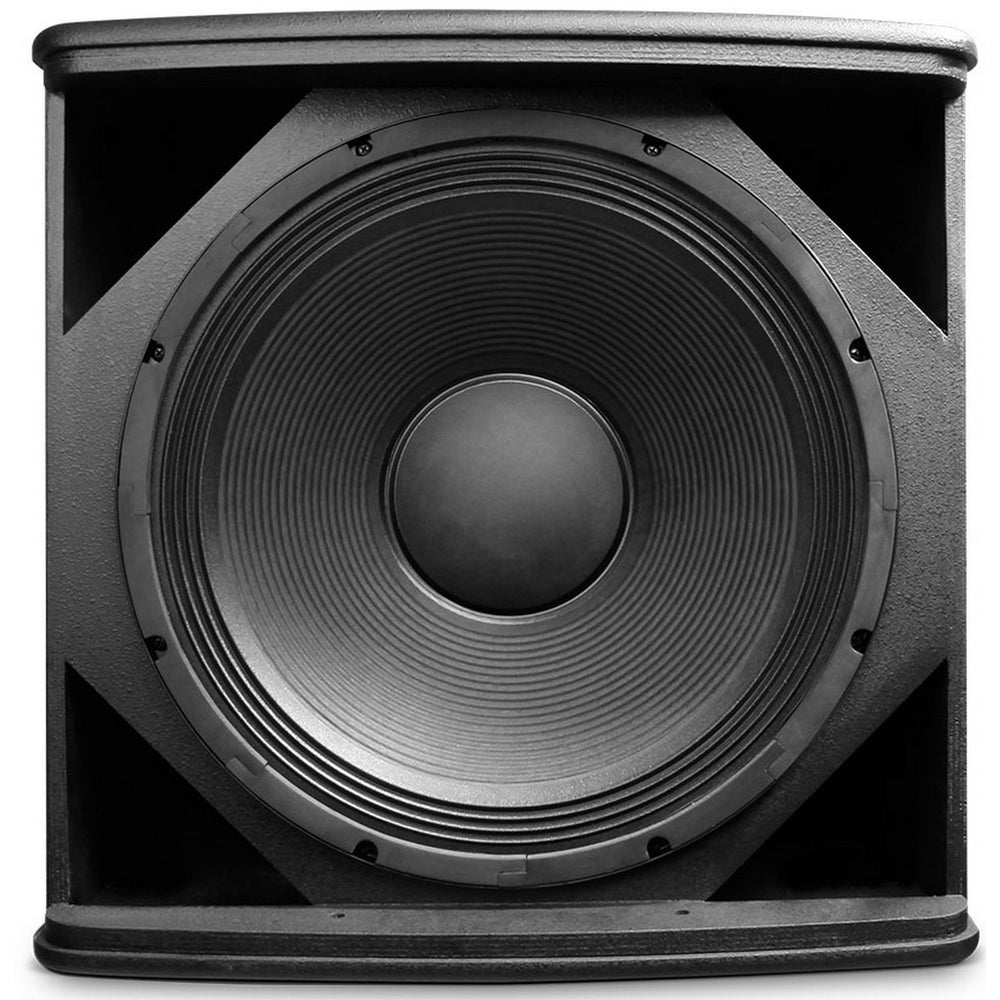

• Low-Frequency Driver: 1x 18" woofer, 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure Material: 18 mm multi-ply hardwood plywood
• Grille: Powder-coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension / Mounting: 12 x M10 threaded suspension points
• Dimensions (H x W x D): 548 mm x 561 mm x 720 mm (21.5 in x 22.0 in x 28.3 in)
• Net Weight: 32.3 kg (71.2 lbs)

Package Contents

• JBL AC118S High Power Subwoofer System
• Mounting Hardware
• User Manual
