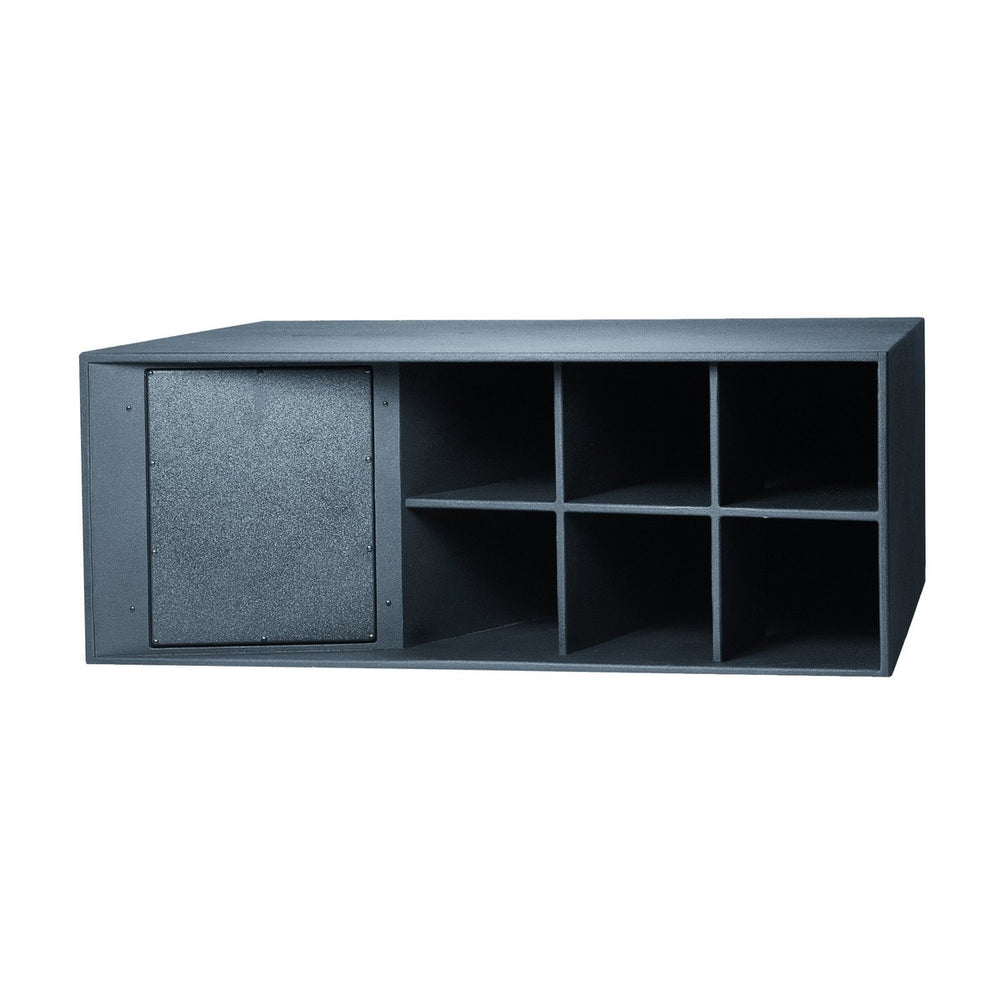

JBL ASH6118 Single 18" Horn Loaded Subwoofer

The JBL ASH6118 is a high-power, horn-loaded subwoofer system designed to elevate your audio experience to unprecedented levels. Featuring a robust 460 mm (18 in) SVG Super Vented Gap low-frequency driver, this subwoofer excels in delivering maximum sensitivity, unparalleled output levels, and impactful sub-bass tones. Whether you're a professional sound engineer, a DJ, or an audiophile, the ASH6118 offers the perfect combination of power and precision, making it an indispensable component of any advanced sound system.

Part of JBL's acclaimed AE (Application Engineered) Series, the ASH6118 provides a versatile and reliable solution for a wide variety of audio applications. The slow-expansion internal folded horn design ensures maximum efficiency and punch, creating a deep and immersive low-frequency experience. Specifically engineered to be used singly or in multiples (2 minimum, 4 optimum), the ASH6118 benefits greatly from proximity placement or proper boundary surface loading, delivering excellent punch with true sub-bass extension.

Crafted with professional-grade components and built to endure the rigors of continuous performance, the JBL ASH6118 stands as a testament to JBL's legacy of producing top-tier audio equipment. With a sleek black DuraFlex finish, the subwoofer not only performs well but also looks elegant and professional.

Key Features

• High-power 18" 2242H SVG Driver
• Designed for single or multiple configurations
• Maximum low-frequency output and sensitivity
• Excellent punch with true sub-bass extension
• Part of JBL's AE Application Engineered Series

Specifications

• Frequency Range (-10 dB): 1 cabinet: 25 Hz - 250 Hz, 2 cabinets: 24 Hz - 250 Hz, 4 cabinets: 22 Hz - 250 Hz
• Frequency Response (±3 dB): 1 cabinet: 30 Hz - 200 Hz, 2 cabinets: 28 Hz - 200 Hz, 4 cabinets: 26 Hz - 200 Hz
• Transducer Power Rating (AES): 1 cabinet: 1200 W (4800 W peak), 2 hrs, 800 W (3200 W peak), 100 hrs; 2 cabinets: 2400 W (9600 W peak), 2 hrs, 1600 W (6400 W peak), 100 hrs; 4 cabinets: 4800 W (19200 W peak), 2 hrs, 3200 W (12800 W peak), 100 hrs
• Long-Term System Power Rating: 1 cabinet: 800 W (3200 W peak), 100 hrs; 2 cabinets: 1600 W (6400 W peak), 100 hrs; 4 cabinets: 3200 W (12800 W peak), 100 hrs
• Maximum SPL: 30 Hz - 140 Hz: 1 cabinet: 133 dB-SPL cont avg (139 dB peak); 2 cabinets: 138 dB-SPL cont avg (144 dB peak); 4 cabinets: 144 dB-SPL cont avg (150 dB peak)
• System Sensitivity (dB-SPL, 1W @ 1m): 30 Hz - 150 Hz: 1 cabinet: 102 dB; 2 cabinets: 104 dB; 4 cabinets: 107 dB
• Nominal Impedance: 8 ohms per cabinet
• Low Frequency Driver: 1 x JBL 2242H 460 mm (18 in) SVG driver with 100 mm (4 in) voice coil
• Enclosure: Rectangular cabinet, 18 mm (3/4 in) exterior grade 13-ply birch plywood
• Finish: Black DuraFlex finish (White available upon request)
• Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
• Environmental Specifications: Mil-Std 810; IP-x3 per IEC529
• Dimensions (H x W x D): 564 x 1530 x 1288 mm (22.3 x 56.4 x 50.7 in)
• Net Weight: 159.3 kg (351 lb)

Package Contents

• JBL ASH6118 Single 18" Horn Loaded Subwoofer
• Instruction Manual
• Warranty Card
