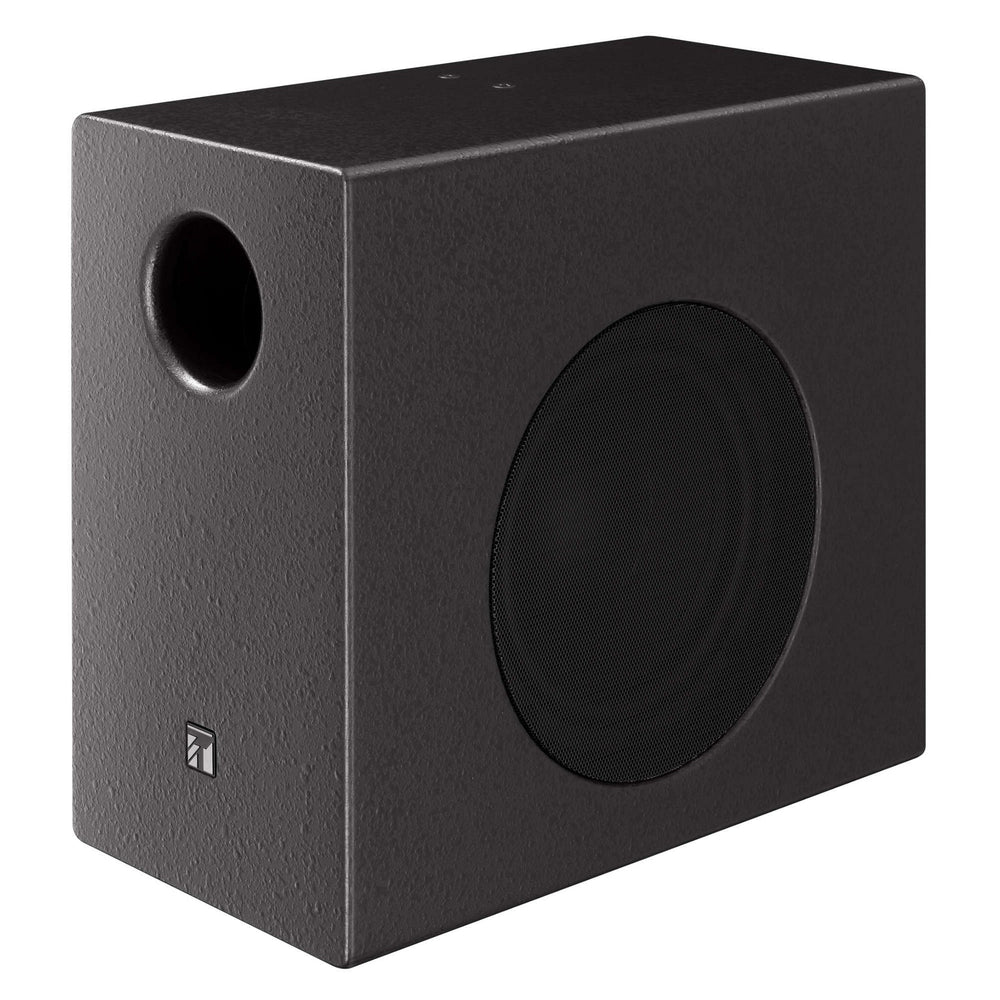

TOA FB-08BT Compact Indoor Subwoofer System
Powerful bass reinforcement for the F-BOX Series speaker family
The TOA FB-08BT is a premium compact indoor subwoofer system designed to deliver powerful low-frequency reproduction for a wide range of commercial audio applications. Featuring a high-performance 20 cm (8") cone driver housed in a bass-reflex enclosure, this subwoofer provides deep, articulate bass that enhances the overall audio experience in retail spaces, restaurants, educational facilities, and corporate environments. The FB-08BT is specifically engineered to integrate seamlessly with TOA's F-03BT and F-05BT surface-mount speakers, creating a complete audio solution that delivers full-range sound without requiring external processors or complex system configurations. Available in black (FB-08BT) with a sleek, unobtrusive design that complements modern architectural aesthetics, with a white variant (FB-08WT) also available for installations requiring color matching with lighter décor schemes.
What sets the FB-08BT apart is its built-in crossover network, which simplifies system configuration and eliminates the need for additional signal processors when paired with F-03BT or F-05BT speakers. This intelligent design allows for straightforward installation and seamless audio integration, enabling dynamic bass reproduction that enhances music playback and adds impact to announcements. The MDF enclosure is precisely tuned to optimize low-frequency response, delivering a frequency range of 45 Hz to 300 Hz that adds substantial depth and richness to the overall sound system. With a sensitivity of 90 dB (1 W, 1 m) when installed in a half-free sound field, the FB-08BT provides efficient bass performance that maintains clarity even at higher volume levels. The rugged construction features a durable MDF enclosure finished in black (RAL 9011 equivalent) with a surface-treated steel grille, ensuring both aesthetic appeal and long-term reliability in commercial environments.
Installation flexibility is a key feature of the FB-08BT, which supports both high impedance (100V/70V line) and low impedance (8Ω) connections to accommodate virtually any system configuration. The subwoofer offers multiple tap settings including 83Ω (120W) and 167Ω (60W) for 100V line systems, and 50Ω (100W), 83Ω (60W), and 167Ω (30W) for 70V line systems, allowing precise power matching to the amplifier and space requirements. For enhanced mounting versatility, the FB-08BT can be installed on walls using the optional HY-WM-FB08B bracket or on ceilings using the HY-CM-FB08B bracket, with both accessories designed specifically for secure and straightforward installation. With substantial power handling capabilities of 120W rated noise power and 240W continuous program power (8Ω), the FB-08BT delivers impressive bass performance while maintaining reliability in demanding commercial applications. The subwoofer's compact dimensions of 7.87" × 13.78" × 15.75" (200 mm × 350 mm × 400 mm) allow for discreet installation in space-constrained environments, making it an ideal choice for enhancing audio quality without dominating the visual space.
Key Features
- High-Performance 8" Driver: 20 cm (8") cone-type driver delivers powerful, articulate bass response for enhanced audio quality
- Integrated Crossover Network: Built-in crossover enables seamless integration with F-03BT and F-05BT speakers without requiring additional processors

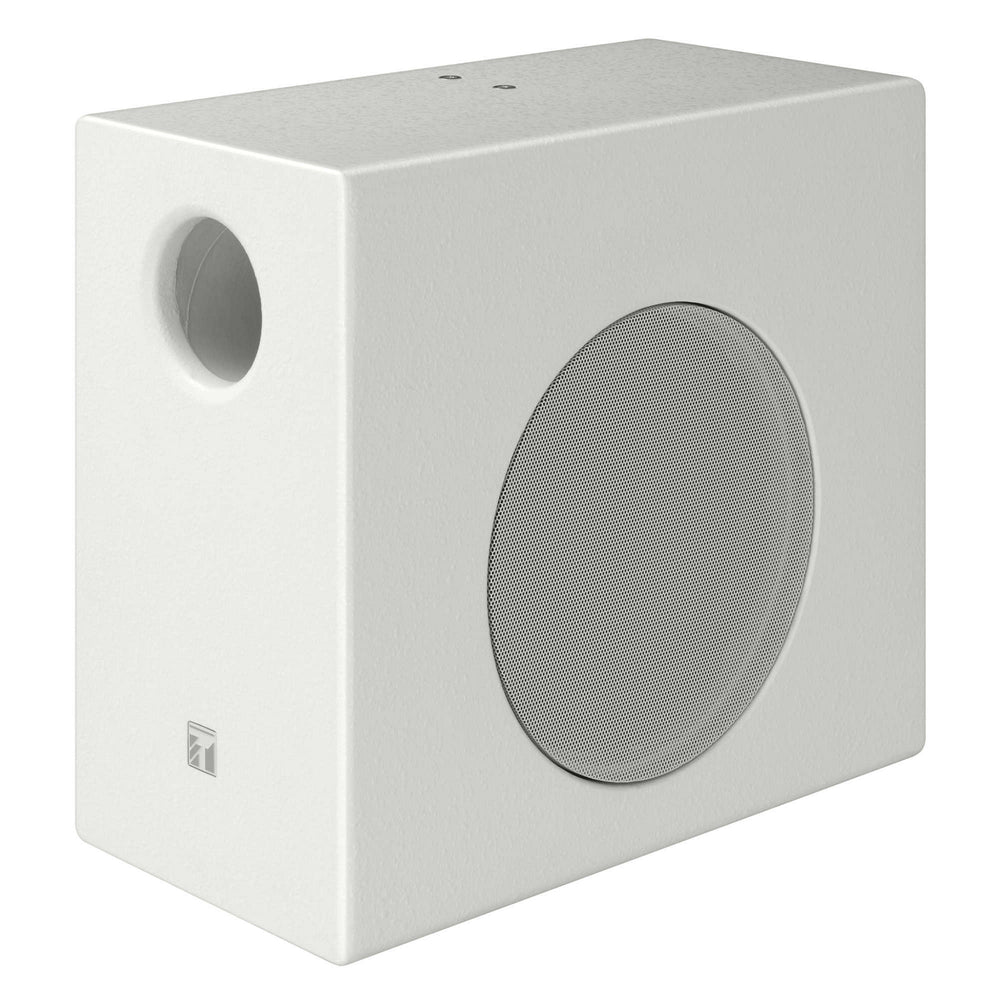

- Dual Color Options: Available in black (FB-08BT) or white (FB-08WT) to match installation environments and coordinate with other F-BOX Series speakers
- Flexible Connection Options: Supports both high impedance (100V/70V) and low impedance (8Ω) systems for versatile deployment
- Multiple Power Taps: Offers various impedance settings to optimize power distribution in different installation scenarios
- Extended Low-Frequency Response: Bass-reflex design provides frequency response down to 45 Hz for impactful low-end reproduction
- Substantial Power Handling: 120W rated noise power and 240W continuous program power capability ensures dynamic performance
- Versatile Mounting Options: Compatible with optional wall (HY-WM-FB08B) and ceiling (HY-CM-FB08B) mounting brackets for secure installation
- Compact Design: Space-efficient dimensions allow for discreet placement in commercial environments
- Durable Construction: MDF enclosure and steel grille provide robust protection and long-term reliability
Technical Specifications
- Enclosure: Bass-reflex type
- Rated Input: 120 W (100 V line, 70 V line)
- Power Handling: Rated noise power: 120 W (8 Ω), Continuous program: 240 W (8 Ω)
- Rated Impedance: 8 Ω, 100 V line: 83 Ω (120 W), 167 Ω (60 W), 70 V line: 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W)
- Sensitivity: 84 dB (1 W, 1 m) at installation in free sound field, 90 dB (1 W, 1 m) at installation in 1/2 free sound field
- Frequency Response: 45 - 300 Hz, –10 dB at installation in 1/2 free sound field
- Speaker Component: 20 cm (8") cone-type
- Input Terminal: M4 screw terminal, distance between barriers: 9 mm (0.35")
- Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F)
- Installation Environment: Indoor installation
- Finish: Enclosure: MDF, black (RAL 9011 equivalent), paint; Grille: Surface treated steel plate, black (RAL 9011 equivalent), paint
- Dimensions: 7.87" × 13.78" × 15.75" (200 mm × 350 mm × 400 mm) (W × H × D)
- Weight: 3.53 lb (16 kg)
Optional Accessories
- Wall Mounting Bracket: HY-WM-FB08B (Black)
- Ceiling Mounting Bracket: HY-CM-FB08B (Black)
- Note: Bolts and nuts for mounting the brackets to the wall or ceiling are not included and must be prepared separately.
Compatible Speakers
- F-03BT/F-03WT 3.5-inch Full-Range Surface-Mount Speaker
- F-05BT/F-05WT 5-inch 2-Way Surface-Mount Speaker
Applications
- Retail spaces requiring enhanced audio quality
- Restaurants and cafes
- Educational facilities
- Corporate offices and meeting rooms
- Houses of worship
- Hotel lobbies and function rooms
- Any indoor commercial environment requiring improved low-frequency reproduction
