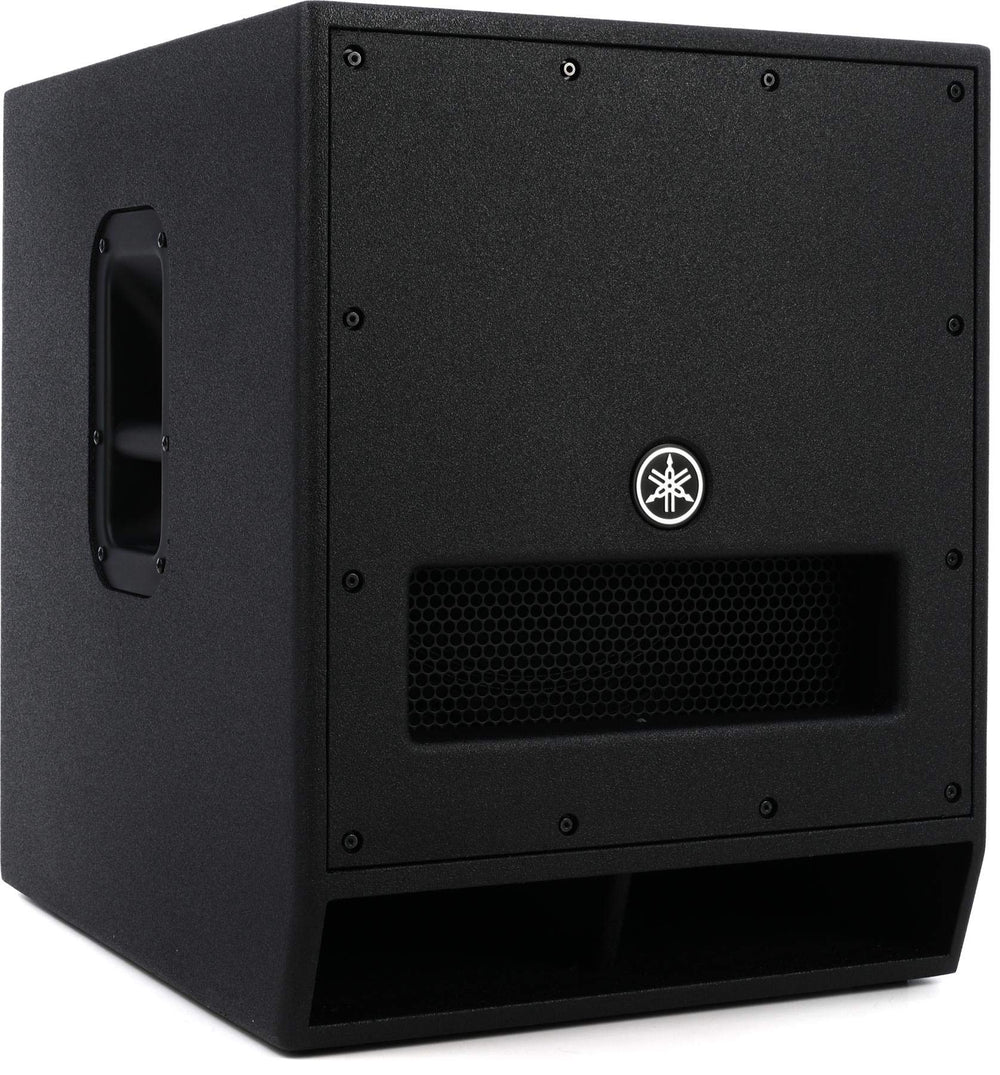

Yamaha DXS15MKII 15 Inch Active Subwoofer
Yamaha DXS15MKII 15 Inch Active Subwoofer
Yamaha DXS15MKII 15 Inch Active Subwoofer
The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz at a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high-power output is focused, powerful, and distortion-free. A custom made, long throw 15ā driver and 1020W of Class D power allow high output all night long!
Key Features
- 15" powered subwoofer, Band-pass type
- 15" cone, 2.5" voice coil
- Dynamic:1020W / Continuous: 800W
- INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
- Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
Technical Specifications
Speaker type
15" powered subwoofer, Band-pass type
Frequency range (-10dB)
40 Hz - 150 Hz
Components
LF
15" cone, 2.5" voice coil
Output power
Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis)
135 dB SPL
I/O connectors
INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Processors
D-XSUB: BOOST, XTD LF, NORMAL
Cooling
Natural convection
Power requirements
100V - 240V, 50Hz/60Hz
Power consumption
100W
Pole socket
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions
W
480 mm (18.90ā)
H
611 mm (24.06ā)
D
614 mm (24.17ā)
Net weight
36.0 kg (79.4lbs)
