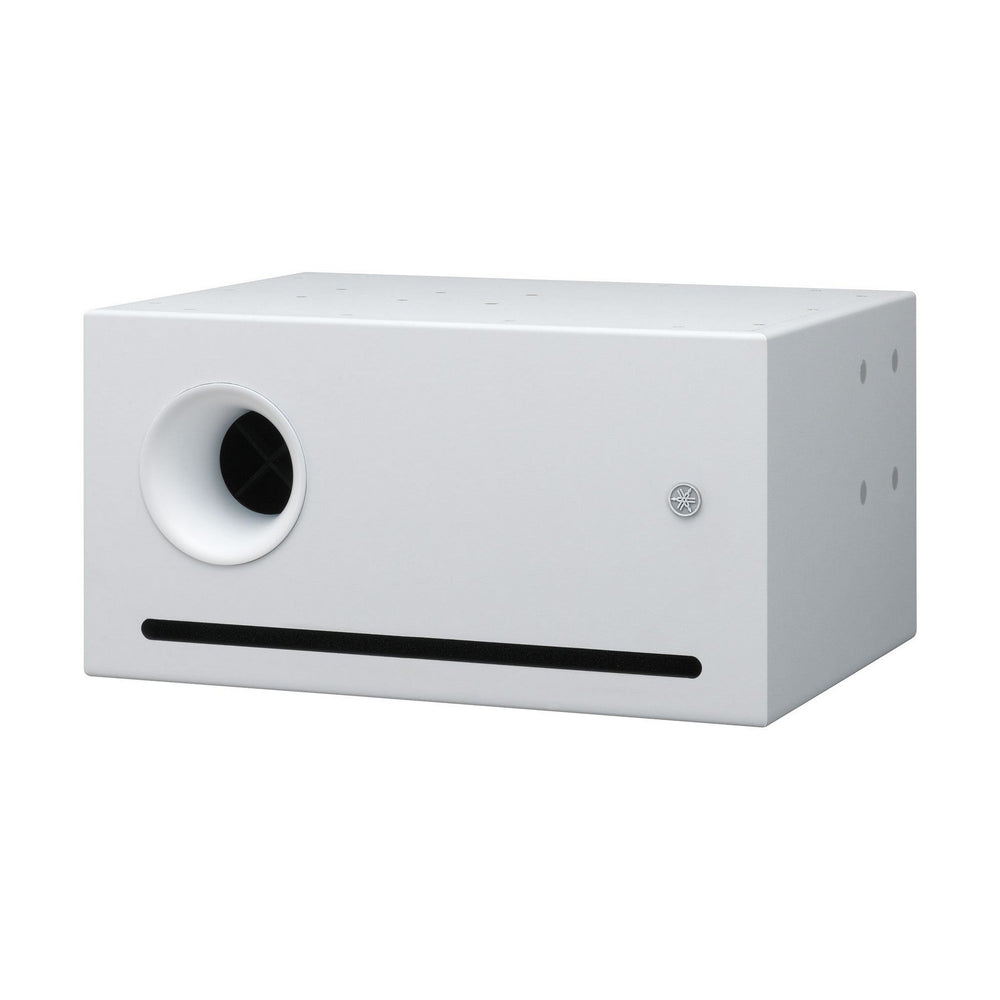

Yamaha VXS10ST High Impedance 10-Inch Subwoofer - White

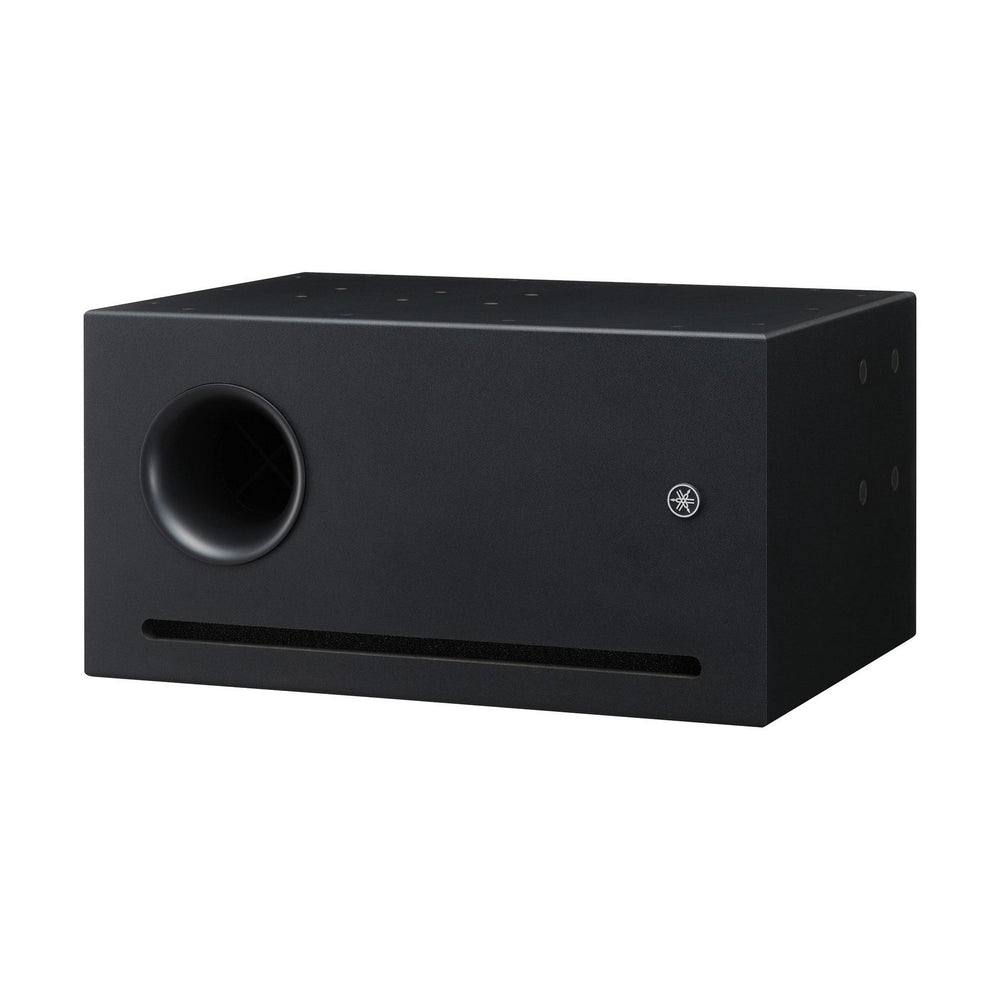

Yamaha VXS10ST High Impedance 10-Inch Subwoofer
10" dual voice coil subwoofer for high impedance systems
Key Features
- Ceiling speakers for any application
- Safe, seamless installation
- Comes included with a wall mount bracket
- EN54 compatible version with uncompromised performance
- Comes with only one speaker
Technical Specifications
Speaker type
Subwoofer
Frequency range (-10dB)
45Hz - 250Hz
Components
LF: 10" Dual Voice Coil
Satellite impedance
8 OHM load per satellite output recommended
Transformer taps
100V: 200W (50 OHM), 100W (100 OHM), 50W (200 OHM)
70V: 200W (25 OHM), 100W (50 OHM), 50W (100 OHM), 25W (200 OHM)
SPL
Sensitivity (1W; 1m on axis): 96dB SPL
I/O connectors
Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)
Shape
Rectangular
Cabinet material
MDF
Finish
VXS10ST: Black, VXS10STW: White
Dimensions
W: 260mm (10.2")
H: 500mm (19.7")
D: 389mm (15.3")
Net weight
19.5kg (43.0lbs)
Accessories
Wall mount bracket
Packaging
Packaged each
Certificate
CE, EAC, RoHS
