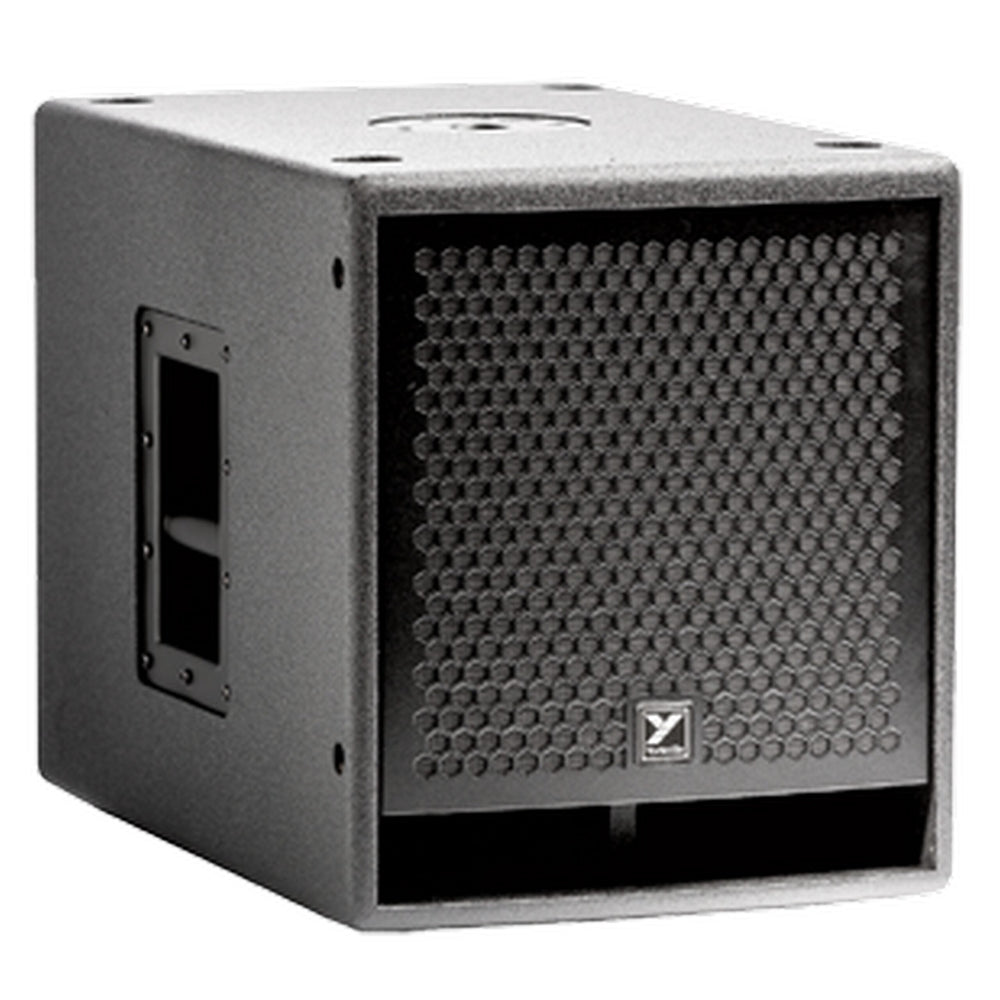

Yorkville PS12S ParaSource 12-Inch 1800 Watts Powered Subwoofer
Yorkville PS12S ParaSource 12-Inch 1800 Watts Powered Subwoofer
Yorkville PS12S ParaSource 12-Inch 1800 Watts Powered Subwoofer
The 900-watt ultra compact single 12-inch active PS12S bass reflex subwoofer is the ideal companion sub for the PS10P full range loudspeaker system. Solid 15mm birch plywood cabinet construction and an efficient Class-D power amplifier design provide unmatched long-term reliability in the field.
Key Features
- Ultra Compact High Performance Active Subwoofer
- Single 12-inch Long Throw Woofer w/ 3-inch VoiceCoil
- Max SPL 129dB Peak (123dB Continuous)
- Compact Bass Reflex Design
- Handles Line or Speaker Level (Powered) Input Sources
- XLR and 1/4-inch Inputs and Link Outputs
- Ideal Companion Subwoofer for Parasource PS10P
- Solid 15mm Birch Cabinet Construction
- Integrated Pole Mount Adaptor and All Metal Handles
- Made in Canada
Technical Specifications
Active or Passive
Active
Program Power (Watts)
900 Watts Program (1800 Watts Peak)
Max SPL (dB)
129dB Peak (123dB Continuous)
Frequency Response (Hz +/- 3dB)
45Hz - 100Hz
Crossover Frequency (Hz)
fixed @ 100Hz
Driver Configuration
1x12-inch (Bass Reflex Cabinet)
LF Driver(s)
1x12-inch Long Throw Ceramic w/ 3-inch VoiceCoil
Power Consumption
3.3 Amps
Inputs
XLR Balanced Line Level Input
1/4-inch Line or Speaker Level Input
Outputs
XLR Balanced Link Output
1/4-inch Link Output
Controls
Output Level, Line/Speaker Level Switch
Power/Limit/Clip LED's
Enclosure Materials
15mm Birch
Baffle Material
15mm Birch
Covering / Finish
Paint
Dimensions (DWH xbackW, inches)
22.8 x 14.7 x 16.85
Dimensions (DWH xbackW, cm)
57.9 x 37.4 x 42.8
Weight (lbs/kg)
65 / 29.6
