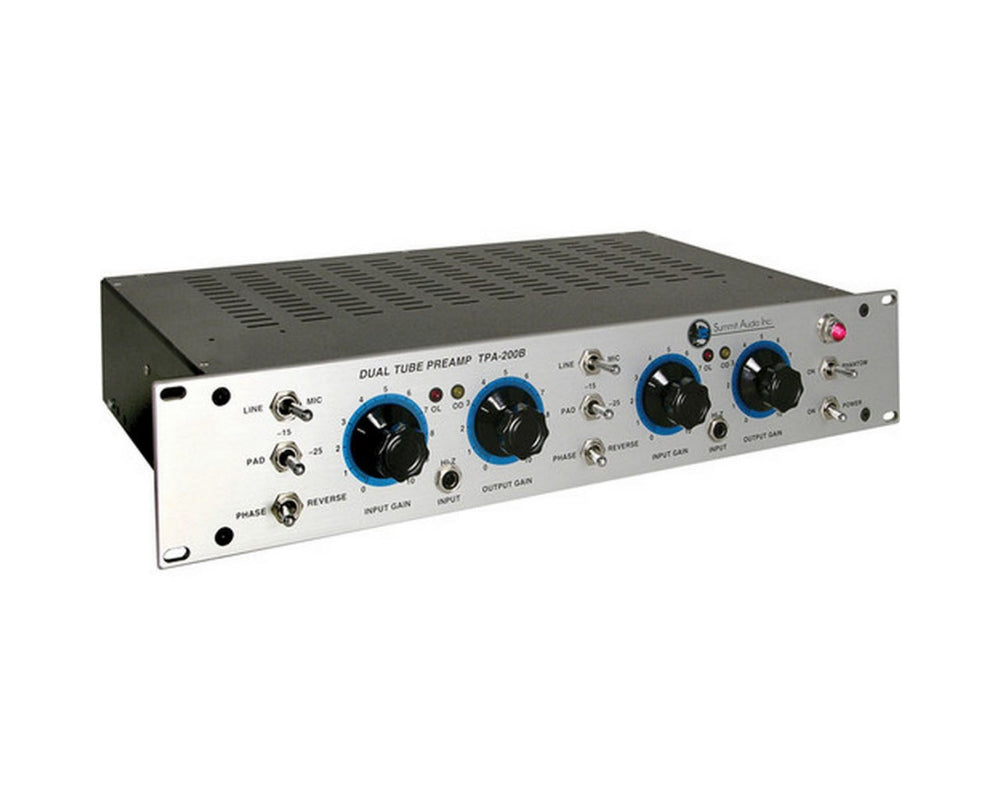

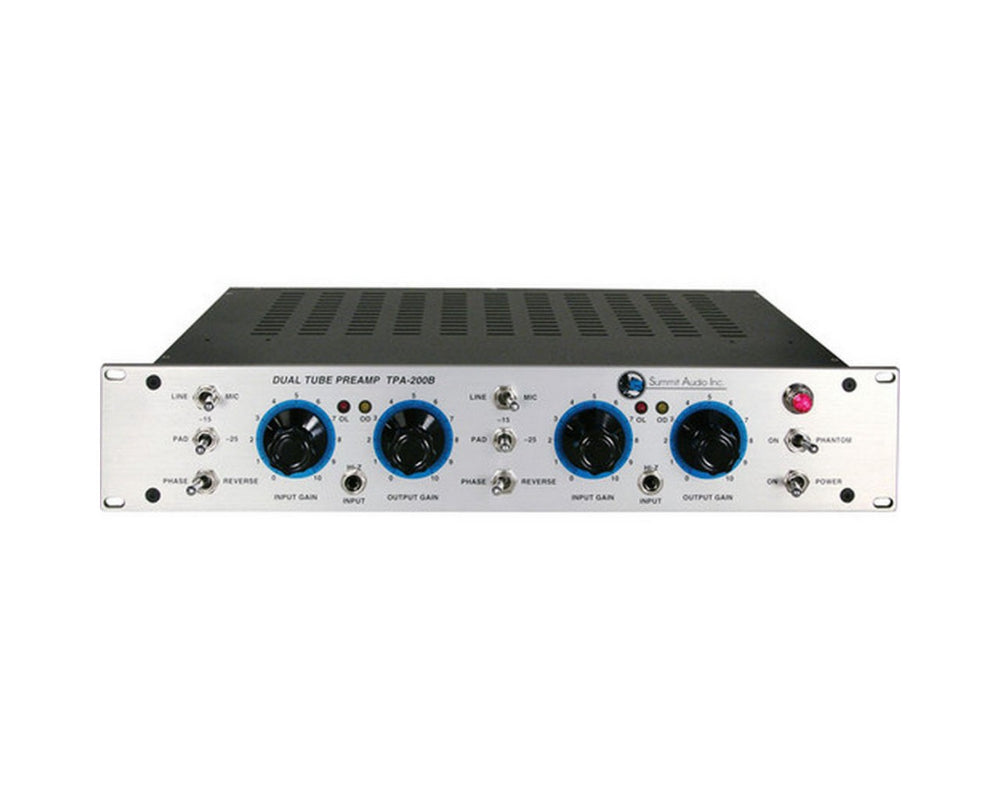

Summit Audio TPA-200B Dual Tube Microphone Preamplifier

The Summit Audio TPA-200B Dual Tube Microphone Preamplifier is dual-channel, tube/solid state hybrid microphone preamp featuring 3 input types - microphone input, line level input and front panel Hi-Z input. The unit is equally suited for tracking and mixing duties due to the constantly variable input and output gain that can overdrive the tubes in any amount.

The Jensen input transformers deliver an open and airy top end that enhances diverse signals, even those with dense frequency content such as voice and electric guitars. A 2 position pad switch allows for further signal enhancement and individual phase reverse switches help fix issues in multiple microphone setups.

Tracking and mixing

The Summit Audio TPA-200B Dual Tube Microphone Preamplifier is an incredibly easy to use dual channel preamplifier marrying a classic tube and transformer front end design with a more modern solid state output stage, resulting in ultra clean gain that really lets the warmth and rich harmonic detail of the tube come through.

Huge range of tone

The Summit Audio TPA-200B Dual Tube Microphone Preamplifier allows you to set gain clean and pristine or layer tube input saturation all the way to thick harmonic distortion with all sorts of variations in between. Each of the two channels has its own set of knobs that control input gain and output gain. For cleaner applications, set the input gain lower and the output gain at maximum. For more harmonics and tube distortion, simply increase the input gain while decreasing the output gain to balance the overall signal level.

Key Features

• Dual channel, tube/solid state hybrid microphone preamp with microphone, line and front-panel Hi-Z inputs
• Completely variable input and output allows for driving the tubes as hard or as lightly as desired, providing tones that vary from crystal clear and open, to full tube saturation, and any tone in between
• Other sonic options include the 2 position input pad that provides a choice as to how hard to drive the input Jensen microphone transformer
• Overload and Overdrive indicators
• Global switchable +48V phantom power
• Universal internal power supply
• Hand-crafted in the USA

Technical Specs

Number of Channels

2

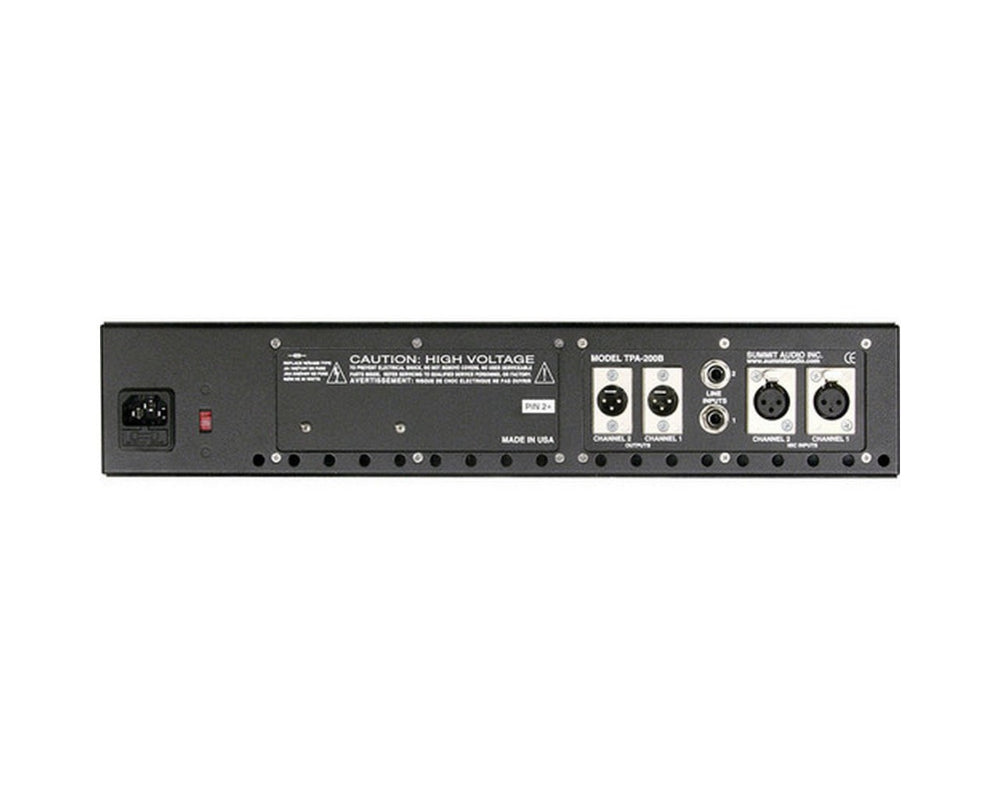

Inputs

2 x XLR Microphone

2 x 1/4" TRS phone Line

2 x 1/4" TS phone (front panel)

Output

2 x XLR

Phantom Power

+48V

Multi Function

No

Gain Range

Maximum gain: 75dB

Maximum Output Level

+25dBu

Frequency Response

10Hz to 50kHz, -1.0dB

Noise

EIN: -135dB average (unweighted), 10Hz to 20kHz

Power Requirements

115V~230V, 50/60Hz

35W 1

Dimensions (WxDxH)

19 x 10.5 x 3.5" (483 x 267 x 89mm)

Weight

17 lbs

Specialties

3 x 12AX7A vacuum tubes
