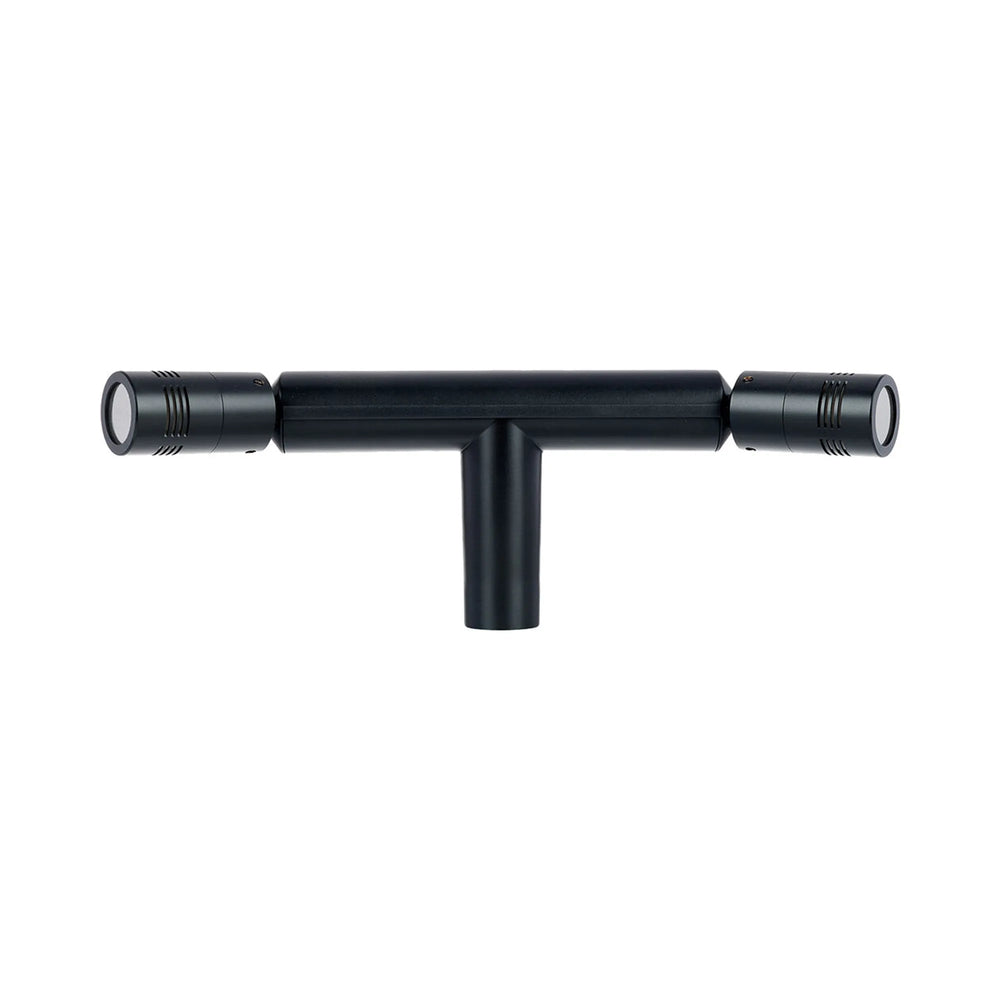

Superlux S502MKII ORTF Stereo Condenser Microphone

The Superlux S502 ORTF recording microphone has earned an outstanding reputation in the professional audio industry. Building on this success, Superlux is pleased to announce a new improved version, the S502MKII.

The S502MKII features specialized diaphragm technology that provides better directivity, a lower S/ N ratio and improved total harmonic distortion.

The new Superlux S502MKII reveals more sound detail with extended high frequency response. Compared to the original S502, the new S502MKII delivers a flatter frequency response with a crystalclear, natural sound quality that captures a wide stereo field with increased depth and realism.

The Superlux S502MKII ORTF stereo microphone is a perfect choice for any professional recording or sound reinforcement application.

Key Features

• 1/2” OD 3μm ultra-thin diaphragm capsule
• Uniform frequency response
• ORTF fixed standard capsule arrangement
• Balanced output
• Best for stereo sound field recording
• Extra-low background noise

Technical Specifications

Type
True condenser, Ø1/2” (Ø12.7mm) matched pair
Polar Pattern
Cardioid
Frequency Response
40-20,000 Hz
Sensitivity
-37 dBV/Pa (15.8mV)
Output Impedance
200 Ω
Min. Load Impedance
1,000 OHMS
S/N Ratio
79dB
Equivalent Output Noise
15dB (A-weighted, IEC/DIN651)
Max. SPL
134dB (THD < 1%1000Hz)
Dynamic Range
117dB
Power Requirements
48V DC, 4.5mA
Finish
Black
Connector
XLR5M
Pin
Left channel pin 2/3; Right channel pin 4/5; pin 2/4 connect to “+” signal; pin 1 connect to shield and ground
Dimensions Capsule
Ø22.5mm (Ø0.89”), Width 184.5mm, High 66.8mm (Width 7.26”, High 2.63”)
Net Weight
245g (8.6 oz)
