SurgeX 240V/10A International Diagnostic Power Filter and Scope Meter with Multi-Meter Function

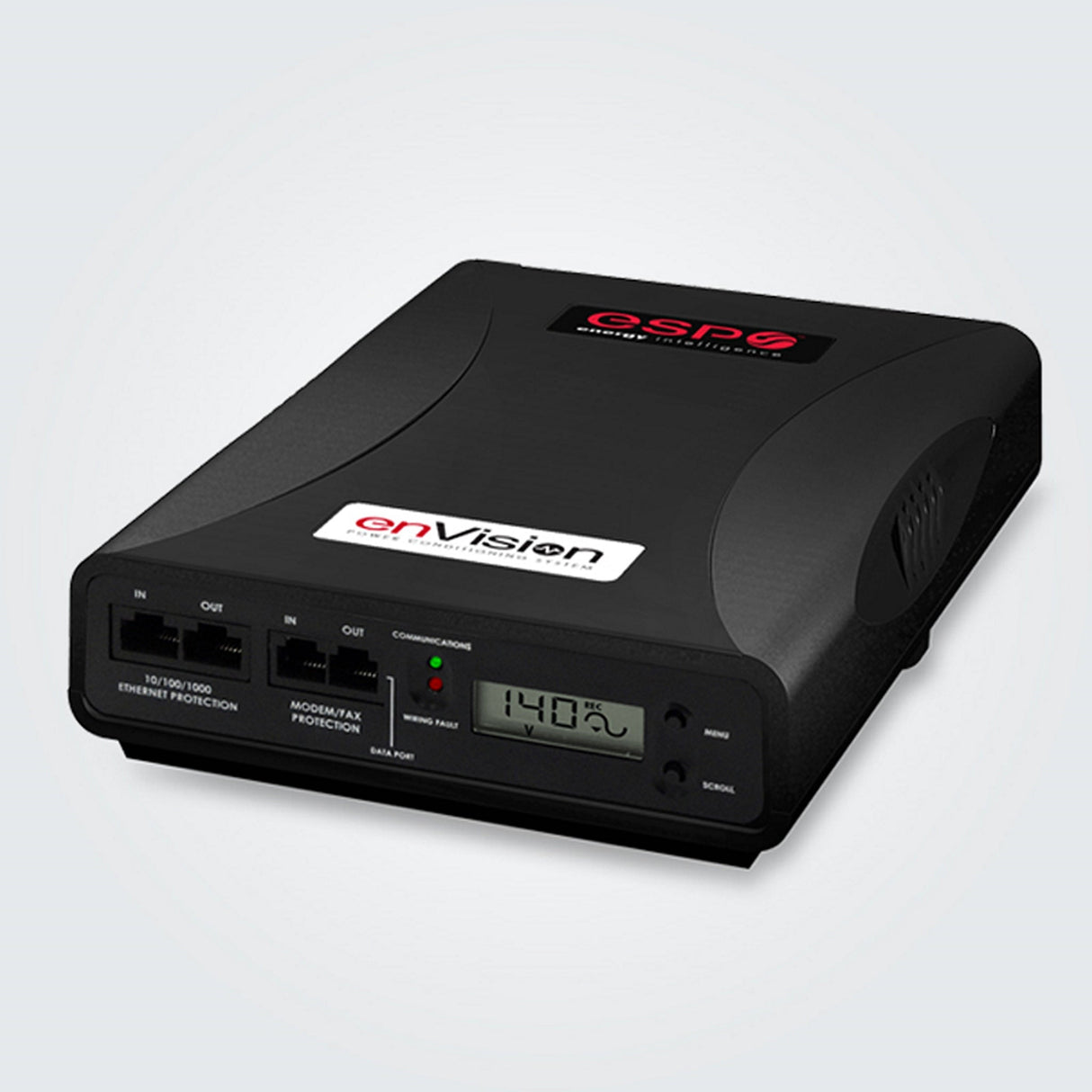

The SurgeX EV-23010 enVision Power Conditioning System is a state-of-the-art solution designed to safeguard and optimize the performance of sensitive electronic equipment. Operating at 240V with a 10A load rating, this device offers comprehensive power protection and diagnostic capabilities, making it an essential tool for professionals in various industries.
Equipped with advanced predictive analytics software, the EV-23010 continuously monitors power conditions, identifying potential issues before they impact equipment performance. Its multi-stage power protection includes catastrophic over/under voltage shutdown, inrush current elimination, and EMI/RFI filtering, ensuring connected devices remain safe from electrical disturbances.
With a compact design measuring 2" x 6.13" x 8.38" and weighing 10 lbs, the EV-23010 is suitable for both rack-mounted and standalone installations. It features two IEC C13 outlets and provides remote access capabilities via an optional Remote Portal module, offering flexibility and control for technicians and service teams.
Key Features
- Advanced Power Monitoring: Measures line and neutral to ground voltage, crest factor, power factor, and line frequency metrics.
- Event Logging: Records up to 512 time-stamped events with specific date and time.
- Historical Data: Stores max/min/avg data for up to 138 days.
- Multi-Stage Protection: Includes catastrophic over/under voltage shutdown, inrush current elimination, and EMI/RFI filtering.
- Internal Battery: Ensures continuous operation during power interruptions.
- Remote Access: Capable of remote monitoring with optional Remote Portal module.
Technical Specifications
- AC Voltage: 240 Volts
- Current Draw: 10 Amps
- Power Requirement (no load): 4 Watts
- Under-Voltage Shutdown: Adjustable from 0 V to 220 V (Default 160 V)
- Over-Voltage Shutdown: Adjustable from 220 V to 300 V (Default 280 V)
- Internal Memory Capacity: 512 Power Quality Events with Timestamp
- Response Time: 90ms Over-Voltage / 200ms Under-Voltage
- Temperature Range: 41°F - 95°F (5°C - 35°C)
- Humidity Range: 5% - 95% R.H. Non-condensing
- Certifications: UL Certified
What's Included
- 1x SurgeX EV-23010 enVision Power Conditioning System
- Diagnostic Software
- Interface Cord
