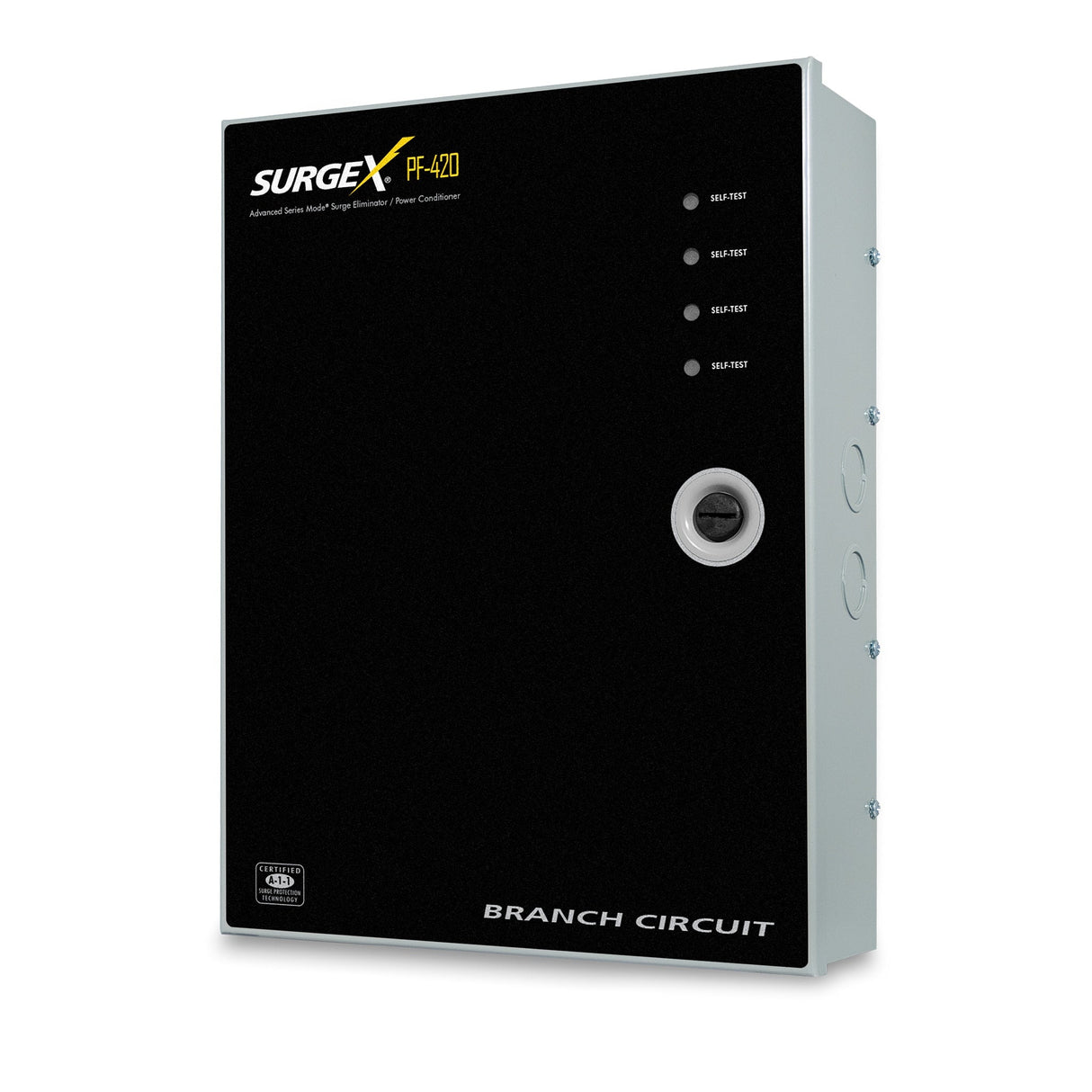

SurgeX PF-420 Branch Circuit 120V Whole Room Surge Protector
The SurgeX PF-420 Branch Circuit Surge Eliminator delivers professional-grade whole-room power protection and conditioning. Designed with advanced Series Mode® surge elimination technology, it completely eliminates surge energy without producing harmful side effects such as ground contamination or common-mode disturbances. Ideal for AV systems, control rooms, and mission-critical environments, this surge protector ensures zero let-through voltage, maximizing the protection of sensitive electronic equipment.

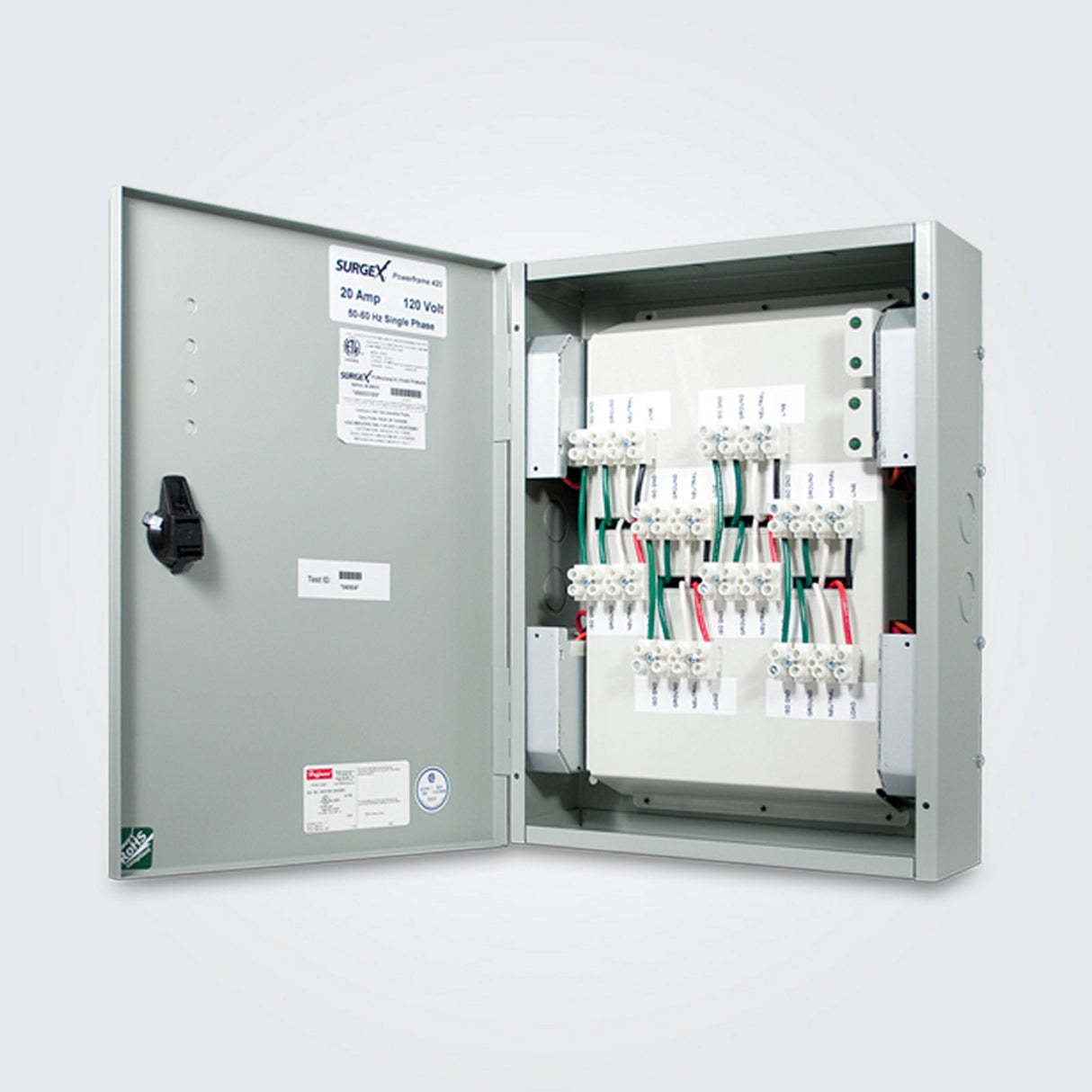

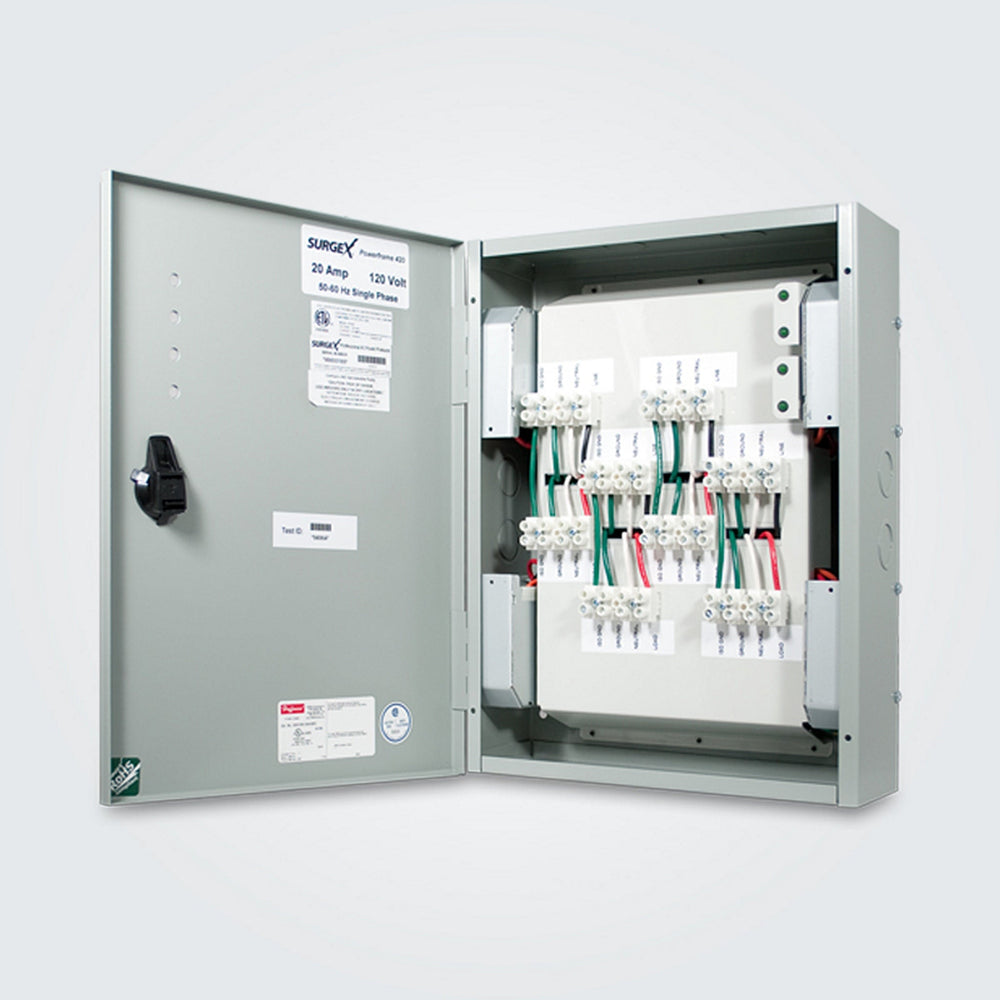

Built into a NEMA-rated magnetic shielding steel enclosure, the PF-420 includes four independent 20A circuits that support a total of 80A at 120V. Its compact and robust form factor allows for versatile installation, whether at the electrical service entrance, within a sub-panel, or in-ceiling plenum spaces. Featuring Impedance Tolerant® EMI/RFI filtering, inrush current elimination, and a self-test circuit with visual indicators, the PF-420 guarantees optimal performance and reliable operation for high-demand power applications.
Key Features
- Advanced Series Mode® Surge Elimination: Zero let-through voltage and no ground contamination.
- Impedance Tolerant® EMI/RFI Filtering: Ensures clean power delivery and optimal equipment performance.
- Four Independent 20A Circuits: Total capacity of 80A at 120V for branch circuit protection.
- NEMA-Rated Steel Enclosure: Durable magnetic shielding for secure installations.
- Inrush Current Elimination: Prevents harmful startup surges.
- Self-Test Circuit: Provides real-time status via a visual indicator.
Technical Specifications
- Load Rating: 20A per circuit @ 120V (80A total)
- Power Requirement (No Load): 15W per circuit
- Surge Let-Through Voltage: 0V, withstands up to 6,000V surges
- EMI/RFI Filtering (Normal Mode): 40 dB @ 100 kHz, 50 dB @ 300 kHz, 50 dB @ 3 MHz, 50 dB @ 30 MHz
- EMI/RFI Filtering (Common Mode): 18 dB @ 300 kHz, 30 dB @ 1 MHz, 50 dB @ 5 MHz, 50 dB @ 20 MHz
- Dimensions (H x W x D): 16.0" x 12.0" x 4.0"
- Weight: 30 lbs
- Operating Temperature: 41°F to 95°F (5°C to 35°C)
- Humidity Range: 5% to 95% non-condensing
- Certifications: ETL and cETL listed
Included in the Box
- SurgeX PF-420 Surge Eliminator & Power Conditioner
- Limited 10-Year Warranty
