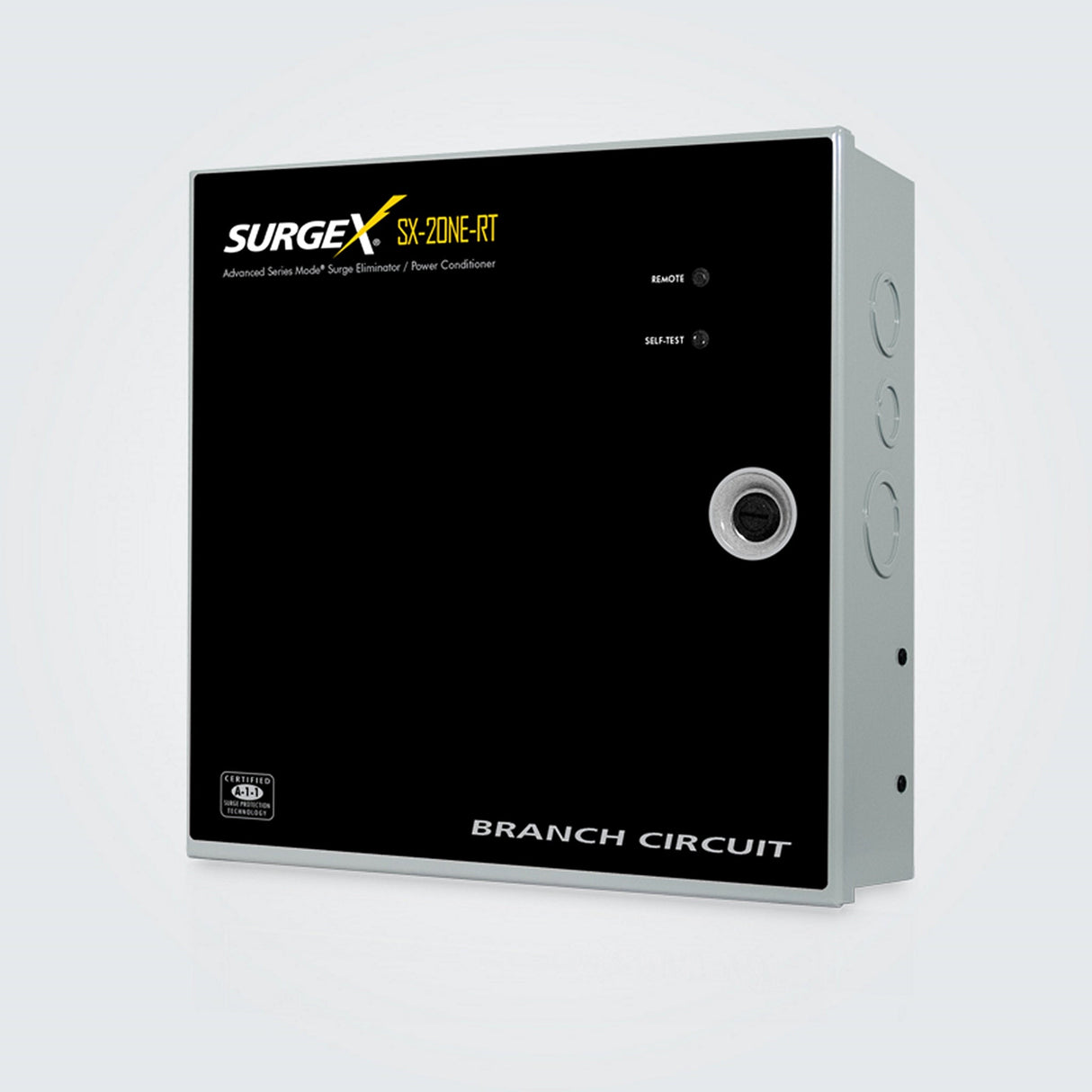

SurgeX SX-20NE-RT Branch Circuit 120V/20A Surge Eliminator and Power Conditioner, Hardwired

SurgeX | SKU: SUR-SX20NERT
$98900

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

SurgeX SX-20NE-RT Branch Circuit 120V/20A Surge Eliminator and Power Conditioner, Hardwired

The SurgeX SX-20NE-RT is a professional-grade branch circuit surge eliminator and power conditioner designed to provide whole-room protection for audio, video, and mission-critical equipment. Engineered with Advanced Series ModeĀ® surge elimination technology, it effectively eliminates surge energy up to 6,000 volts without producing harmful side effects such as ground contamination or common-mode disturbances. Housed in a NEMA-rated magnetic shielding steel enclosure, the SX-20NE-RT is suitable for installation at service entrances, sub-panels, and in ceiling plenums, ensuring compliance with code requirements.

This unit features Inrush Current Elimination (ICEĀ®) to prevent equipment damage during power-up, and supports remote turn-on capabilities for convenient control in professional environments. With a 20-amp load capacity, the SX-20NE-RT offers reliable power distribution and conditioning, safeguarding connected devices from electrical anomalies and ensuring optimal performance.

Key Features

  • Advanced Series ModeĀ® Surge Protection: Eliminates surge energy up to 6,000 volts without harmful side effects.
  • Inrush Current Elimination (ICEĀ®): Prevents equipment damage during power-up by controlling inrush currents.
  • Remote Turn-On Capability: Allows for convenient control in professional environments.
  • Self-Circuit with Visual Indicator: Provides immediate visual feedback on circuit status.
  • Non-Sacrificial Components: Ensures continuous protection without the need for replacement parts.
  • NEMA Rated Magnetic Shielding Steel Enclosure: Suitable for installation at service entrances, sub-panels, and in ceiling plenums.

Technical Specifications

  • Load Rating: 20A @ 120V
  • Power Requirement (No Load): 15W
  • Surge Let-Through Voltage (6000V Surge): 0 Volts
  • Maximum Applied Surge Voltage: 6000 Volts
  • Maximum Applied Surge Current: Unlimited (Due to current limiting)
  • Maximum Applied Surge Energy: Unlimited (Due to current limiting)
  • EMI/RFI Filtering: Impedance Tolerant EMI/RFI filtering
  • Over-Current Auto Shutdown: Circuit Breaker
  • Auxiliary Relay Outputs: 2x screw terminal
  • Contact Closure Input: 2x screw terminal
  • Dimensions (H x W x D): 12" x 12" x 4"
  • Weight: 12 lbs
  • Temperature Range: 41°F to 95°F (5°C to 35°C)
  • Humidity Range: 5% to 95% RH, non-condensing
  • Agency Listings: Conforms to UL Stds 1283 & 1449; Certified to CSA Std C22.2 No. 8

What's Included in the Box

  • SurgeX SX-20NE-RT Branch Circuit Surge Eliminator & Power Conditioner
  • User Manual
