SurgeX SX-AX20E-15L Axess Elite 120V/20A Power Management System, 1RU

SurgeX | SKU: SUR-SXAX20E15L
$2,69900

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

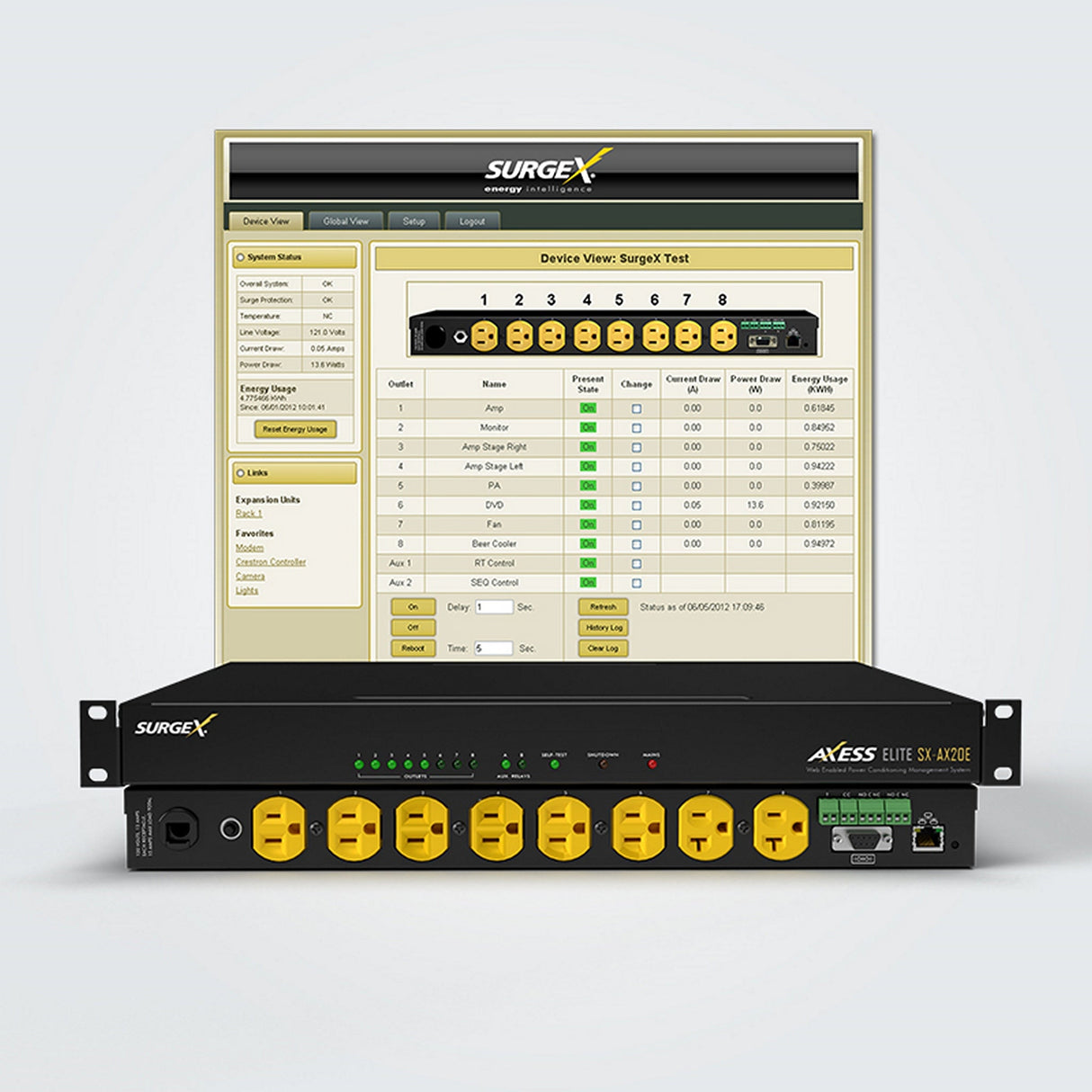

SurgeX SX-AX20E-15L Axess Elite 120V/20A Power Management System, 1RU

The SurgeX SX-AX20E-15L Axess Elite is a 1RU rackmount power management system designed to provide comprehensive power protection and control for mission-critical AV, IT, and broadcast installations. Featuring Advanced Series Mode® surge elimination technology, this unit ensures non-sacrificial protection against power disturbances without producing harmful side effects such as ground contamination or common-mode disturbances.

Equipped with IP-enabled control, the SX-AX20E-15L allows for remote monitoring, management, and advanced scheduling through an intuitive web interface. It offers seamless integration with third-party control systems and SurgeX CONNECT, enabling remote power cycling, analytics, and management from anywhere. With 8 switched outlets (6 NEMA 5-15R and 2 NEMA 5-20R), a 15-foot locking power cord, and external sensors, it's designed for versatility and safety.

Key Features

  • Advanced Series Mode® Surge Protection: Eliminates surge energy without producing harmful side effects.
  • IP-Enabled Control: Remote monitoring and management via web interface and third-party systems.
  • Inrush Current Elimination (ICE®): Prevents equipment damage during power-up by controlling inrush currents.
  • Advanced Scheduling: Allows for precise power sequencing and scheduling.
  • Swappable Locking Power Cord: Provides flexibility and secure connections.
  • External Temperature and Humidity Sensor: Monitors environmental conditions for optimal performance.
  • Scalable Control: Manage a single unit or link up to 16 for expanded control.

Technical Specifications

  • Load Rating: 20A @ 120V
  • Frequency: 50/60Hz
  • Outlets: 6 NEMA 5-15R, 2 NEMA 5-20R (all switched)
  • Measurement Accuracy: Voltage ±2%, Current ±5%, Power ±7%, Energy ±7%
  • Timestamp Accuracy: ±1%
  • Auxiliary Relay Outputs: 2x 3-screw terminal
  • Contact Closure Input: 1x 2-screw terminal
  • Temperature and Humidity Sensor Input: 1x 4-screw terminal
  • Serial Port: RS232
  • Network Port: 10/100 Ethernet (RJ-45)
  • Dimensions: 1.75" H x 19" W x 12.25" D
  • Weight: 13 lbs
  • Operating Temperature: 41°F - 95°F (5°C - 35°C)
  • Humidity Range: 5% - 95% R.H. Non-condensing
  • Certifications: UL 1283, UL 1449, CSA C22.2 No. 8

What's Included in the Box

  • SurgeX SX-AX20E-15L Axess Elite Power Management System
  • 15' Grounded 3-Wire Locking Line Cord
  • Rack Mount Hardware
  • User Manual
