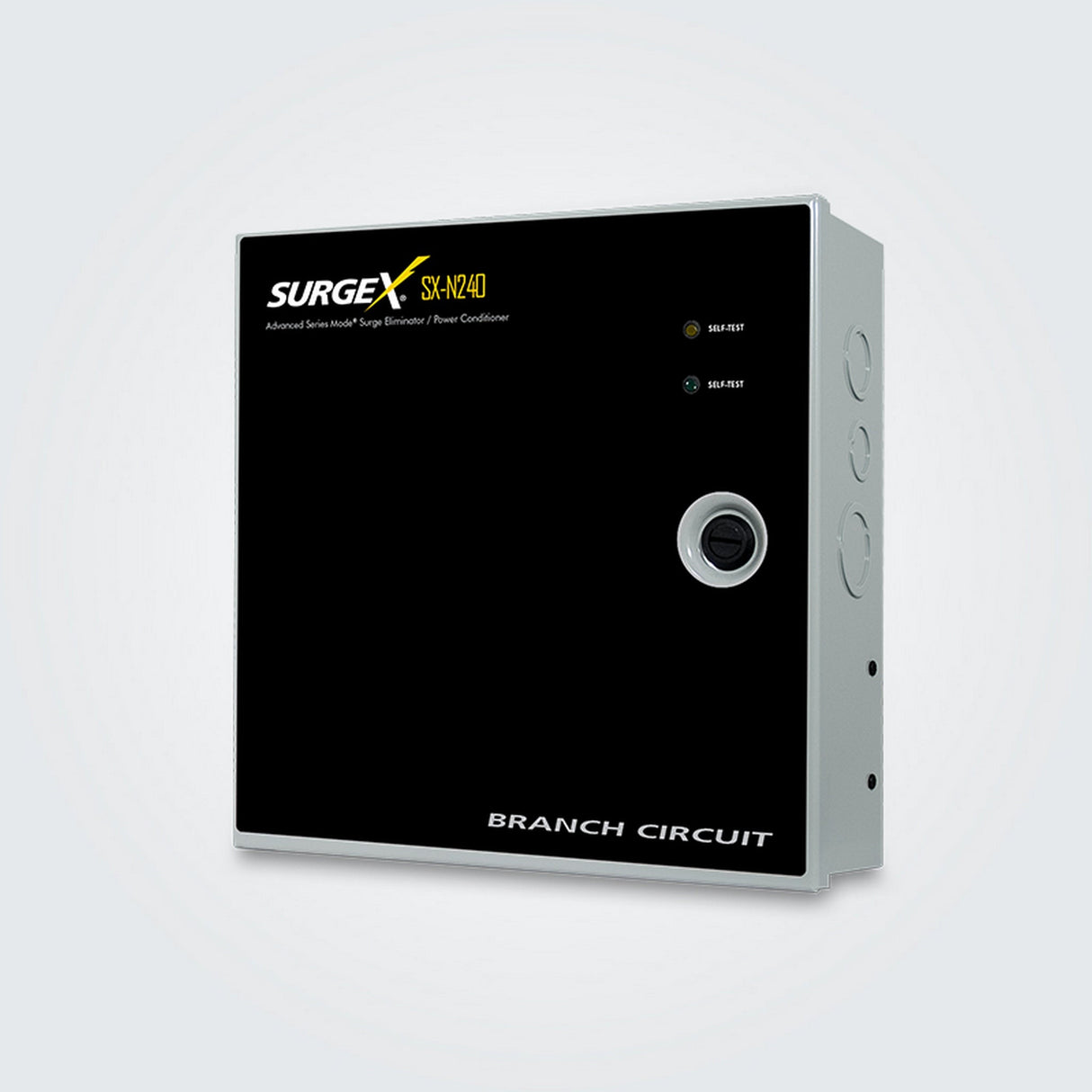

SurgeX SX-N240 Branch Circuit Surge Eliminator 240V Whole Room Power Protection, Hardwired Installation

SurgeX | SKU: SUR-SXN240
$1,24900

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

SurgeX SX-N240 Branch Circuit Surge Eliminator 240V Whole Room Power Protection, Hardwired Installation

The SurgeX SX-N240 is a high-performance branch circuit surge eliminator designed to provide comprehensive surge protection and power conditioning for sensitive electronic equipment. Engineered for 240V applications, this unit is ideal for safeguarding audio, video, broadcast, and computer systems at the service panel or sub-panel level. Its robust construction and advanced features make it a reliable choice for environments where power quality is critical.

Encased in a NEMA-rated steel enclosure, the SX-N240 offers a 20A load rating and operates at 240V AC. It utilizes SurgeX's Advanced Series Mode technology, ensuring zero let-through voltage and eliminating harmful side effects such as ground contamination or common-mode disturbances. The device can withstand up to 6,000V of surge voltage without degradation, providing peace of mind for users in demanding applications.

Key Features

  • Load Rating: 20A at 240V AC
  • Surge Withstand Capability: Up to 6,000V without degradation
  • Power Consumption: 8W (no load)
  • Enclosure: NEMA-rated steel for durability and safety
  • EMI/RFI Filtering: Impedance Tolerant technology for enhanced performance
  • Self-Test Circuit: Visual indicator for operational status
  • Installation: Hardwired via barrier strip accessible through knock-outs

Technical Specifications

  • Dimensions: 12.0" H x 12.0" W x 4.0" D
  • Weight: 14 lbs
  • Voltage Rating: 240V AC
  • Load Rating: 20A
  • Power Consumption: 8W (no load)
  • Surge Withstand Capability: 6,000V
  • Enclosure: NEMA-rated steel
  • Installation: Hardwired via barrier strip

What's Included in the Box

  • SurgeX SX-N240 Branch Circuit Surge Eliminator
  • Installation Manual
  • Warranty Registration Information
