SurgeX Vertical Series+ Smart 120V/12A Power Distribution Unit, 16 Outlets - Standard

SurgeX | SKU: SUR-SXVS1216
$1,09900

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

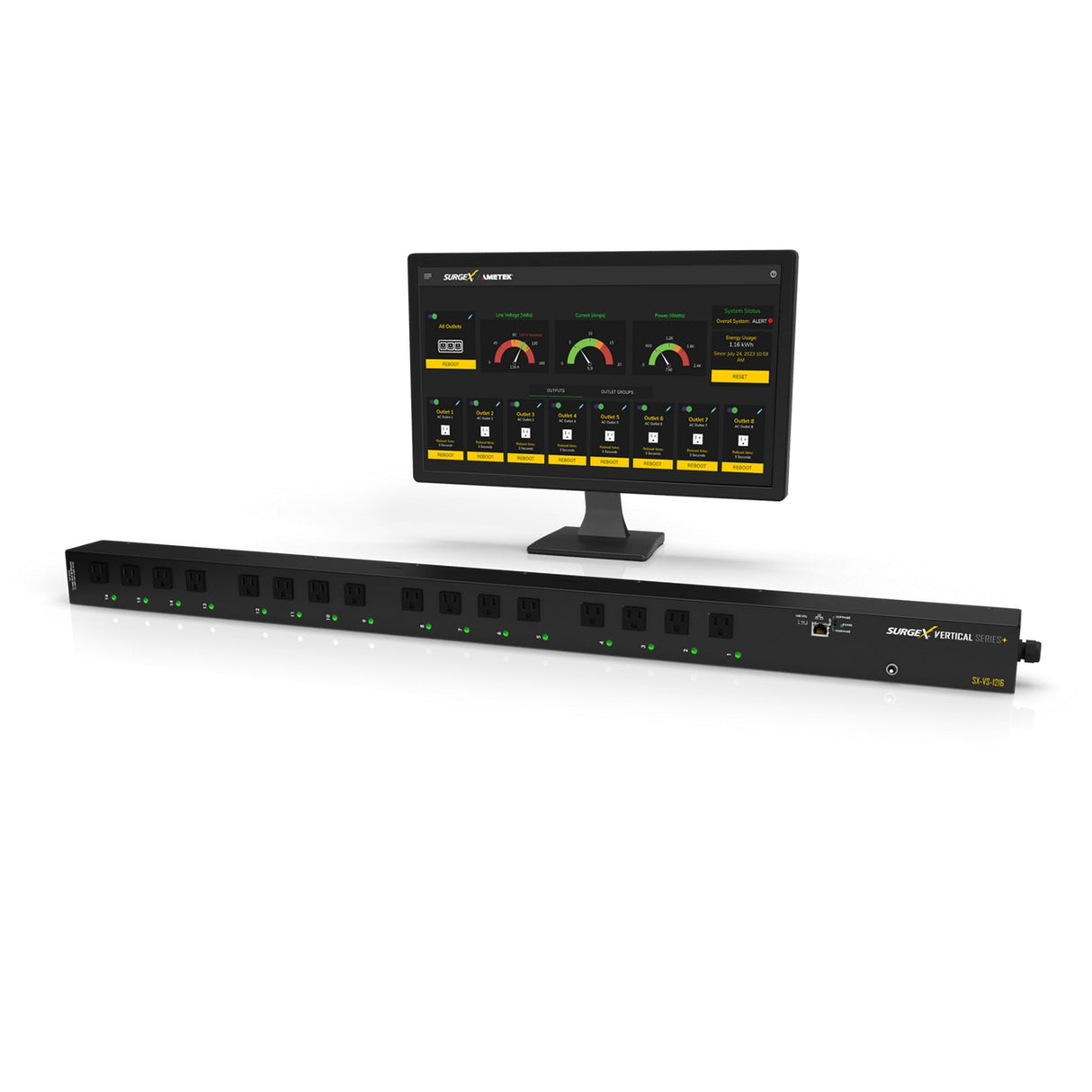

SurgeX Vertical Series+ Smart 120V/12A Power Distribution Unit, 16 Outlets

The SurgeX SX-VS-1216 Vertical Series+ Smart Power Distribution Unit (PDU) is engineered to provide efficient and reliable power management for professional audio, video, and broadcast environments. With 16 NEMA 5-15R outlets and a 12A load rating, this 120V PDU offers robust features tailored for demanding applications.

Designed for vertical rackmount installation, the SX-VS-1216 optimizes space while delivering comprehensive power distribution. It integrates seamlessly with SurgeX CONNECT, a cloud-based platform that enables real-time monitoring and management of connected devices. This PDU supports remote power control, sequencing, scheduling, and advanced analytics, ensuring optimal performance and minimizing downtime.

Key Features

  • Outlet Configuration: 16 x NEMA 5-15R receptacles
  • Load Rating: 12A at 120V AC
  • Connectivity: IP-controlled with RJ-45 Ethernet port
  • Remote Management: SurgeX CONNECT compatible for cloud-based monitoring
  • Power Control: Individually switchable outlets with remote turn-on/off and power cycling
  • Scheduling & Sequencing: Advanced scheduling, AutoPing, and threshold-triggered events
  • Integration: Seamless integration with third-party control systems
  • Surge Protection: Single-stage surge protection for connected equipment
  • Enclosure: 0RU vertical rackmount design
  • Cord Length: 9 feet (2.75 meters)

Technical Specifications

  • Dimensions: 42.5" (L) x 2.76" (W) x 2.6" (H)
  • Weight: 14.1 lbs
  • Voltage: 120V AC, 60 Hz
  • Current Accuracy: ±5%
  • Power Accuracy: ±5%
  • Energy Accuracy: ±5%
  • Timestamp Accuracy: ±1%
  • Network Port: 10/100 Ethernet (RJ-45)
  • USB Port: Micro-USB (RNDIS device)
  • Operating Temperature: 32°F to 113°F (0°C to 45°C)
  • Operating Humidity: 5% to 95% non-condensing
  • Altitude: Up to 10,000 feet (3,048 meters)
  • Certifications: UL 62368-1, RoHS, REACH, Prop 65
  • Warranty: 5-year limited warranty

What's Included in the Box

  • SurgeX SX-VS-1216 Vertical Series+ Smart PDU
  • Installation Manual
  • Warranty Registration Information
