SurgeX Vertical Series+ Smart PDU 12A Power Distribution Unit, 8 Outlets - Standard

SurgeX Vertical Series+ Smart PDU 12A Power Distribution Unit, 8 Outlets

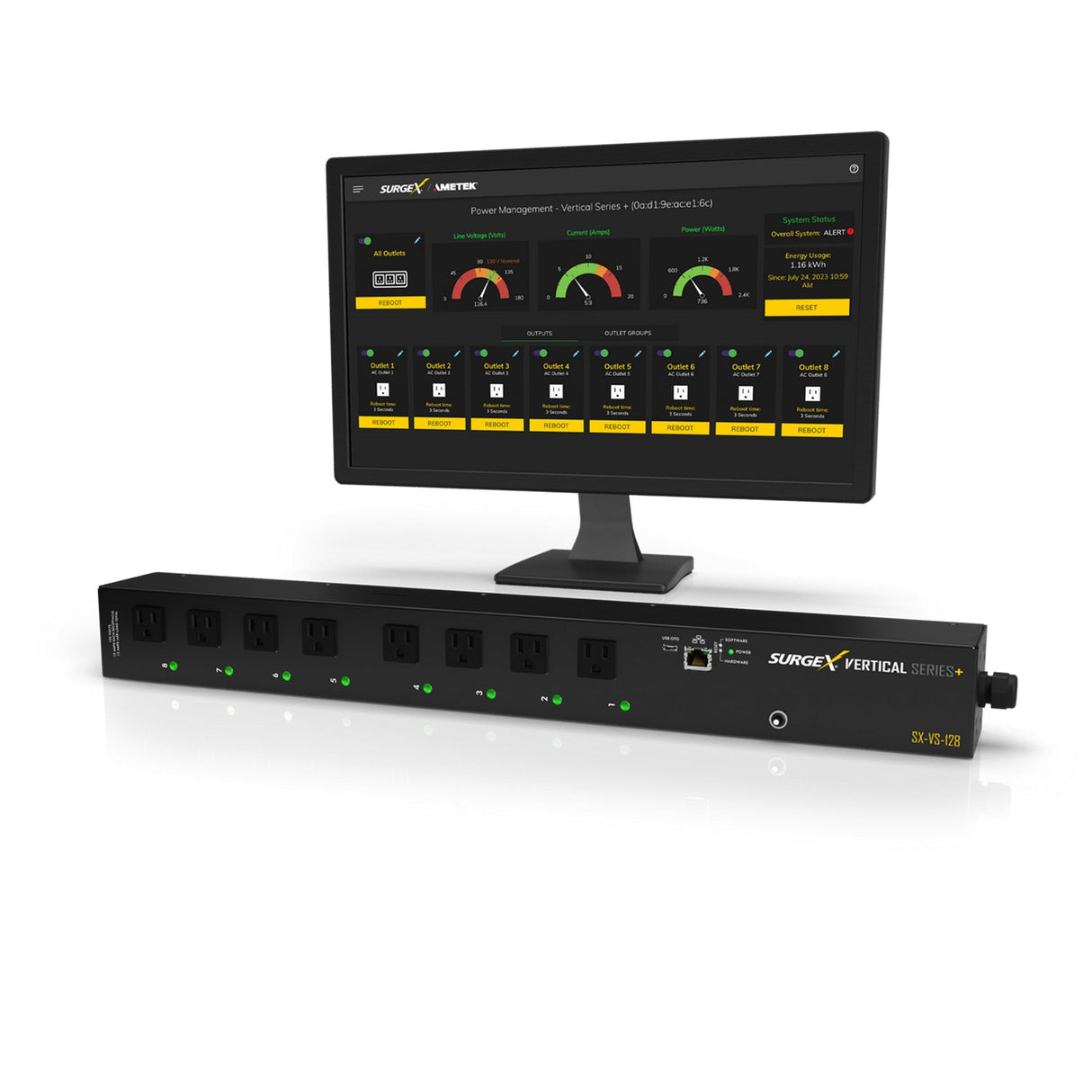

The SurgeX SX-VS-128 Vertical Series+ Smart Power Distribution Unit (PDU) is engineered to deliver reliable and intelligent power distribution for professional audio, video, and broadcast applications. Featuring eight NEMA 5-15R outlets with a 12 amp load capacity at 120V, this PDU is designed for vertical rackmount installation to save space while providing robust power management.

With integrated smart monitoring capabilities and compatibility with SurgeX CONNECT, the SX-VS-128 enables remote outlet control, real-time power consumption monitoring, and advanced power sequencing. Its built-in surge elimination protects sensitive equipment from power disturbances, enhancing system uptime and reliability in critical environments.

Key Features

• Outlet Configuration: 8 NEMA 5-15R outlets
• Load Capacity: 12 amps at 120 volts
• Form Factor: Vertical rackmount (0RU)
• Remote Monitoring: Cloud-enabled via SurgeX CONNECT platform
• Power Control: Individually switchable outlets with scheduling and sequencing options
• Surge Protection: Integrated single-stage surge elimination
• Connectivity: RJ-45 Ethernet port for IP control and management
• Cord Length: 9 feet (2.75 meters)

Technical Specifications

• Dimensions: 21.3" (L) x 2.75" (W) x 2.6" (H)
• Weight: 7.5 lbs
• Voltage: 120V AC, 60 Hz
• Current Accuracy: ±5%
• Power Accuracy: ±5%
• Energy Accuracy: ±5%
• Operating Temperature: 32°F to 113°F (0°C to 45°C)
• Operating Humidity: 5% to 95% non-condensing
• Certifications: UL 62368-1, RoHS, REACH
• Warranty: 5-year limited warranty

What's Included in the Box

• SurgeX SX-VS-128 Smart PDU
• Installation Guide
• Warranty Documentation
