SWIT CW-H150D 500ft Uncompressed HDMI Wireless Transmission System with Panasonic VW-VBD Battery Mount
SWIT CW-H150D 500ft Uncompressed HDMI Wireless Transmission System with Panasonic VW-VBD Battery Mount

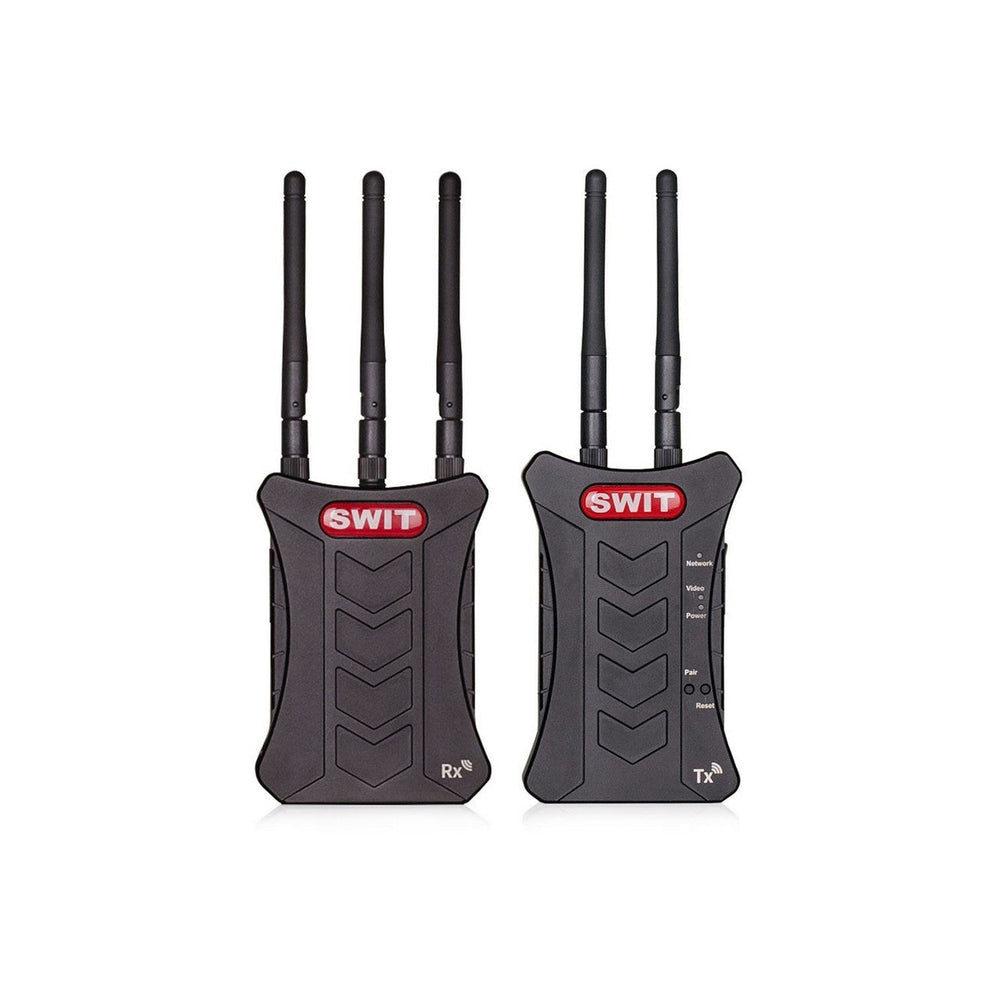

The CW-H150D from SWIT is a wireless video transmission system including one transmitter and one receiver for wirelessly transmitting 1080p60 uncompressed HDMI video signal up to 500ft by using a license-free frequency (5.1GHz-5.9GHz) band with less than 1ms latency.
Key Features
- 500 ft (LOS) transmission distance
- Professional WHDI technology
- DFS(Dynamic Frequency Selection) Technology
- Uncompressed HDMI signal, 1080p60
- 2ch HDMI embedded audio transmission
- Latency: 1 millisecond
- 5.1-5.9GHz license-free operation frequency
- system auto configurable frequency bands
- Multicast - 1 transmitter to multi receivers
- Less than 63mW radio power
- AES 256bit encryption
- Transmitter: 1 HDMI 1.3 input Receiver: 1 HDMI 1.3 input
- Indicators: video, network, power
- Panasonic VBD/CGR-D series plate
- All-metal housing, durable
- Pure hardware connection; Plug and Play
Technical Specifications
Wireless frequency
5.1-5.9GHz
Radio modules
OFDM 16QAM
Operation Frequency
5.1-5.9GHz
Power consumption
6.5W on both transmitter and receiver
Input voltage
DC / Battery:6.5-17V for both transmitter and receiver
Working environment Temperature
0C -+40C
Dimension
transmitter 3.0x5.0x1.4 inch (77-126-35 mm) / receiver 3.2x4.6x1.4 inch (82-118-35 mm)
Net weight
transmitter 9.5 oz lb(267g) / receiver 9.5 oz (267g)
