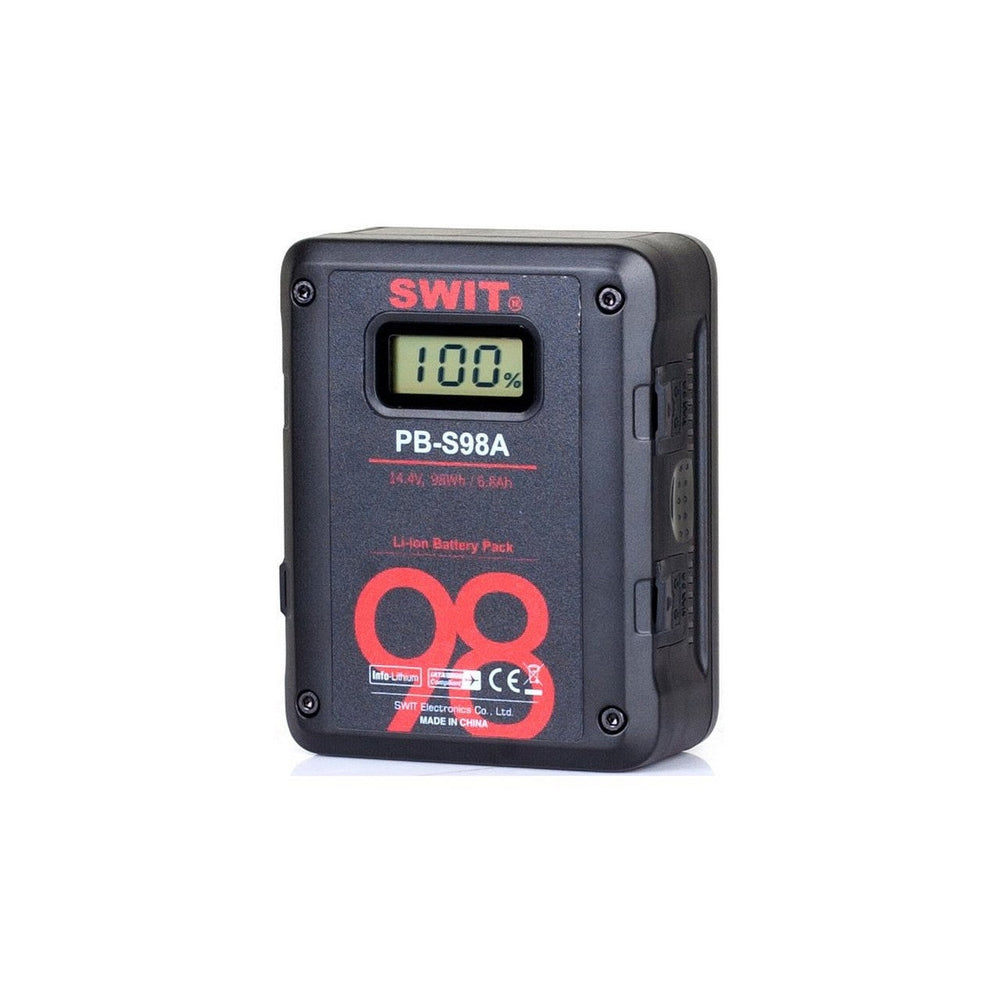

SWIT PB-S98A 98Wh Multi-Socket Square Gold Mount Li-Ion Battery
SWIT PB-S98A 98Wh Multi-Socket Square Gold Mount Li-Ion Battery
The SWIT PB-S98A is a 98Wh Gold mount battery, and features a compact designed with 2x D-tap DC output and one USB 5V/1A charging port It is convenient for powering other camera devises simultaneously or charging mobile devices. The max power output of this battery is 100W/8A. PB-S98A features an LCD screen for displaying power level in percentages, remaining running time, low power warnings and battery cycle times. The battery features a built-in intelligent circuit for multiple protections of over current, over/under voltage and abnormal temperature. PB-S98A can be charged by SWIT Gold mount chargers or Anton Bauer Gold mount chargers, the other third party chargers may not charge battery correctly.
Key Features
- 98Wh Lithium-Ion Gold Mount Battery
- High-load Li-ion cells
- Max 100W, 8A constant output
- 2x 14.4V D-tap DC output socket
- 1x 5V/2A USB charging port
- LCD display power level/running time
- Low power remaining alert
- LCD refreshes in every 2 second
- Multiple circuit protections
Technical Specifications
Output voltage
14.4V
Capacity
98Wh
Max output power
100W
Max output current
8A
Max output via D-tap
100W/8A
Max output via USB
10W, 5V/2A
Max charging current
3A
Mount type
V-mount
Operation temperature
0 - 40 C
Net weight
Approx 1.7 lb /0.8kg
Dimensions
4.8 x 3.7 x 2.3 inch / 121 x 95 x 59mm
