Switchcraft TA4FX ROHS Tini Q-G Miniature Connector Straight Female Plug

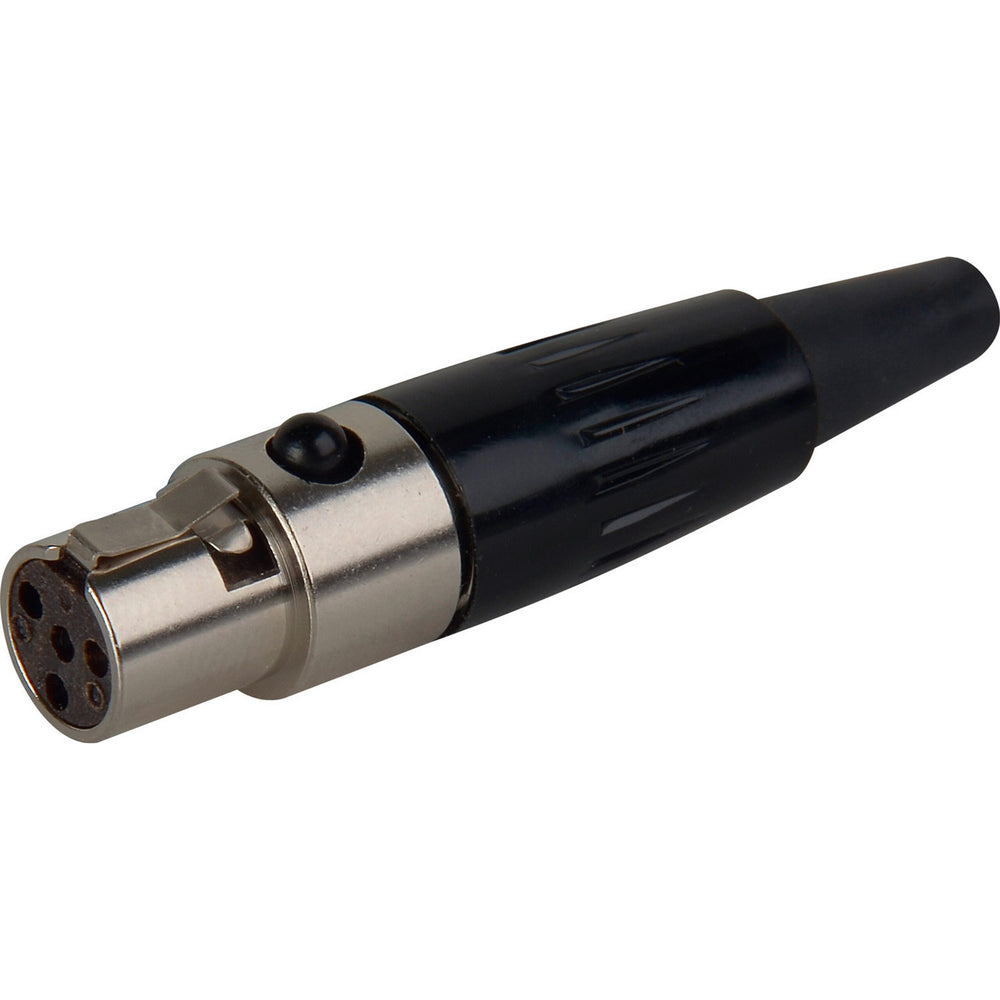

Switchcraft TA4FX Tini Q-G Miniature 4-Pin XLR Connector Straight Female Cord Plug
Technical Specifications
ELECTRICAL
Contact Resistance
.010 ohms maximum after life (and after salt spray).
Current Rating (Carry Only)
5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum.
Insulation Resistance
510,000 megohms minimum @ 500 VDC (initial); 10,000 megohms minimum (after humidity test).
Dielectric Strength
1,000 V (rms).
MECHANICAL
Life
5,000 operations minimum
Insertion/Withdrawal Forces (after life)
6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal.
Solderability Standard
Meets EIA RS-186-9E.
Mechanical Shock
Meets MIL-STD-202, method 213B.
Vibration
Meets MIL-STD-202, method 201A.
Wire Size
#22 wire gauge solid; #24 wire gauge stranded.
ENVIRONMENTAL
Thermal Range
-55°C to + 85°C.
Humidity
Meets MIL-STD-202, method 106D.
Thermal Shock
Meets MIL-STD-202, method 107D.
Salt Spray
Meets MlL-STD-202, method 101.
MATERIAL
Housing, Plugs and Male Receptacles
Copper alloy, nickel-plated. Female Receptacle-Die-cast zinc, nickel-plated.
Black Tini Q-G Housing
Copper alloy, black chrome-plated.
Pin and Socket Contacts
Copper alloy, silver-plated.
Flex Relief
Molded black thermoplastic elastomer.
Latch Button
Molded black thermoplastic.
Release Lever and Mounting Washer
Steel, nickel-plated.
Standoff/Ground Terminal and Cable Clamp
Steel, electrotinned.
Inserts and Insulating Spacer
Molded, high strength thermoplastic
Latch (Female)
Copper alloy, nickel-plated.
Mounting Nut
Copper alloy, nickel-plated.
