Synology RKS-02 Sliding Rail Kit for Rackmount NAS

Synology RKS-02 Sliding Rail Kit for Rackmount NAS Servers

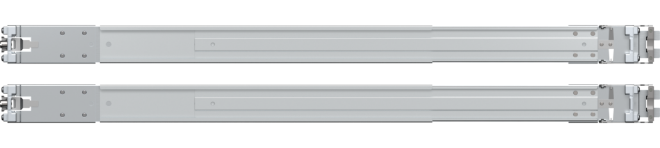

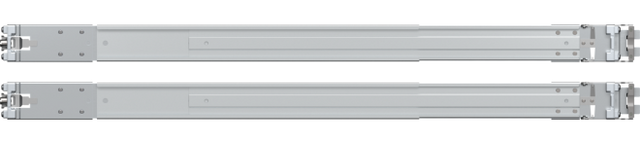

The Synology RKS-02 is a sliding rail kit designed to enable easy installation and maintenance access for Synology rackmount NAS and expansion units. Compatible with a wide range of rack depths from 610 mm to 890 mm, the RKS-02 fits standard 19-inch server racks with square or round hole configurations.

Ideal for IT administrators and data center professionals deploying Synology rackmount systems, the RKS-02 is purpose-built for organizations that need reliable, slide-out access to their FS series, SA series, and RS/RX series servers without fully removing units from the rack. Perfect for high-density storage environments where frequent drive replacements or maintenance tasks demand quick, slide-out accessibility.

Backed by Synology's 1-year limited warranty, the RKS-02 is an OEM-quality accessory engineered to Synology's exacting standards. Synology is a globally recognized leader in network-attached storage solutions trusted by enterprises, SMBs, and IT professionals worldwide.

Key Features of the Synology RKS-02

• Sliding Rail Design: Allows full slide-out access to rackmounted Synology units for easy maintenance without full removal from the rack.

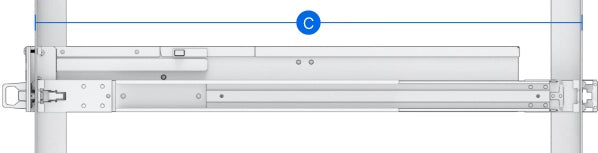

• Wide Rack Depth Compatibility: Supports rack mounting depths from 610 mm to 890 mm, fitting a broad range of standard server cabinets.

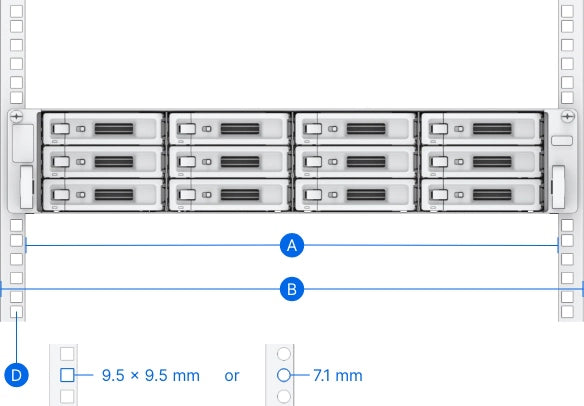

• Square and Round Hole Support: Compatible with square holes (9.5 mm x 9.5 mm minimum) and round holes (7.1 mm minimum diameter) for maximum rack flexibility.
• Broad Synology Model Compatibility: Works with FS, SA, and RS/RX series spanning from the 9 series through the 21 series, covering decades of Synology rackmount hardware.
• Standard Rack Sizing: Requires a minimum panel width of 480 mm and mount post width of 450 mm or greater, meeting standard 19-inch rack specifications.
• 1-Year Limited Warranty: Covered by Synology's manufacturer warranty for peace of mind in professional deployments.

Technical Specifications

• Model: RKS-02
• Item Dimensions (L x W x H): 35 x 4 x 3 inches
• Weight: 7.9 lbs
• Rack Mounting Depth: 610 mm to 890 mm
• Minimum Mount Post Width: 450 mm
• Minimum Panel Width: 480 mm
• Square Hole Support: Minimum 9.5 mm x 9.5 mm
• Round Hole Support: Minimum 7.1 mm diameter
• Warranty: 1 Year Limited
• Compatible Series: FS3400, FS3017, FS2017, SA3400, SA3200D, RS4021xs+, RS3621xs+, RS3621RPxs, RS2421RP+, RS2421+, RS1221RP+, RS1221+, RS820RP+, RS1619xs+, RS1219+, RS819, RXD1219sas, RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, RX2417sas, RX1217sas, RX1217RP, RS18016xs+, RS2416RP+, RS2416+, RS816, RS815RP+, RS815+, RS815, RX415, RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+, RS814, RX1214RP, RX1214, RS10613xs+, RS3413xs+, RX1213sas, RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, RS812, RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, RS411, RX1211RP, RX1211, RS810RP+, RS810+, RX410, RS409RP+, RS409+, RS409, RX4
